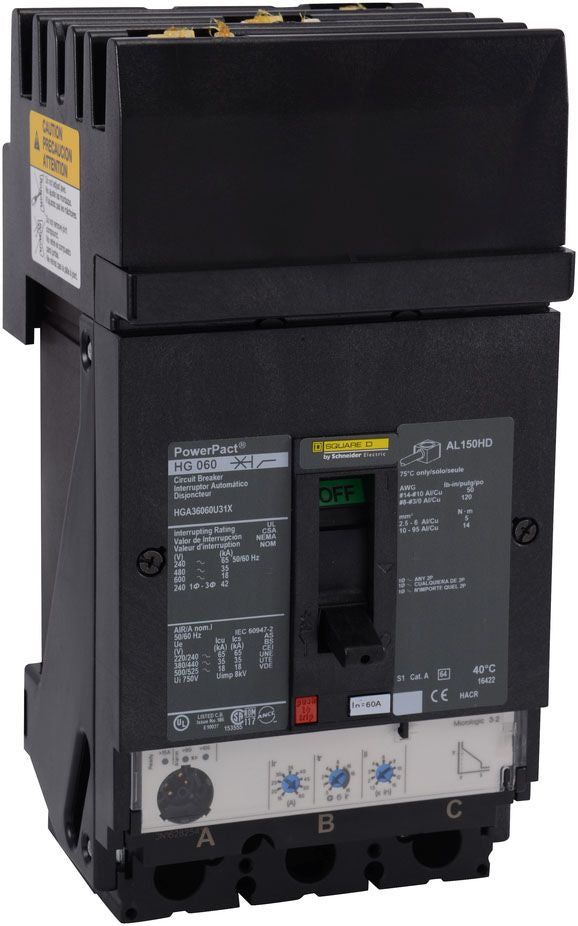

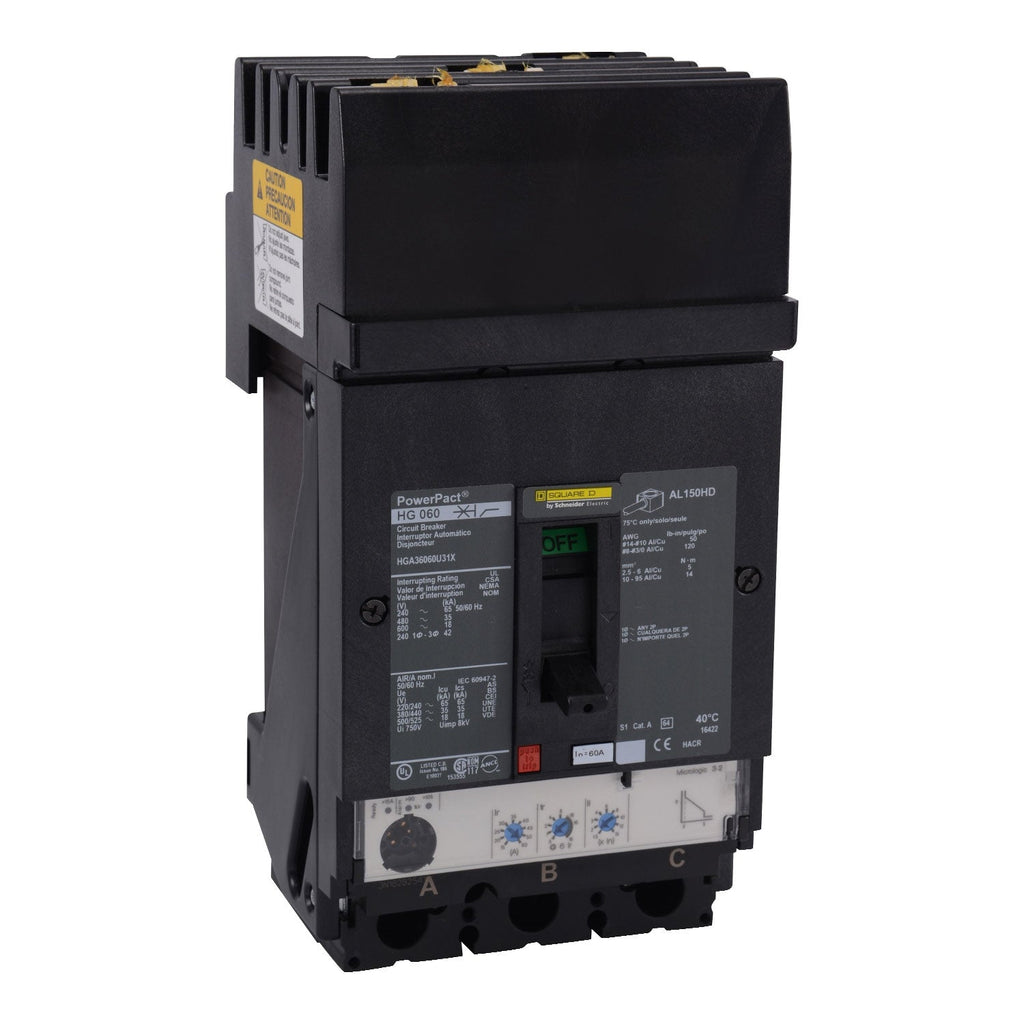

HDA36060U33X - Square D 60 Amp 600 Volt 3 Pole I-Line Style Plug-In Circuit Breaker

HDA36060U33X

HDA36060U33X is a Square D 3 pole, 60 amp, 600 volt I-Line style plug-in molded case circuit breaker designed for reliable power distribution protection.This PowerPact H frame breaker features an electronic trip unit with long-time, short-time, and instantaneous protection. It has a 14kA interrupting rating at 600V AC and is UL listed, CSA certified, and meets IEC standards. The breaker is suitable for ABC phase connection and offers a compact design with plug-in mounting for easy installation.

• Amperage: 60 A
• Voltage: 600 V AC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 14 kA at 600 V AC
• Frame/Series: PowerPact H (HDA type)
• Trip Unit: Electronic (LSI - Long-Time, Short-Time, Instantaneous)
• Certifications: UL Listed, CSA, IEC, CCC, CE
• Phase: ABC
• Breaking Capacity: 25 kA at 240 V AC, 18 kA at 480 V AC
• Manufacturer: Square D
• UPC: 785901674306

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA36060U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long Time, Short Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901674306
• GTIN : 00785901674306
• Country of Origin : United States

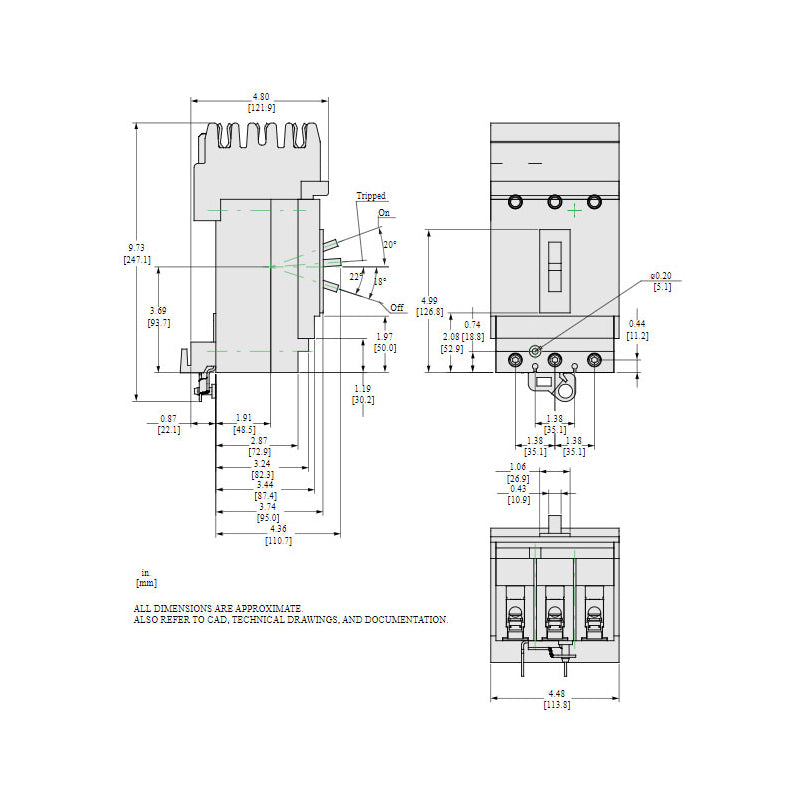

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
