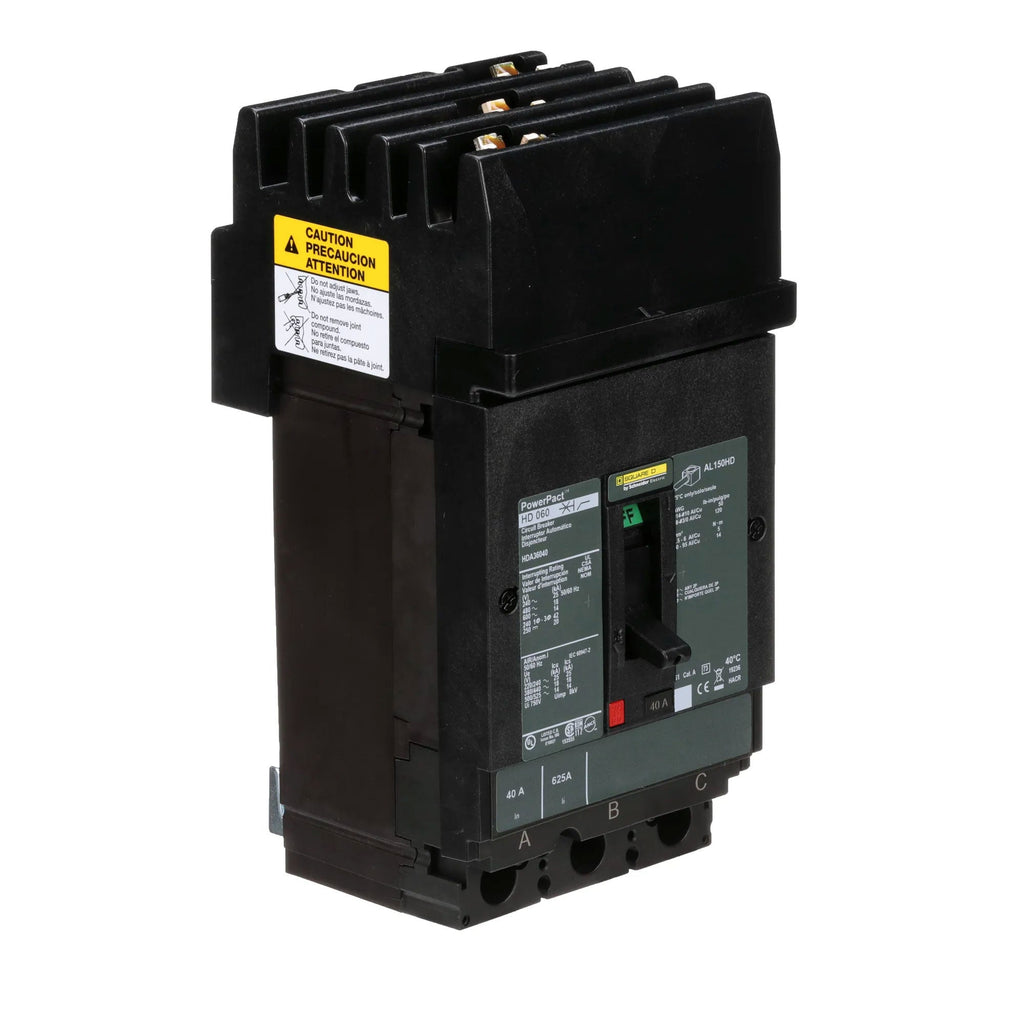

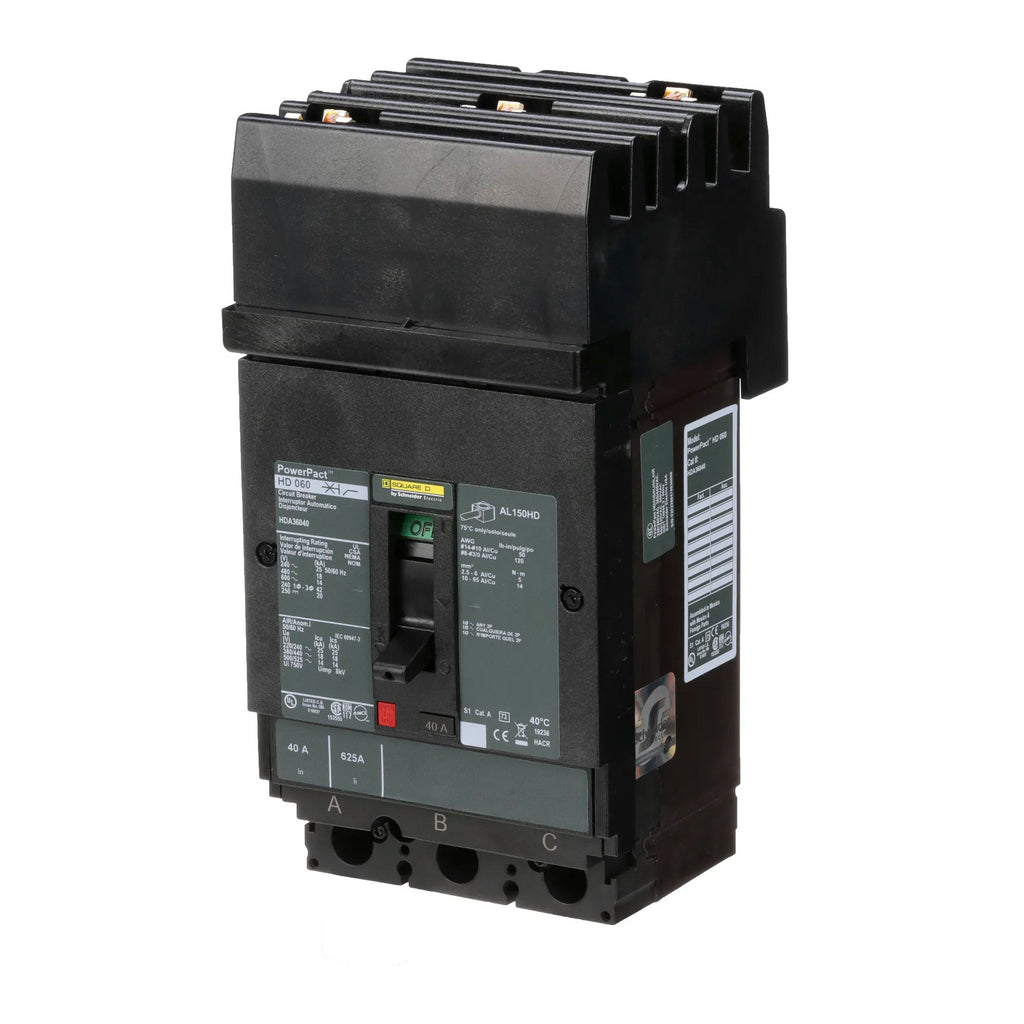

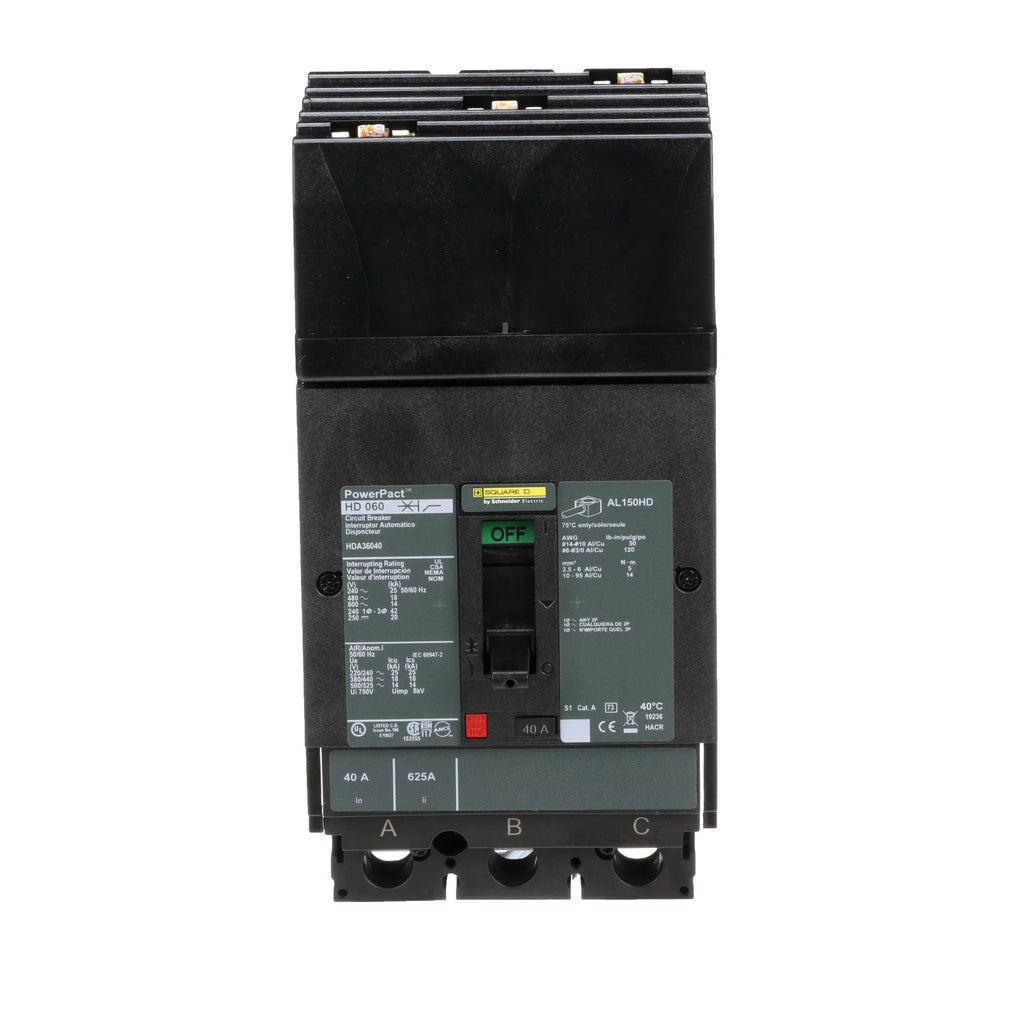

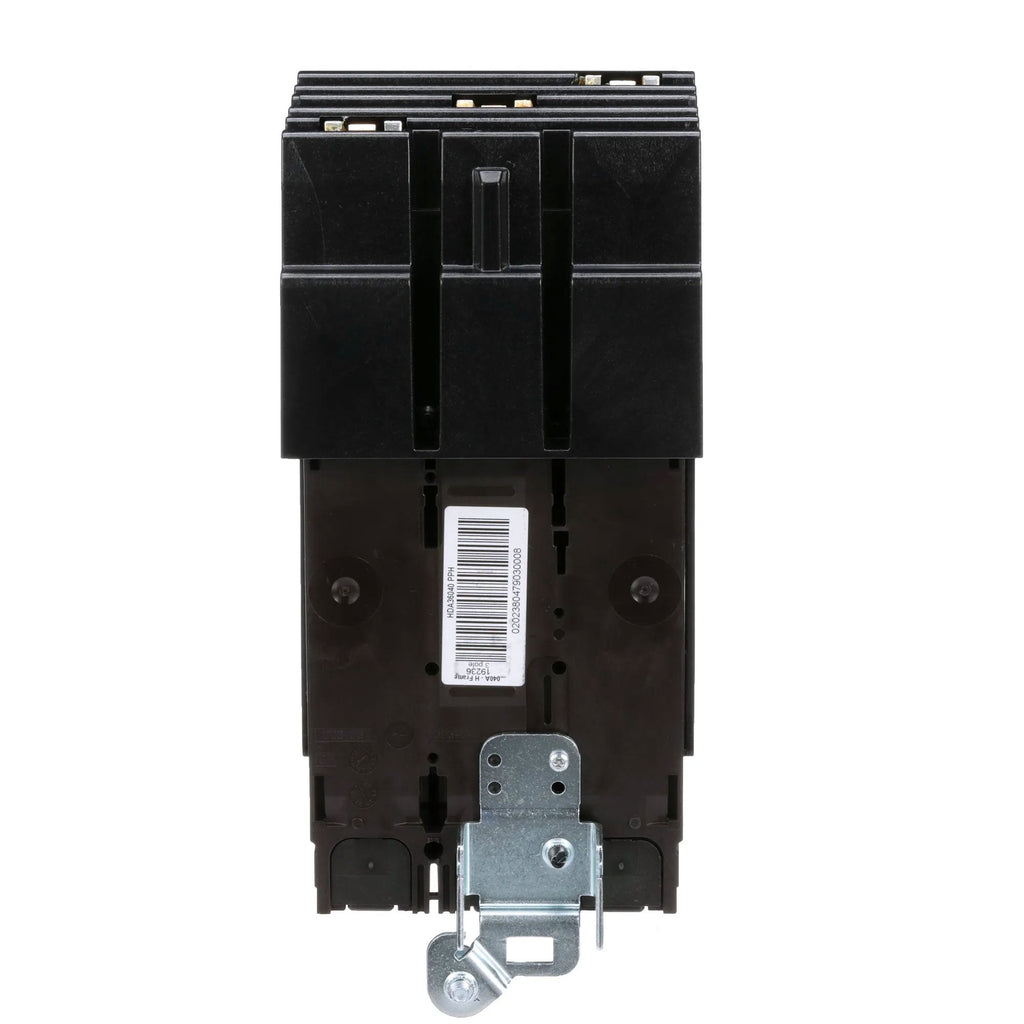

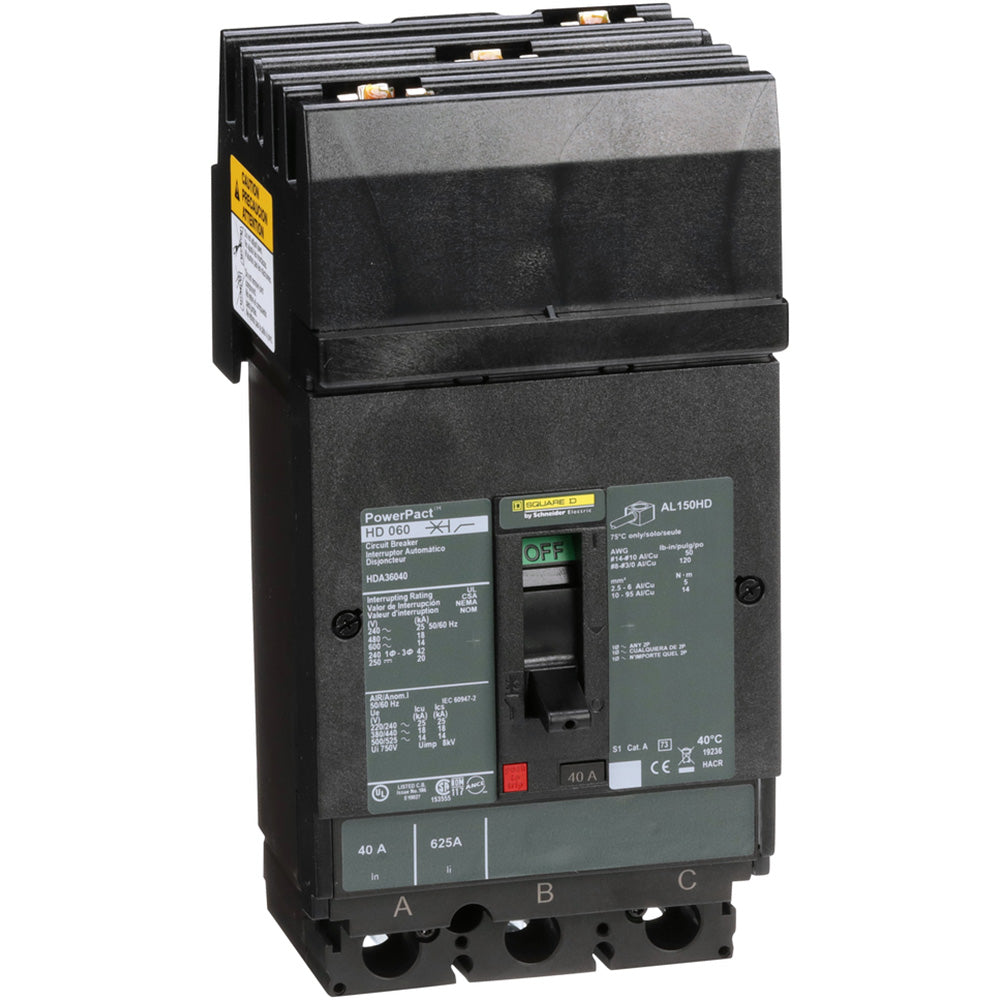

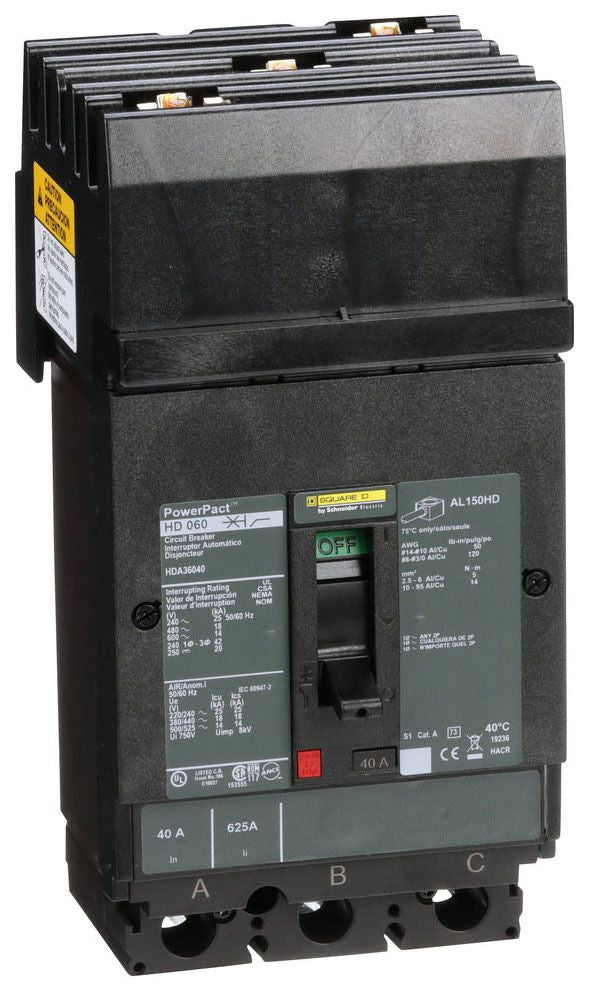

HDA36040 - Square D 40A 3 Pole 600VAC PowerPact H Series Molded Case Circuit Breaker

HDA36040

HDA36040 is a 40 Amp, 3 Pole molded case circuit breaker from Square D's PowerPact H Series designed for reliable circuit protection.This thermal magnetic circuit breaker features a 600 VAC voltage rating and a 14kA interrupting capacity at 600 VAC. It has an I-Line plug-on mounting style with 80% continuous current rating and ABC phase connection. The breaker complies with UL 489, CSA, IEC, and CE certifications, ensuring safety and performance in industrial and commercial power distribution applications.

Key Specifications
• Amperage: 40 Amps
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Mounting Type: I-Line plug-on
• Interrupt Rating: 14kA at 600 VAC
• Series/Frame: PowerPact H
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Phase Connection: ABC
• Certifications: UL 489, CSA, IEC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA36040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901419945
• GTIN : 00785901419945
• Country of Origin : Mexico

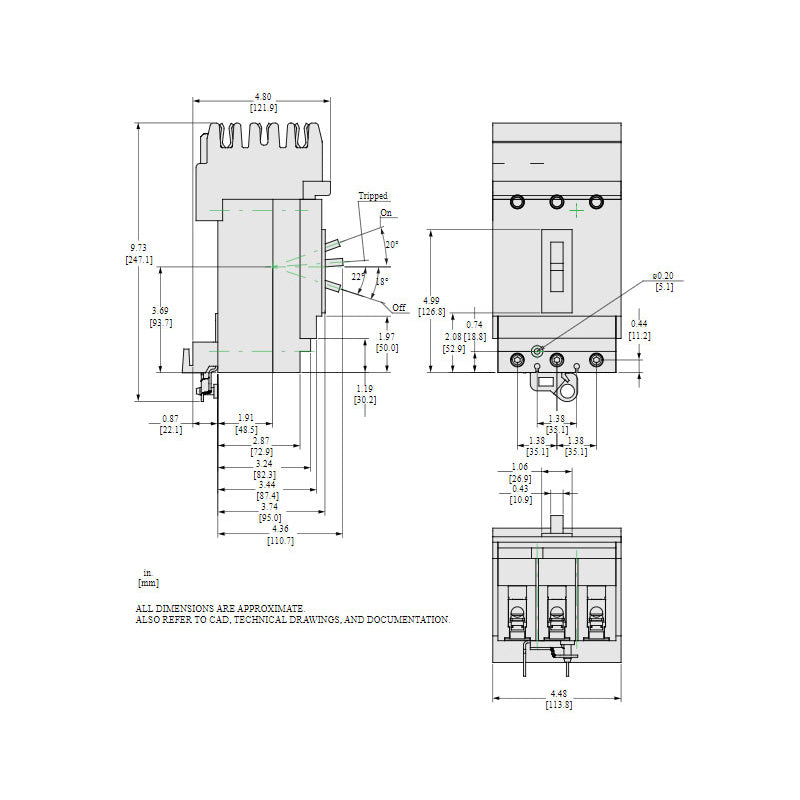

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.58
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
