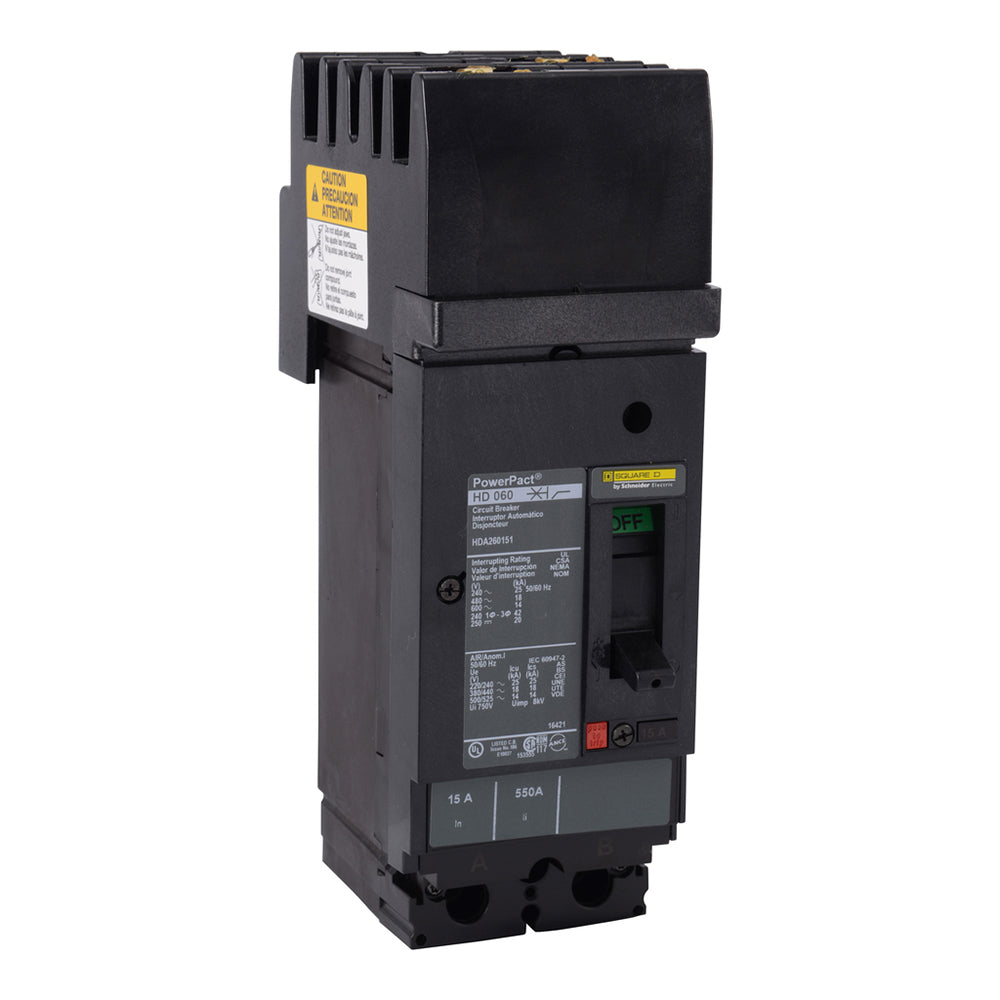

HDA260205 - Square D 20A 600V 2 Pole I-Line Plug-In Circuit Breaker Powerpact H Frame

HDA260205

HDA260205 is a Square D 20 amp, 600 volt, 2 pole I-Line plug-in molded case circuit breaker designed for reliable power distribution protection.This circuit breaker features a Powerpact H frame with thermal magnetic trip unit, suitable for 50/60 Hz applications. It has an interrupt rating of 25kA at 240 VAC, 18kA at 480 VAC, and 14kA at 600 VAC. The breaker supports wire sizes from 14 to 3/0 AWG aluminum or copper and mounts via plug-in type I-Line connection with load lug and drawout options. It is UL, CSA, and CE certified and rated for operation up to 104°F (40°C).

Key Specifications
• Amperage: 20 A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 2
• Interrupt Rating: 25kA @ 240V, 18kA @ 480V, 14kA @ 600V
• Frame: Powerpact H (D Frame)
• Trip Unit: Thermal Magnetic
• Mounting Type: I-Line Plug-In
• Wire Size: 14 to 3/0 AWG Al/Cu
• Frequency: 50/60 Hz
• Certifications: UL, CSA, CE
• Operating Temperature: 104°F (40°C)
• Connection Type: Load Lug / Drawout

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA260205
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : CA

Product Data

• UPC : 785901750352
• GTIN : 00785901750352
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
