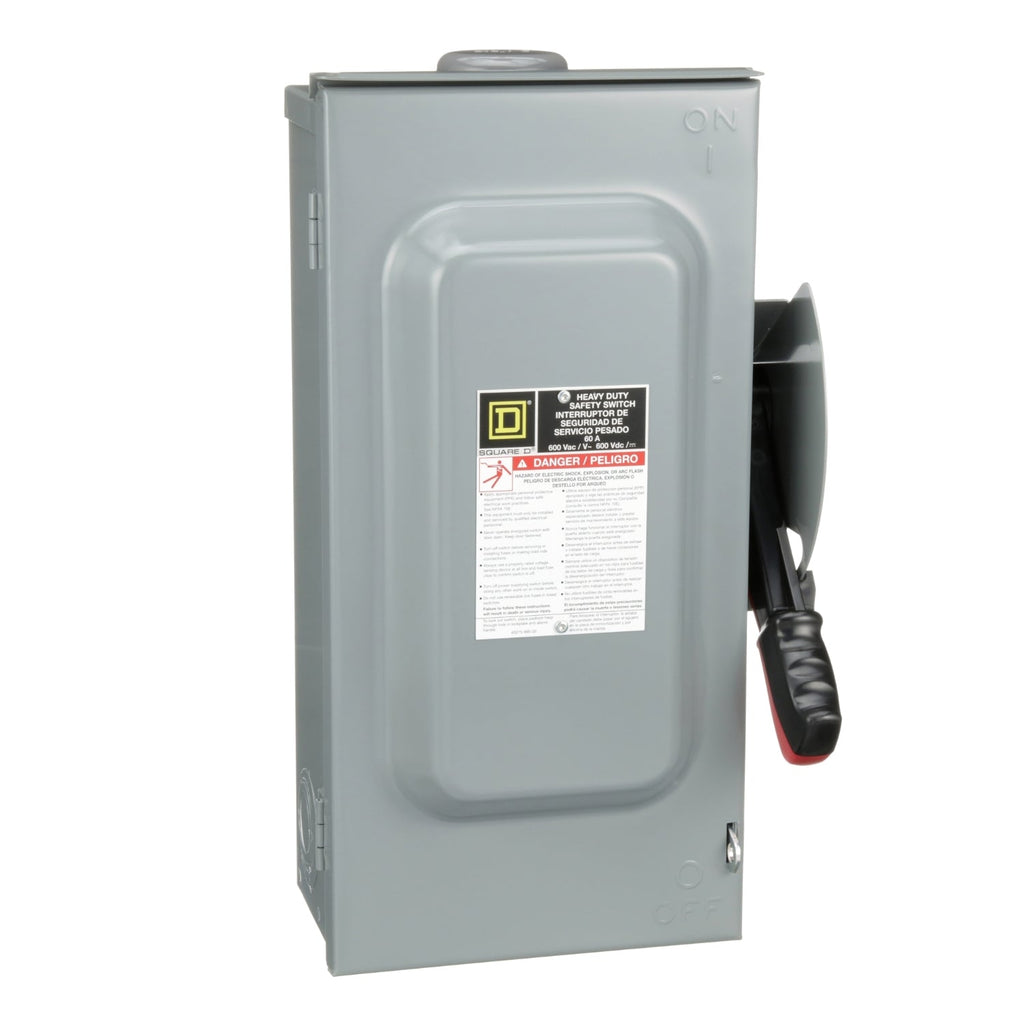

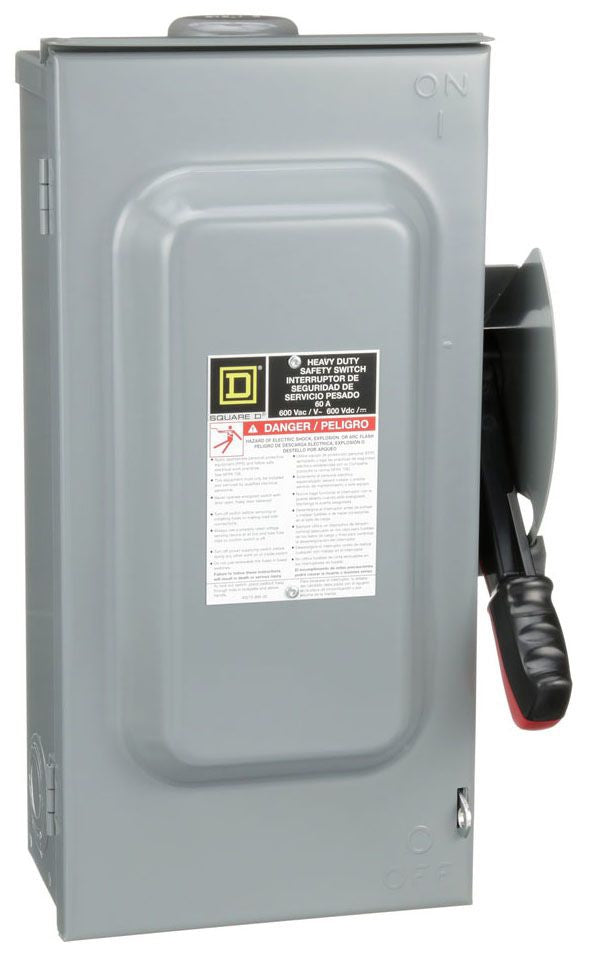

H362RB - Square D 60A 600V 3-Pole Heavy Duty Fusible Safety Switch NEMA 3R

H362RB

H362RB is a Square D heavy duty fusible safety switch rated for 60 amps and 600 volts with 3 poles and NEMA 3R enclosure.This Square D H362RB switch is designed for surface mounting and provides reliable disconnect with fusible protection. It features a 3-pole, 3-phase configuration with a 10kA short circuit current rating for Class H or K fuses and up to 200kA for Class R or J fuses. The enclosure is rainproof and sleet/ice proof, made of galvannealed steel, suitable for indoor/outdoor use. It is UL listed and uses lug terminals for wire sizes #14 to #3 AWG aluminum or copper. The switch has a single throw action and no electrical interlock.

Key Specifications
• Amperage: 60A
• Voltage: 600V
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: 10kA (Class H/K), 200kA (Class R/J)
• Series/Frame: H
• Trip Unit: Fusible
• Certifications: UL Listed
• Enclosure Rating: NEMA 3R
• Enclosure Material: Galvannealed Steel
• Duty Rating: Heavy Duty
• Terminal Type: Lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H362RB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 3R
• Compatible Frames : ED

Product Data

• UPC : 785901482185
• GTIN : 00785901482185
• Dimensions : 17.5 in (444.5 mm) x 10.5 in (266.7 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
• Weight : 15.43 lb
