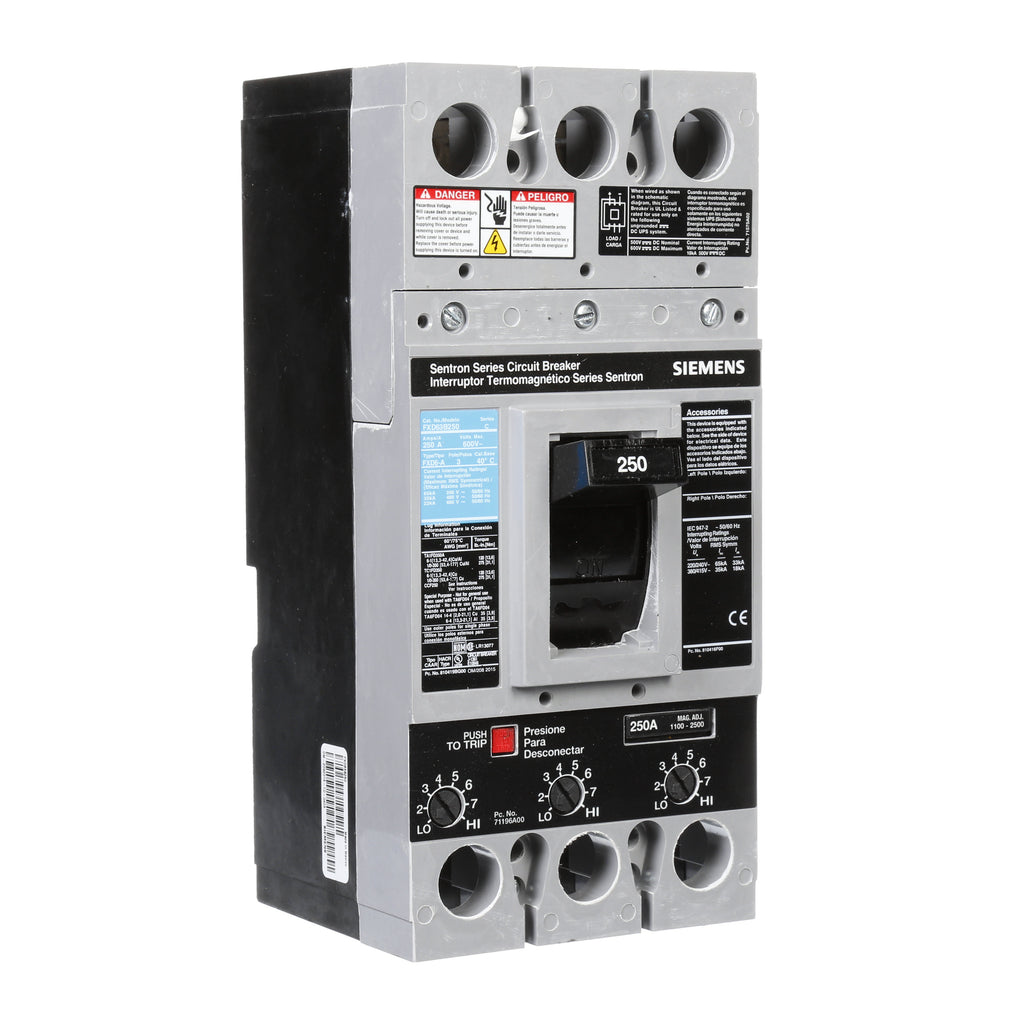

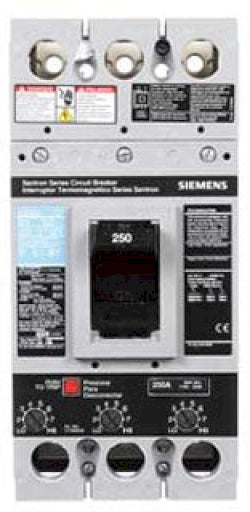

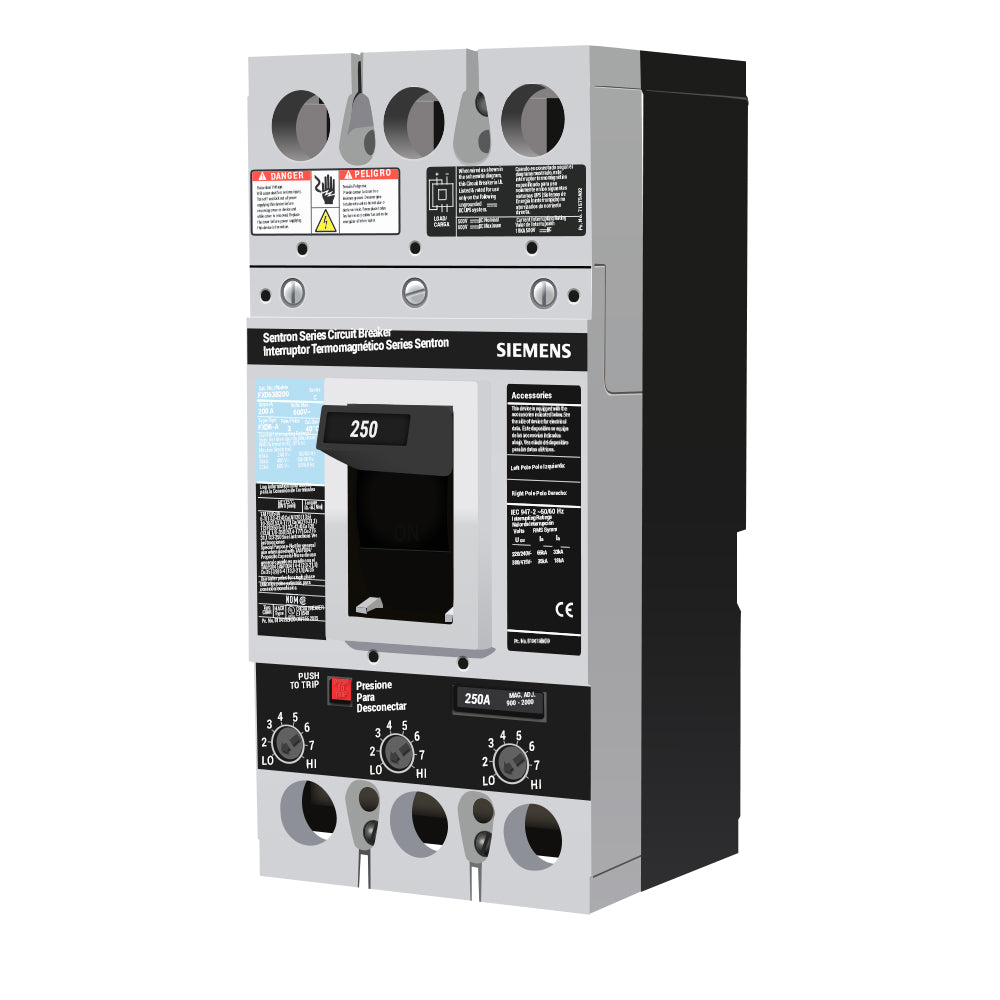

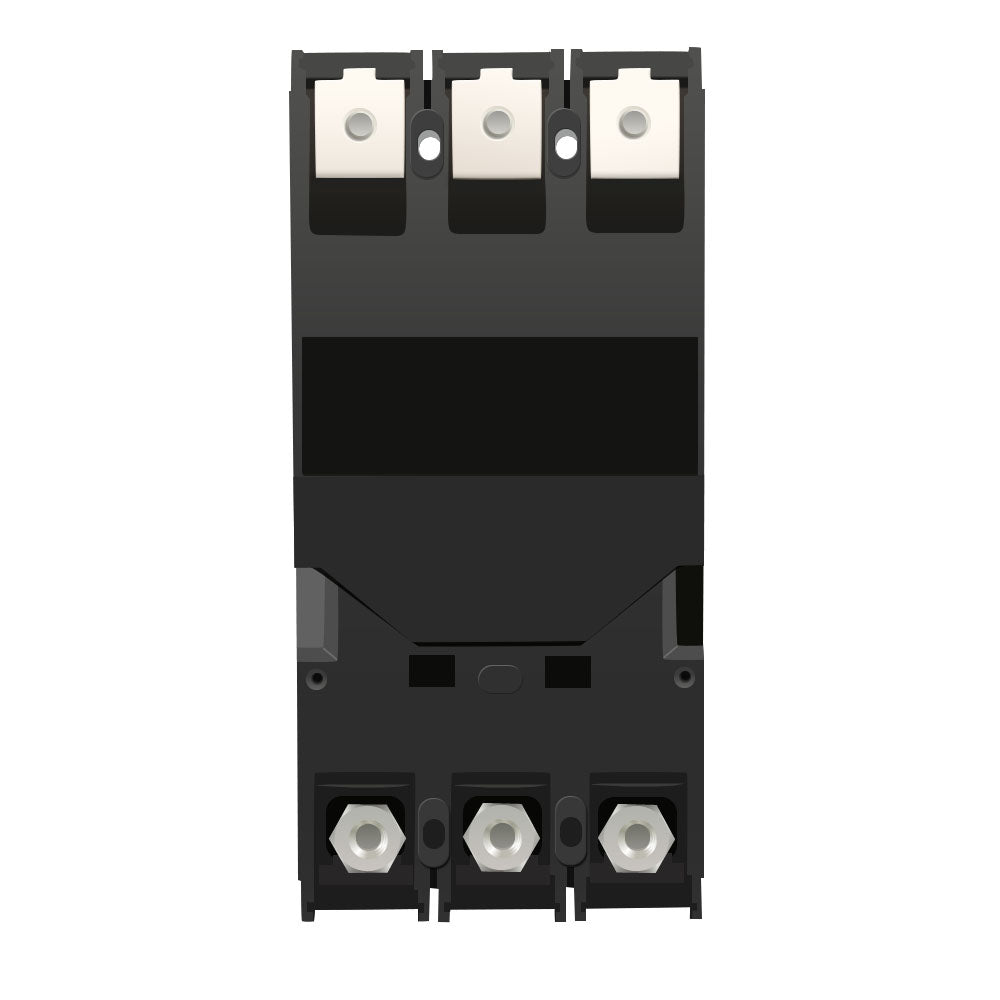

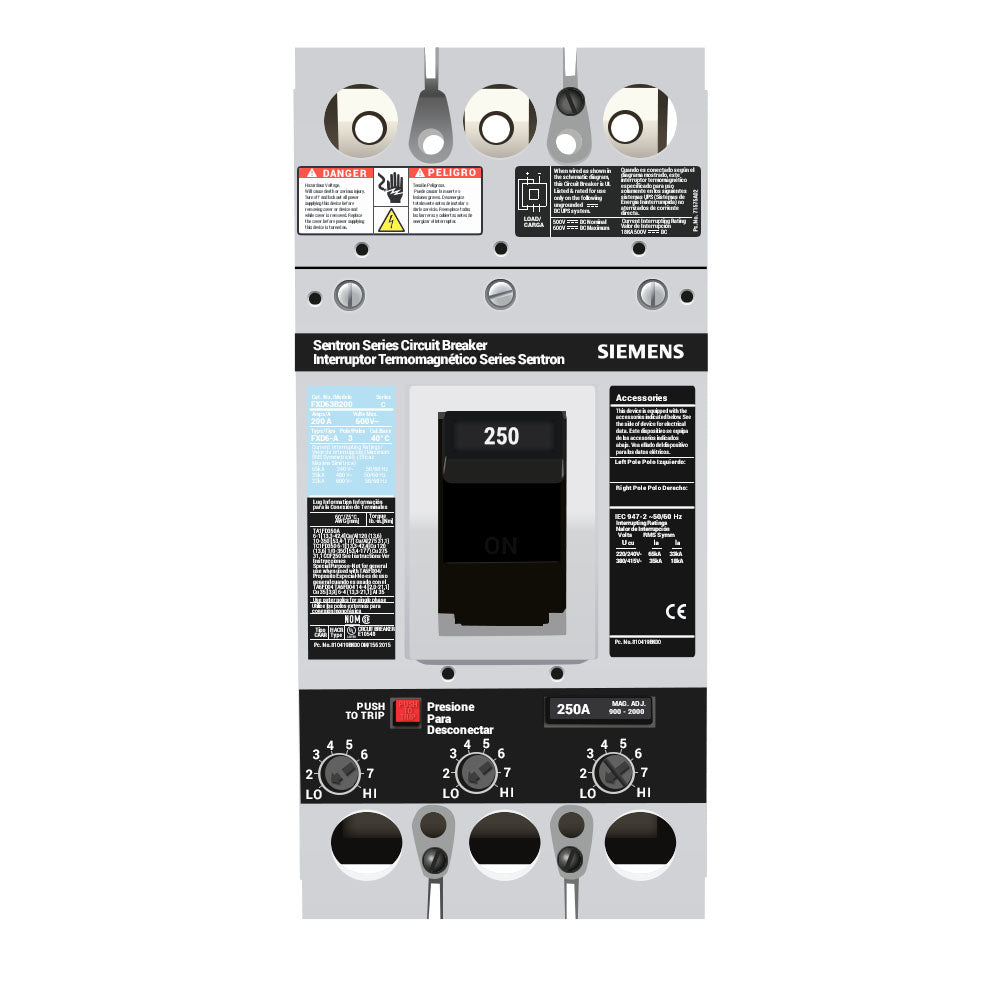

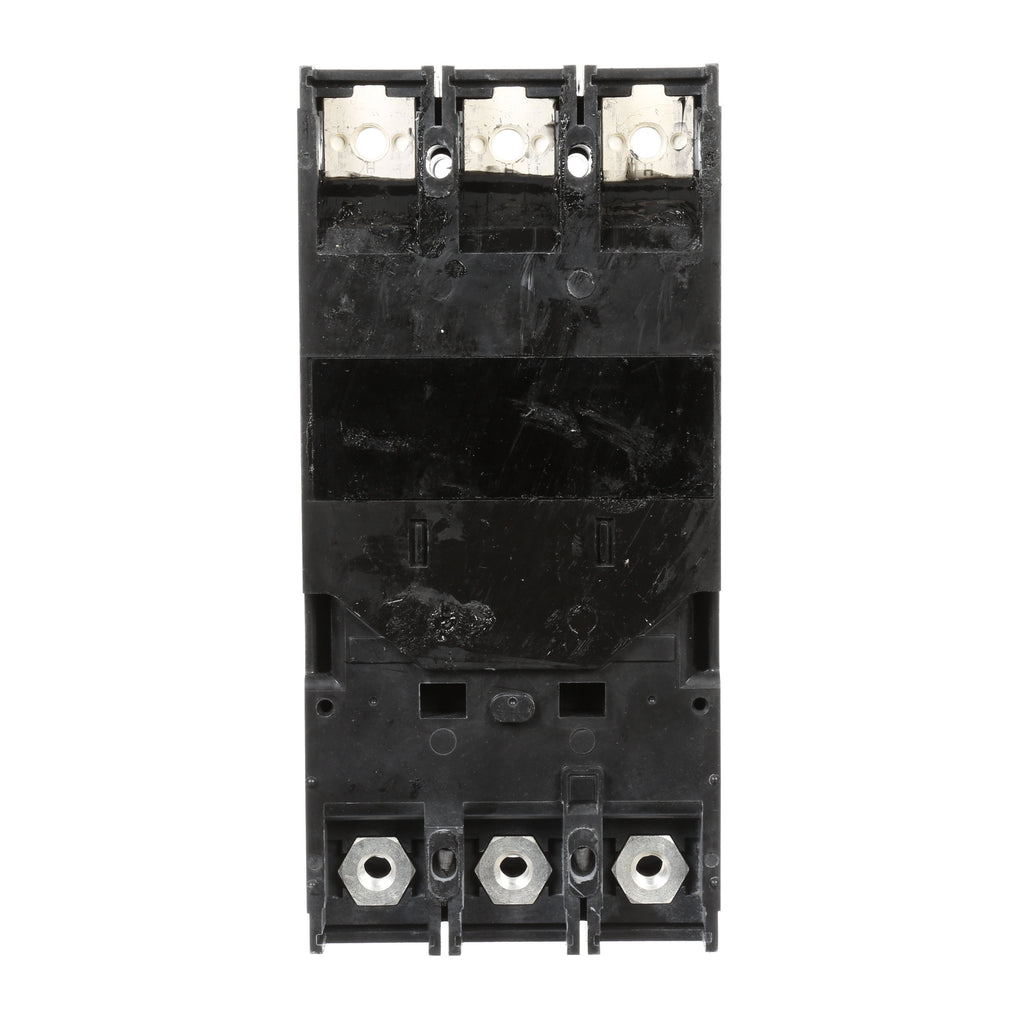

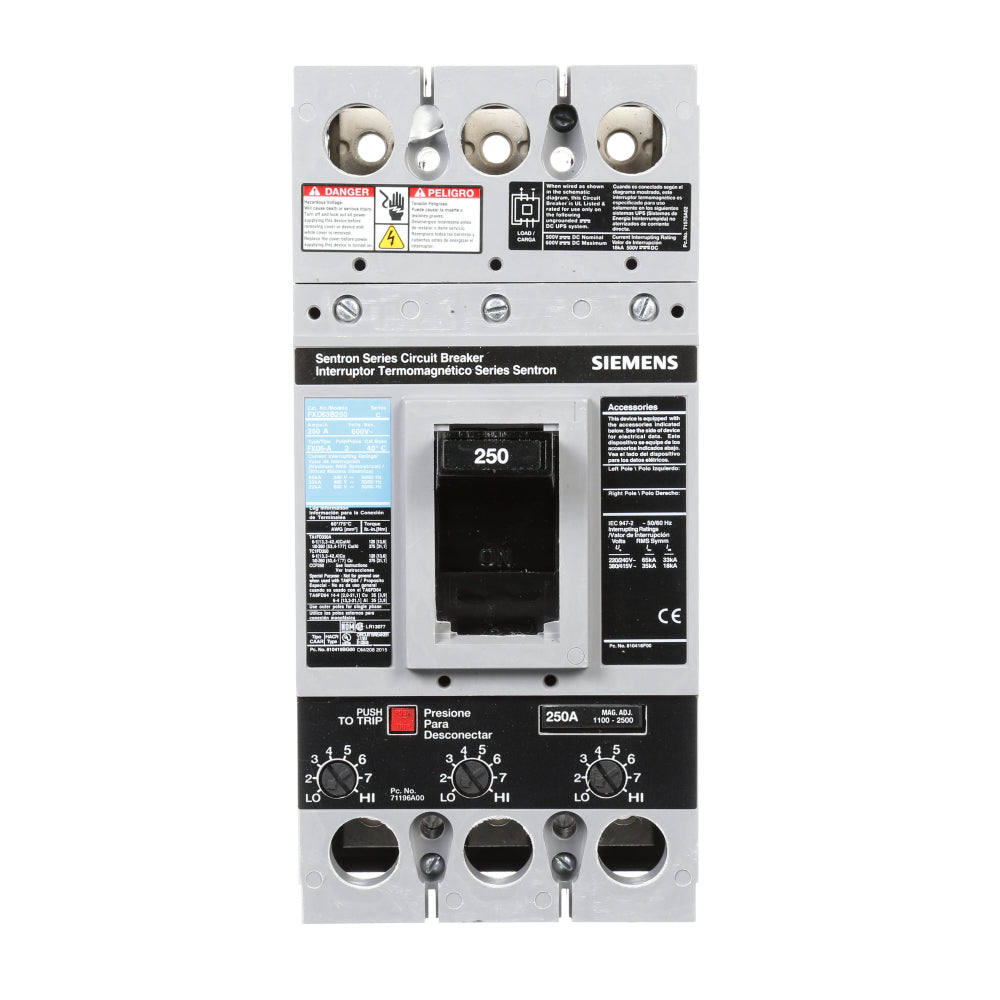

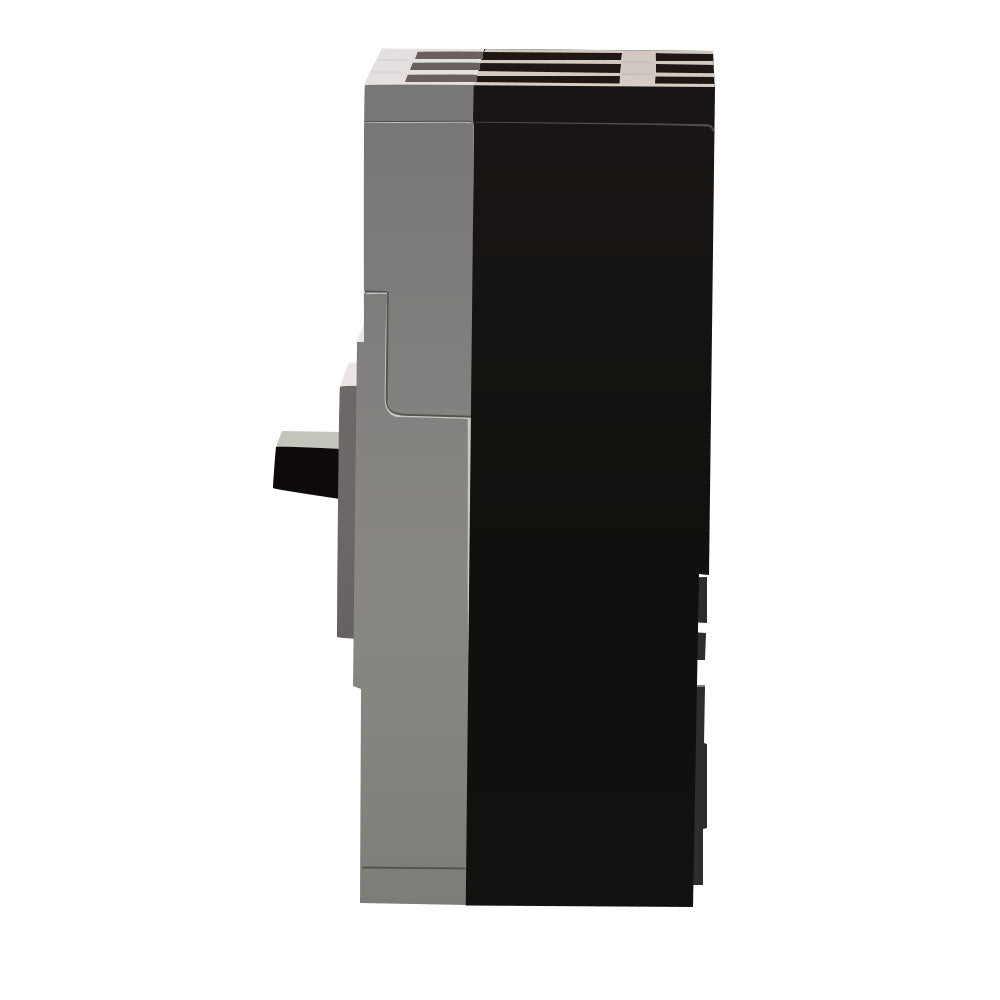

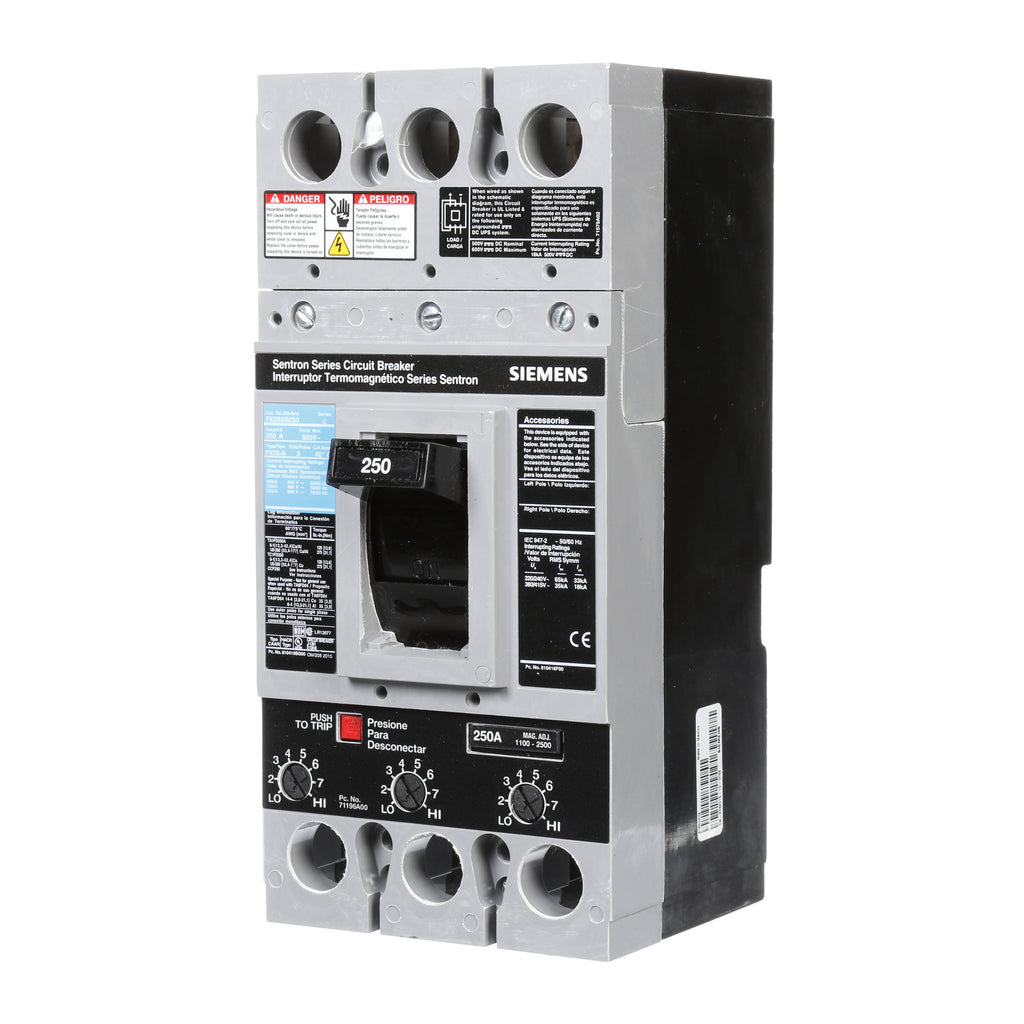

FXD63B250 - Siemens 250 Amp 600VAC 3-Pole Thermal Magnetic Circuit Breaker FXD Frame

FXD63B250

FXD63B250 is a Siemens 3-pole, 250 amp, 600VAC thermal magnetic molded case circuit breaker designed for reliable circuit protection.This Siemens Sentron Series FXD frame breaker features a bolt-on connection type, long-time and instantaneous trip functions, and a non-interchangeable trip unit. It has an interrupting rating of 22kAIC at 600V and 35kAIC at 480V, suitable for industrial and commercial applications. The breaker is UL and IEC certified and rated for 40¡C operation.

• Manufacturer: Siemens
• Series: Sentron FXD
• Amperage: 250 A
• Voltage: 600 VAC
• Poles: 3
• Interrupt Rating: 22kAIC @ 600V, 35kAIC @ 480V
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Connection Type: Bolt-On
• Frame Type: FXD
• Trip Functions: Long-Time and Instantaneous
• Certifications: UL, IEC, RoHS
• Operating Temperature: 40 ¡C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: FXD63B250
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FXD
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/FD
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643211292
• GTIN : 00783643211292
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 8.832 lb
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Standards : UL Listed
• Certification : UL, CSA, IEC
