Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD63B080

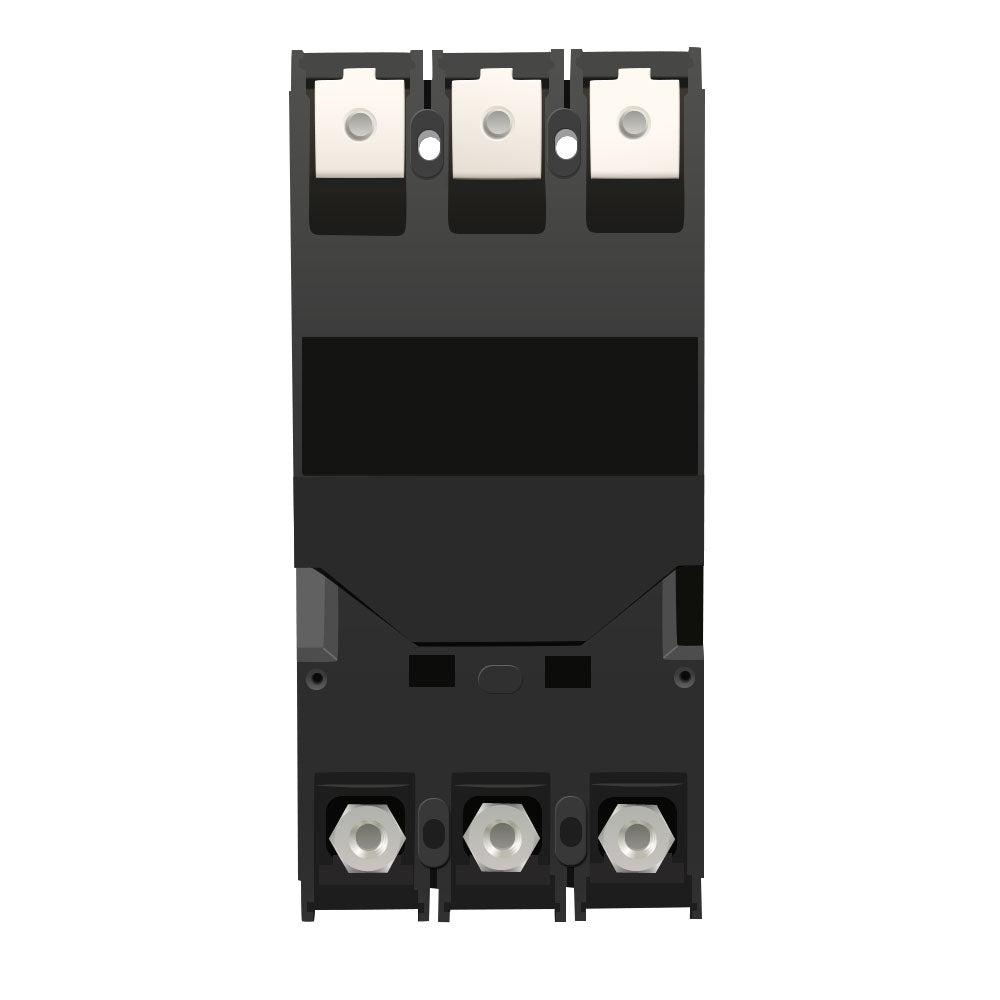

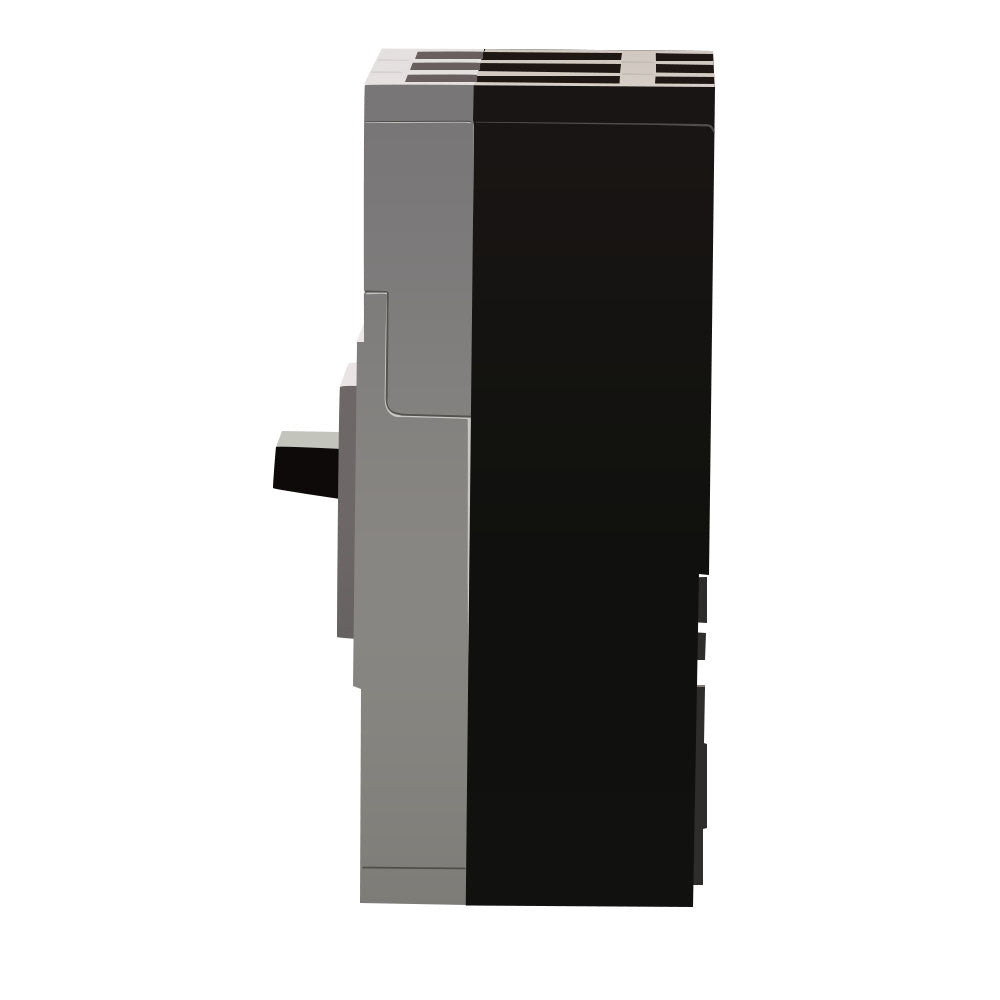

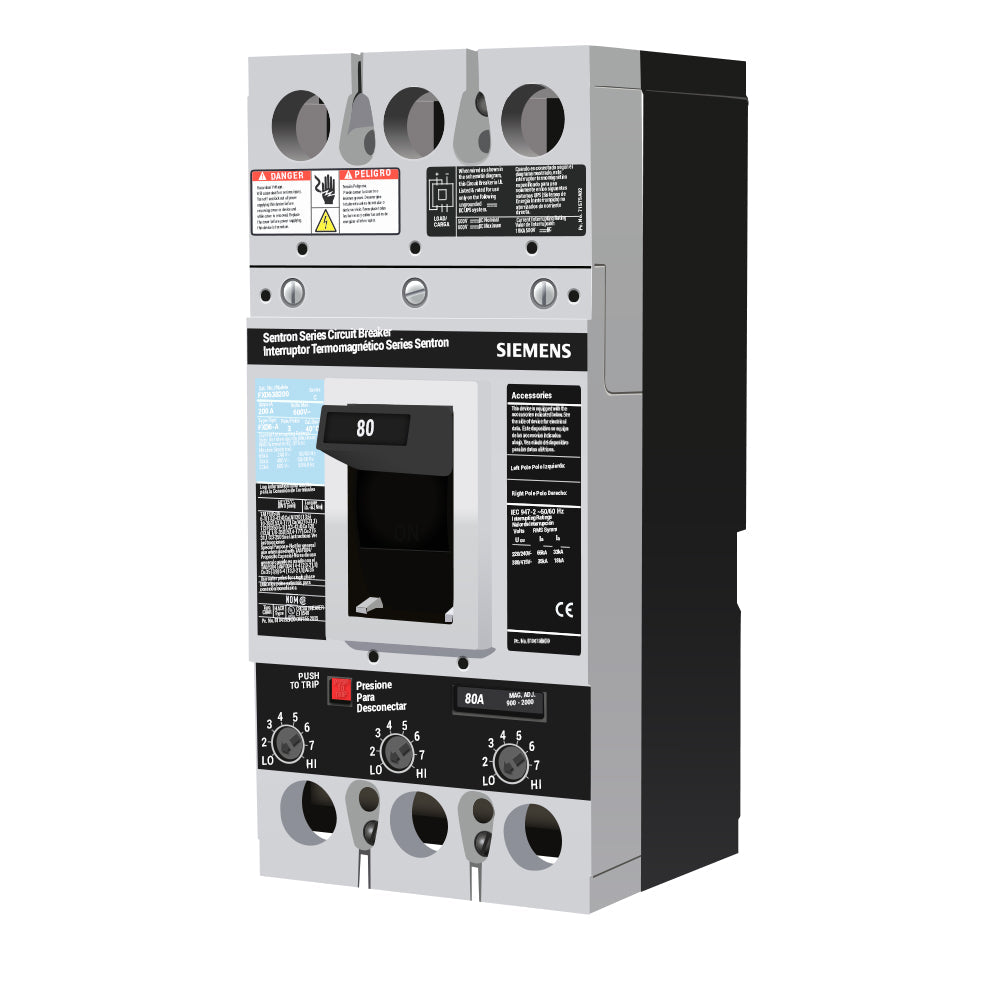

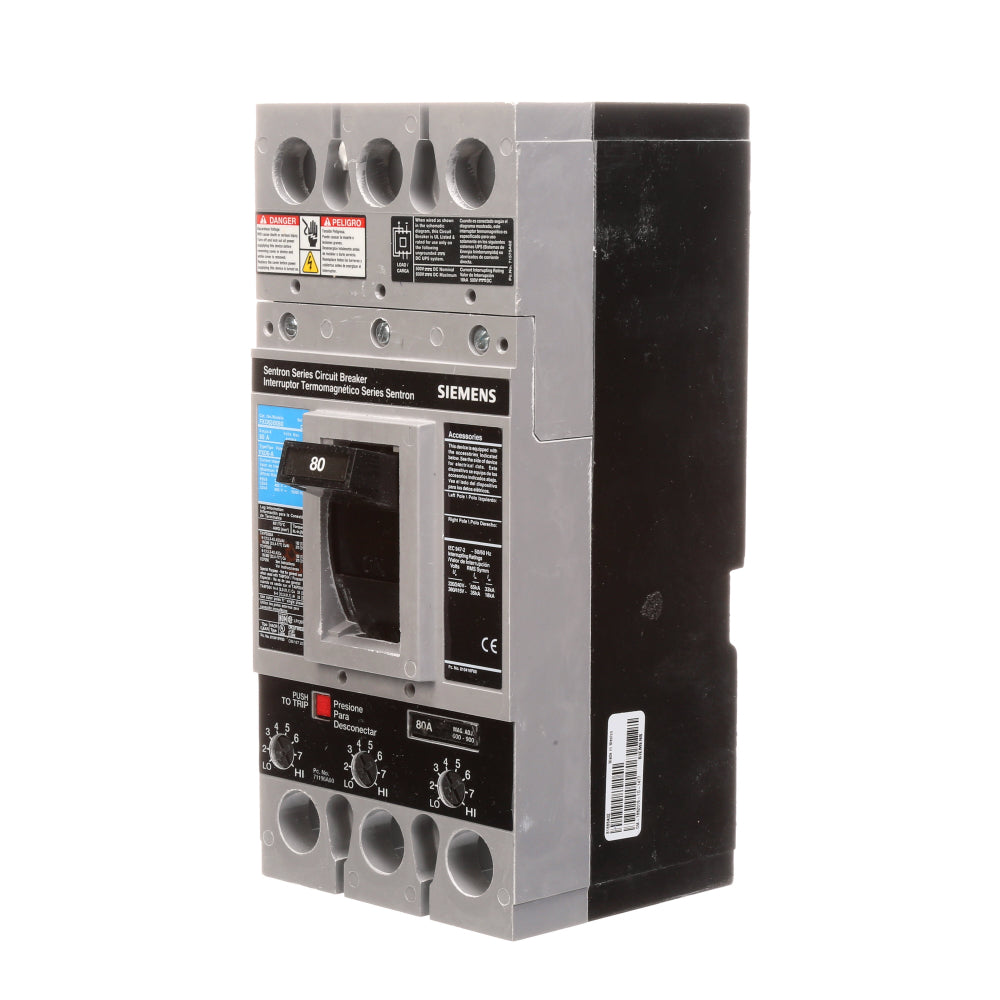

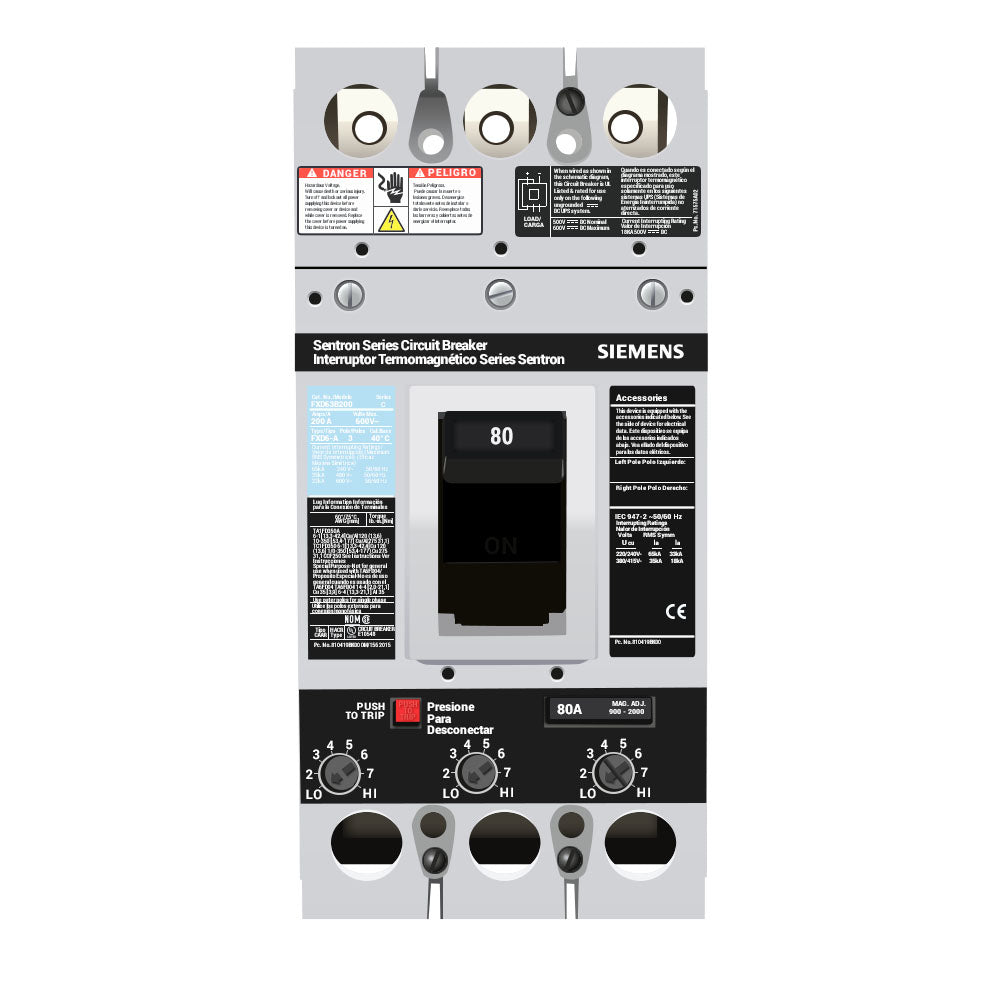

FXD63B080 is a Siemens 3 Pole molded case circuit breaker with an 80 Amp rating and 600 Volt AC capacity designed for reliable circuit protection.This Siemens FXD63B080 breaker features a thermal magnetic trip unit with a non-interchangeable trip, FD frame, and a standard interrupt rating of 22kA at 600VAC. It is UL 489 and IEC 60947-2 certified, suitable for bolt-on mounting, and rated for 40 degree Celsius ambient temperature operation.
- Amperage: 80 Amps
- Voltage: 600 VAC
- Poles: 3
- Frame Type: FD
- Interrupt Rating: 22kA @ 600V
- Trip Unit: Thermal Magnetic, Non-interchangeable
- Mounting Type: Bolt-on
- Standards: UL 489, IEC 60947-2
- Ambient Temperature Rating: 40¡C
- Certification: UL Listed
Additional Information
Lugs are not included and must be purchased separately
Specifications
- Part Number: FXD63B080
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643211209
- GTIN : 00783643211209
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 8.4
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
- Certification : UL, CSA, IEC
