Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD63B070

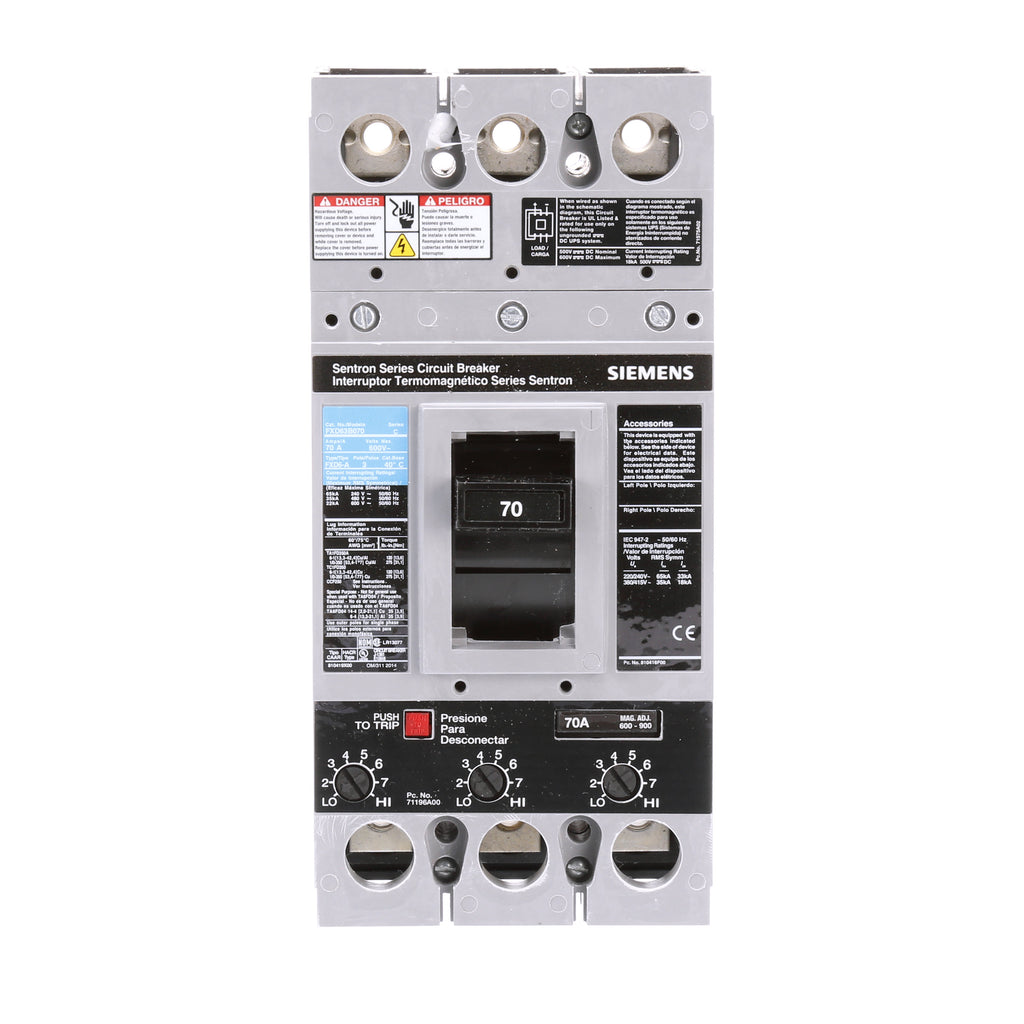

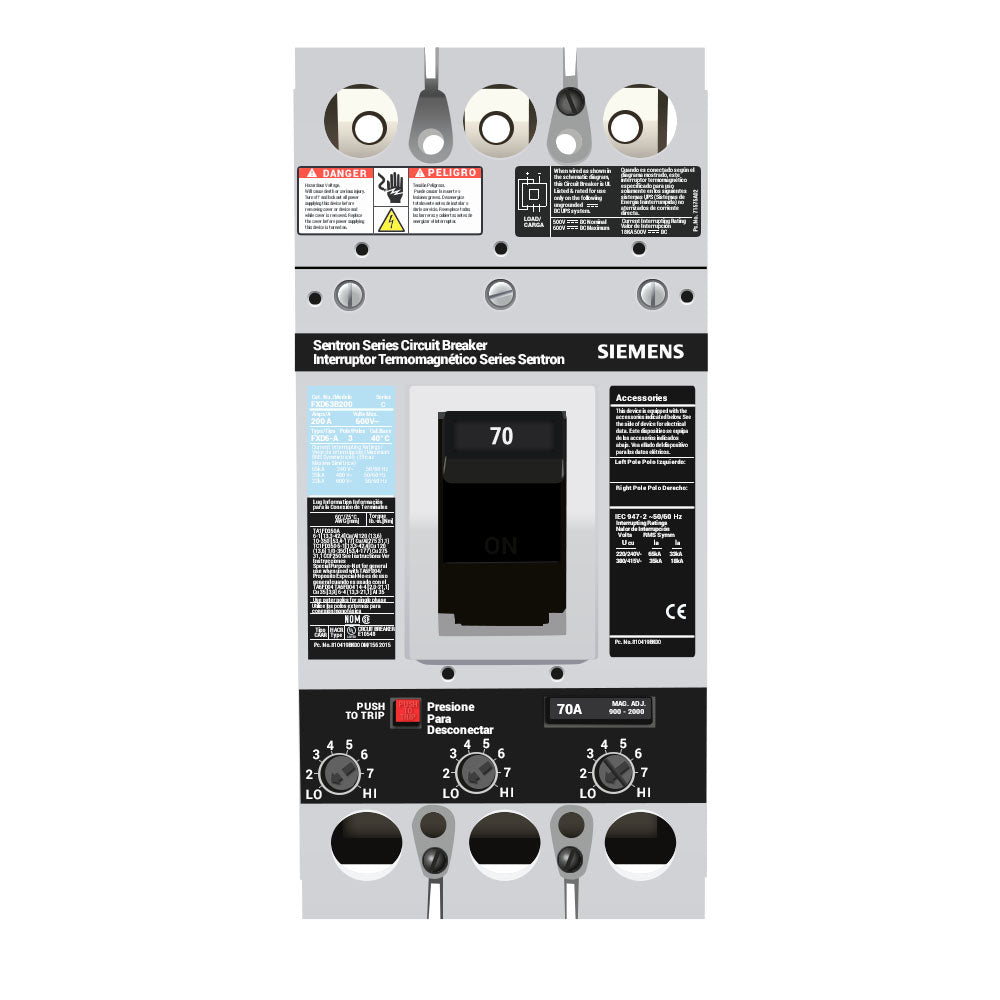

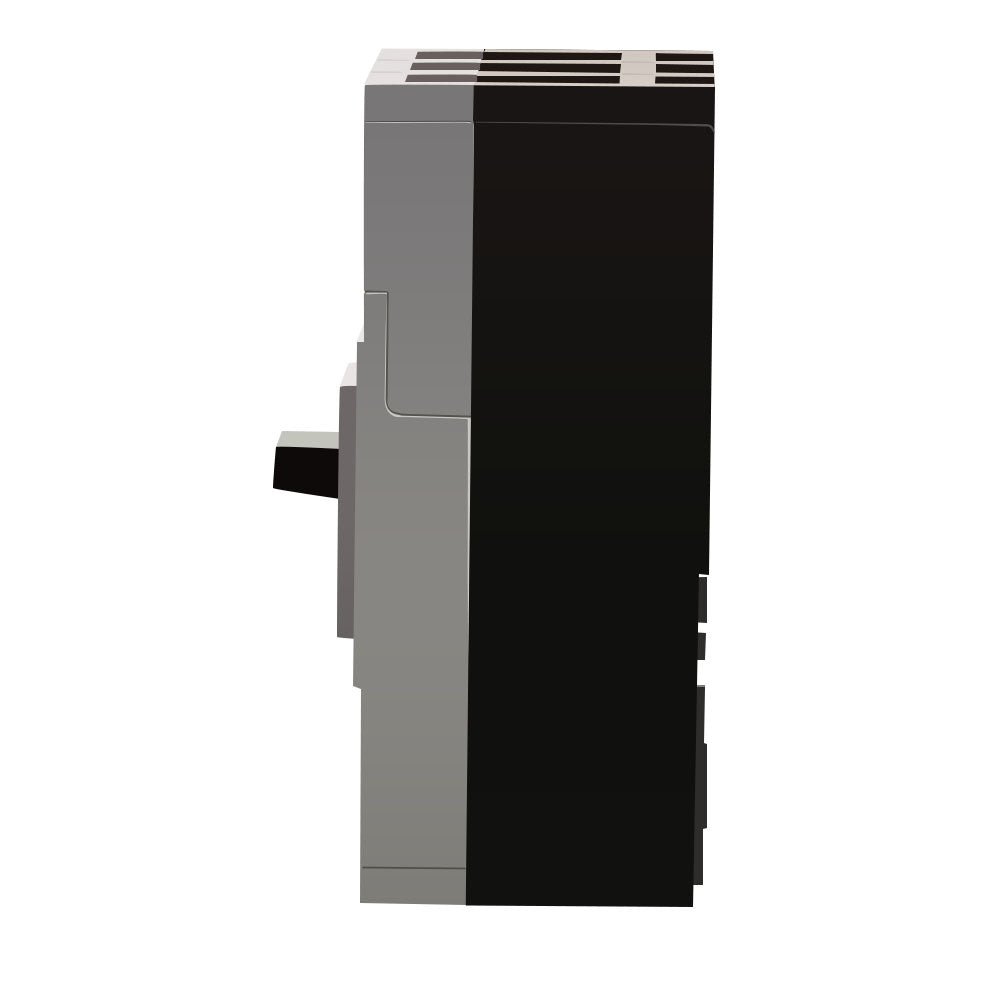

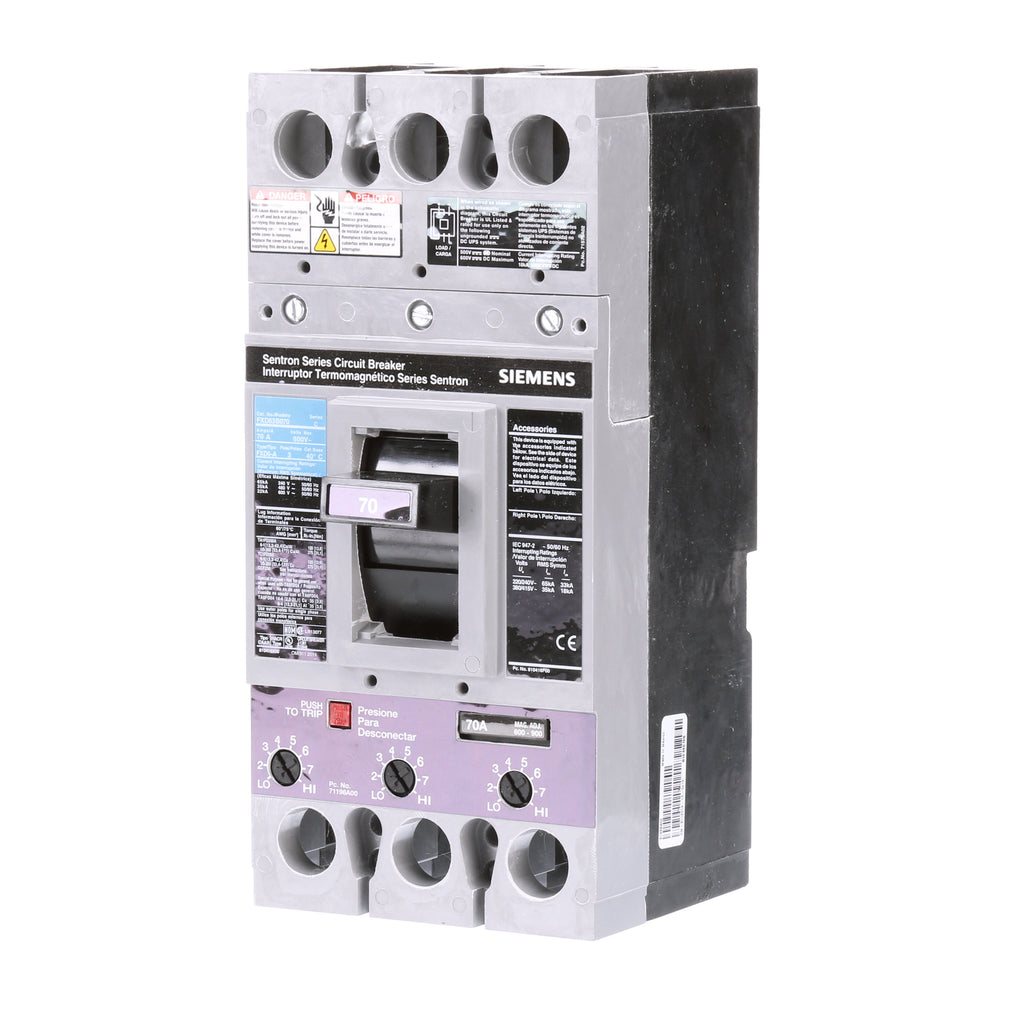

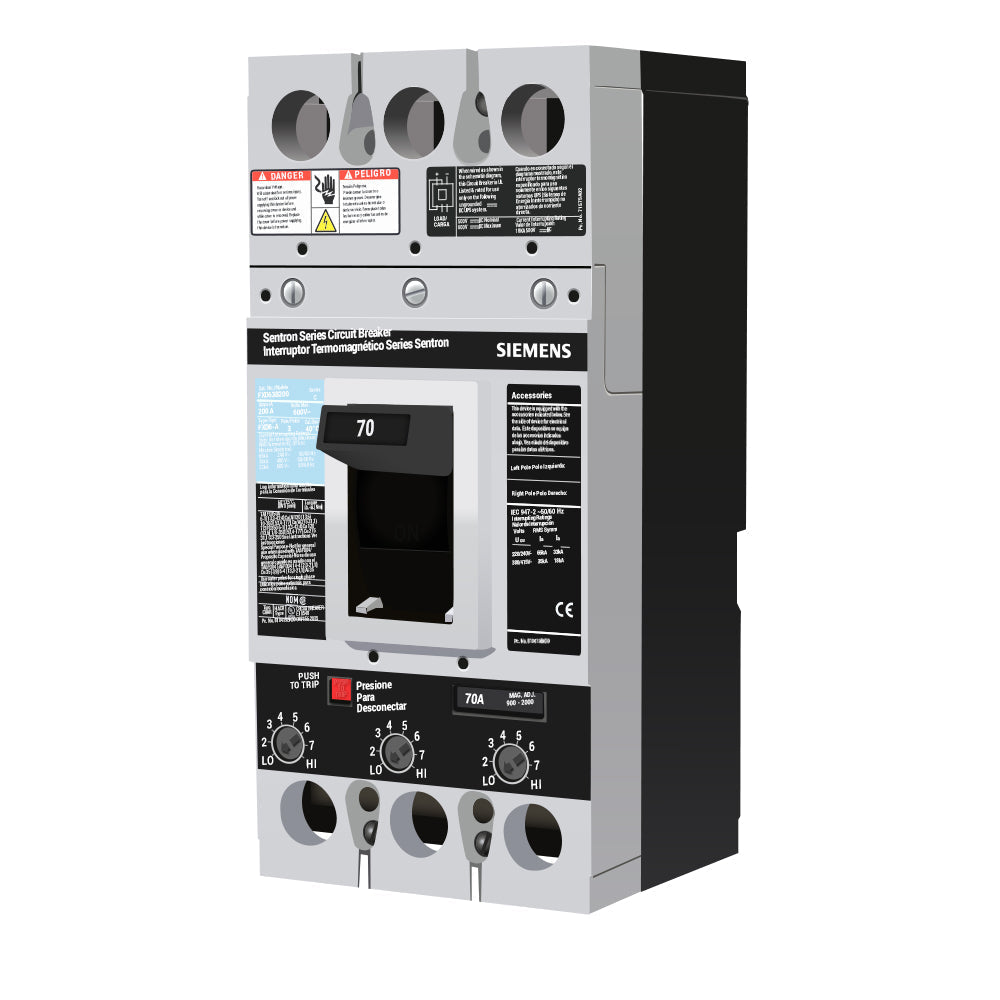

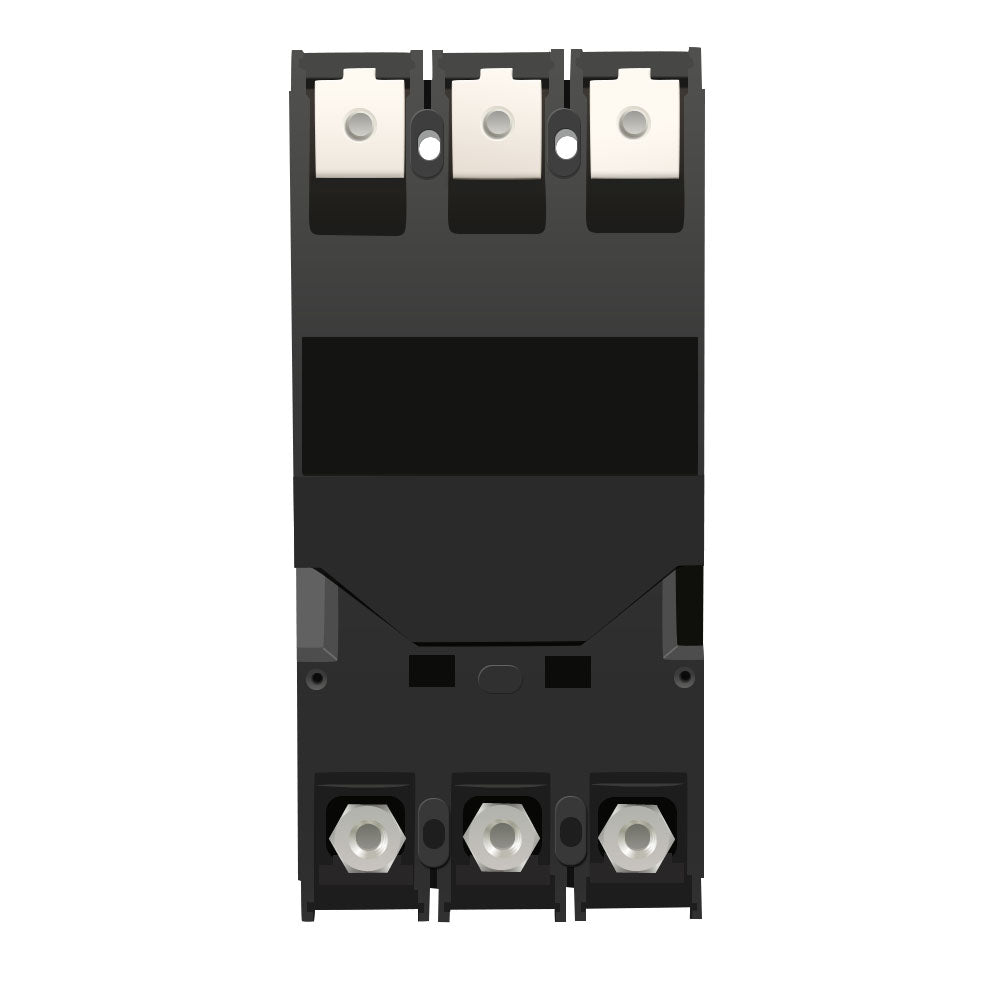

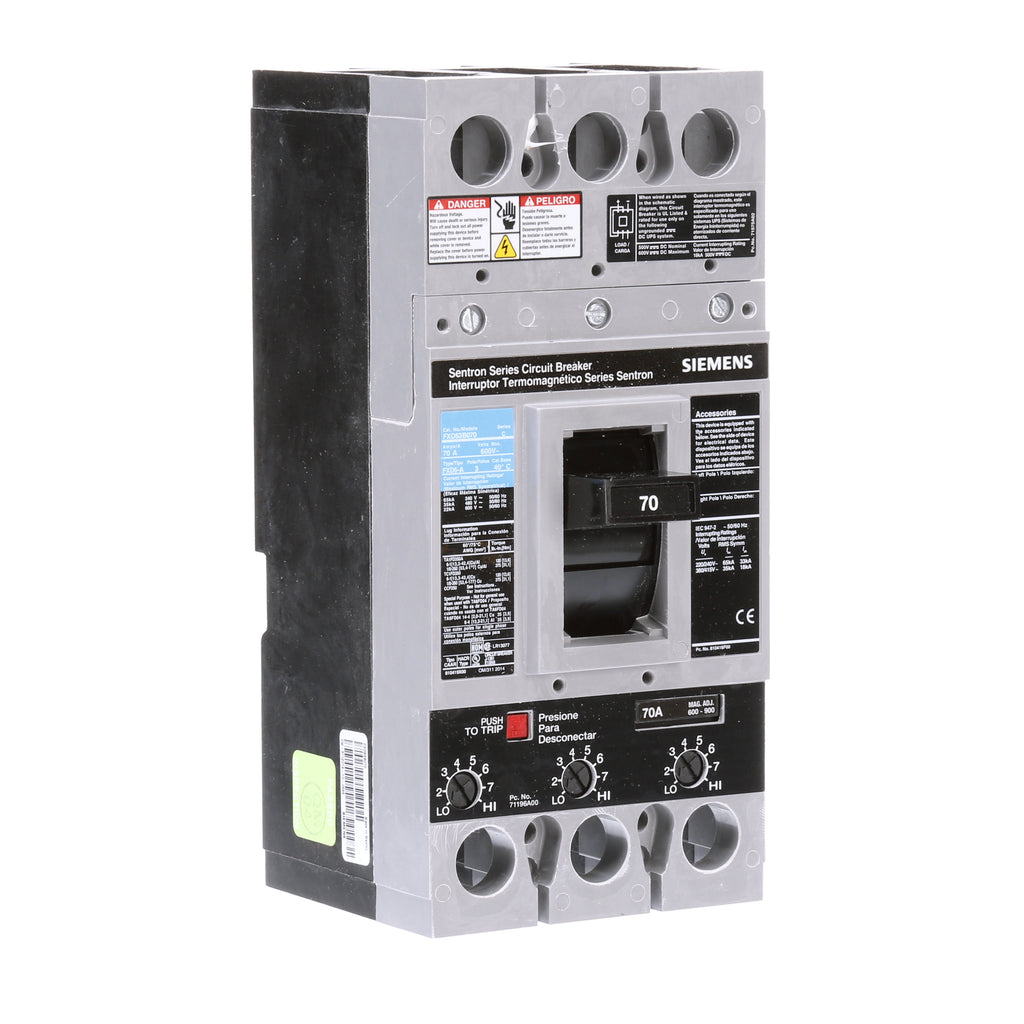

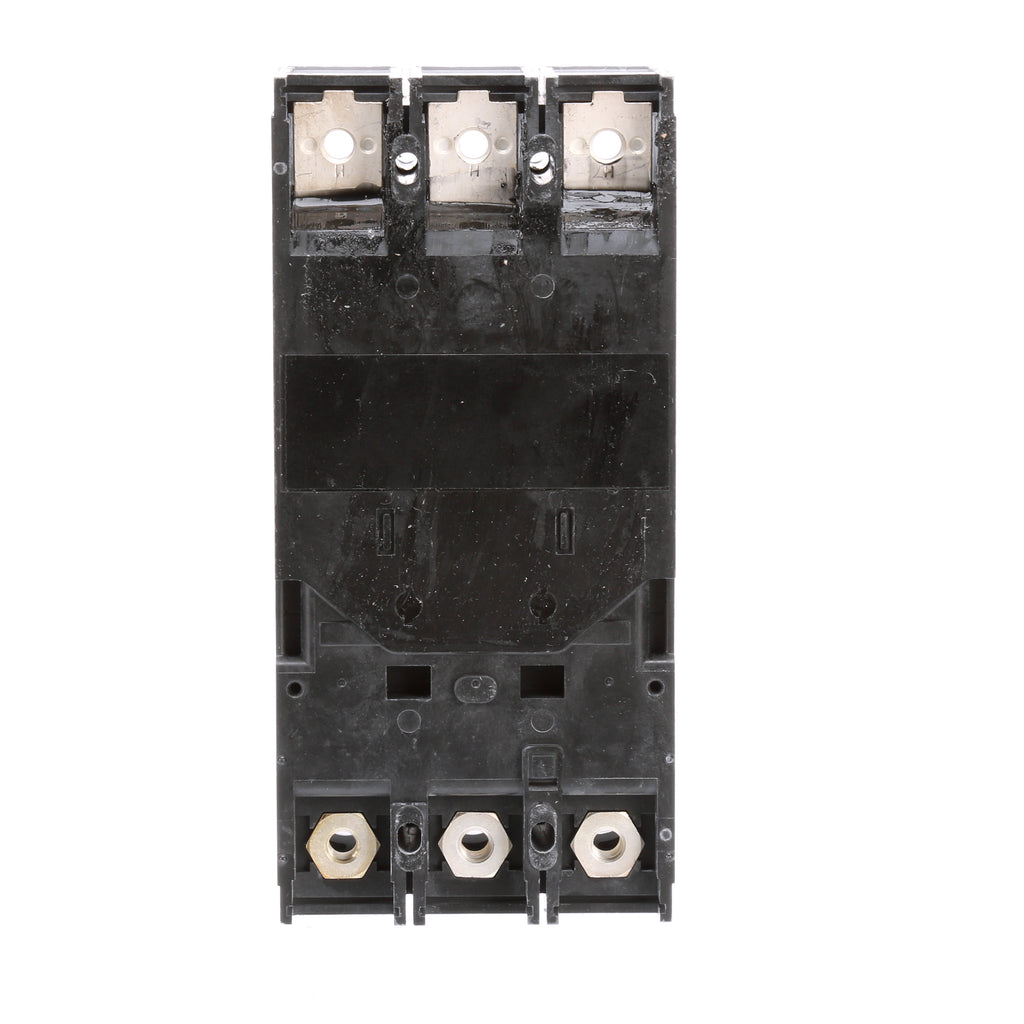

FXD63B070 - Siemens Sentron Series FD frame molded case circuit breaker with thermal-magnetic trip, rated at 70A, 600VAC, 3 poles.This standard 40 degree C breaker features FD frame with standard breaking capacity and non-interchangeable trip unit. It provides 22kA interrupting capacity at 600V and 35kA at 480V, bolt-on mounting, and meets UL 489 / IEC 60947-2 standards. Special features include no lugs installed.
- Part Number: FXD63B070
- Manufacturer: Siemens
- Series/Frame: FXD / FD
- Amperage: 70A
- Voltage: 600VAC
- Poles: 3
- Phase: 3
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic, Non-Interchangeable
- Interrupt Rating: 22kA@600V, 35kA@480V
- Certifications: UL Listed, CSA Certified, UL 489 / IEC 60947-2
Additional Information
Lugs are not included and must be purchased separately
Specifications
- Part Number: FXD63B070
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643211193
- GTIN : 00783643211193
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 8.4
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
- Certification : UL, CSA, IEC
