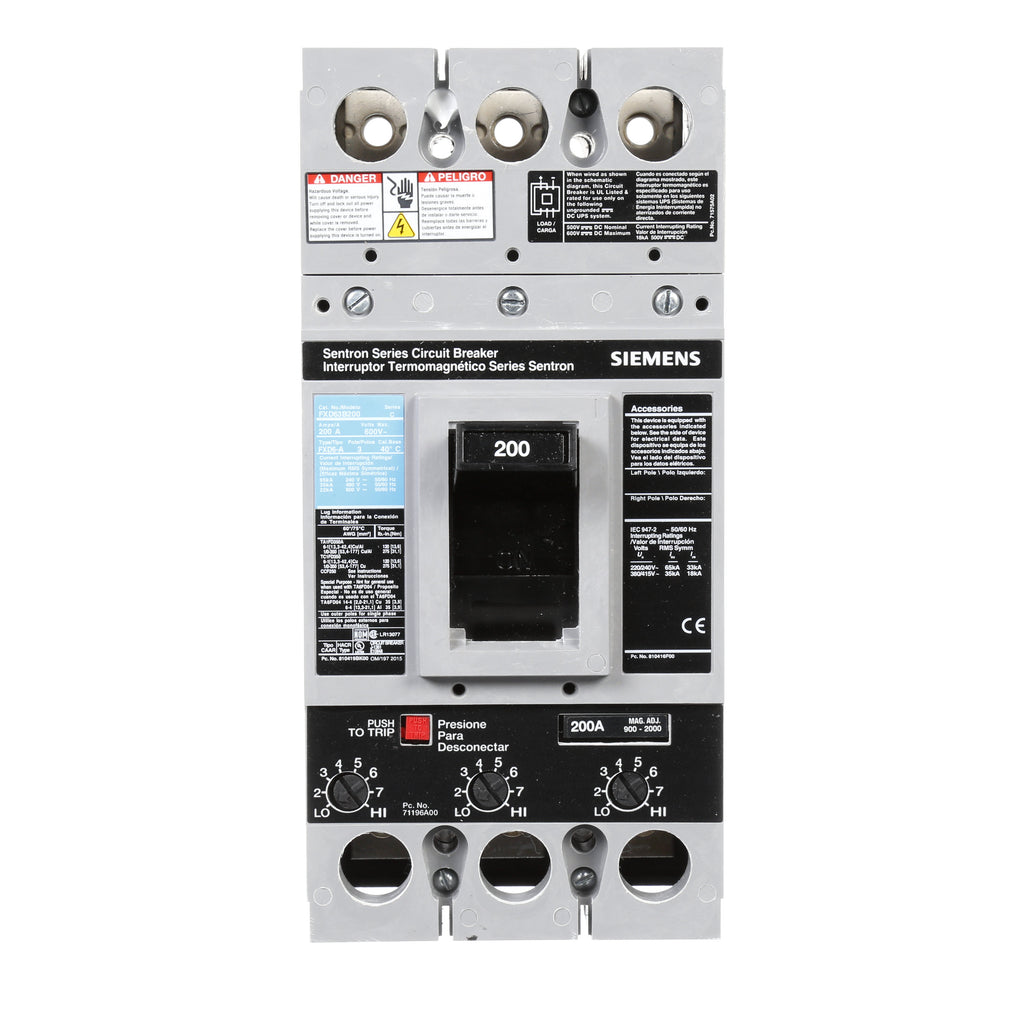

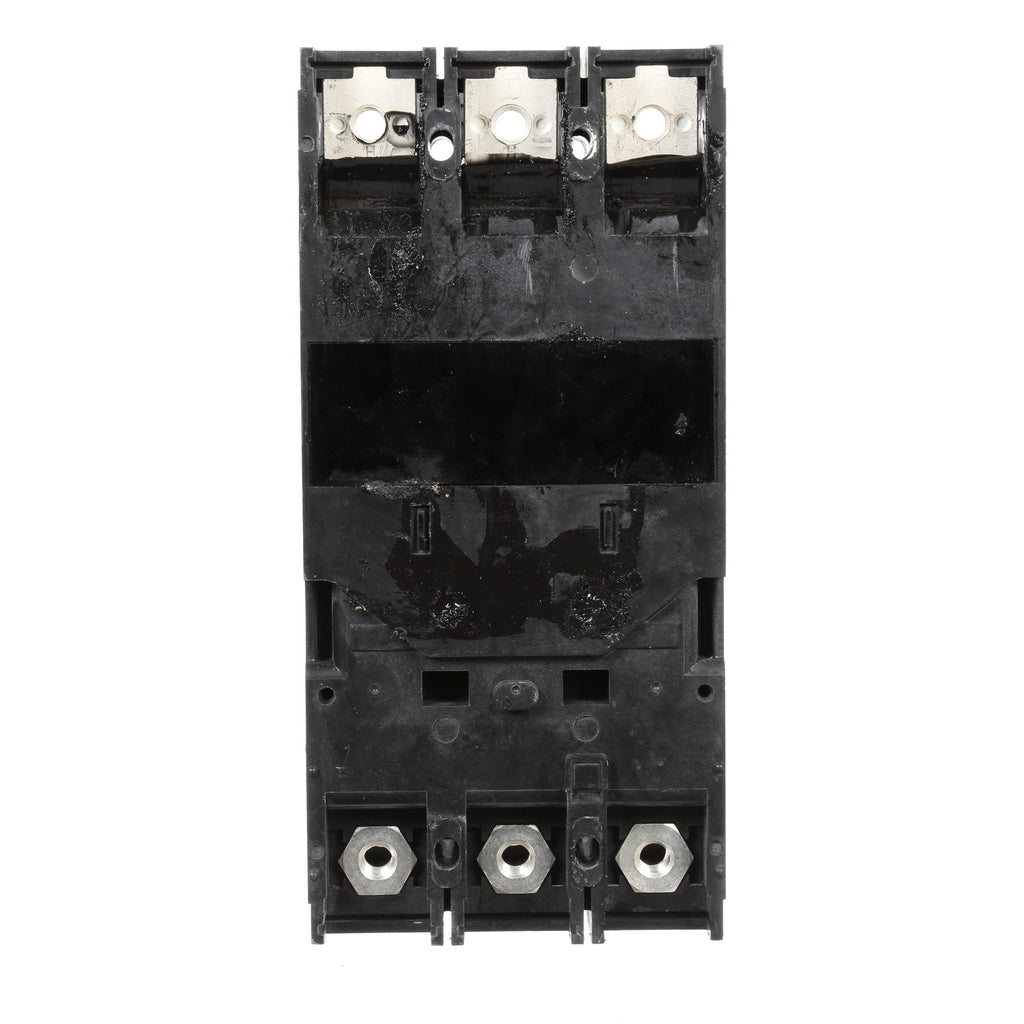

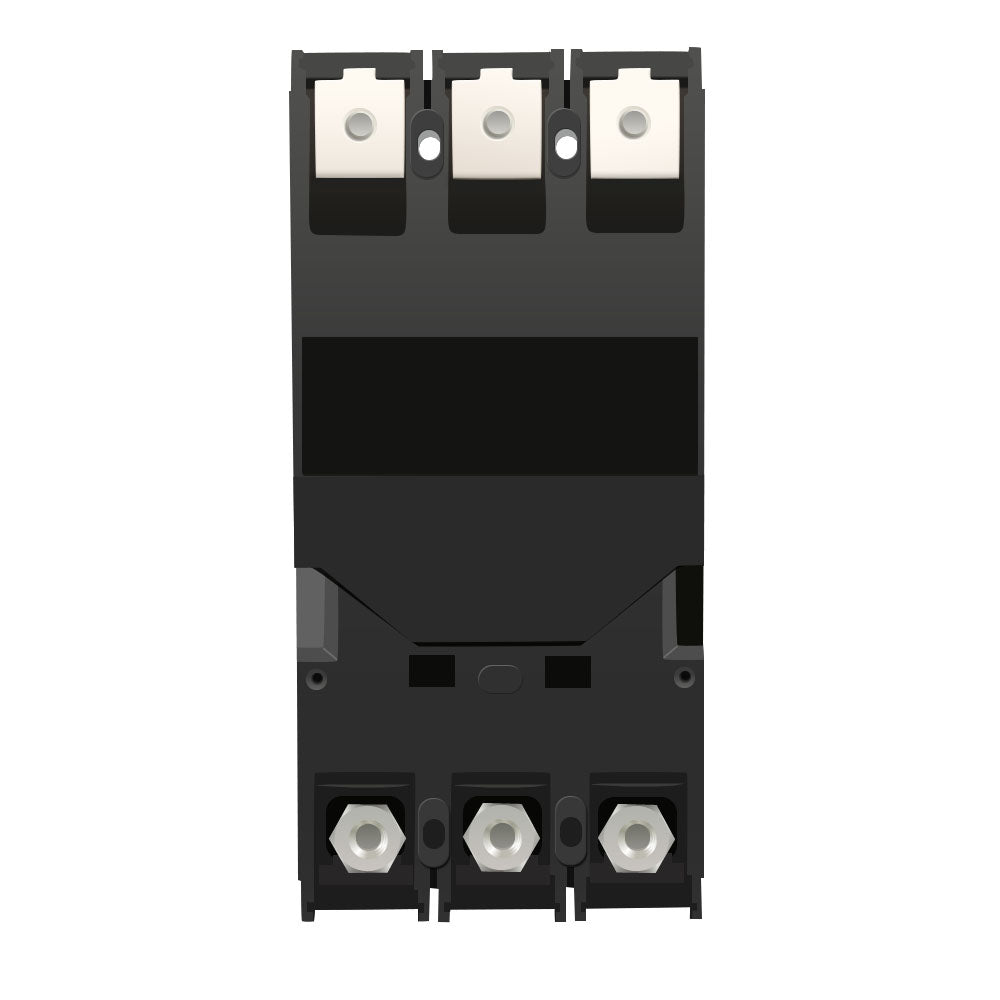

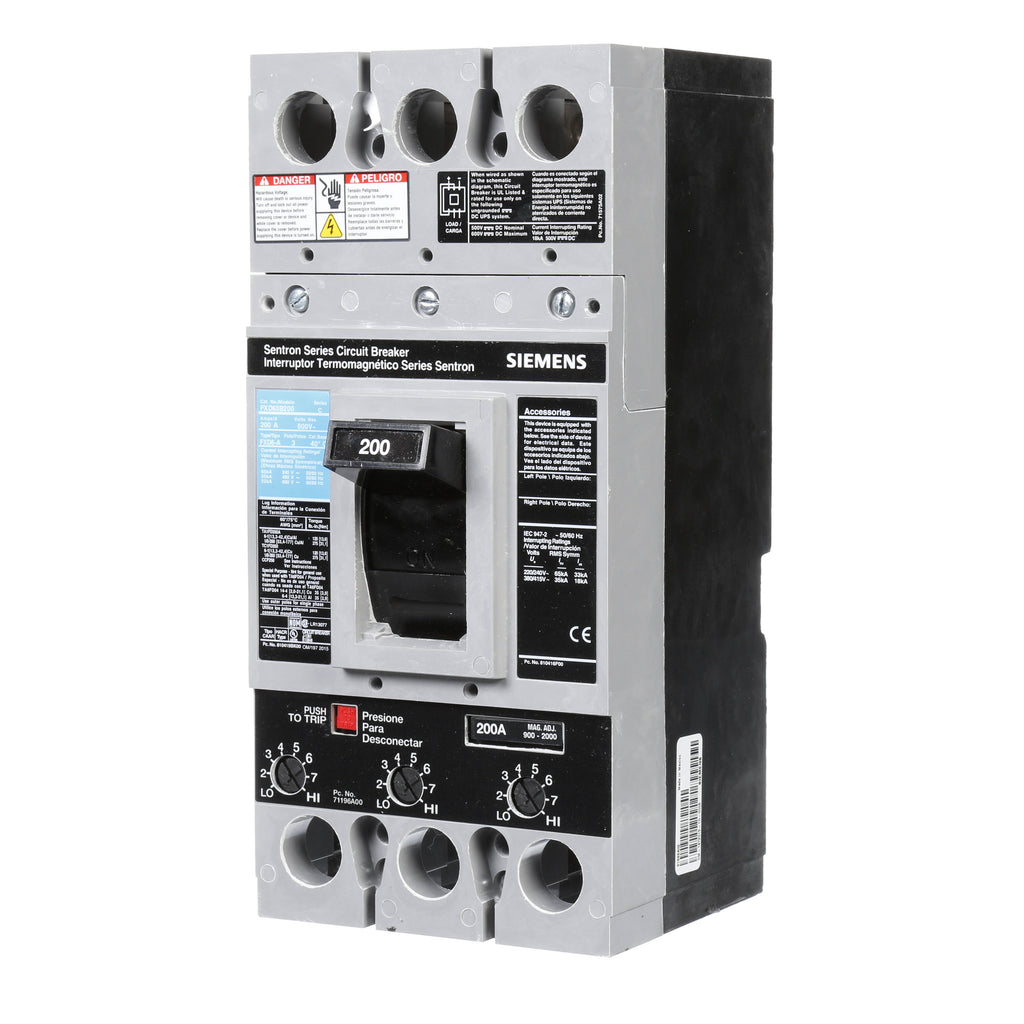

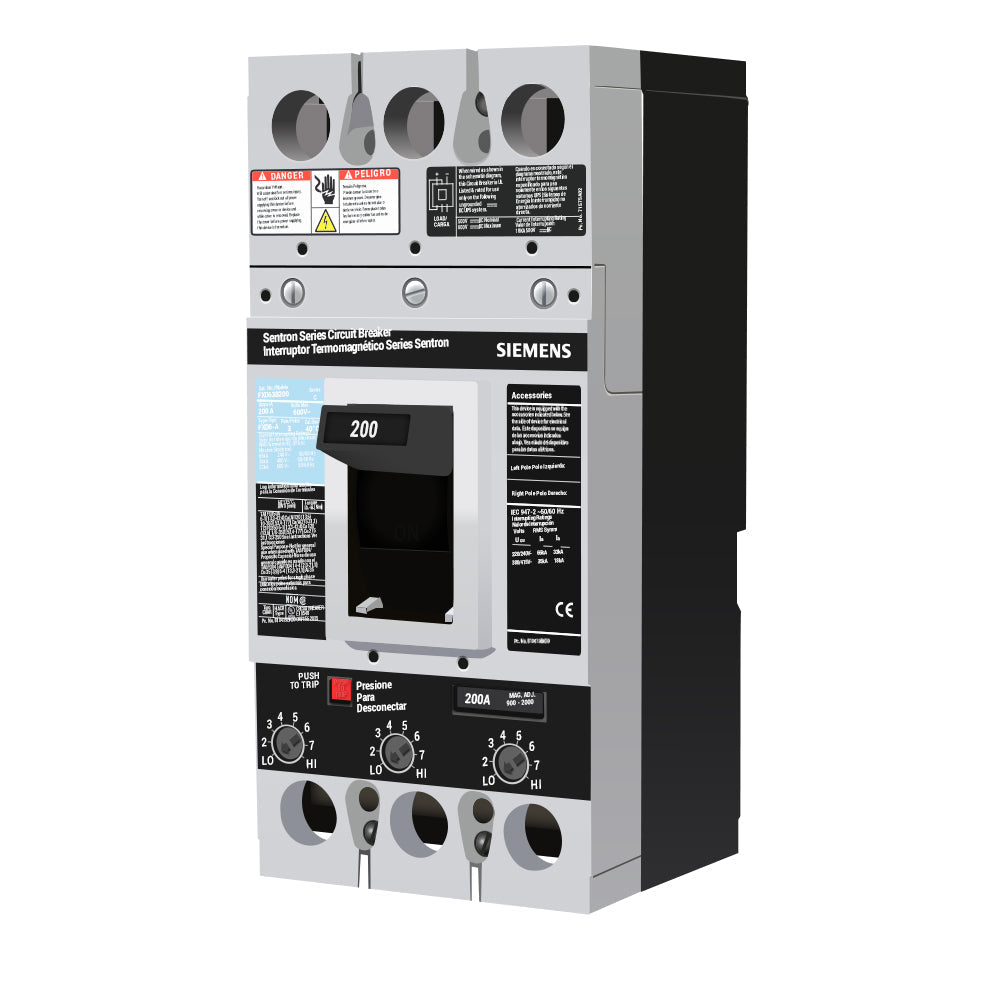

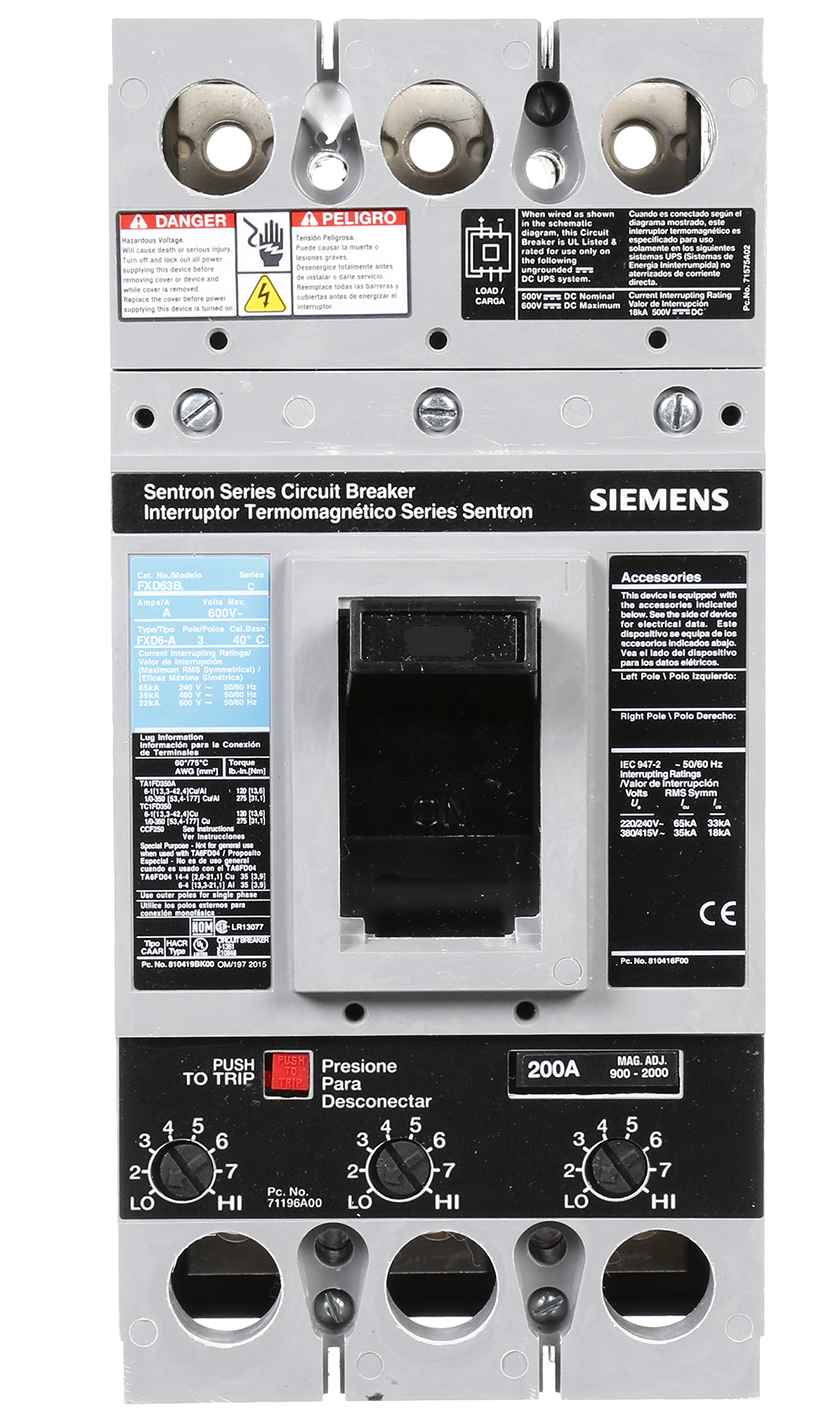

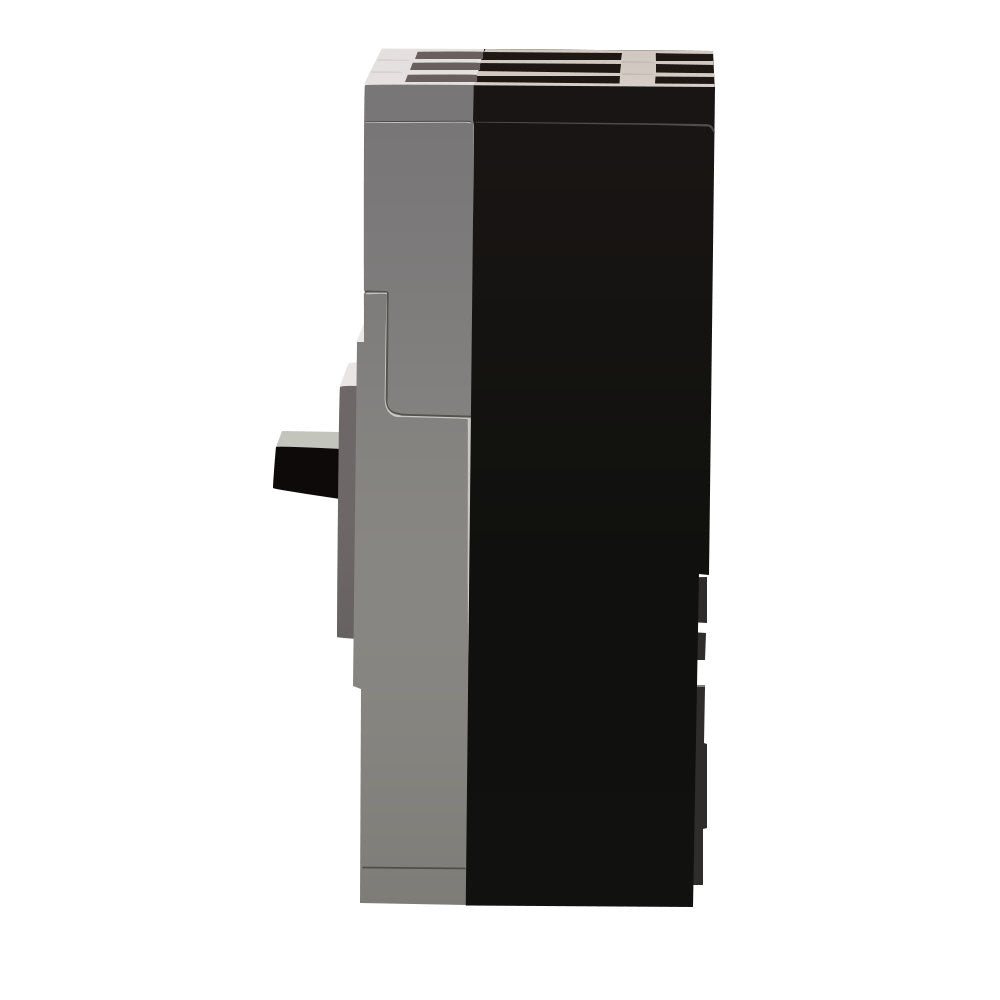

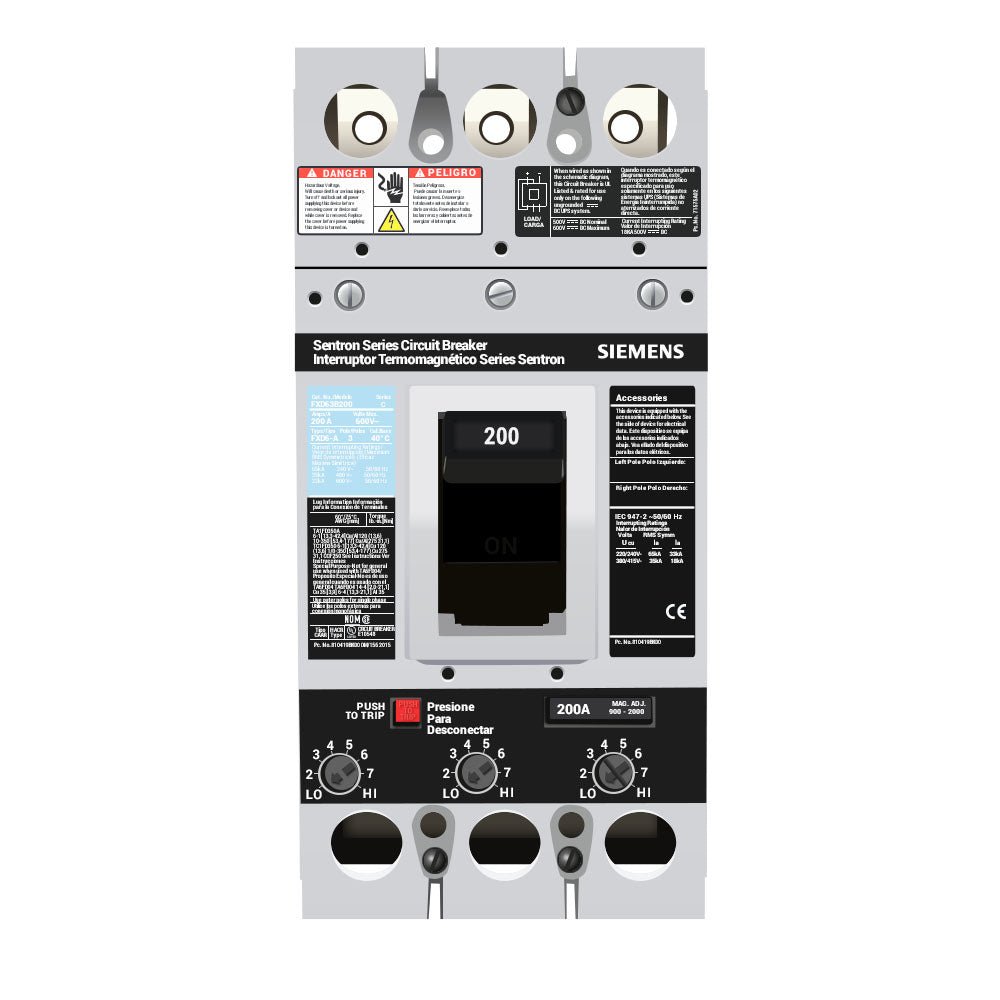

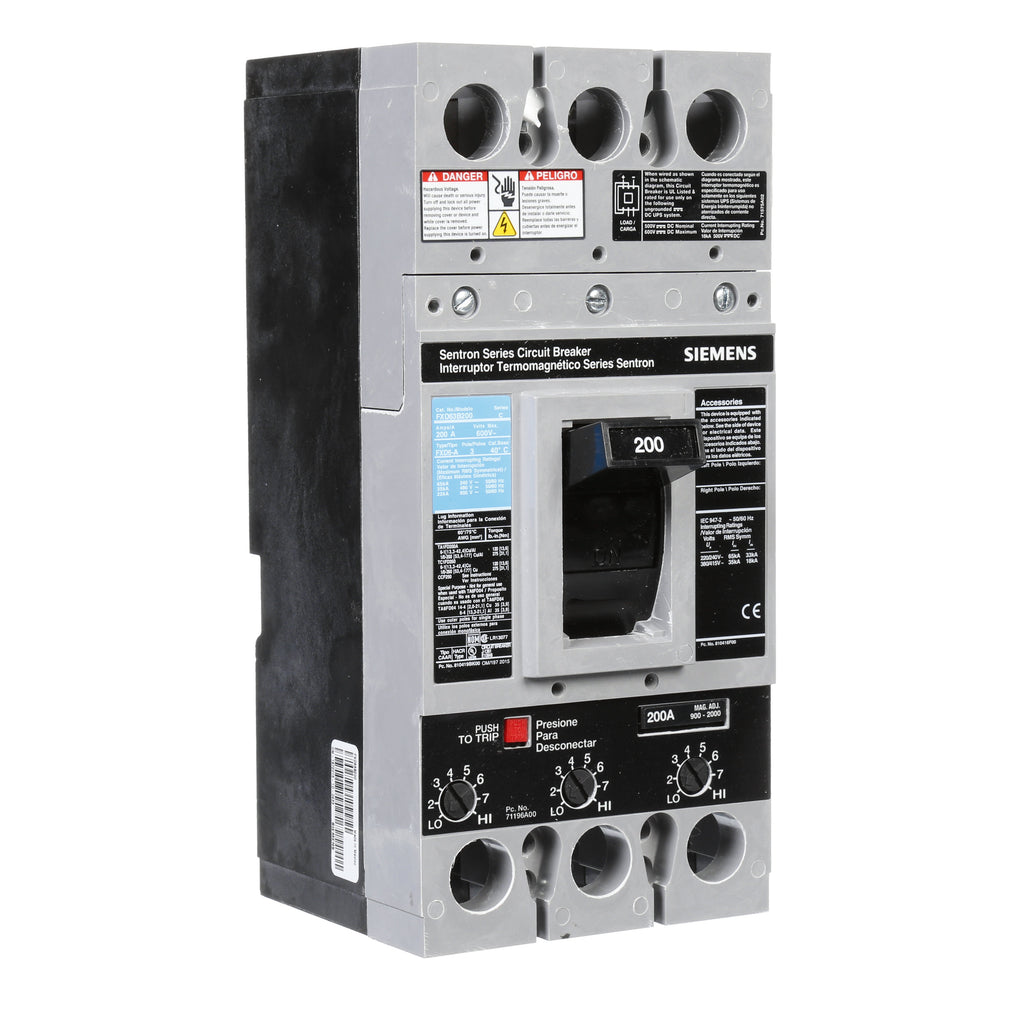

FXD63B200 - Siemens 200 Amp 600 VAC 3-Pole Molded Case Circuit Breaker Thermal Magnetic

FXD63B200

FXD63B200 is a Siemens 3-pole molded case circuit breaker rated for 200 amps and 600 VAC with a thermal-magnetic trip unit.This Siemens FXD63B200 breaker features a 22kA interrupt rating at 600 VAC, suitable for low voltage applications. It is a Type FD Sentron frame breaker with a non-interchangeable trip unit, designed for 50/60 Hz operation and rated for 40¡C ambient temperature. The breaker includes load-side terminals and is HACR rated, making it compatible with HVAC and refrigeration equipment.

Key Specifications
• Amperage: 200 A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 22kA at 600 VAC
• Trip Unit: Thermal-Magnetic
• Series/Frame: FD Sentron
• Mounting Type: Molded Case
• Frequency: 50/60 Hz
• Ambient Temperature Rating: 40¡C
• HACR Rated
• Non-Interchangeable Trip Unit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: FXD63B200
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FXD
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/FD
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643211278
• GTIN : 00783643211278
• Country of Origin : Mexico
• Dimensions : 6.89 x 5.354 x 11.024 inch
• Weight : 8.803 lb
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Standards : UL Listed
• Certification : UL, CSA, IEC
