FH361001021 - Square D 100A 600V 3-Pole I-Line Molded Case Circuit Breaker with Shunt Trip, F-Frame, Thermal Magnetic Trip, 25kA@480V, UL/CSA Certified

FH361001021

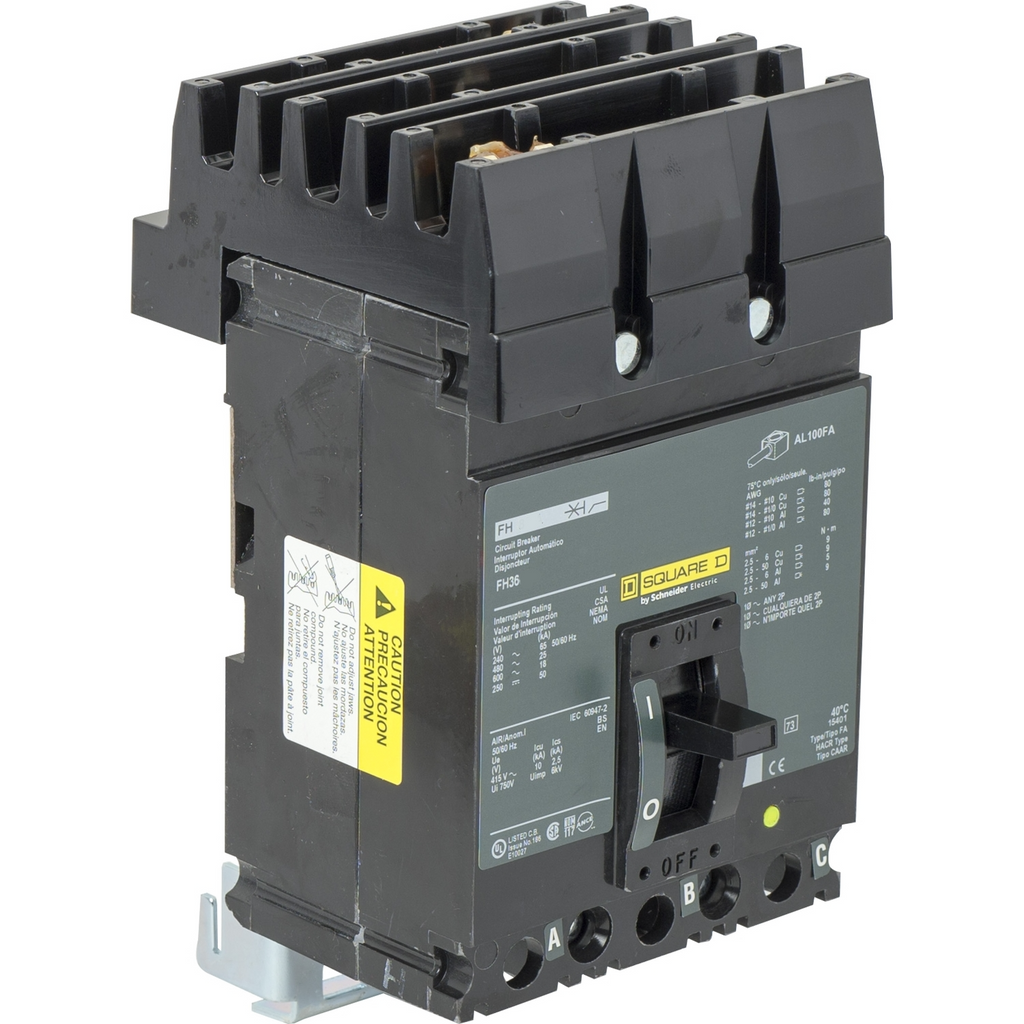

FH361001021 is a Square D molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.

This 3-pole, 100 amp breaker features a 600V AC rating, I-Line plug-on mounting, and a thermal magnetic trip unit for robust circuit protection. It is part of the F-Frame series, offers a high interrupting rating of 25kA at 480V, and includes a 120/208/240V AC shunt trip for remote operation. The breaker is UL and CSA certified for safety and compliance.

Key Specifications

• Amperage: 100A
• Voltage: 600V AC (also rated for 240/480V AC, 250V DC)
• Poles: 3
• Mounting Type: I-Line plug-on
• Interrupt Rating: 25kA at 480V AC, 18kA at 600V AC
• Series/Frame: F-Frame, Type FH
• Trip Unit: Thermal magnetic
• Certifications: UL Listed, CSA Certified
• Shunt Trip: 120/208/240V AC included
• Wire Size: 12 to 1/0 AWG (Aluminum), 14 to 1/0 AWG (Copper)
• Dimensions: 4.5" W x 4.13" D x 6" H
• Application: Power distribution panelboards and switchboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120/240Vac shunt trip

Specifications

• Part Number: FH361001021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901821717
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
