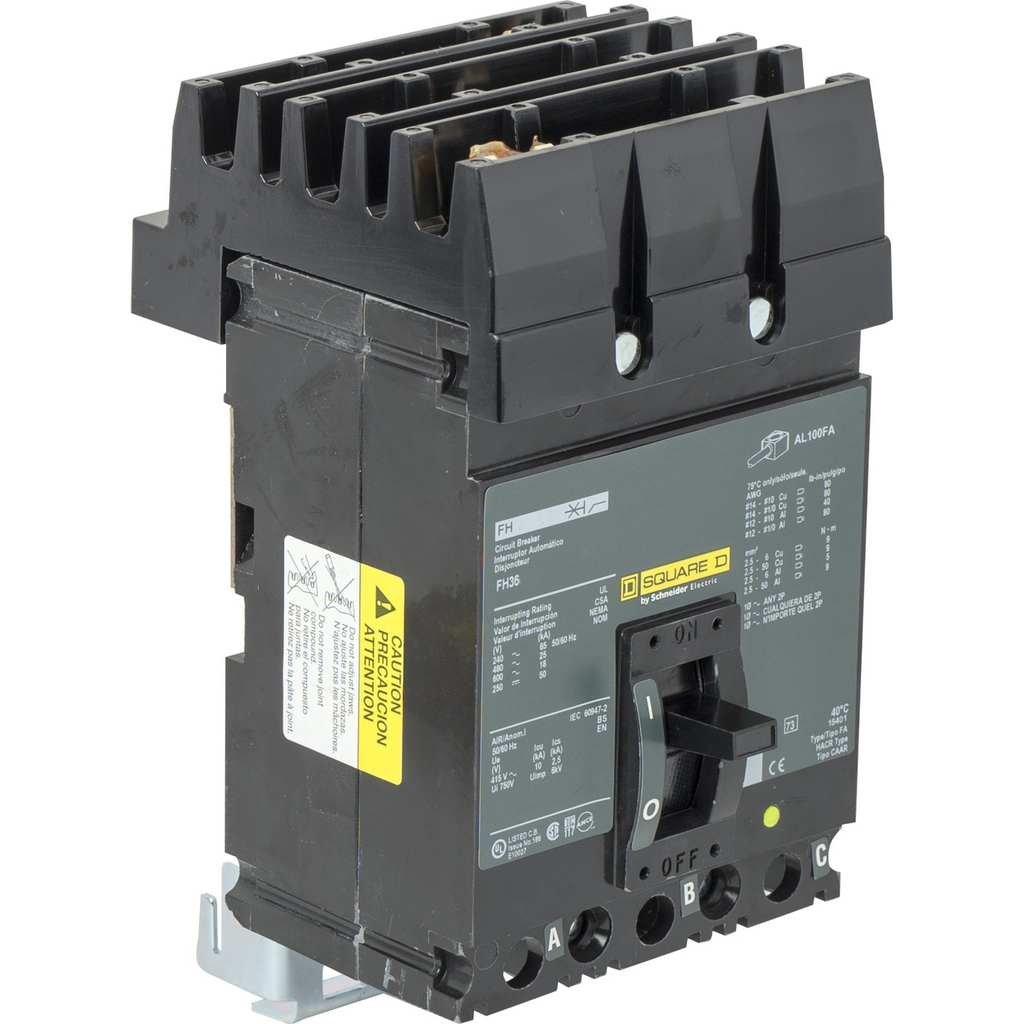

FH36100-BLACK - Square D FH 3 Pole 100 Amp 600V Molded Case Circuit Breaker

FH36100-BLACK

FH36100-BLACK is a Square D molded case circuit breaker designed for I-Line panelboards and switchboards with thermal magnetic protection. This 3-pole, 3-phase unit delivers reliable overcurrent protection in industrial and commercial power distribution applications. The breaker features long-time and instantaneous trip functions with a fixed magnetic trip setting of 1700A, providing dependable circuit protection across multiple voltage ratings. Key Specifications

• Part Number: FH36100-BLACK
• Manufacturer: Square D
• Amperage: 100 Amps
• Voltage: 240/480/600 VAC
• Poles: 3
• Phase: 3
• Frame Type: F-Frame
• Mounting: I-Line Style Plug-In
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC
• Functions: Long-Time and Instantaneous Trip
• Temperature Rating: 40 degrees C
• Certifications: UL, CSA, CE, HACR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH36100-BLACK
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 6
