AL100FA - Square D Mechanical Lug Terminal Kit for 100A FA/FH/FI Frame Circuit Breakers, 14-1/0 AWG Copper, 12-1/0 AWG Aluminum, Qty 3

AL100FA

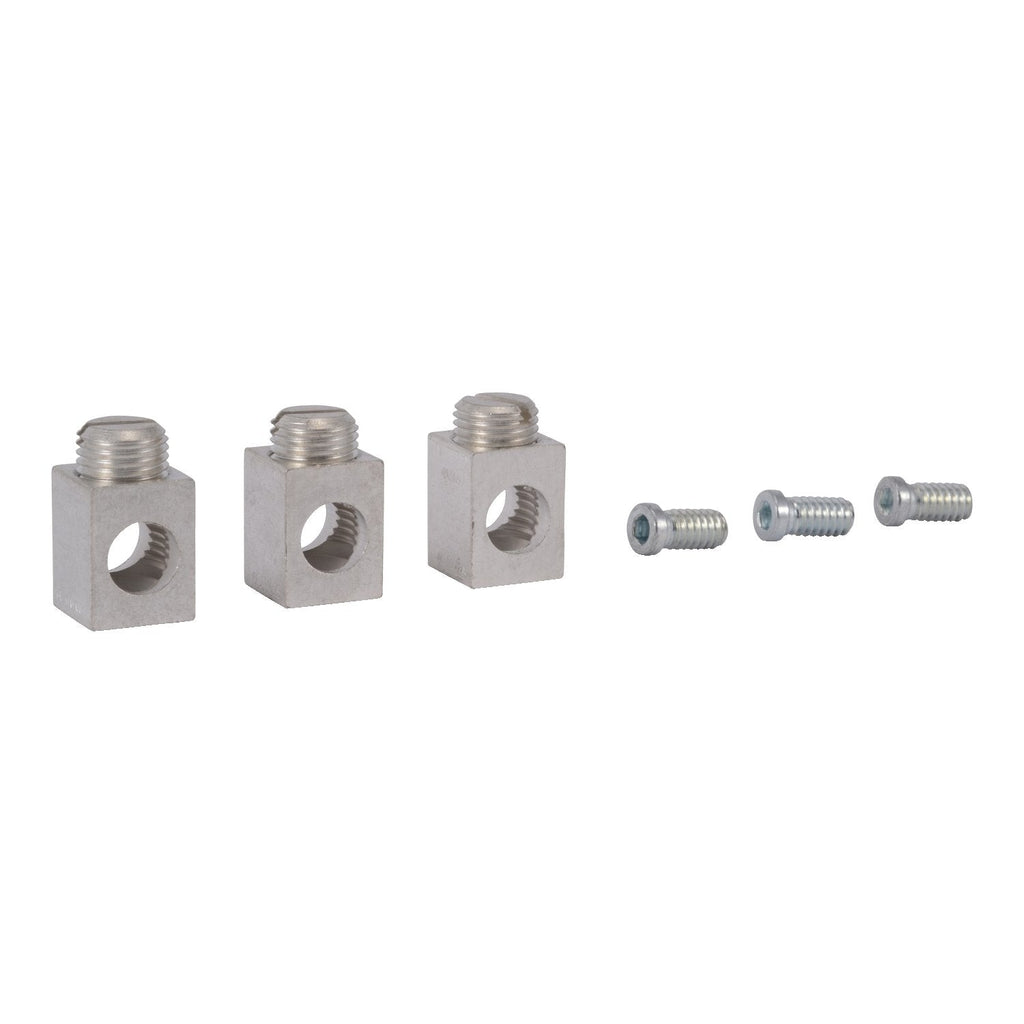

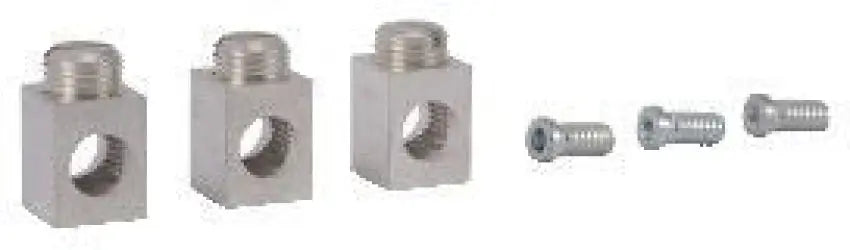

AL100FA is a Square D mechanical lug terminal kit designed for use with 100A FA, FH, and FI frame circuit breakers. This kit provides secure and reliable connections for both copper and aluminum conductors, making it ideal for a wide range of electrical distribution applications. The AL100FA lug kit is engineered for compatibility with Square D FA, FH, and FI series breakers, supporting conductor sizes from 14 AWG to 1/0 AWG copper and 12 AWG to 1/0 AWG aluminum. Each kit includes three mechanical lugs, ensuring proper termination and minimizing installation time. The lugs are designed for easy installation and provide a robust connection for high-current applications.

• Part Number: AL100FA
• Manufacturer: Square D
• Compatible Breaker Frame: FA, FH, FI
• Maximum Breaker Current Rating: 100A
• Conductor Size: 14-1/0 AWG Copper, 12-1/0 AWG Aluminum
• Quantity: 3
• Mounting Type: Mechanical Lug
• Standards: RoHS Compliant
• Country of Origin: US
• UPC: 00785901060741
• GTIN: 00785901060741
• Proposition 65 Warning: Contains DINP and DIDP

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AL100FA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Lug Terminal Kit
• Family : FAL Series
• Type : AL
• MCM Size : 106
• Barrels : 1
• Metal Type : Aluminum
• Compatible Frames : FAL,FAP,FHL,FHP,FIL,FIP

Product Data

• UPC : 785901060741
• GTIN : 00785901060741
• Country of Origin : United States
• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.1
• Certification : CSA - UL
