FH36100 - Square D 100 Amp 3 Pole 600V I-Line Molded Case Circuit Breaker, Thermal Magnetic, F-Frame, 25kAIC, UL/CSA/CE

FH36100

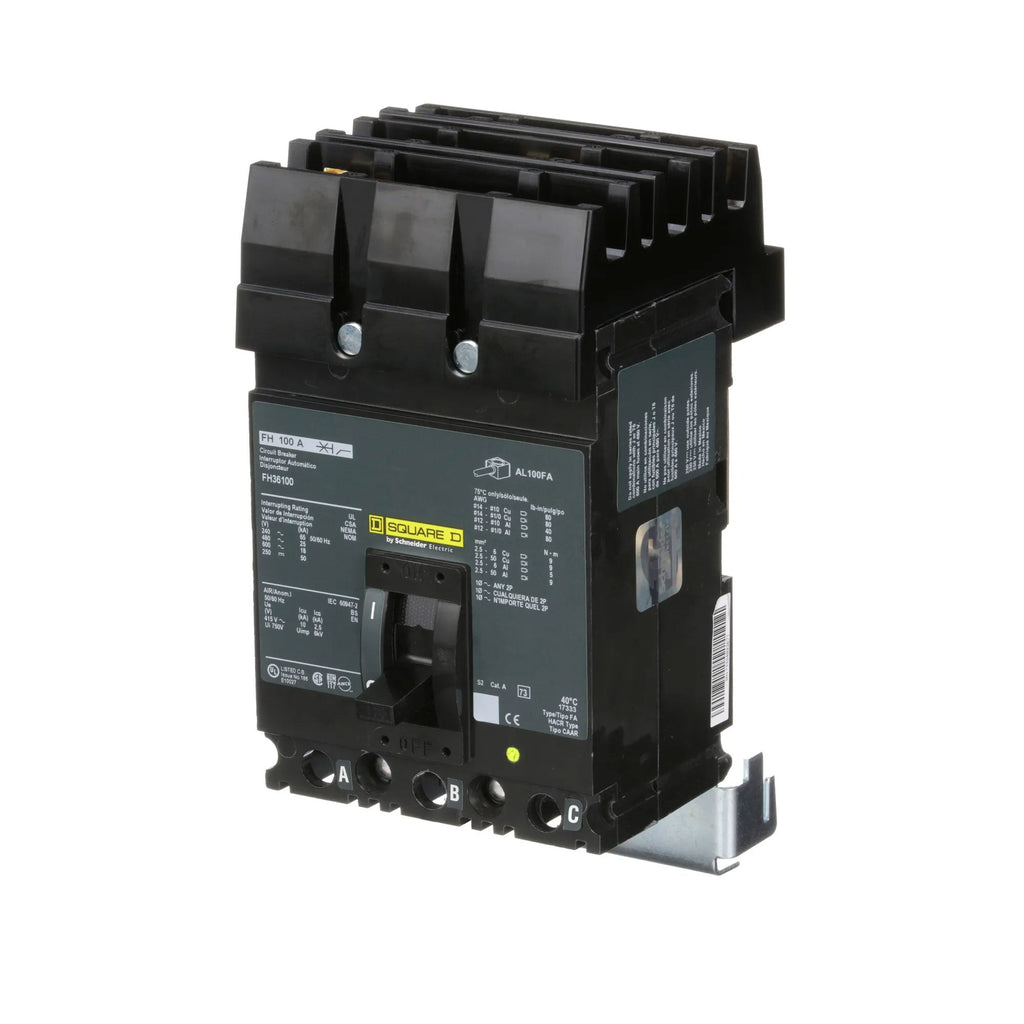

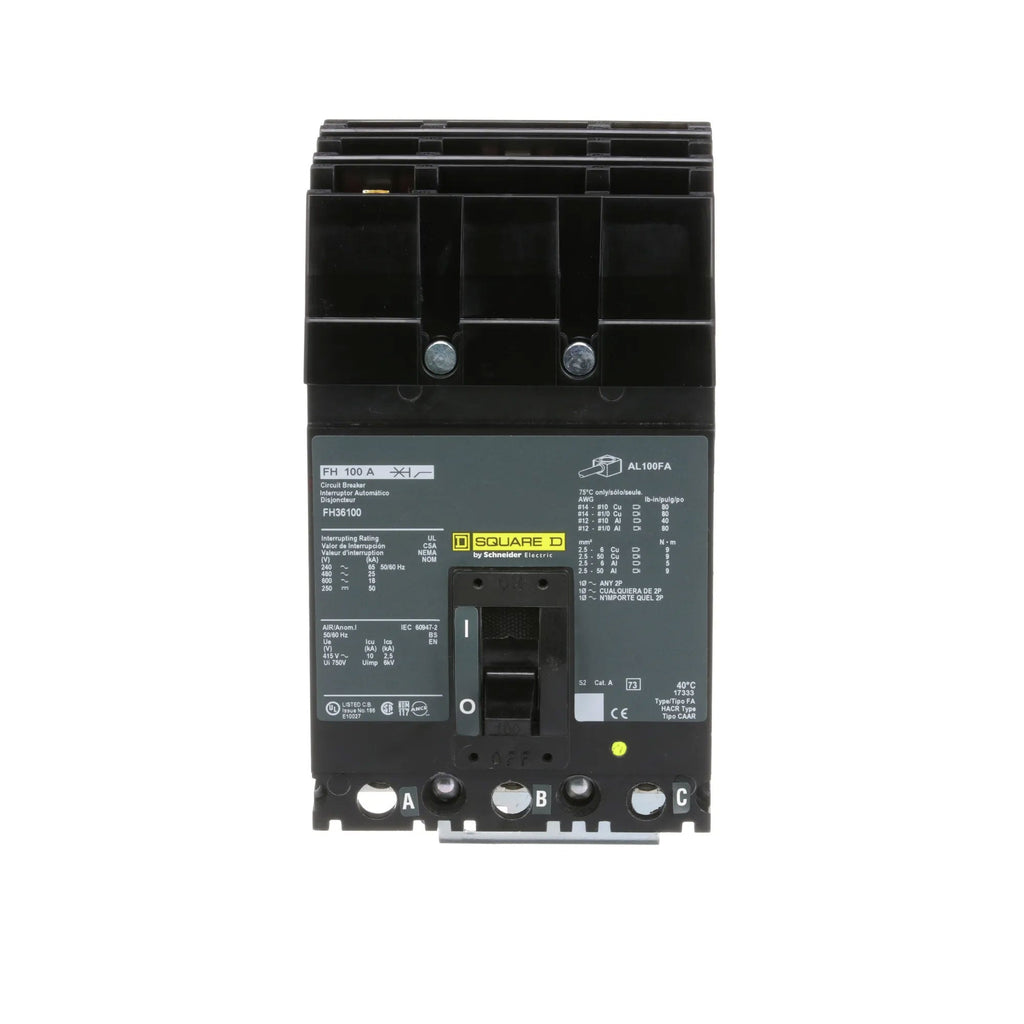

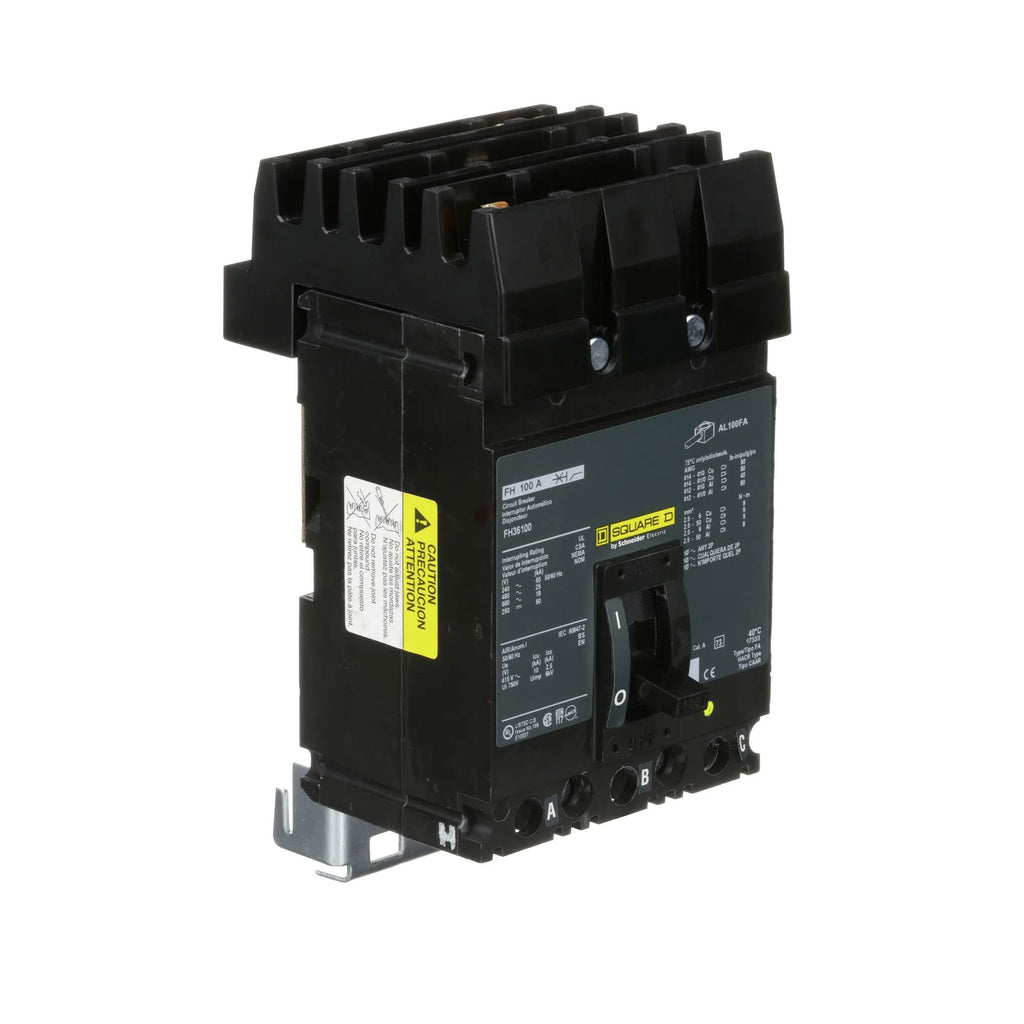

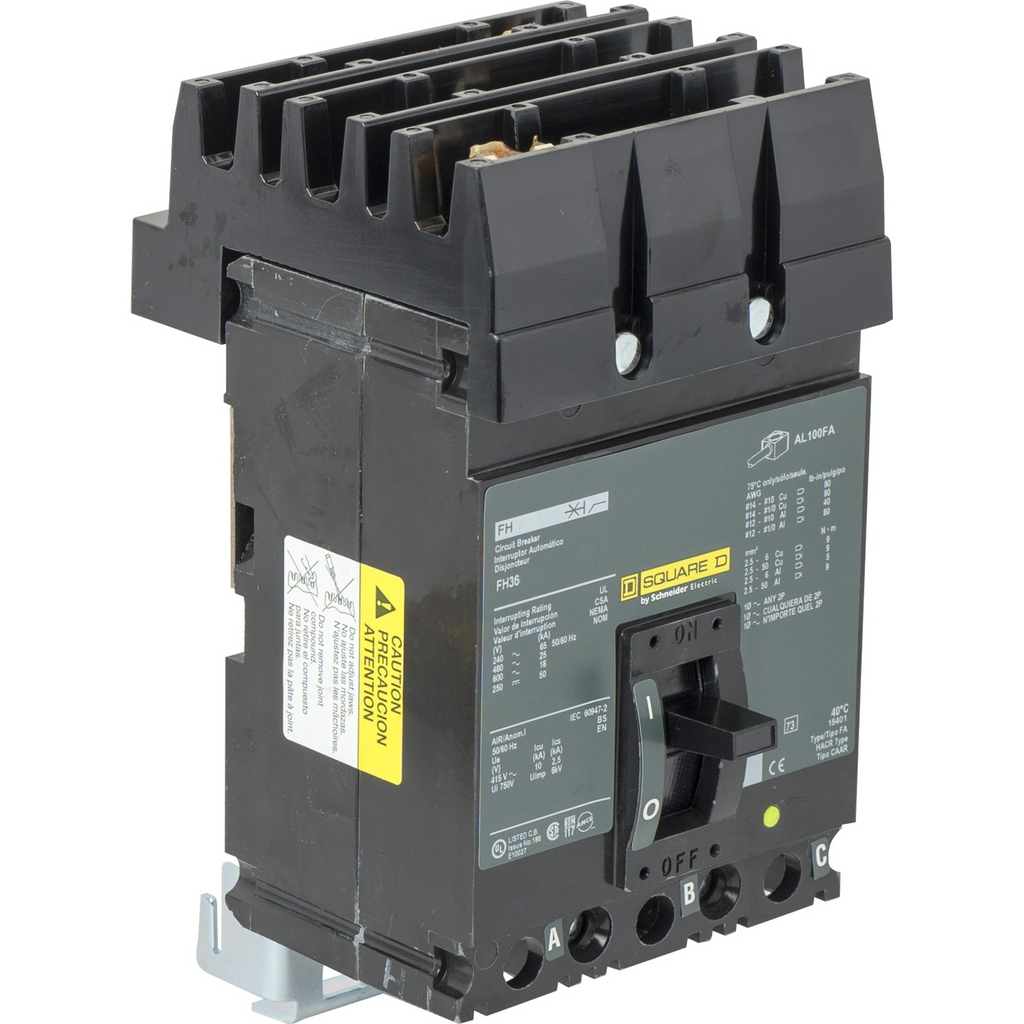

FH36100 is a Square D 100 Amp, 3 pole, 600V molded case circuit breaker designed for I-Line panelboards and switchboards.

This thermal magnetic circuit breaker features a non-interchangeable trip unit, F-Frame construction, and plug-in I-Line mounting for easy installation. It is rated for 25kA interrupting capacity at 480V, with approvals from UL, CSA, and CE, ensuring compliance with industry standards for safety and performance.

Key Specifications
• Amperage: 100A
• Voltage: 600VAC (also rated 240V, 480V)
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 25kAIC @ 480V (18kAIC @ 600V, 65kAIC @ 240V)
• Series/Frame: FH, F-Frame
• Trip Unit: Thermal magnetic, non-interchangeable, LI (long-time & instantaneous)
• Certifications: UL Listed, CSA Certified, CE
• Phase: 3
• Connection: I-Line style plug-in, load side lugs
• Dimensions: 6.4" H x 4.5" W x 4.13" D
• Temperature Rating: 40°C
• HACR Rated: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901241409
• GTIN : 00785901241409
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
