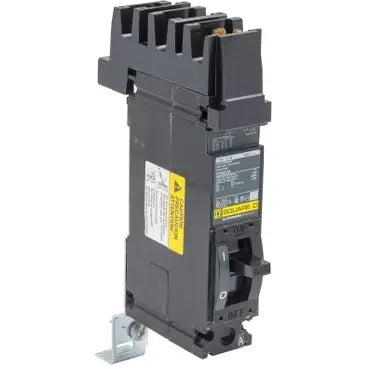

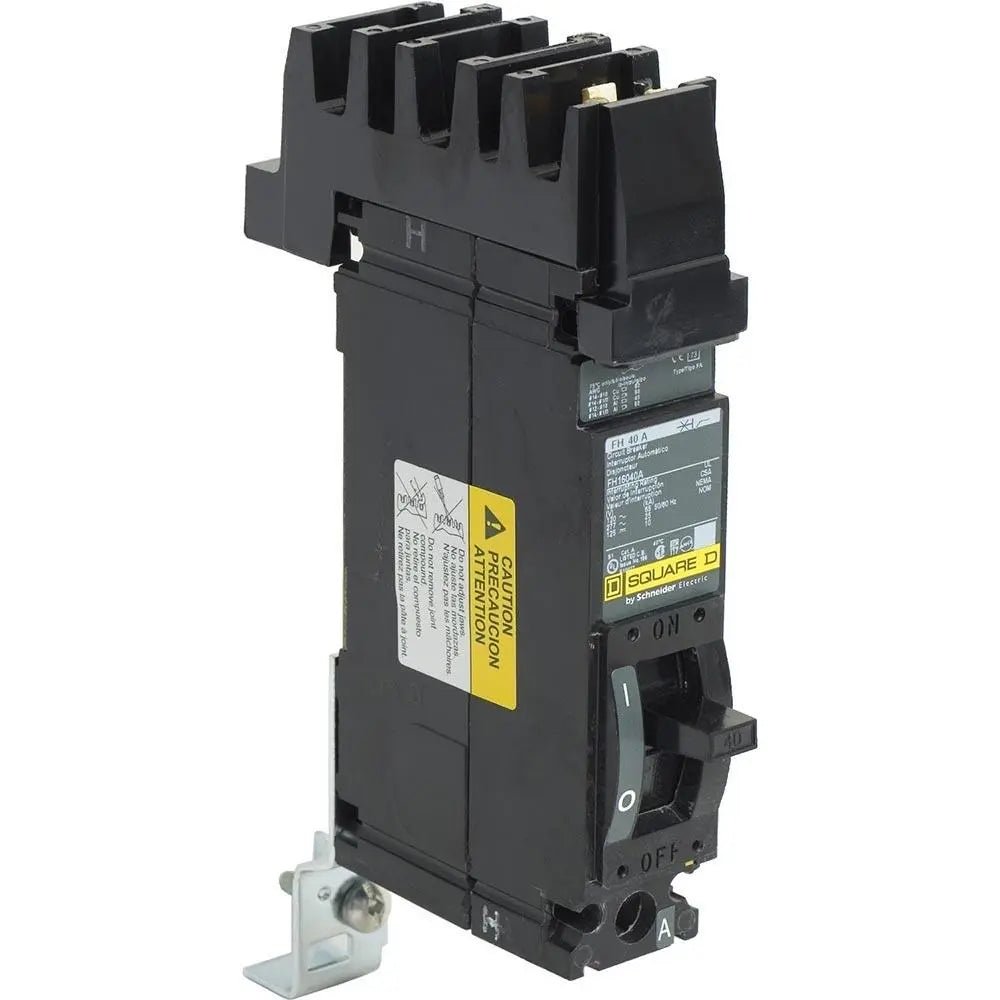

FH16090A - Square D 90A 277V 1 Pole I-Line Molded Case Circuit Breaker

FH16090A

FH16090A is a Square D I-Line molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This breaker features a 1-pole configuration, 90A current rating, and 277VAC voltage rating, making it suitable for a wide range of applications requiring high interrupt capacity and dependable performance. The FH16090A is part of the Square D FH series, utilizing an F frame and I-Line mounting style for easy integration into compatible panels. It provides thermal magnetic protection for overload and short circuit events, with a standard interrupting rating of 25kA at 240V. The breaker is designed for A phase connection and operates at a maximum ambient temperature of 40°C.

• Part Number: FH16090A
• Manufacturer: Square D
• Series: FH
• Frame: F
• Mounting Type: I-Line
• Number of Poles: 1
• Rated Current: 90A
• Rated Voltage: 277VAC
• Interrupting Rating: 25kA @ 240V
• Protection Type: Thermal Magnetic
• Phase Connection: A Phase
• Operating Temperature: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH16090A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 277
• Amperage : 90
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901292074
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
