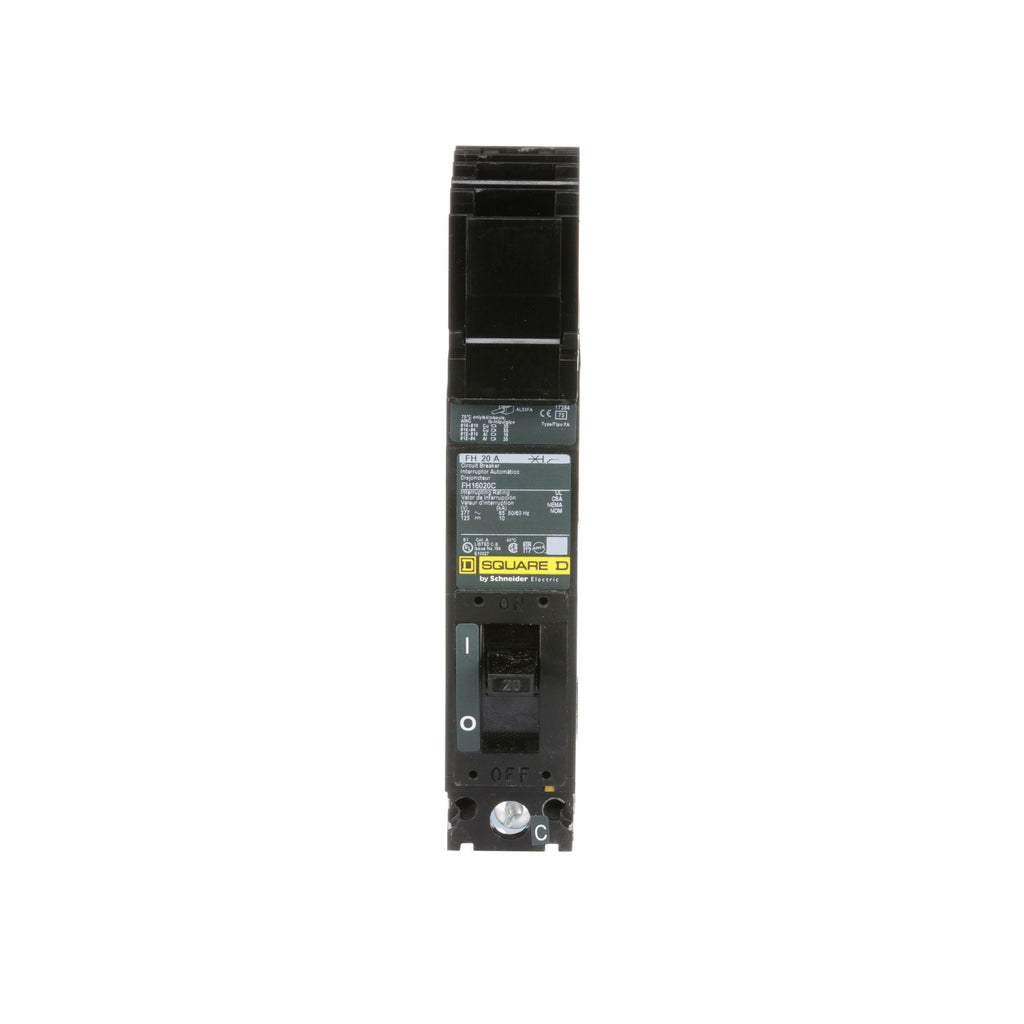

FH16020C - Square D 20A 277V 1 Pole Thermal Magnetic Circuit Breaker Plug-On Mount

FH16020C

FH16020C is a Square D 1 pole thermal magnetic molded case circuit breaker rated for 20 amps and 277 volts AC. It features a plug-on mounting type for easy installation in I-Line panelboards.

This circuit breaker provides reliable overcurrent protection with a 25kA interrupting rating at 240VAC. It includes long time and instantaneous trip functions and is UL Listed and CSA Certified, ensuring compliance with safety standards. The FH series breaker is designed for use in power distribution applications requiring a compact and durable solution.

Key Specifications
• Manufacturer: Square D
• Series: FH
• Amperage: 20A
• Voltage: 277VAC
• Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 25kA at 240VAC
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Certified
• Phase: Single

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH16020C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 277
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 078590133893
• GTIN : 00785901338932
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
• Certification : UL, CSA
• Wire Size : AWG 12 to 4 AWG, AWG 14 to 4 AWG, Aluminum/Copper
