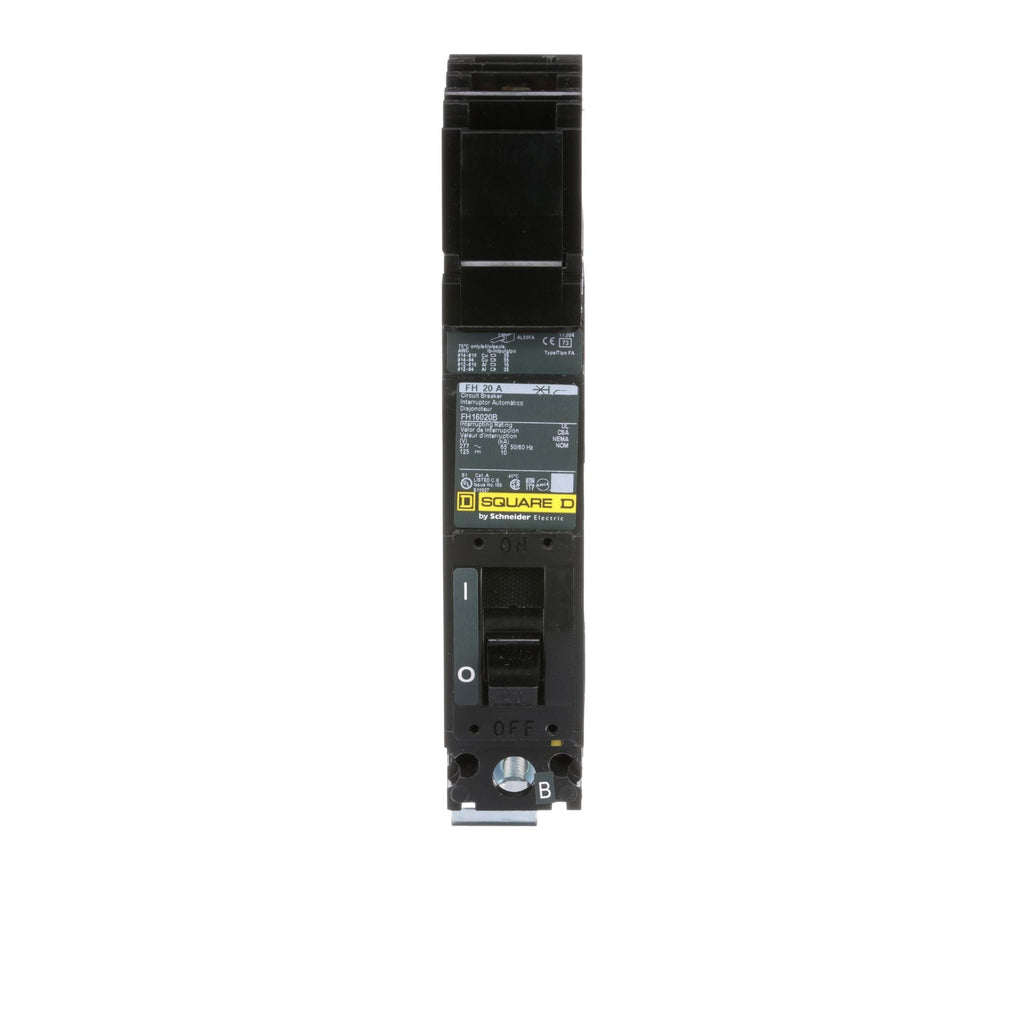

FH16020B - Square D 20 Amp 277V 1 Pole I-Line Molded Case Circuit Breaker FH Series

FH16020B

FH16020B is a 20 Amp, 277 Volt, 1 Pole molded case circuit breaker from Square D's FH series designed for I-Line mounting.This thermal magnetic circuit breaker features a 25kA interrupting rating at 240V, long-time and instantaneous trip functions, and a plug-in I-Line style connection. It is UL and CSA certified and suitable for high interrupting capacity applications.

• Manufacturer: Square D
• Series/Frame: FH
• Amperage: 20 Amps
• Voltage Rating: 277 VAC
• Poles: 1
• Mounting Type: I-Line plug-in
• Interrupting Rating: 25kA at 240V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Certifications: UL, CSA, RoHS, REACh
• Terminal Connection: Load Side Lug
• Temperature Rating: 40 °C
• Circuit Breaker Type: High Interrupting Capacity

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH16020B
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 277
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078590133892
• GTIN : 00785901338925
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
• Certification : UL Listed and CSA Certified
• Wire Size : 12 to 4 AWG (Aluminum) and 14 to 4 AWG (Copper)
