FH16015C - Square D 15A 1P 277/600VAC 125VDC I-Line Molded Case Circuit Breaker, Thermal Magnetic Trip, 25kAIC, FH Series, UL/CSA Certified

FH16015C

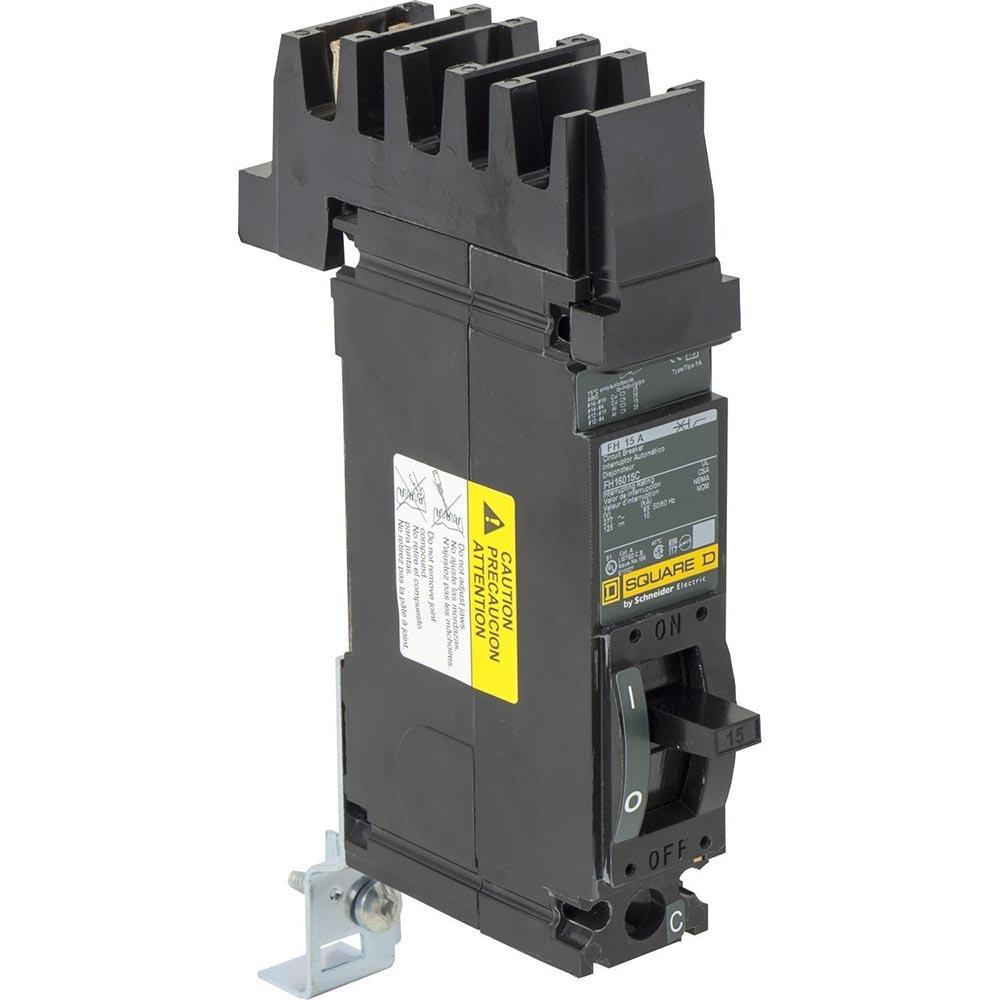

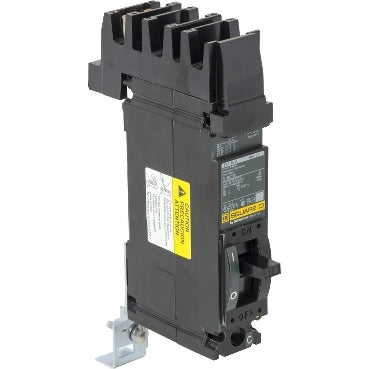

FH16015C is a Square D 1-pole, 15A molded case circuit breaker designed for industrial and commercial power distribution.

This thermal magnetic circuit breaker features a 277/600VAC, 125VDC voltage rating, I-Line plug-in mounting, and a high interrupting capacity of 25kAIC at 240V. It is part of the FH series, offers both long-time and instantaneous trip protection, and is certified to UL and CSA standards for reliable performance in demanding environments.

Key Specifications
• Amperage: 15A
• Voltage: 277/600VAC, 125VDC
• Poles: 1
• Mounting Type: I-Line plug-in
• Interrupt Rating: 25kAIC at 240V
• Series/Frame: FH
• Trip Unit: Thermal magnetic (long-time and instantaneous)
• Certifications: UL, CSA
• Connection: Load side lug
• Wire Range: AWG 14 to AWG 4, Al/Cu
• Temperature Rating: 40°C
• Standards: RoHS, REACh

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH16015C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 277
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078590156374
• GTIN : 00785901563747
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
• Wire Size : AWG 14 to AWG 4, Al/Cu
