FH16070A - Square D I-Line Plug-In Molded Case Circuit Breaker, 70A, 277V, 1 Pole, F-Frame, Thermal-Magnetic Trip, UL/CSA

FH16070A

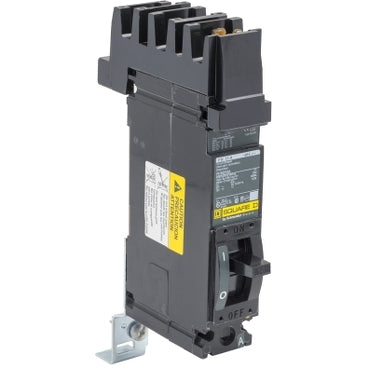

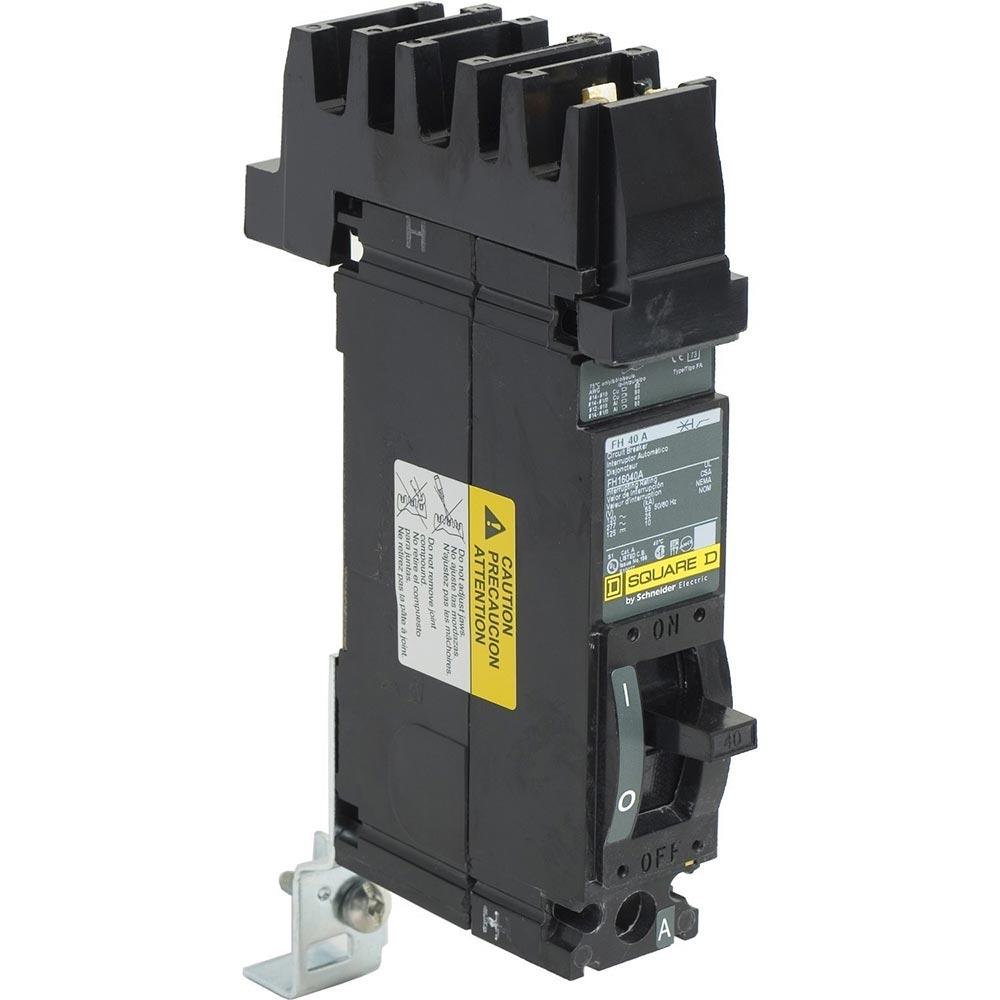

FH16070A is a Square D I-Line plug-in molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.

This 1-pole breaker features a 70A current rating, 277V voltage rating, and thermal-magnetic trip technology for robust circuit protection. It is part of the F-Frame series, offers a 25kA interrupting rating at 240V, and is approved for use in UL and CSA listed panelboards and switchboards. The plug-in (I-Line) mounting style ensures easy installation and maintenance.

Key Specifications
• Part Number: FH16070A
• Manufacturer: Square D
• Amperage: 70A
• Voltage: 277VAC (also rated 240VAC, 480VAC Star/277VAC, 415VAC, 250VDC)
• Poles: 1
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 25kA @ 240V
• Series/Frame: F-Frame (FH)
• Trip Unit: Thermal-Magnetic
• Certifications: UL, CSA
• Terminal Wire Size: 12 to 1/0 AWG (Aluminum), 14 to 1/0 AWG (Copper)
• Application: Power distribution in panelboards and switchboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH16070A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 277
• Amperage : 70
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901774471
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2.47
