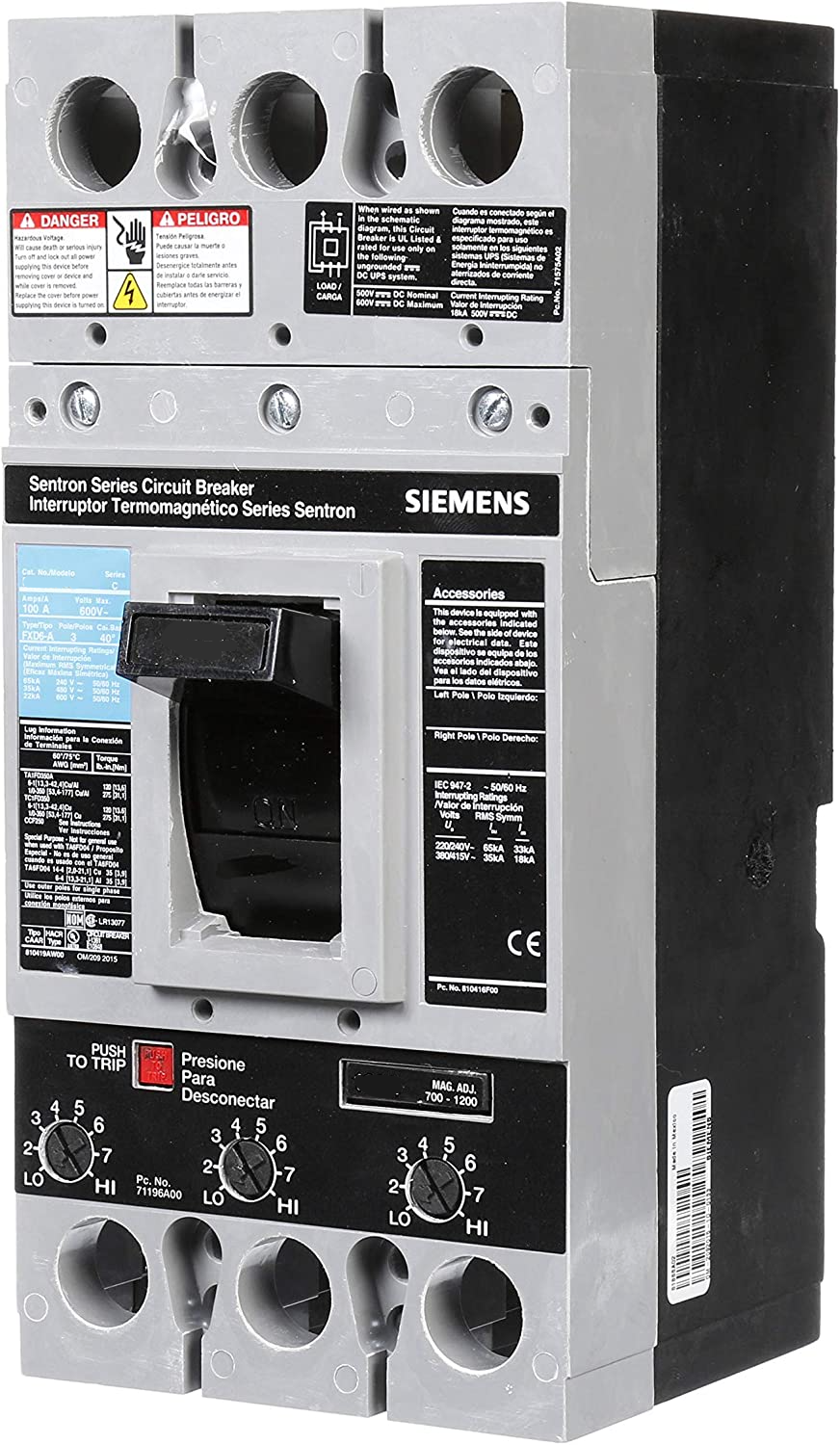

FD63B125L - Siemens 125A 3-Pole 600V Molded Case Circuit Breaker Thermal Magnetic Trip

FD63B125L

FD63B125L is a Siemens 3-pole molded case circuit breaker rated for 125 amps and 600 volts with thermal magnetic trip protection.This Siemens Sentron FD63B125L circuit breaker features a 3-pole design suitable for low voltage applications up to 600 VAC and 500 VDC. It has a thermal magnetic trip unit providing reliable protection and an interrupt rating of 22 kA at 600 V and 35 kA at 480 V. The breaker meets UL 489 and IEC 60947-2 standards and is part of the FD frame series.

Key Specifications
• Amperage: 125 A
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3
• Interrupt Rating: 22 kA at 600 V, 35 kA at 480 V
• Trip Unit: Thermal Magnetic
• Series/Frame: FD Frame
• Certifications: UL 489, IEC 60947-2
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Line and load side lugs included (TA1FD350A)




Specifications

• Part Number: FD63B125L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FD
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643005303
• GTIN : 00783643005303
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 10.031
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : UL, CSA, IEC
• Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
