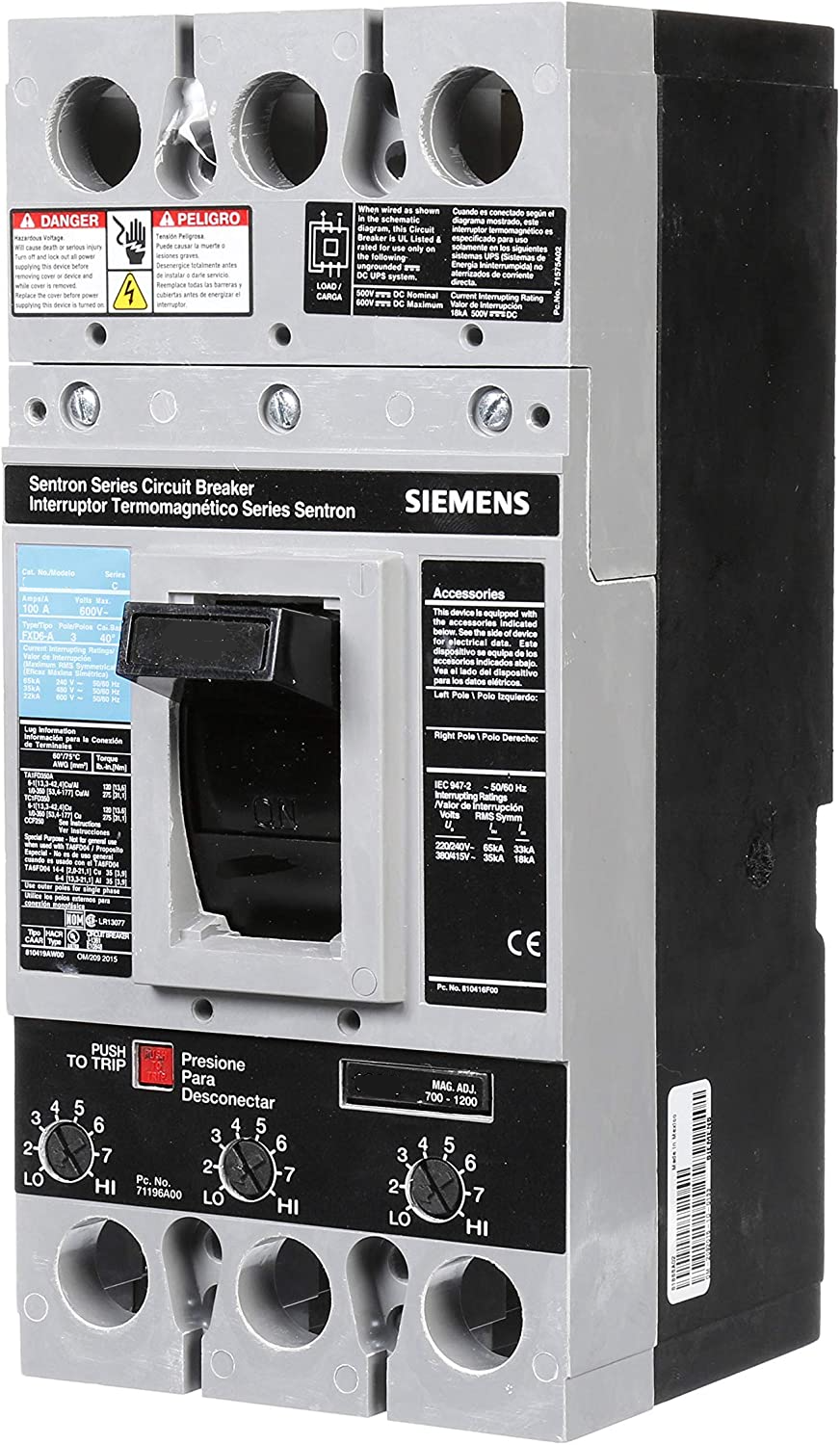

FD63B070L - Siemens FD Frame 70A 3-Pole 600V Molded Case Circuit Breaker

FD63B070L

FD63B070L is a Siemens Sentron Series FD-frame molded case circuit breaker designed for industrial enclosures, switchboards, and panelboards. This 3-pole, 70-ampere breaker operates at 600V AC (50/60 Hz) and 250V DC, featuring standard breaking capacity with an interrupting rating of 22 kAIC at 600V and 35 kAIC at 480V. The breaker includes an interchangeable trip unit and is rated for 40 degrees Celsius operation, meeting UL 489 and IEC 60947-2 standards for reliable performance in demanding applications.

• Amperage Rating: 70A
• Poles: 3-Pole
• Voltage: 600V AC (50/60 Hz), 250V DC
• Frame: FD Frame
• Interrupting Rating: 22 kAIC at 600V, 35 kAIC at 480V
• Temperature Rating: 40 degrees Celsius
• Trip Unit: Interchangeable
• Mounting: Bolt-on
• Series: Sentron
• Certifications: UL 489, IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: FD63B070L
• Manufacturer : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FD
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643005259
• GTIN : 00783643005259
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 10.031
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : UL, CSA, IEC
• Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
