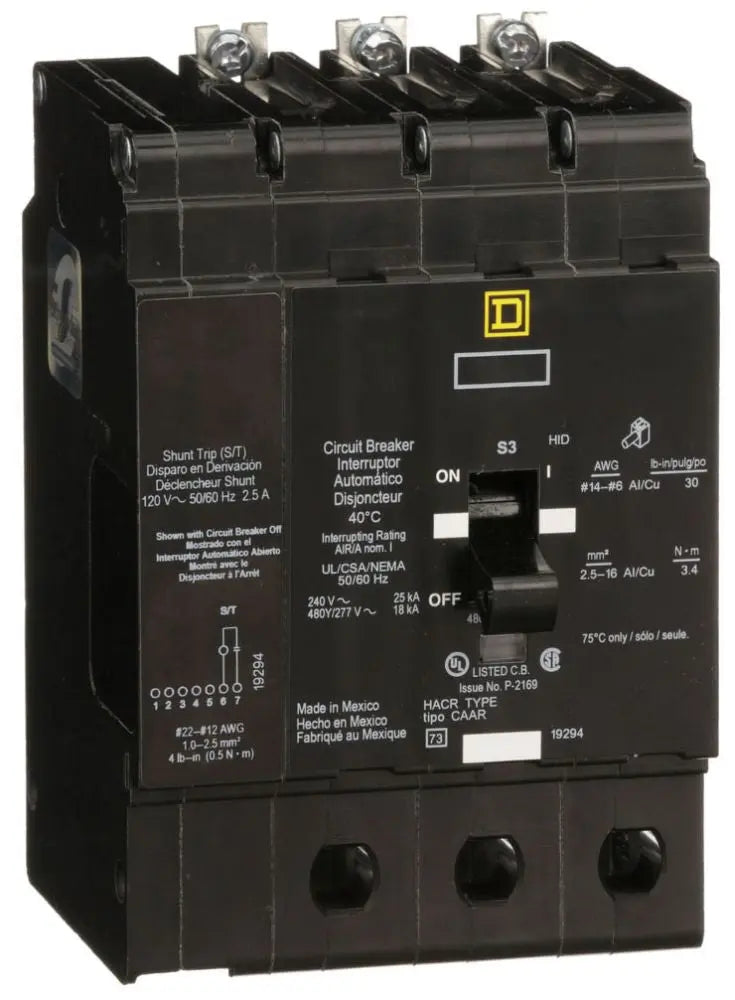

EDB34110SA - Schneider Electric (Square D) 3-Pole 110 A 480Y/277 V AC Bolt-On Circuit Breaker with Shunt Trip, Type EDB

EDB34110SA

EDB34110SA is a Schneider Electric E-Frame miniature circuit breaker with shunt trip, rated at 110A, 3 poles, and 480Y/277V AC for superior overload and short-circuit protection in lighting panelboards.This bolt-on mounting circuit breaker features a thermal-magnetic trip unit, providing reliable protection with interrupt ratings of 18kA at 480Y/277VAC and 25kA at 240VAC. It includes a factory-installed shunt trip for remote operation and is designed for NF panelboards with aluminum lug terminals compatible with 12 to 2/0 AWG conductors.

• Part Number: EDB34110SA
• Manufacturer: Schneider Electric
• Frame Type: EDB (125A frame)
• Amperage: 110A
• Poles: 3
• Voltage: 480Y/277VAC
• Mounting: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 18kA @ 480Y/277VAC
• Interrupt Rating: 25kA @ 240VAC
• Special Feature: Shunt Trip

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: EDB34110SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LS - Long-Time and Short-Time
• Terminal Connection : Lug
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901673255
• GTIN : 00785901673255
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 3.92 in (99.57 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 4.23
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12...AWG 2/0 aluminium, AWG 14...AWG 2/0 copper
