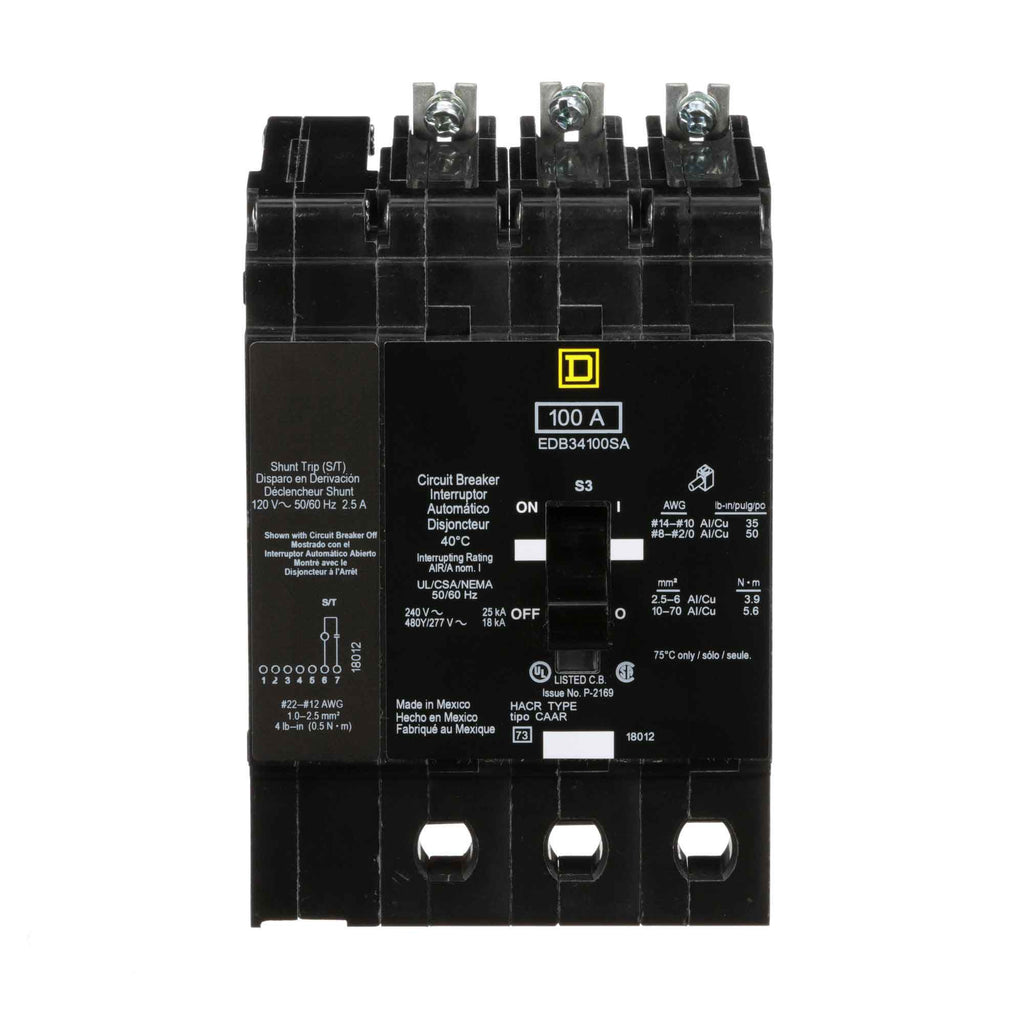

EDB34100SA - Schneider Electric (Square D) 3-Pole 100 A 480Y/277 V AC Bolt-On Circuit Breaker with Shunt Trip, Type EDB

EDB34100SA

EDB34100SA is a Schneider Electric EDB series molded case circuit breaker with 120V shunt trip.EDB34100SA is a 3-pole, 100A thermal magnetic miniature circuit breaker rated for 480Y/277V with bolt-on mounting, LI functions, and 18kA interrupt rating at 480V.

• Part Number: EDB34100SA
• Manufacturer: Schneider Electric
• Series/Frame: EDB, E-Frame
• Poles: 3
• Amperage: 100A
• Voltage: 480Y/277VAC
• Mounting Type: Bolt-On
• Trip Unit: Thermal Magnetic, LI (Long-Time/Instantaneous)
• Interrupt Rating: 18kA@480V
• Features: 120V Shunt Trip

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: EDB34100SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901335160
• GTIN : 00785901335160
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 3.92 in (99.57 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 4.25
• Panel Type : Square D NF Panelboards
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to AWG 2/0, Aluminum, AWG 14 to AWG 2/0, Copper
