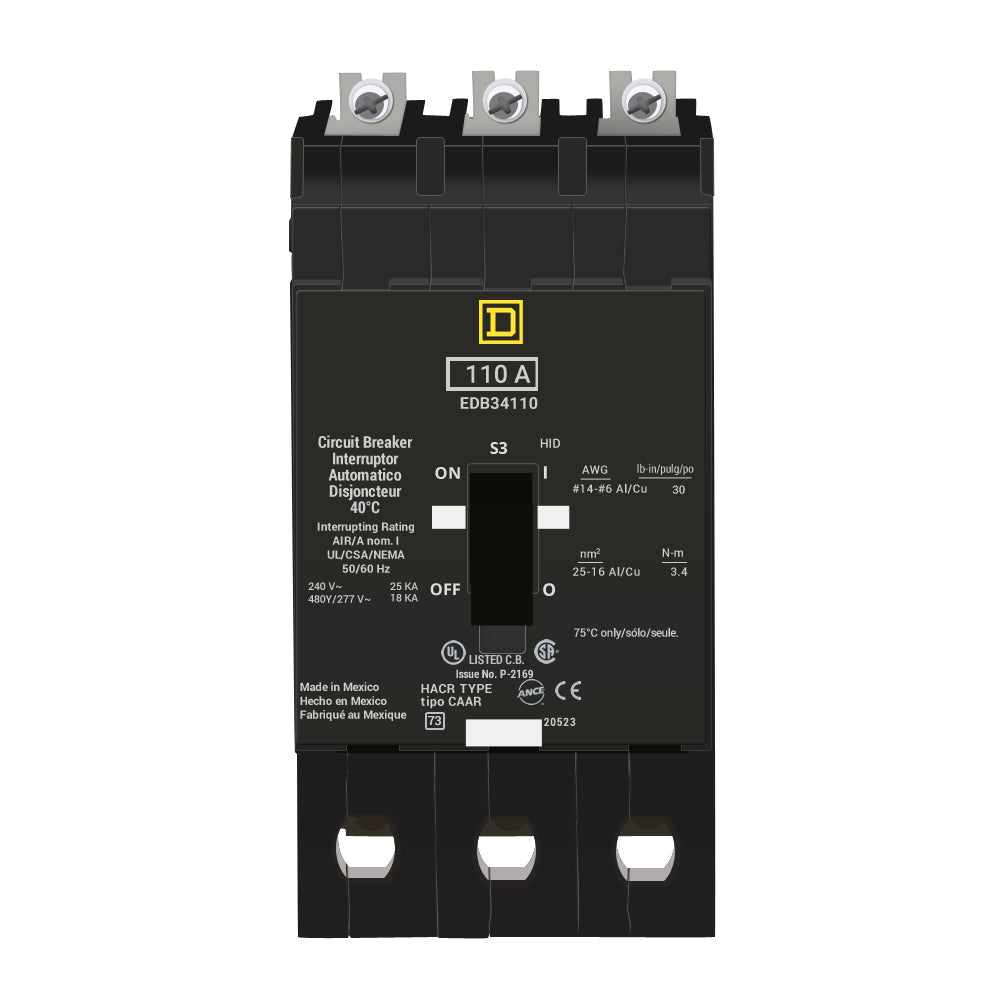

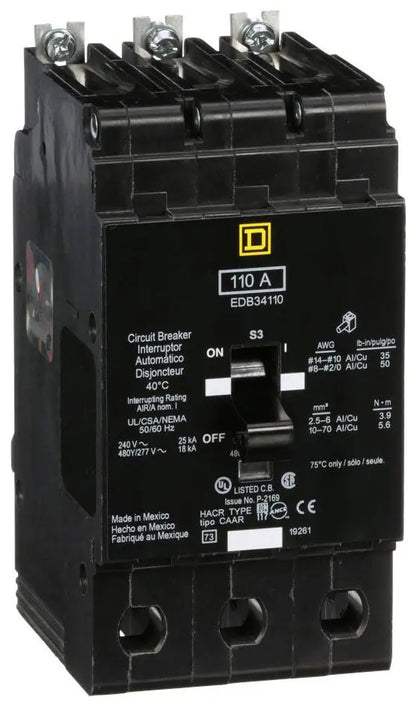

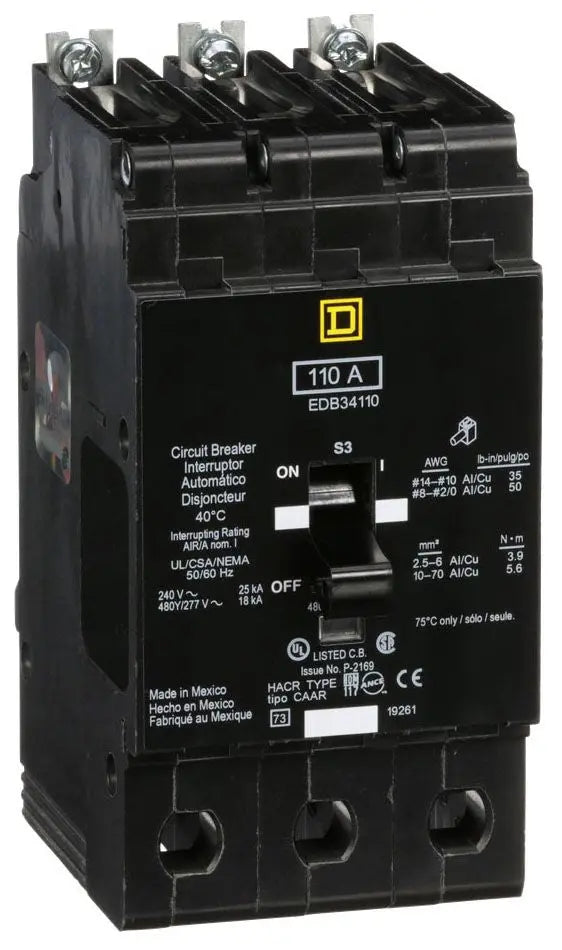

EDB34110 - Schneider Electric (Square D) 3-Pole 110 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

EDB34110

EDB34110 - Schneider Electric 3-pole molded case circuit breaker rated at 110A, 480Y/277V AC with thermal-magnetic trip unit and bolt-on mounting.The EDB34110 is an E-Frame mini circuit breaker from the EDB series, designed for NF panelboard applications. It features LI (long-time and instantaneous) protection with thermal-magnetic trip functionality, VISI-TRIP trip indicator, and HID/HACR-rated performance. Rated for aluminum or copper wire sizes AWG 14-6 (copper) or AWG 12-6 (aluminum), with dimensions 5.66 x 2.94 x 4.05 inches and weight of 4 lbs.

• Part Number: EDB34110
• Manufacturer: Schneider Electric
• Series/Frame: EDB / E-Frame
• Poles: 3
• Amperage: 110A
• Voltage: 480Y/277V AC
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 18kA@480V, 25kA@240V
• Connection: Aluminum Lugs
• Hold Current: 270A
• Trip Current: 875A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB34110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901311089
• GTIN : 00785901311089
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.71 lb
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to 2/0 Aluminum, AWG 14 to 2/0 Copper
