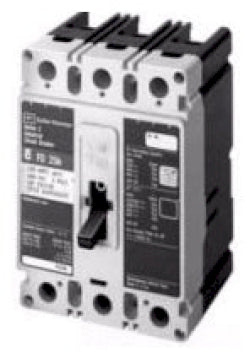

EDB3200 - Eaton 200 Amp 240 Volt 3 Pole Molded Case Circuit Breaker, Series C F-Frame, Thermal Magnetic

EDB3200

EDB3200 is a 200 Amp, 240 Volt, 3 Pole molded case circuit breaker from Eaton's Series C F-frame with thermal magnetic trip protection.This Eaton EDB3200 circuit breaker features a fixed thermal magnetic trip unit designed for panel mounting with Bolt-On connections. It has a 22 kA interrupting rating at 240 VAC and UL certification. The breaker provides long time and instantaneous protection functions and is suitable for three-phase electrical systems.

• Amperage: 200 A
• Voltage: 240 V AC
• Poles: 3
• Series/Frame: Series C, F-frame (ED)
• Mounting Type: Panel mount
• Connection Type: Bolt-On
• Interrupting Rating: 22 kAIC at 240 VAC
• Trip Unit: Fixed thermal magnetic
• Protection: Thermal magnetic
• Certifications: UL Listed
• Dimensions (LxWxH): 3.38 x 4.13 x 4.13 inches
• Terminal Connection: Load side

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB3200
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : EDB
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : F Frame
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782116152742
• GTIN : 00782116152742
• Country of Origin : Mexico
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 3
• Standards : cULus, IEC
• Certification : cULus, IEC
