Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
EDB3125LBP10

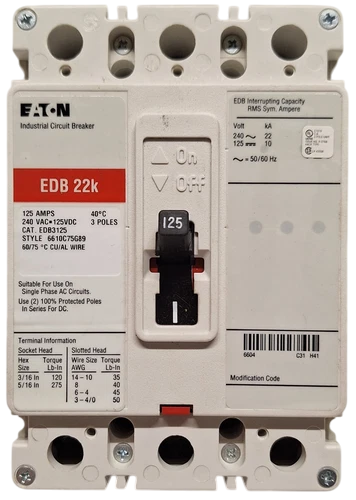

EDB3125LBP10 is an Eaton Series C complete molded case circuit breaker designed for reliable circuit protection with fixed thermal and magnetic trip units.This three-pole breaker features a 125 ampere rating and is rated for 240 Vac and 125 Vdc operation. It is part of Eaton's F-frame ED type breakers with a fixed thermal, fixed magnetic trip type (T186). The breaker has an interrupt rating of 65 kAIC at 240 Vac and is UL listed for safety and performance.
- Amperage Rating: 125 A
- Voltage Rating: 240 Vac, 125 Vdc
- Number of Poles: Three-pole
- Frame Type: F-frame
- Series: Series C
- Trip Type: Fixed thermal, fixed magnetic (T186)
- Interrupt Rating: 65 kAIC at 240 Vac
- Circuit Breaker Type: ED complete breaker
- Certifications: UL Listed
Specifications
- Part Number: EDB3125LBP10
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : EDB
- Voltage : 240
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : F Frame
- Temp Rating : 104 ¡F (40 ¡C)
- Protection : Thermal Magnetic
Product Data
- Country of Origin : Mexico
- Weight : 5
- Standards : cULus, IEC
- Certification : cULus, IEC
