Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
EDB3110

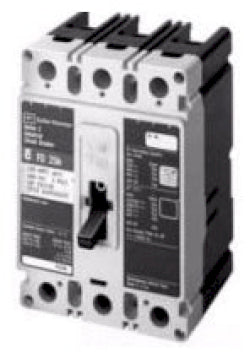

EDB3110 is a 3 pole, 110 amp circuit breaker from Cutler Hammer, Eaton, and Westinghouse designed for Bolt-On mounting applications.This molded case circuit breaker features a thermal magnetic trip unit with a voltage rating of 240 Vac and 125 Vdc. It has a 22kA interrupt rating at 240V and is built on the EDB frame type, suitable for reliable protection in industrial and commercial electrical systems.
- Manufacturer: Cutler Hammer / Eaton / Westinghouse
- Frame Type: EDB
- Amperage: 110 A
- Voltage Rating: 240 Vac, 125 Vdc
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 22kA @ 240V
- Trip Unit: Thermal Magnetic
- Certification: UL Listed (implied by manufacturer standards)
- Load Terminal Type: Lug
Specifications
- Part Number: EDB3110
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : EDB
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : F Frame
- Temp Rating : 104 ¡F (40 ¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 782116152841
- GTIN : 00782116152841
- Country of Origin : Mexico
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 3
- Standards : cULus, IEC
- Certification : cULus, IEC
