Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
EDB3150

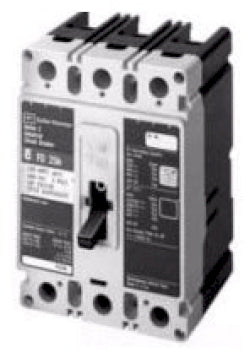

EDB3150 - Eaton Series C molded case circuit breaker, F-frame, 3-pole, 150A, 240VAC with fixed thermal-magnetic trip.EDB3150 is a complete F-frame ED breaker featuring fixed thermal, fixed magnetic trip, load side terminals, 22 kAIC at 240 Vac, and 50/60 Hz operation.
- Amperage Rating: 150 A
- Voltage Rating: 240 VAC, 125 VDC
- Poles: Three-pole
- Frame: F-frame
- Series: Series C
- Trip Type: Fixed thermal, fixed magnetic
- Interrupt Rating: 22 kAIC at 240 Vac
- Terminals: Load side
- Frequency: 50/60 Hz
- Certifications: UL Listed
Specifications
- Part Number: EDB3150
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : EDB
- Voltage : 240
- Amperage : 35
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : F Frame
- Temp Rating : 104 ¡F (40 ¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 782116152780
- GTIN : 00782116152780
- Country of Origin : Mexico
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 3
- Standards : cULus, IEC
- Certification : cULus, IEC
- Wire Size : 4 to 4/0 AWG
