UVH1RP22K - Cutler Hammer 48VDC Field Mounted Undervoltage Release for F-Frame Circuit Breakers Series C

UVH1RP22K

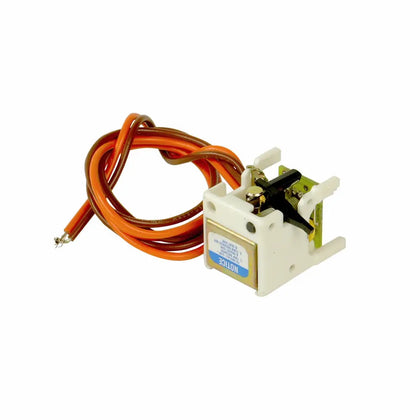

UVH1RP22K is a Cutler Hammer field mounted undervoltage release designed for F-Frame Series C circuit breakers with a 48 VDC control voltage.This undervoltage release mechanism features right side mounting with pigtail leads, compatible with F-Frame molded case circuit breakers. It operates at 48 VDC and is suitable for 50/60 Hz frequency applications. The device provides reliable trip functionality when voltage drops below the set threshold, enhancing circuit protection.

• Manufacturer: Cutler Hammer (Eaton)
• Part Number: UVH1RP22K
• Type: Field Mounted Undervoltage Release
• Voltage Rating: 48 VDC
• Frame Size: F-Frame
• Series: Series C
• Mounting Type: Right Side Mounting
• Leads: Pigtail Style
• Frequency: 50/60 Hz
• Weight: 0.3 lbs
• Country of Origin: USA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: UVH1RP22K
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Under Voltage Release
• Family : Series C
• Type : C
• Voltage : 600VAC, 48VDC
• Amperage : 225
• Connection : Pigtail Leads
• Control Voltage Minimum : 48
• Compatible Frames : FD
• Control Voltate Maximum : 48

Product Data

• UPC : 786679069264
• GTIN : 00786679069264
• Country of Origin : Dominican Republic
• Dimensions : 5.5 in x 3 in x 2.38 in (Length/Depth x Height x Width)
• Weight : 0.3
