Description
EDB3175L

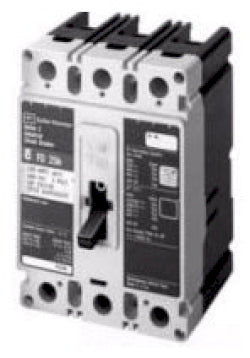

EDB3175L - Eaton Series C molded case circuit breaker with fixed thermal-magnetic trip, rated for 175A, three-pole, 240VAC.
This F-frame breaker features line and load side connections, 22kAIC interrupt rating at 240VAC, and operates at 50/60Hz. It includes patented high-speed blow-open contact design for superior arc interruption performance and is UL listed for reliable protection in various applications.
Key Specifications
- Part Number: EDB3175L
- Manufacturer: Eaton
- Series: C
- Frame: F Frame
- Poles: Three Pole
- Amperage: 175A
- Voltage: 240VAC / 125VDC
- Interrupt Rating: 22kAIC at 240VAC
- Trip Type: Fixed Thermal / Fixed Magnetic
- UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: EDB3175L
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : EDB
- Voltage : 240
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : F Frame
- Temp Rating : 104 ¡F (40 ¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 782116976164
- GTIN : 00782116976164
- Country of Origin : Mexico
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 3
- Standards : cULus, IEC
- Certification : cULus, IEC
