ED43B110 - Siemens 3-Pole 110A 480V Molded Case Circuit Breaker ED Frame Bolt-On

ED43B110

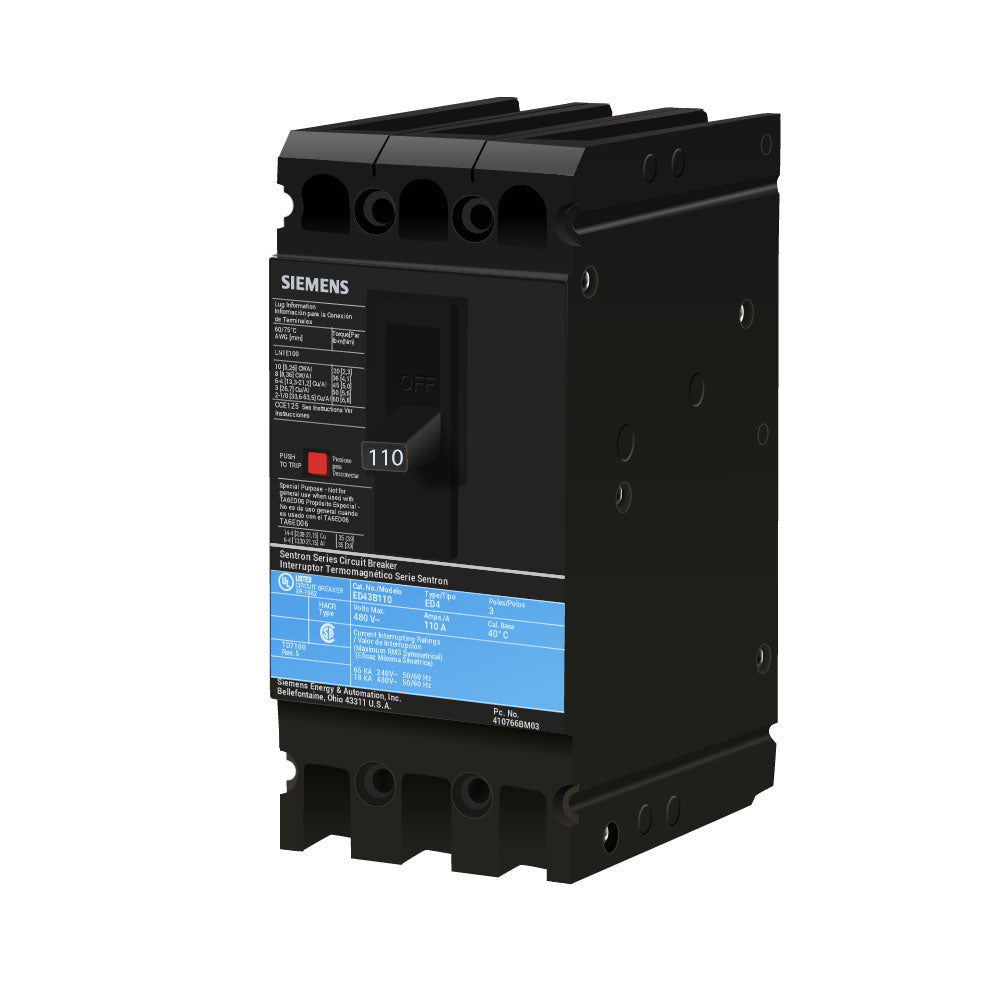

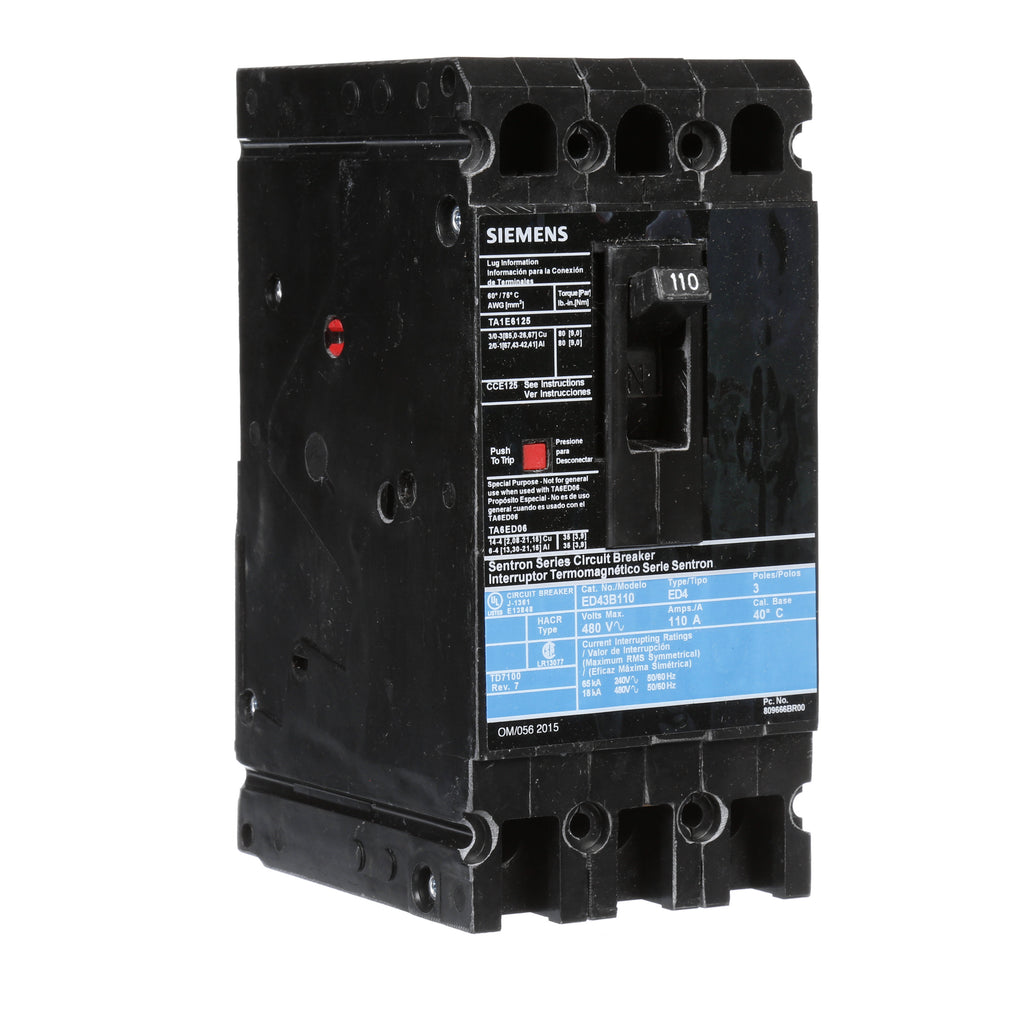

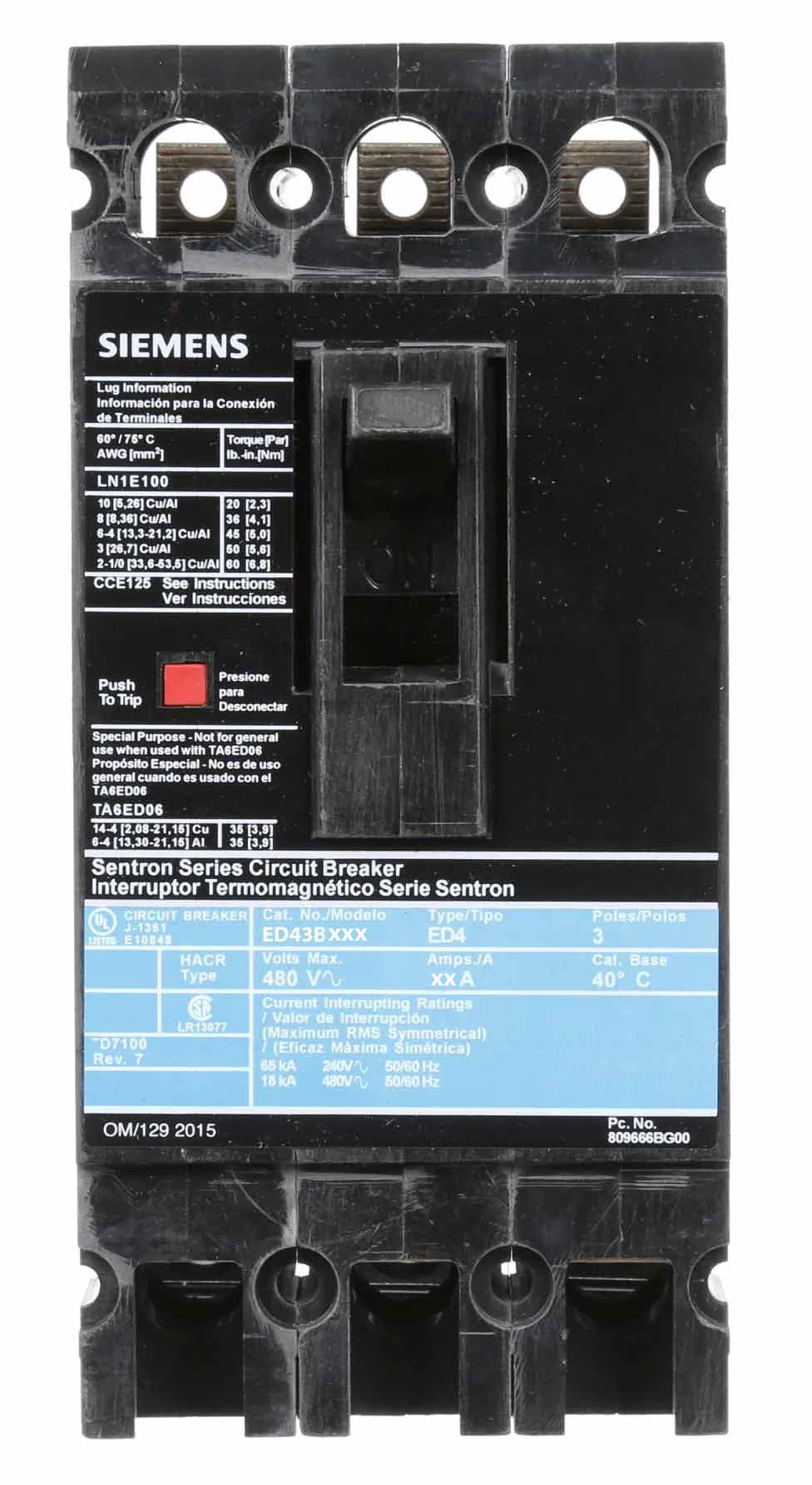

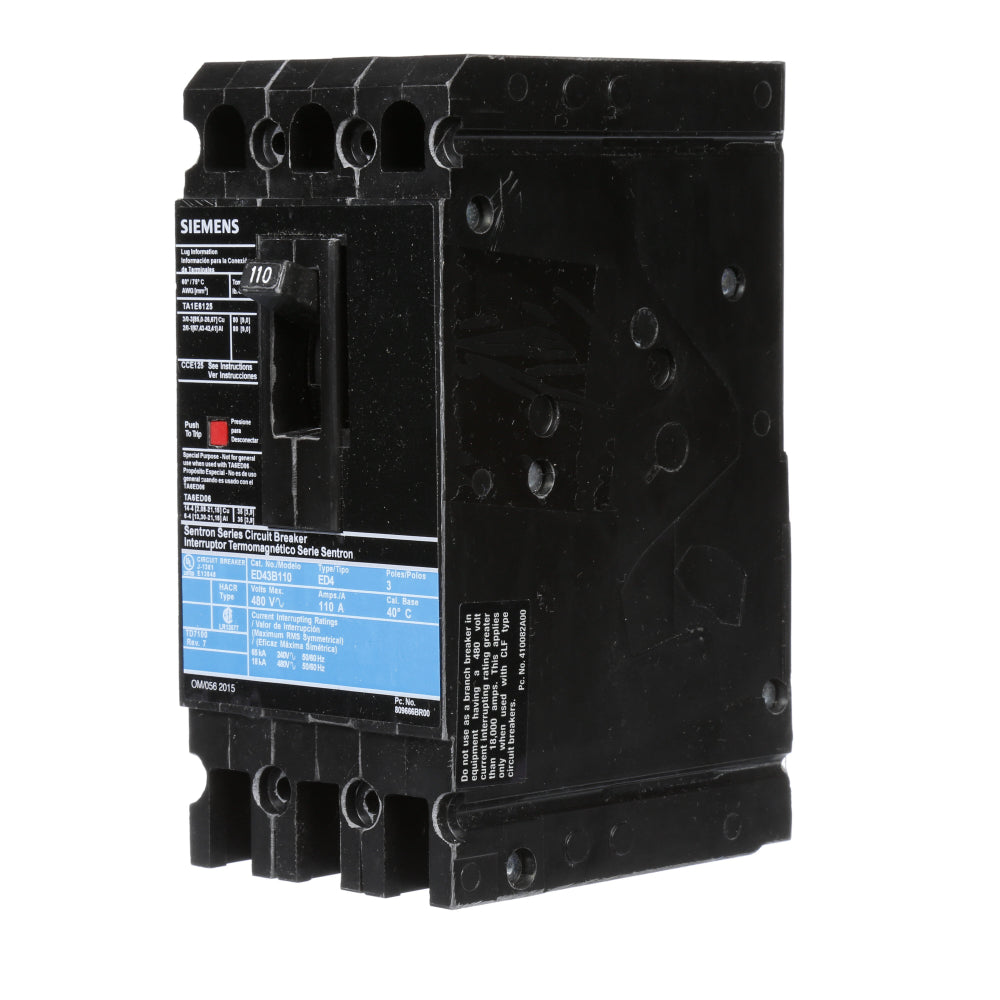

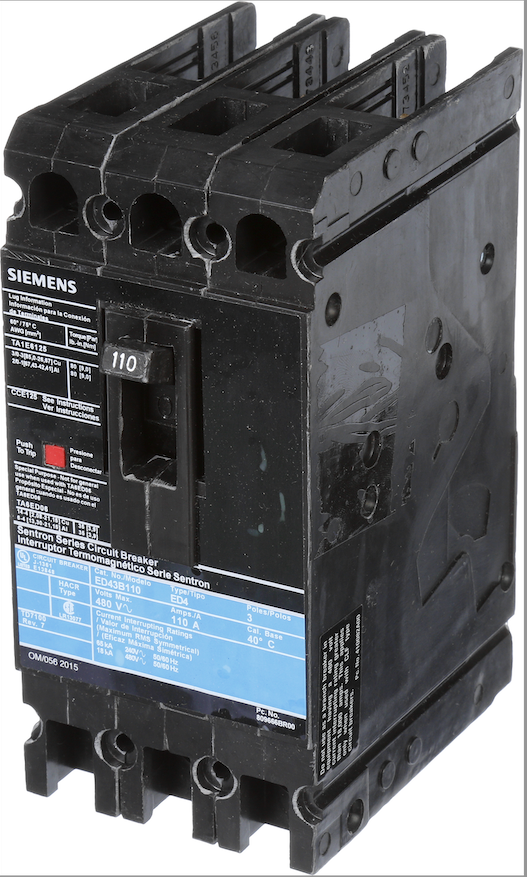

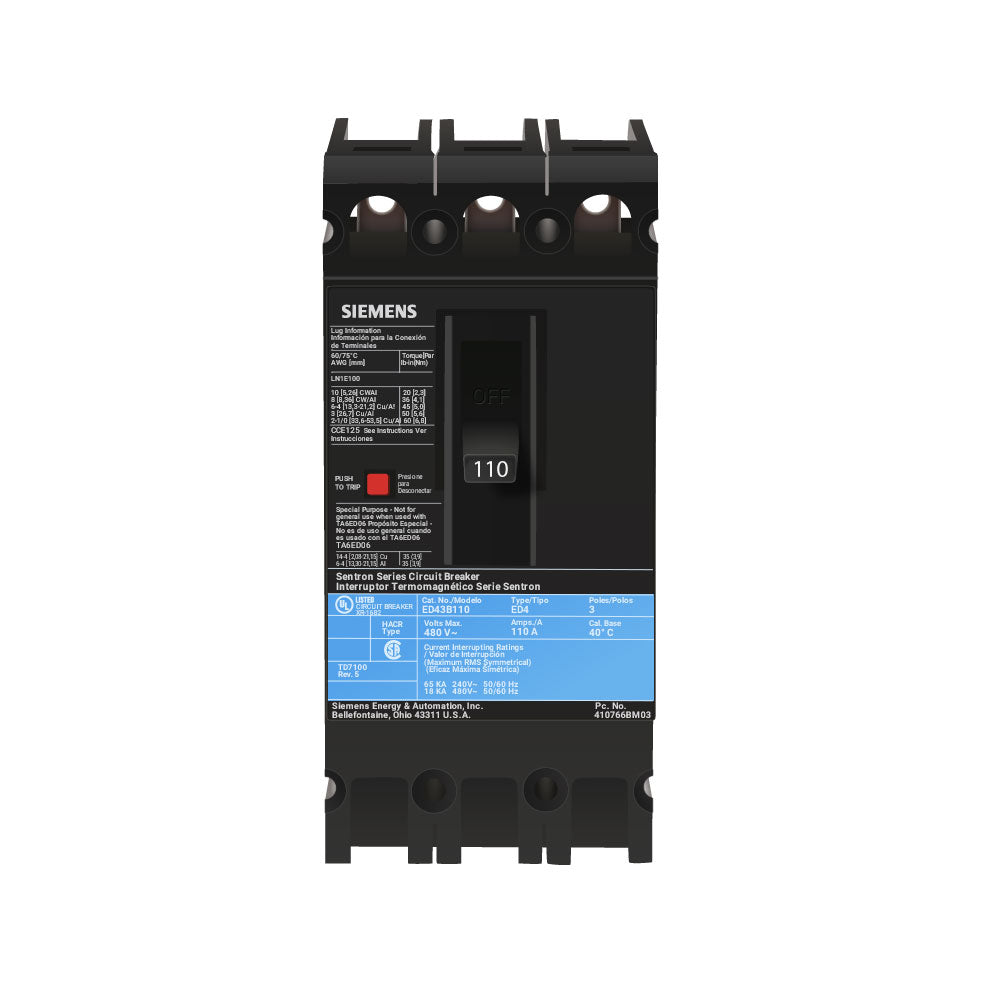

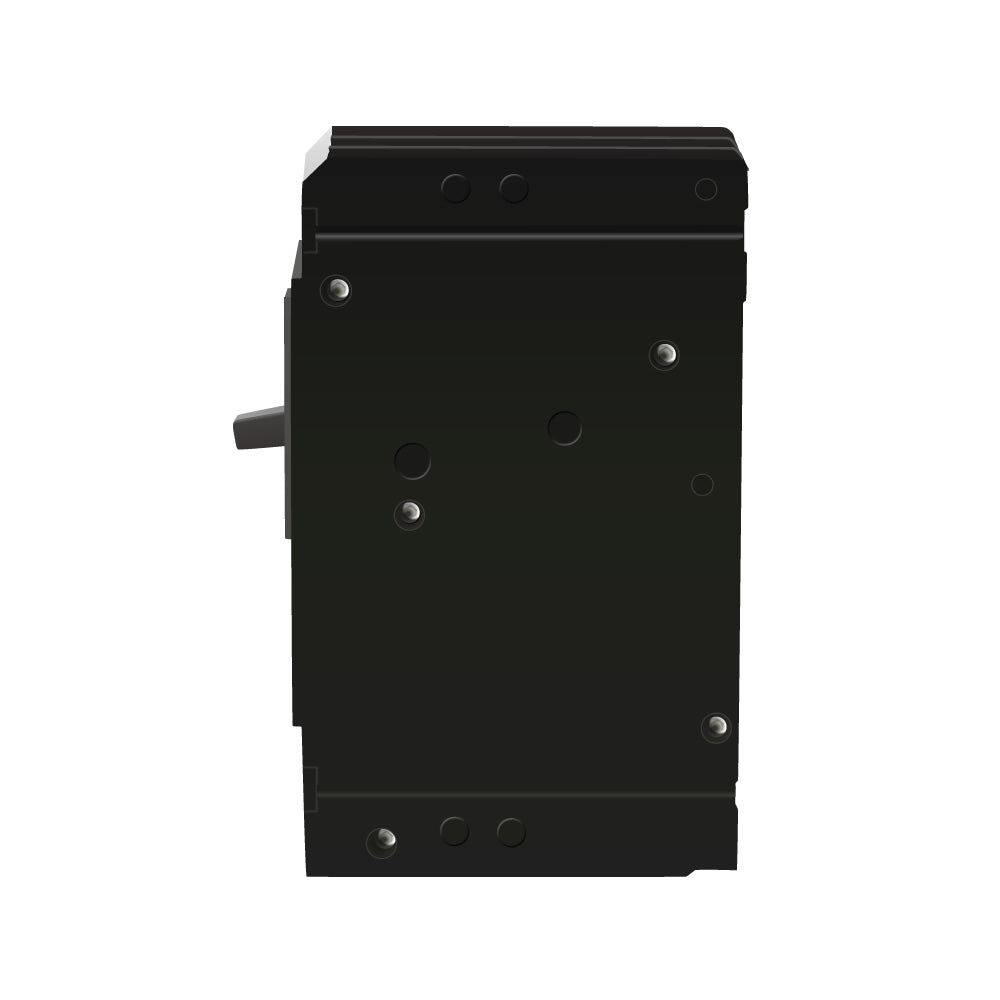

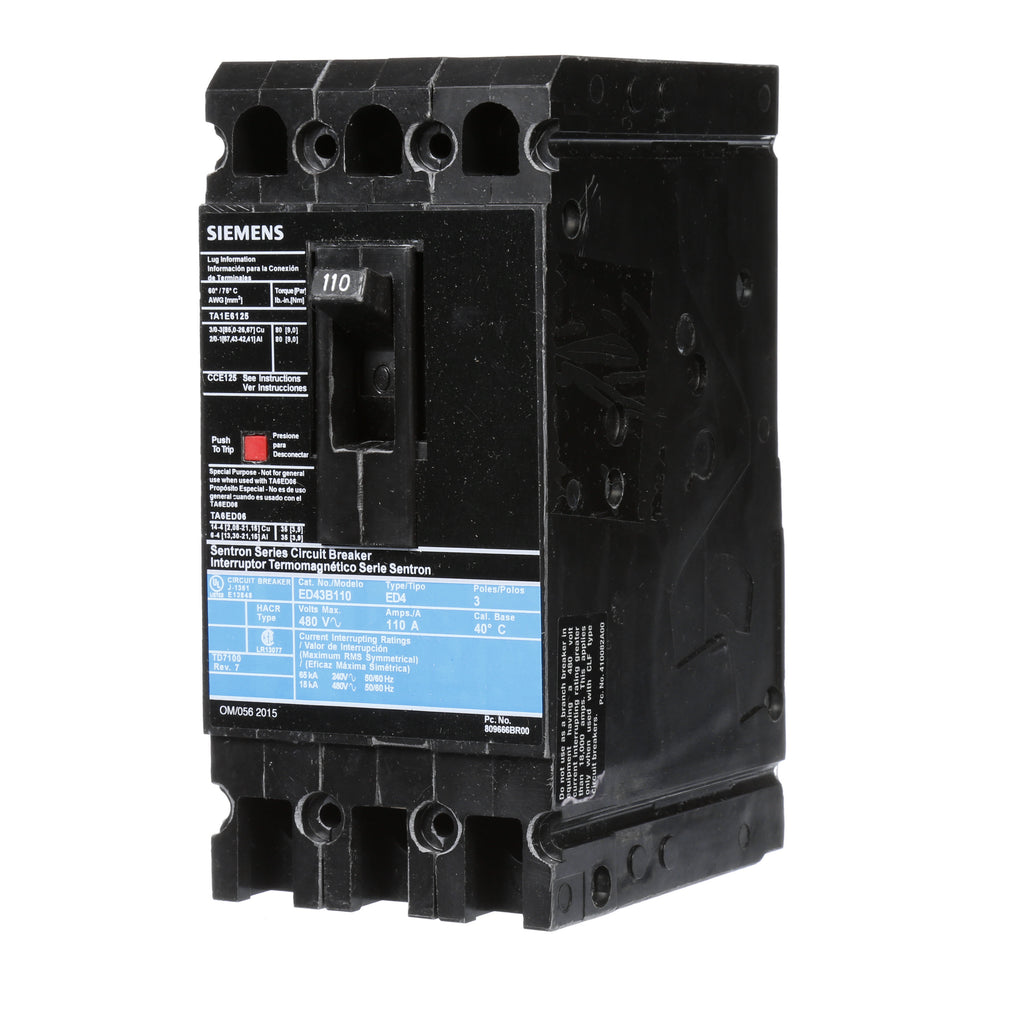

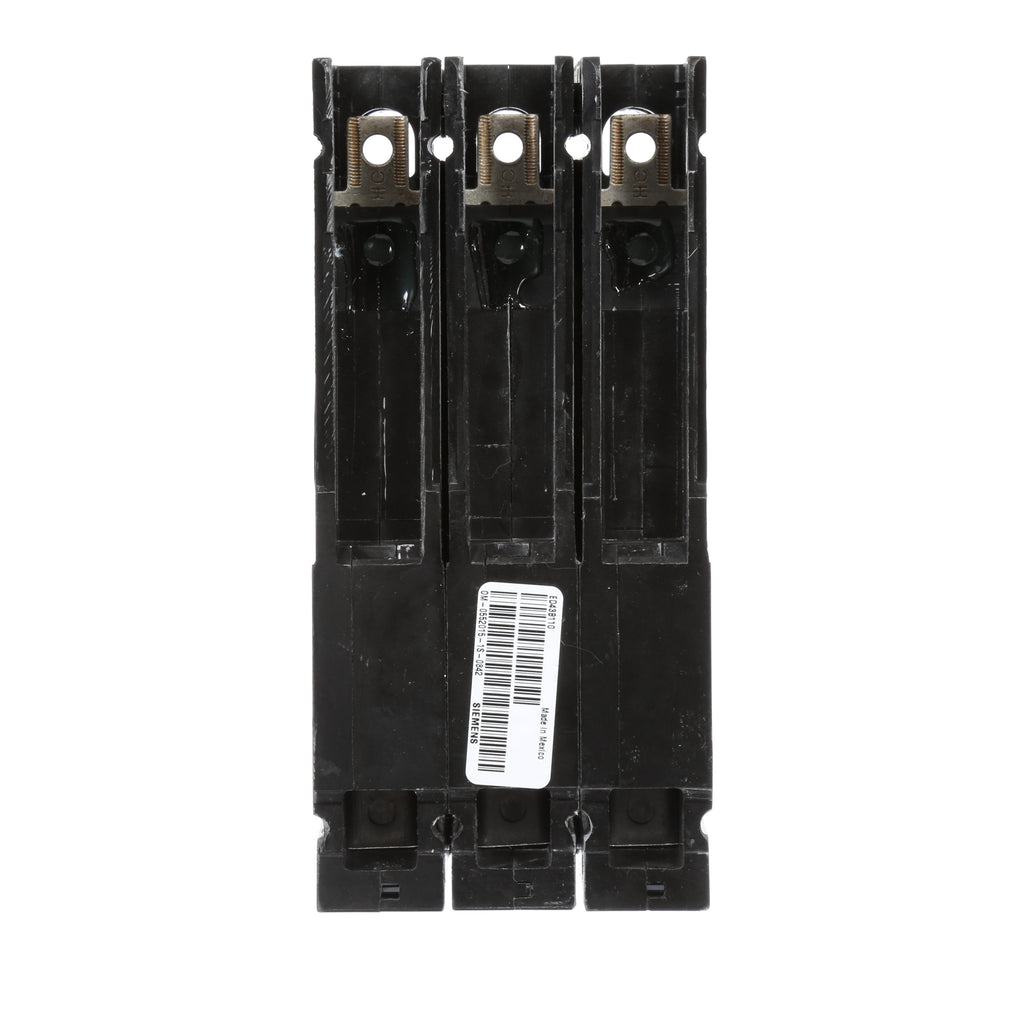

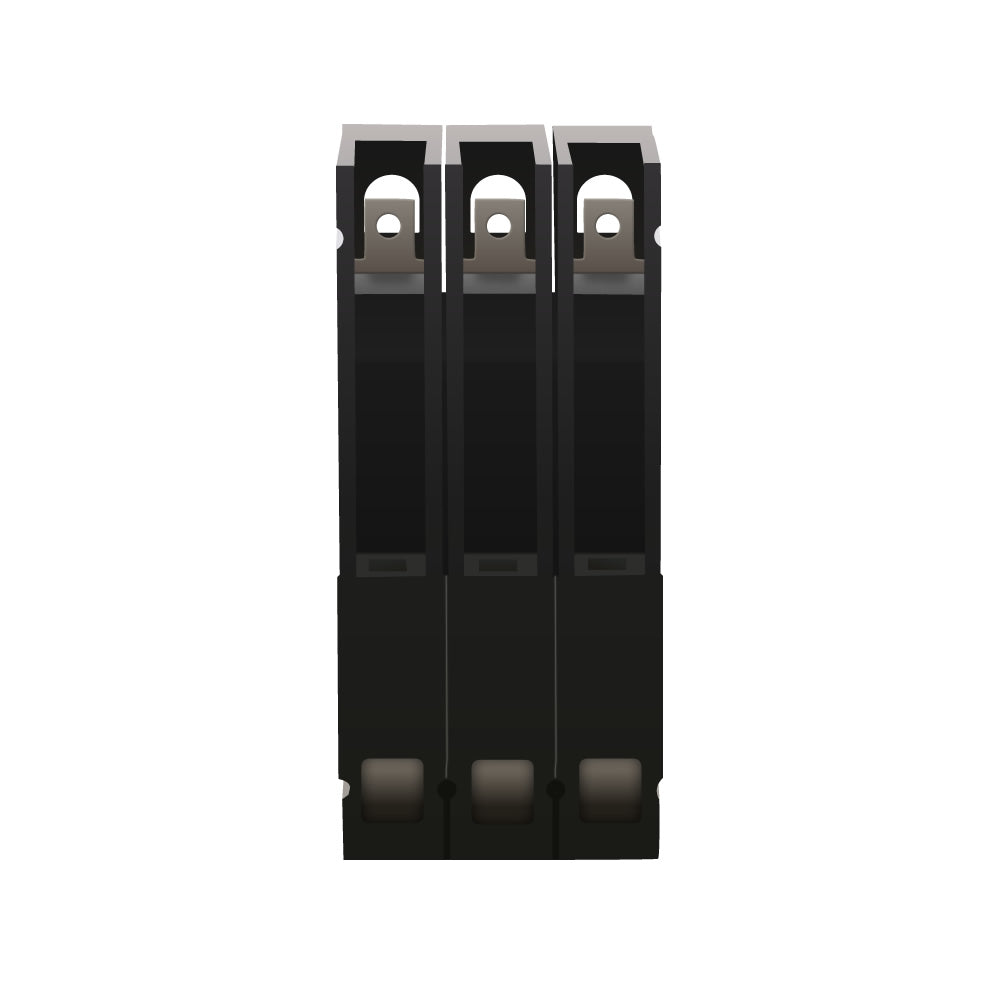

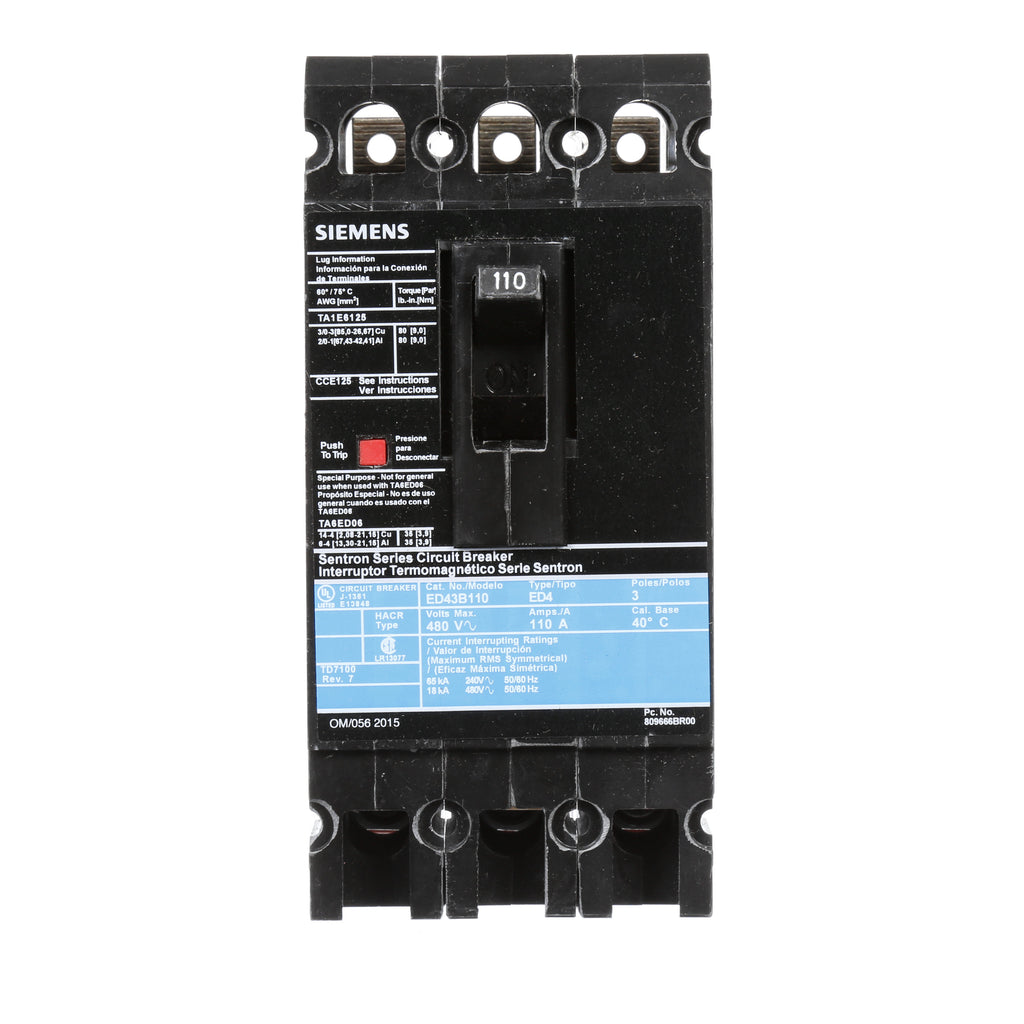

ED43B110 - Siemens 3-pole molded case circuit breaker rated at 110A and 480VAC with thermal-magnetic trip and bolt-on mounting. The Siemens ED43B110 is a **Type ED** frame molded case circuit breaker featuring thermal-magnetic protection (LI function: long-time and instantaneous). It provides reliable circuit protection with 65kA interrupting rating at 240VAC and 18kA at 480VAC. Designed for 3-phase systems, it uses bolt-on connection and line lugs (not included).

• Part Number: ED43B110
• Manufacturer: Siemens
• Frame Type: ED
• Amperage: 110A
• Voltage: 480VAC
• Poles: 3
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic (LI)
• Interrupt Rating: 65kA@240VAC, 18kA@480VAC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED43B110
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209497
• GTIN : 00783643209497
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.964
• Weight : 0.34
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 3 to AWG 3/0, Cu, AWG 1 to AWG 2/0, Al
