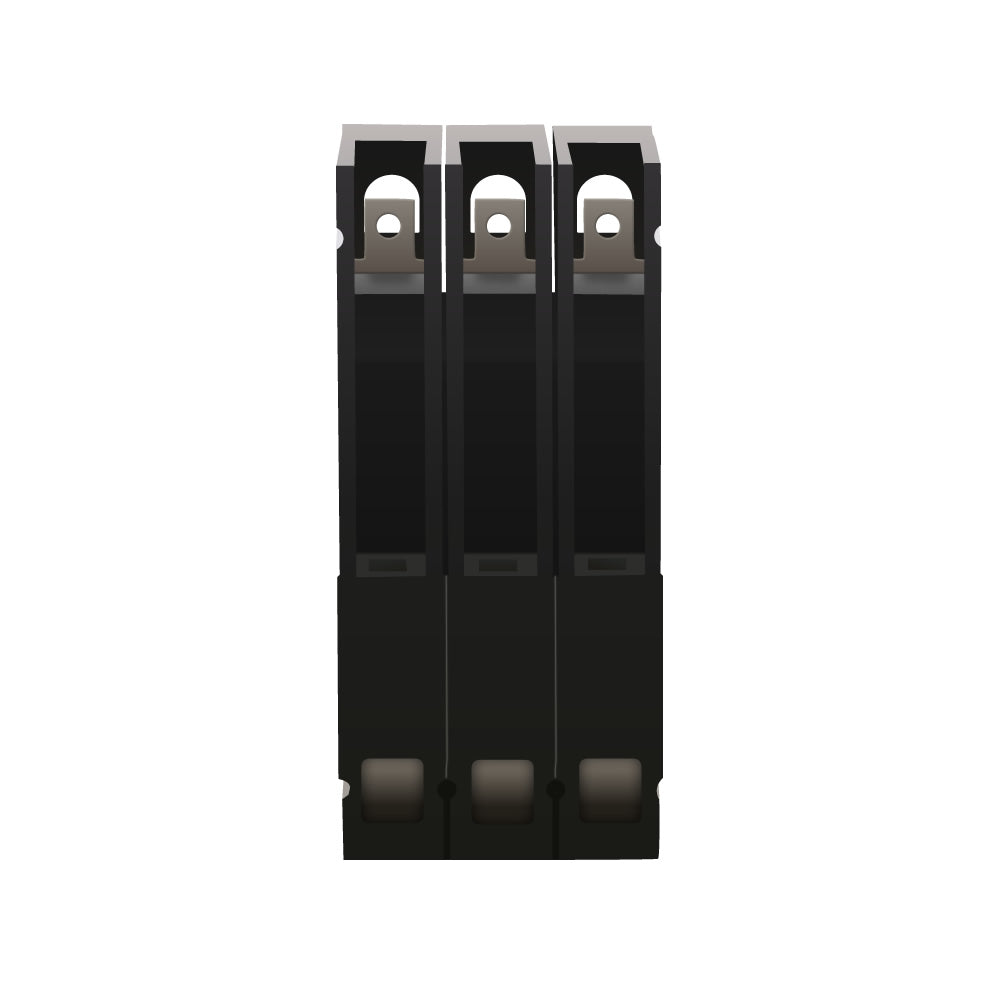

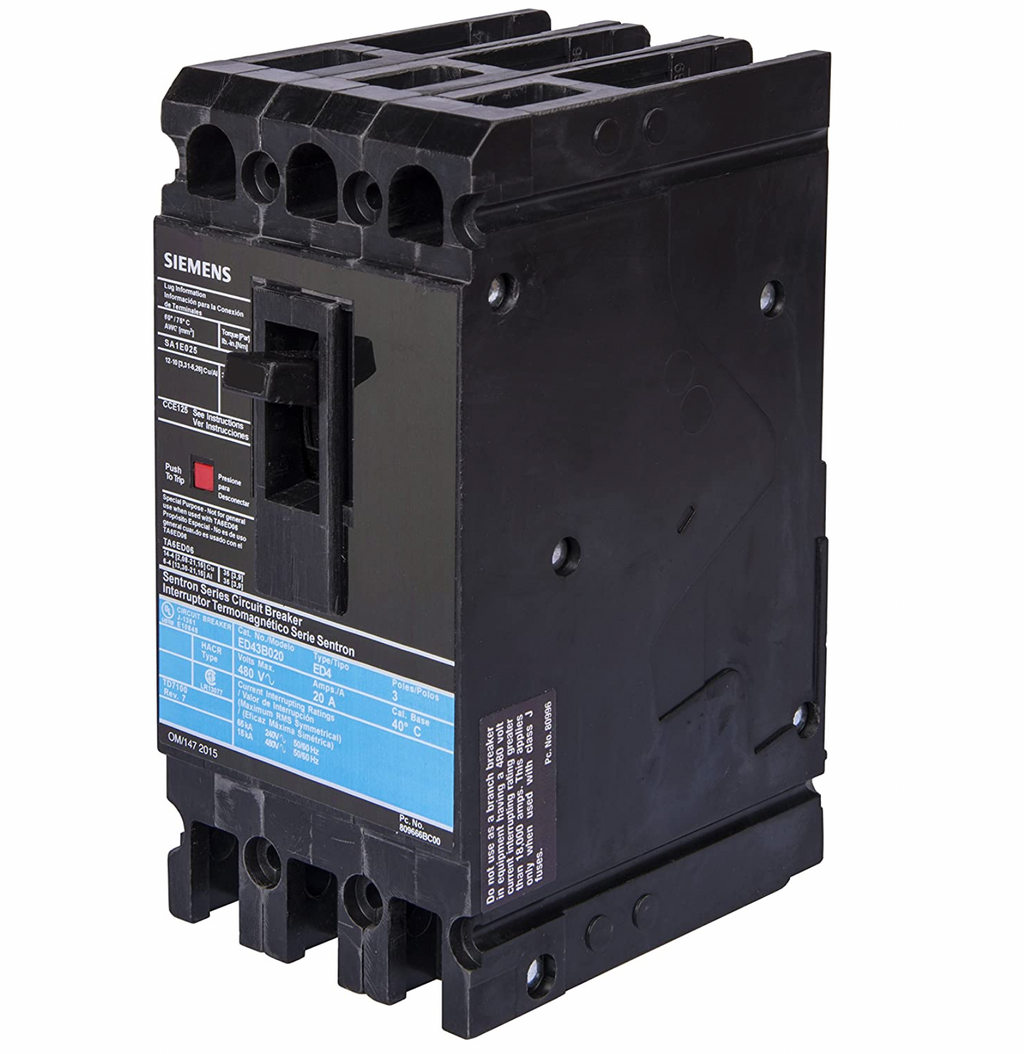

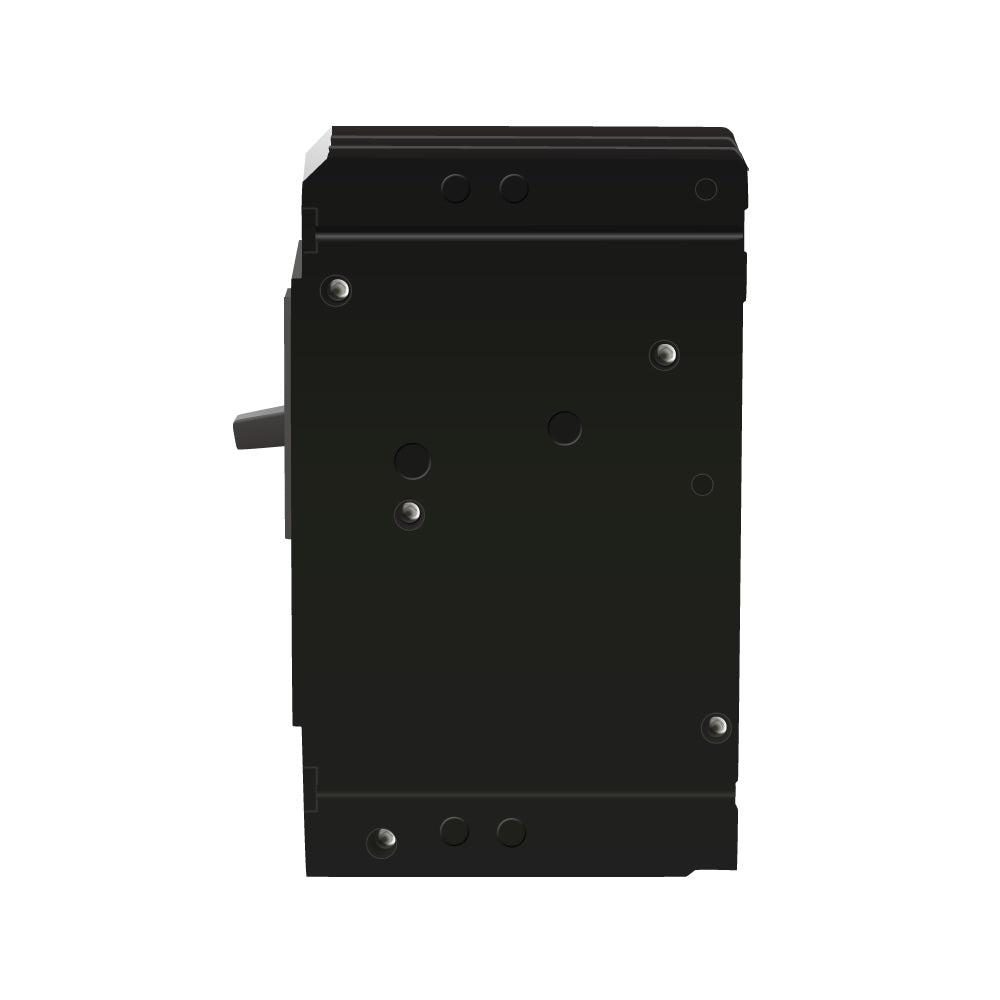

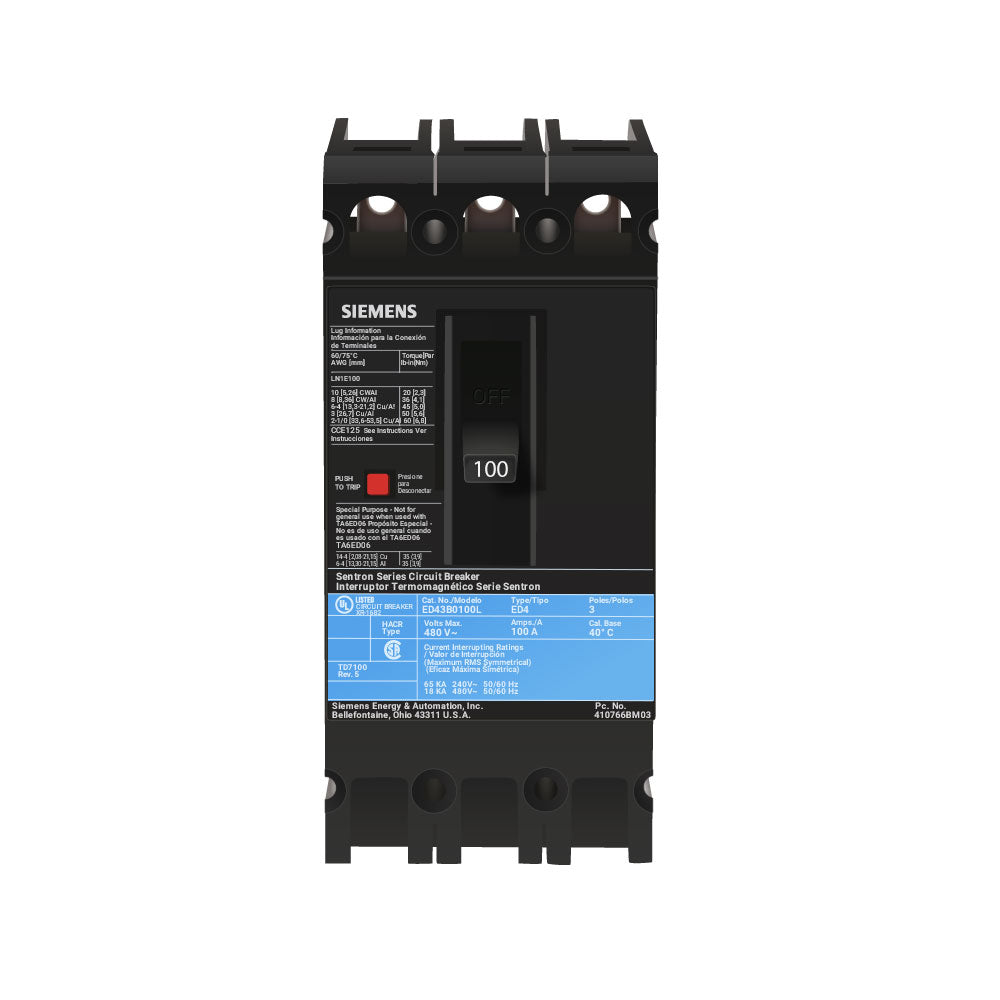

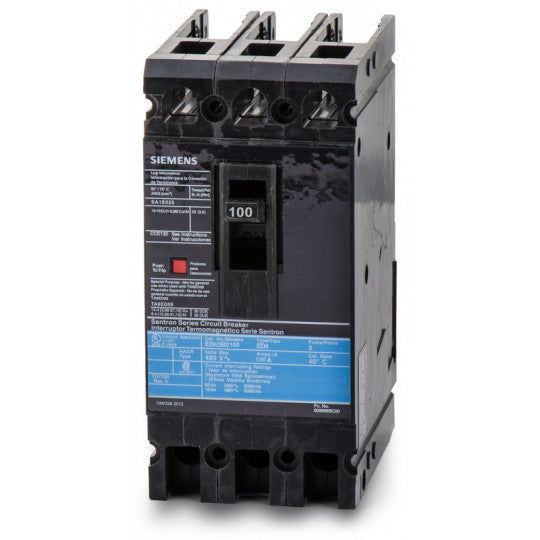

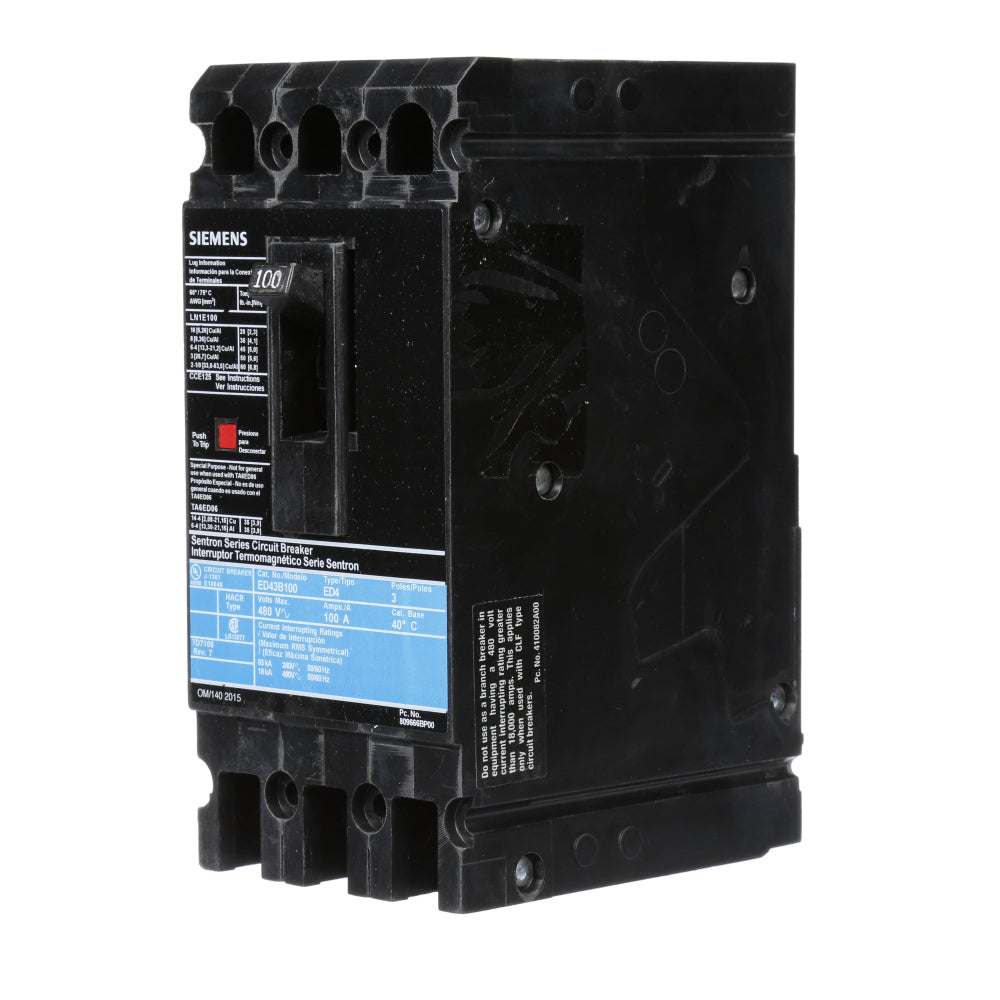

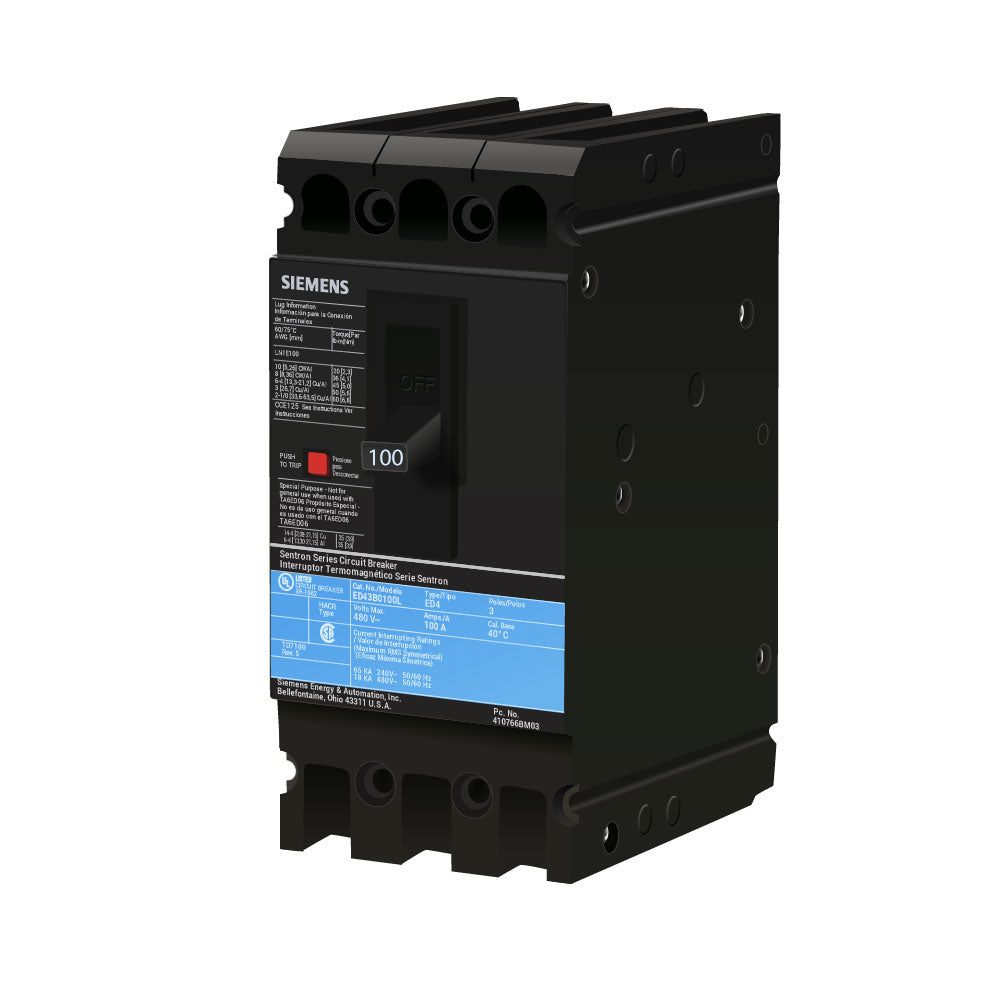

ED43B100L - Siemens 3-Pole 100A 480V AC Molded Case Circuit Breaker Type ED4 with Lugs

ED43B100L

ED43B100L is a Siemens 3-pole, 100 amp, 480 volt AC molded case circuit breaker designed for panel mounting with line side lugs.This Siemens Type ED4 breaker features a standard ED frame, 18 kA interrupting rating at 480 VAC, and is rated for 40¡C operation. It meets UL 489 and IEC 60947-2 standards, providing reliable protection for electrical circuits. The breaker includes a magnetic trip unit and is suitable for use in industrial and commercial applications requiring a 3-pole, 100 amp circuit breaker.

• Amperage: 100A
• Voltage: 480 VAC, 250 VDC
• Poles: 3
• Frame/Series: ED4
• Interrupt Rating: 18 kA at 480 VAC
• Mounting Type: Panel mount
• Trip Unit: Magnetic
• Connection Type: Line side lugs
• Operating Temperature: 40¡C standard
• Certifications: UL 489, IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED43B100L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078364323623
• GTIN : 7.83643E+11
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.963
• Weight : 0.999
• Certification : Ul Listed, IEC
• Wire Size : 10 to 1/0 AWG (CU/AL)
