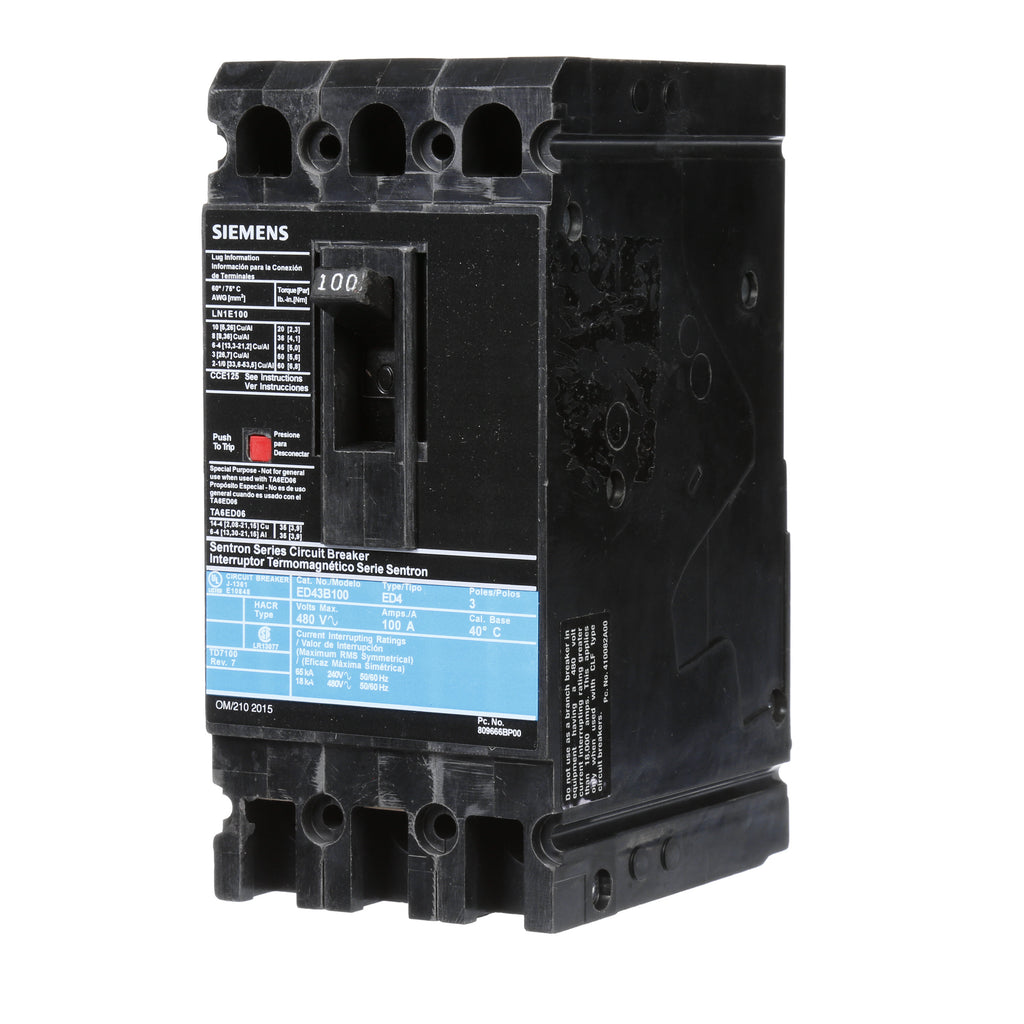

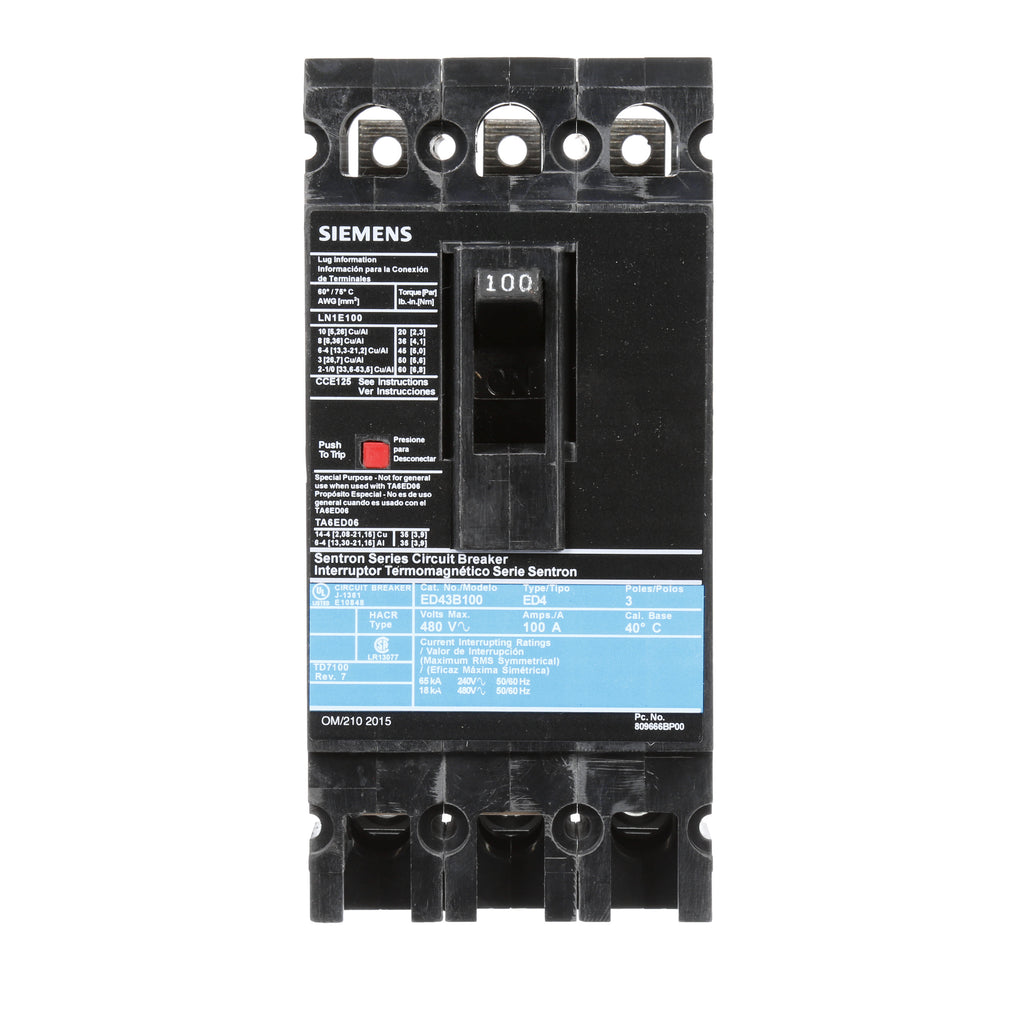

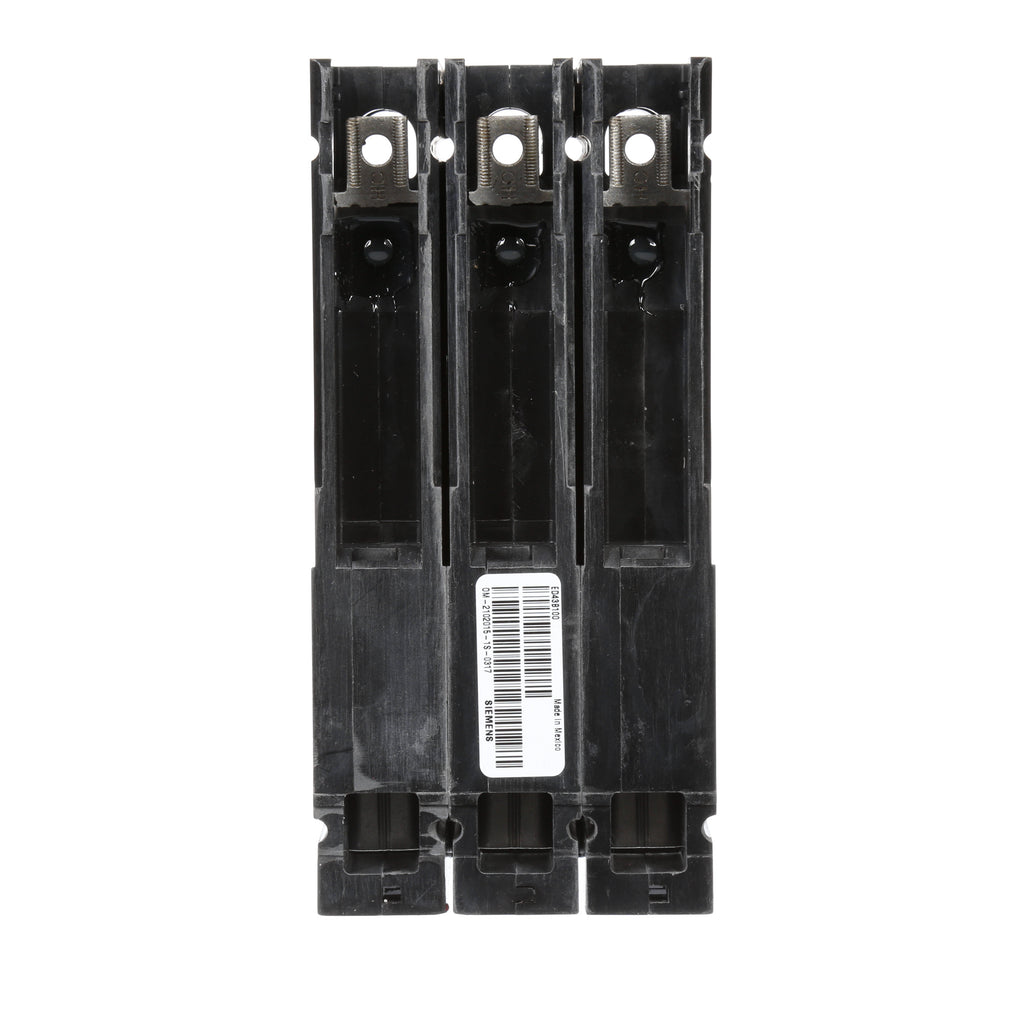

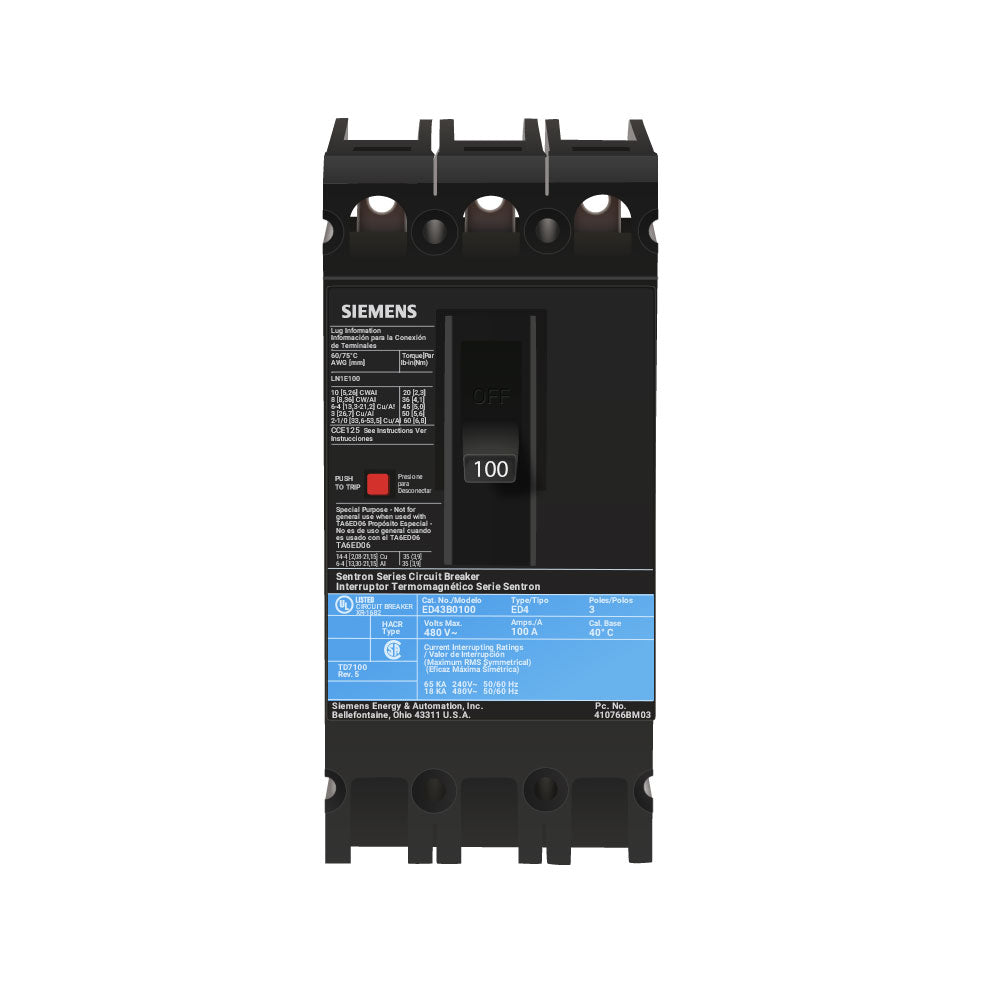

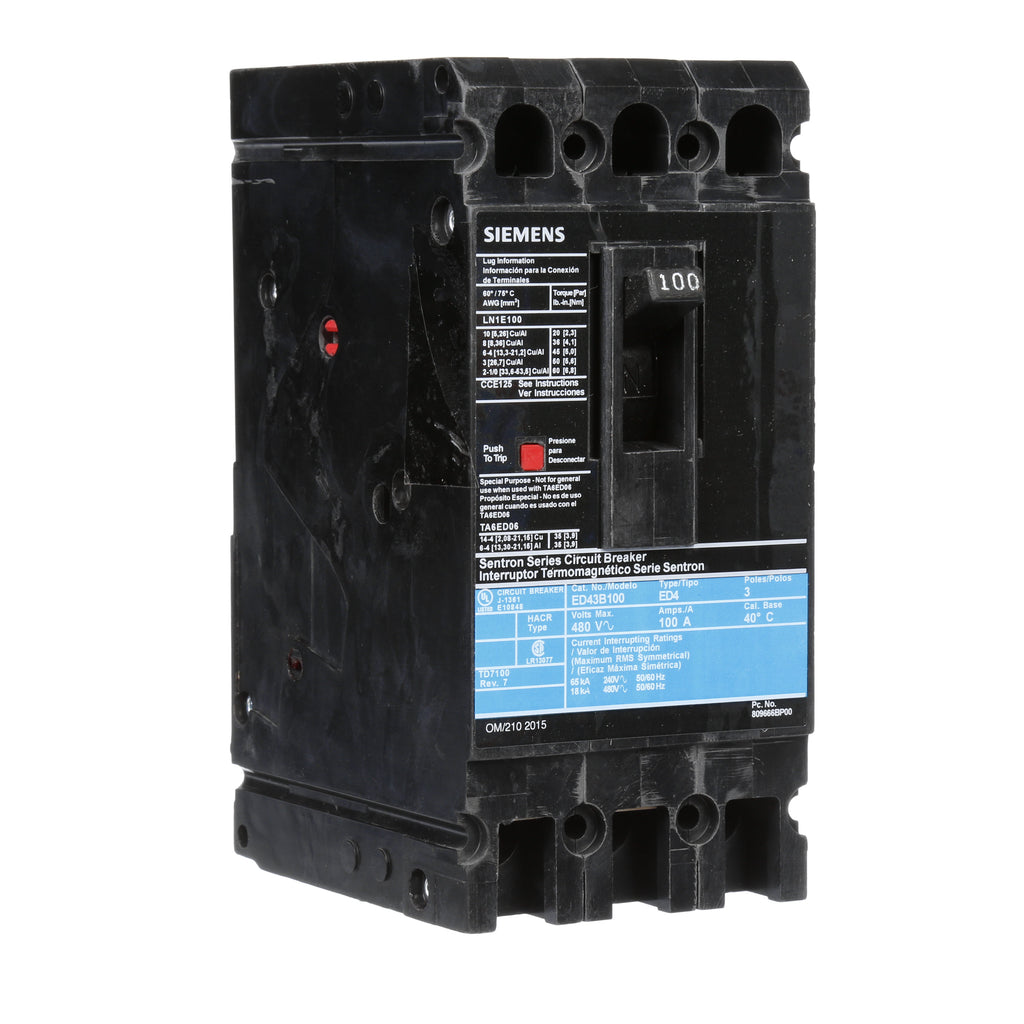

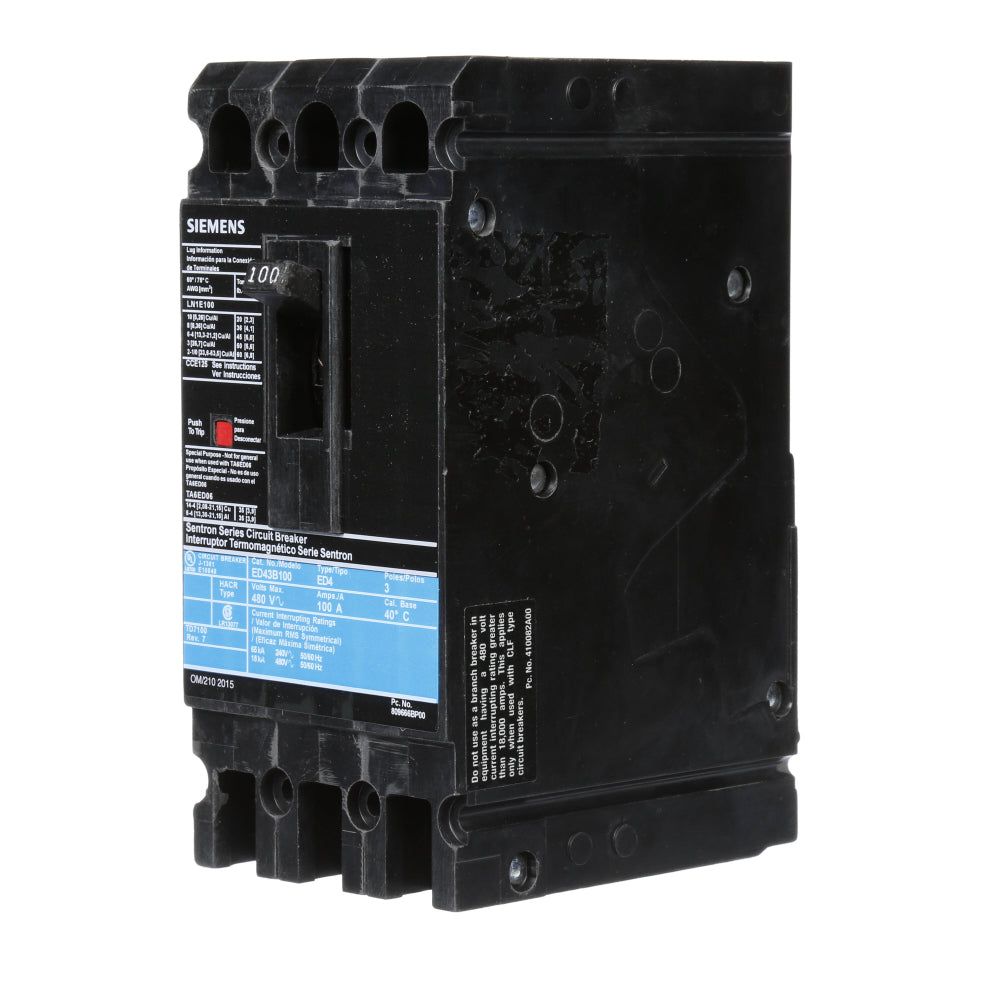

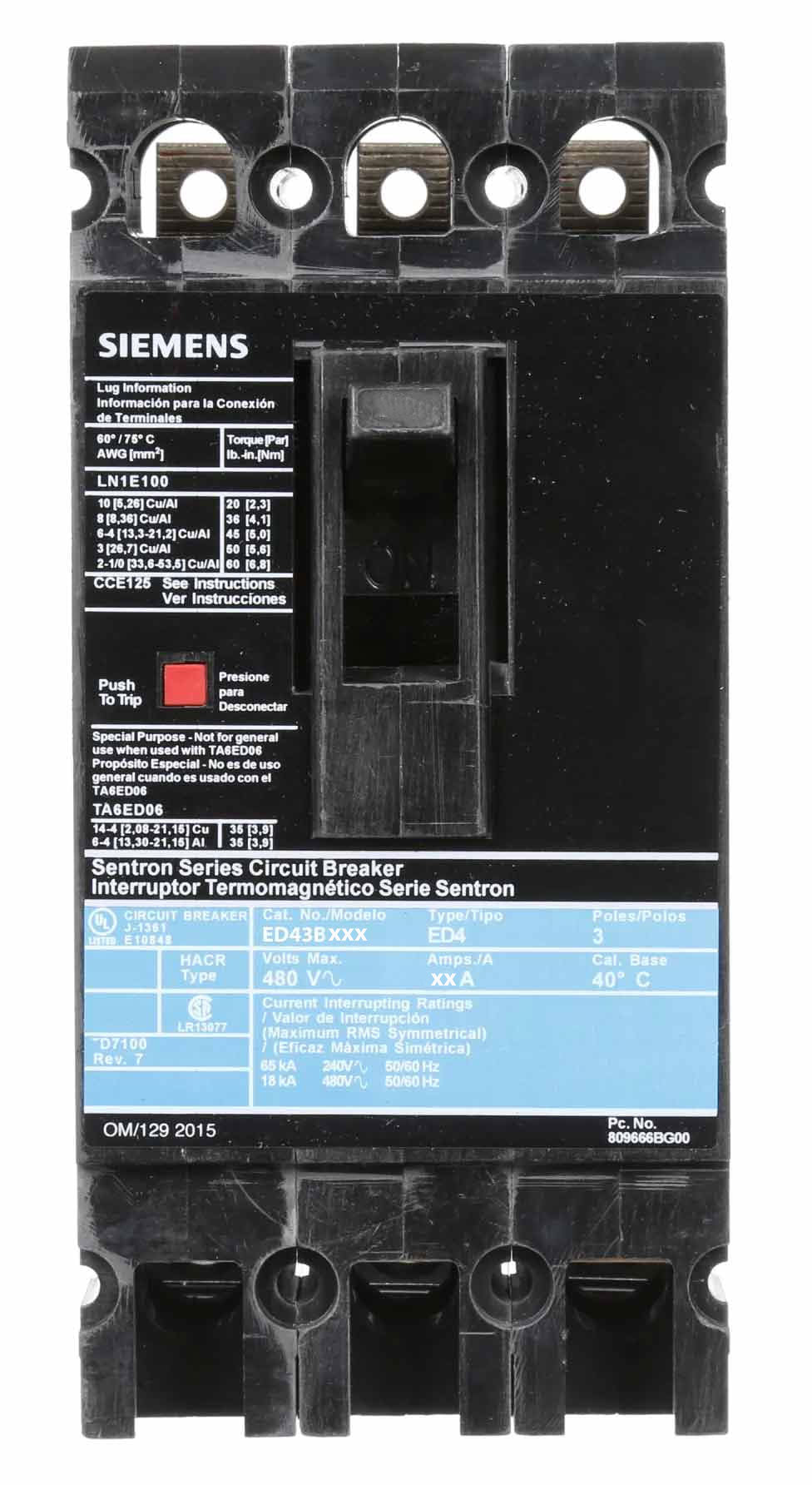

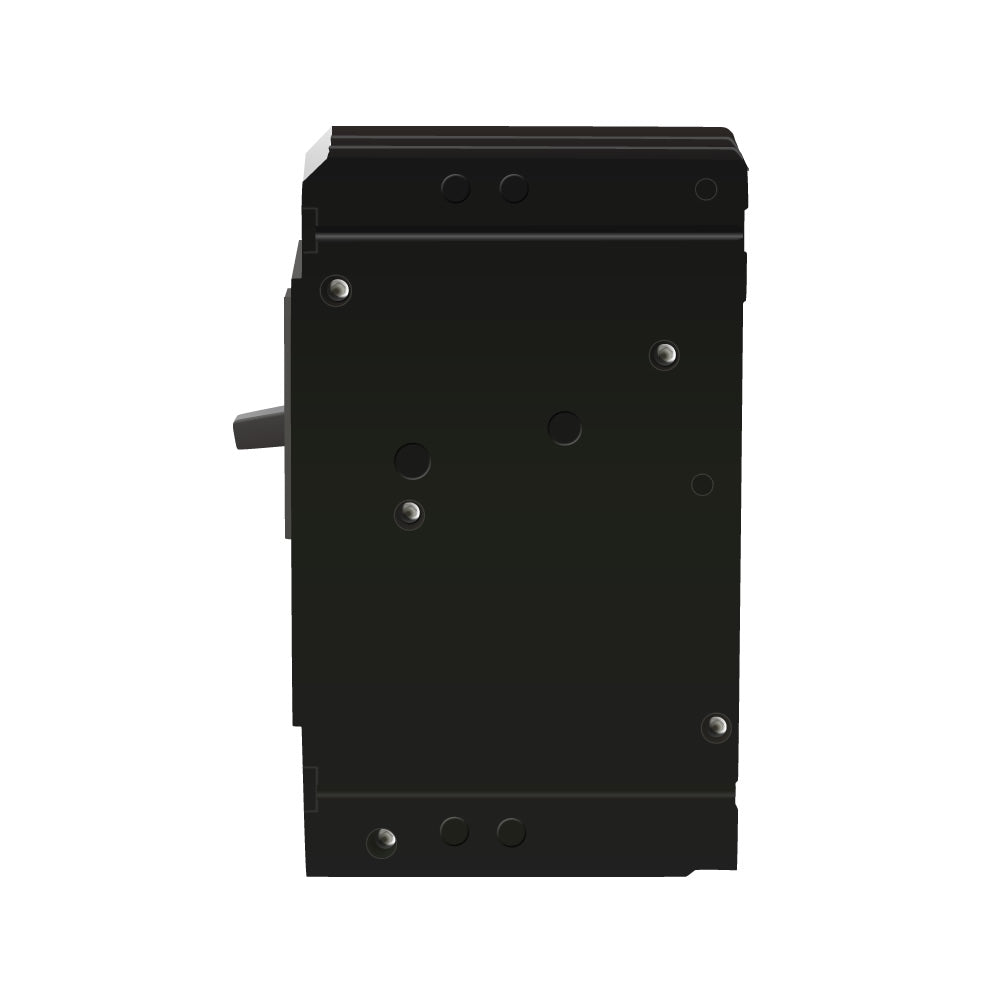

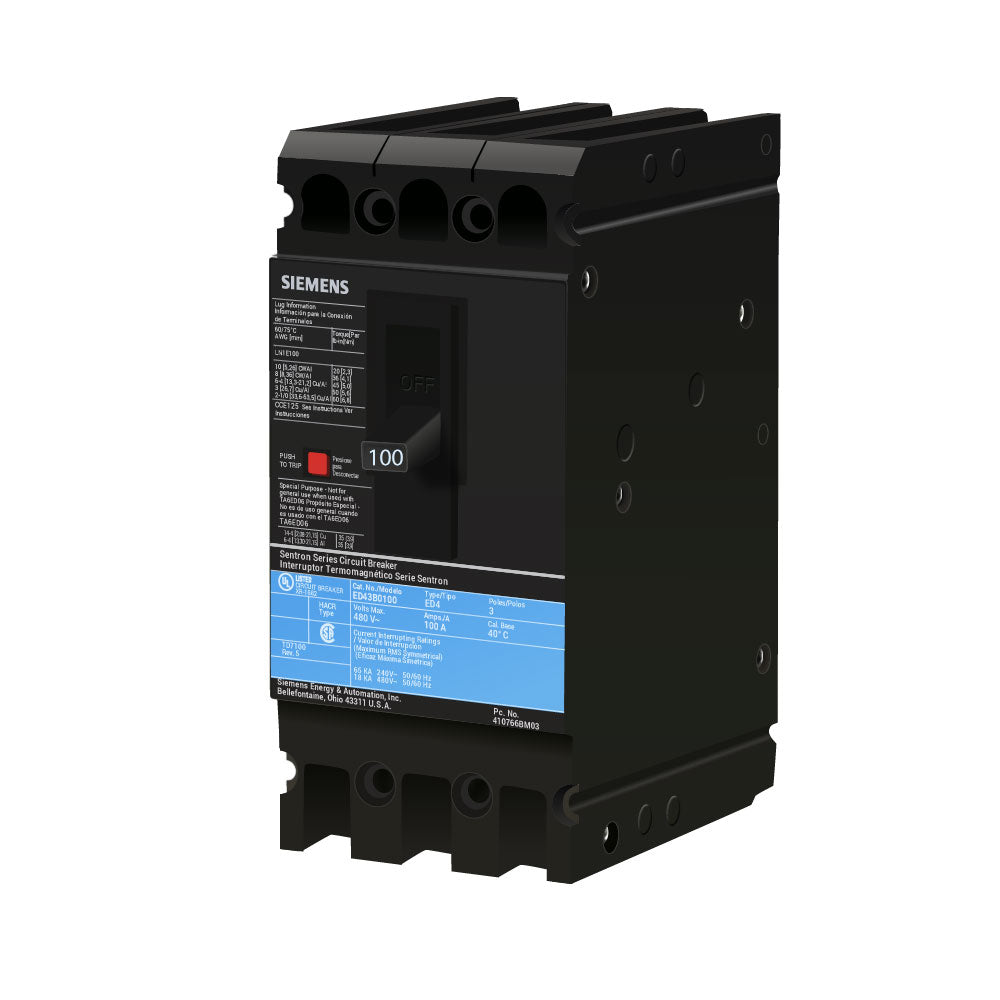

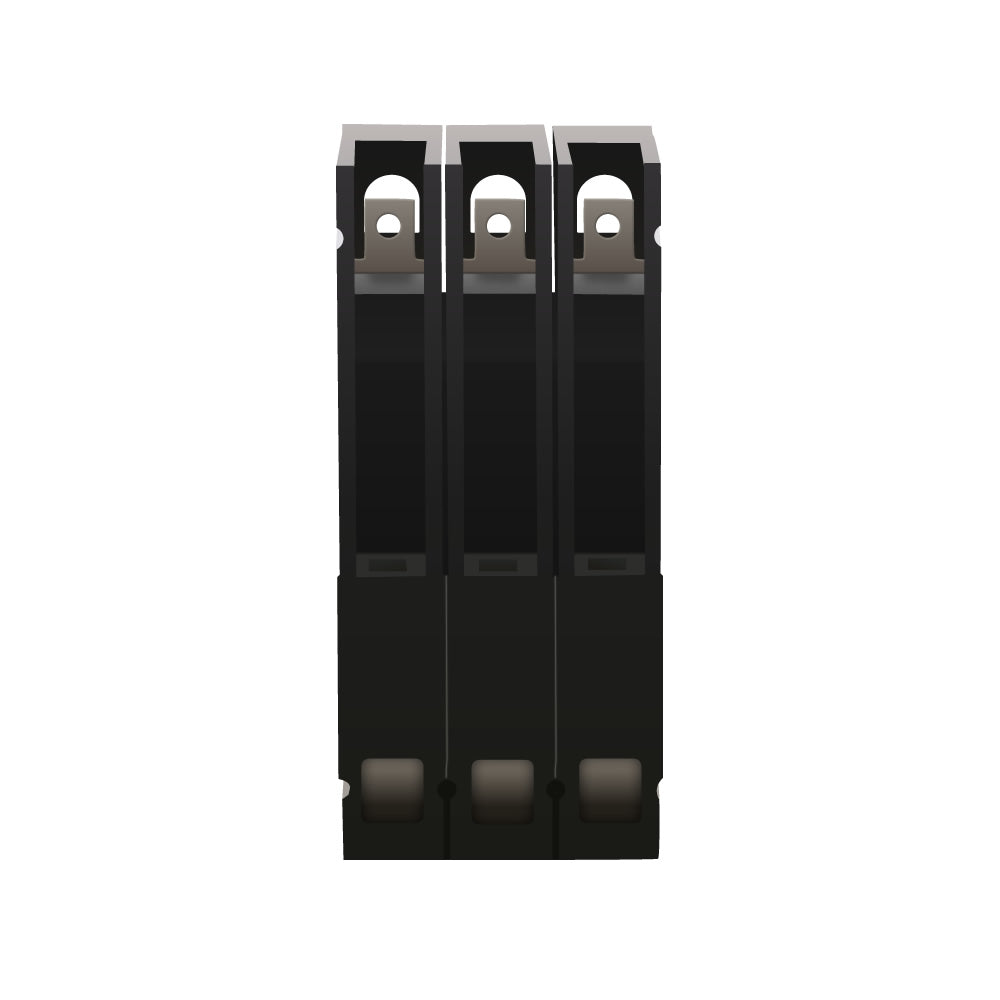

ED43B100 - Siemens 100 Amp 480VAC 3 Pole ED Frame Circuit Breaker Bolt-On Thermal Magnetic

ED43B100

ED43B100 - Siemens 3-pole molded case circuit breaker rated at 100 Amps, 480VAC with thermal magnetic trip.

Siemens Sentron series ED frame breaker features bolt-on mounting, long time and instantaneous trip functions, and standard interrupting capacity of 18kAIC at 480VAC. Designed for panelboard lug terminals with wire range AWG 10 to 1/0 Cu/Al, suitable for 40 degree C applications.

Key Specifications

• Amperage: 100A
• Voltage: 480VAC
• Poles: 3
• Frame: ED
• Mounting Type: Bolt-On
• Interrupt Rating: 18kAIC at 480VAC
• Trip Unit: Thermal Magnetic (Long Time, Instantaneous)
• Connection: Load Side Lug
• Wire Gauge: AWG 10 to 1/0 Cu/Al
• Certifications: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED43B100
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209480
• GTIN : 00783643209480
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.962
• Weight : 3.801
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
