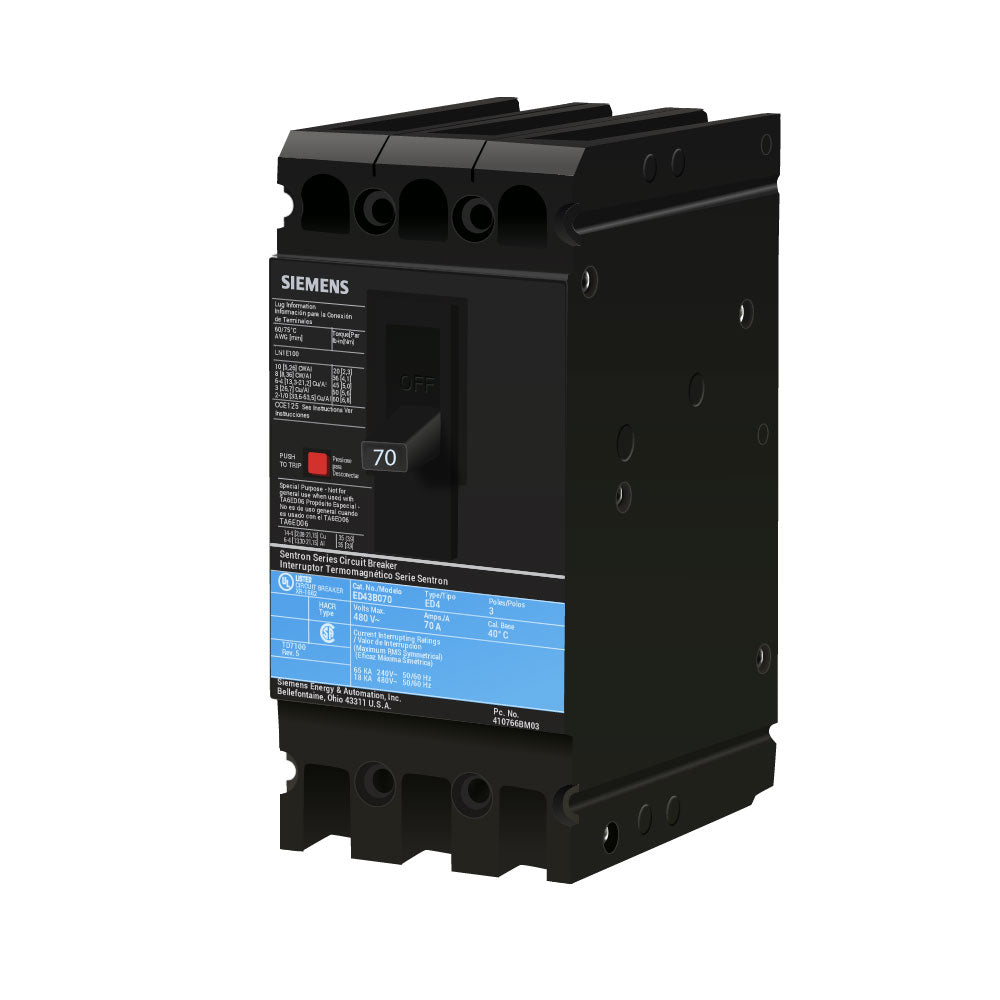

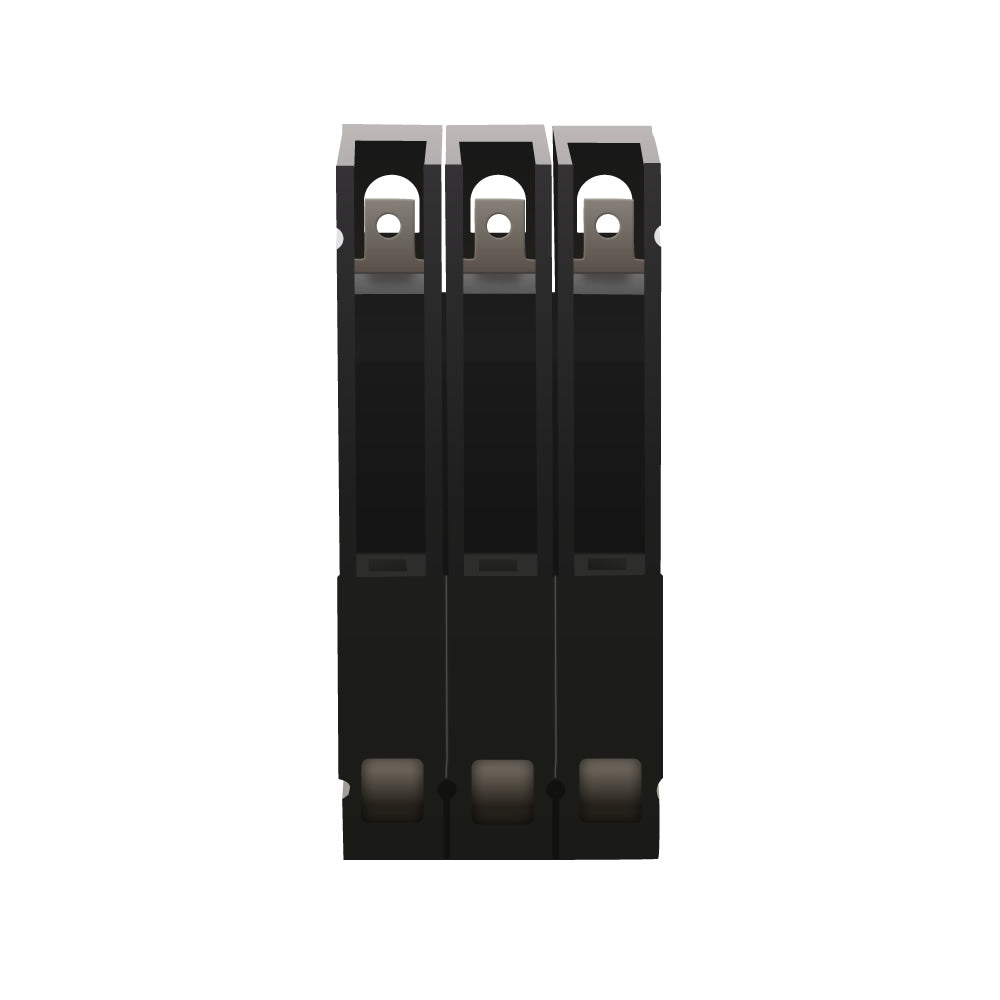

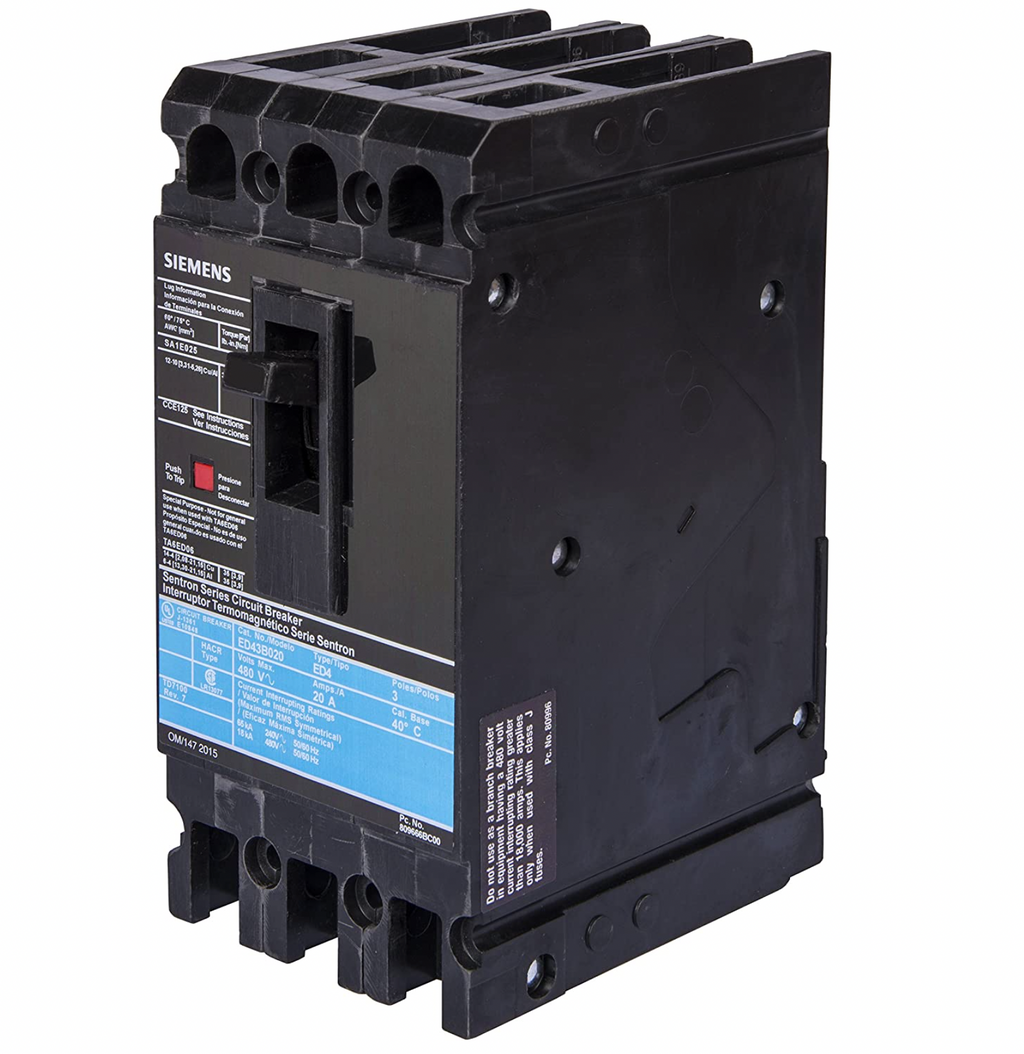

ED43B070 - Siemens 70 Amp 3-Pole 480 VAC Molded Case Circuit Breaker 18 kA Interrupt Rating ED Frame

ED43B070

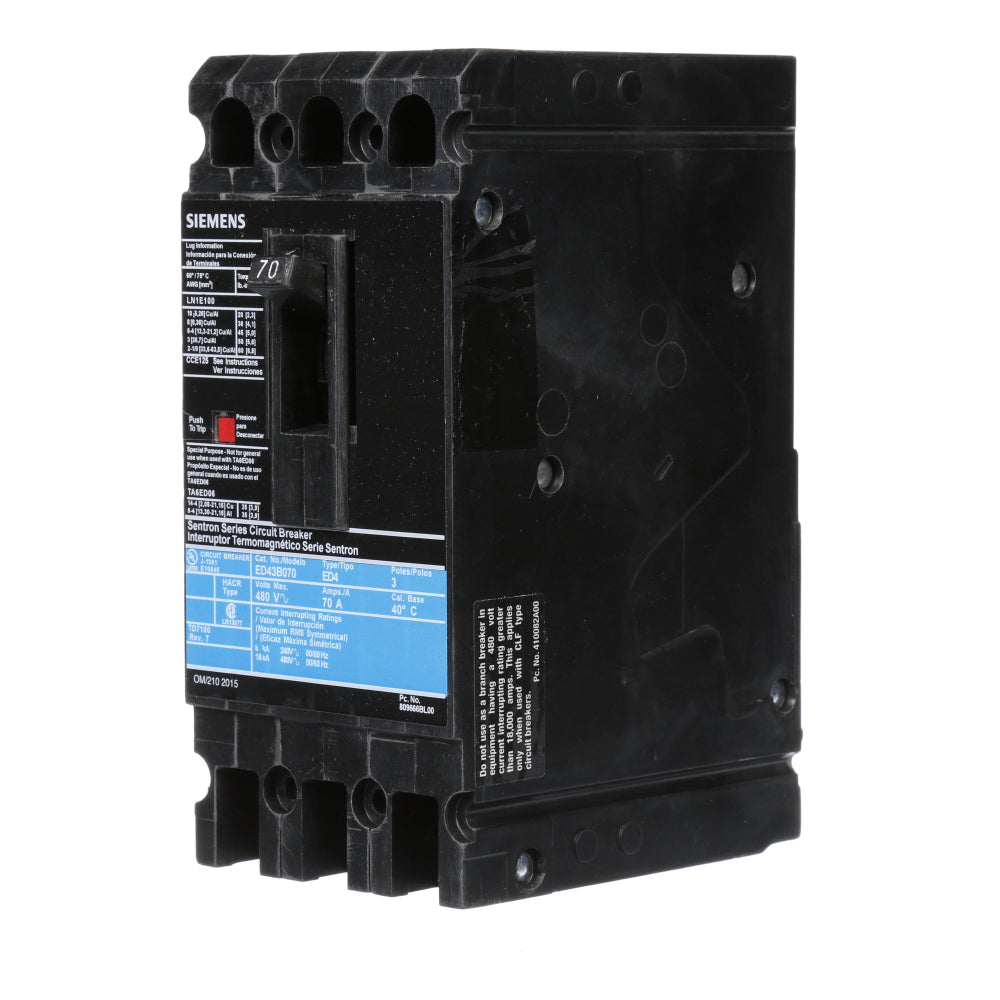

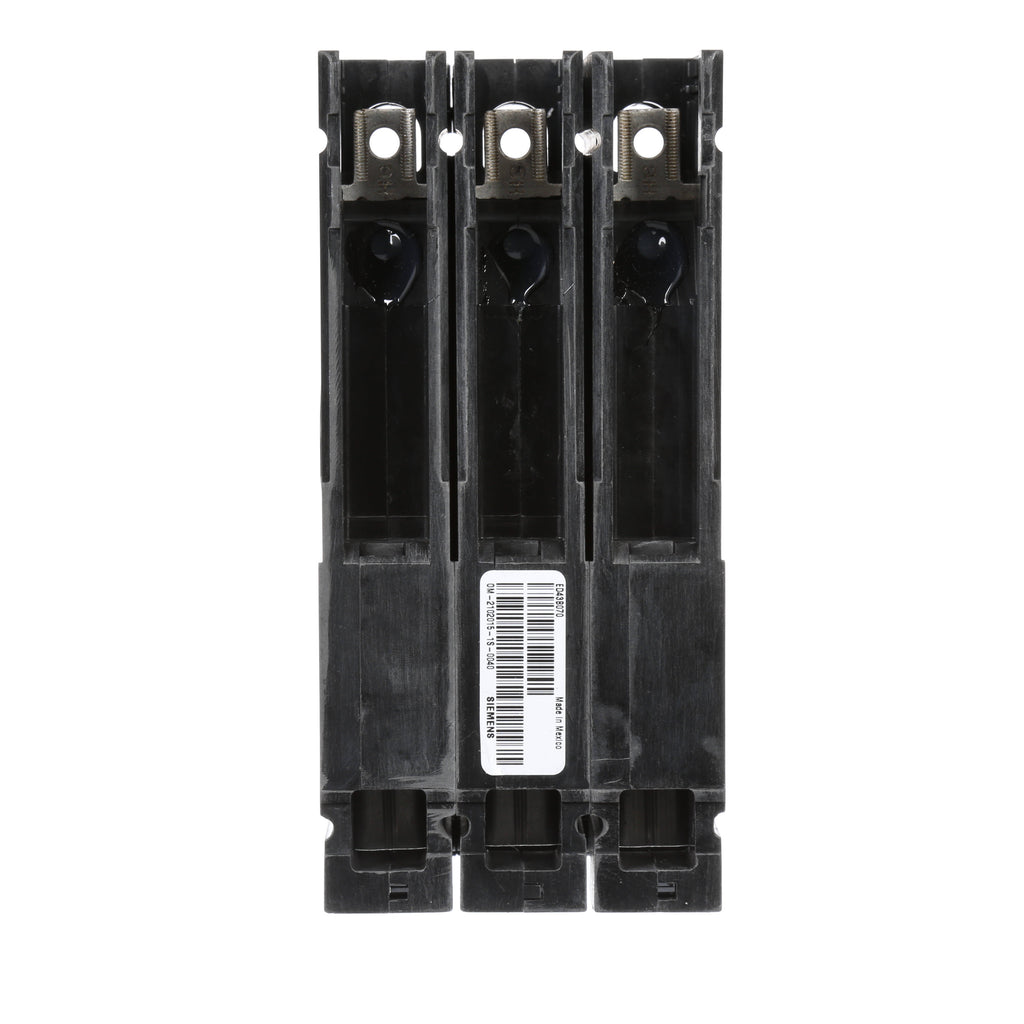

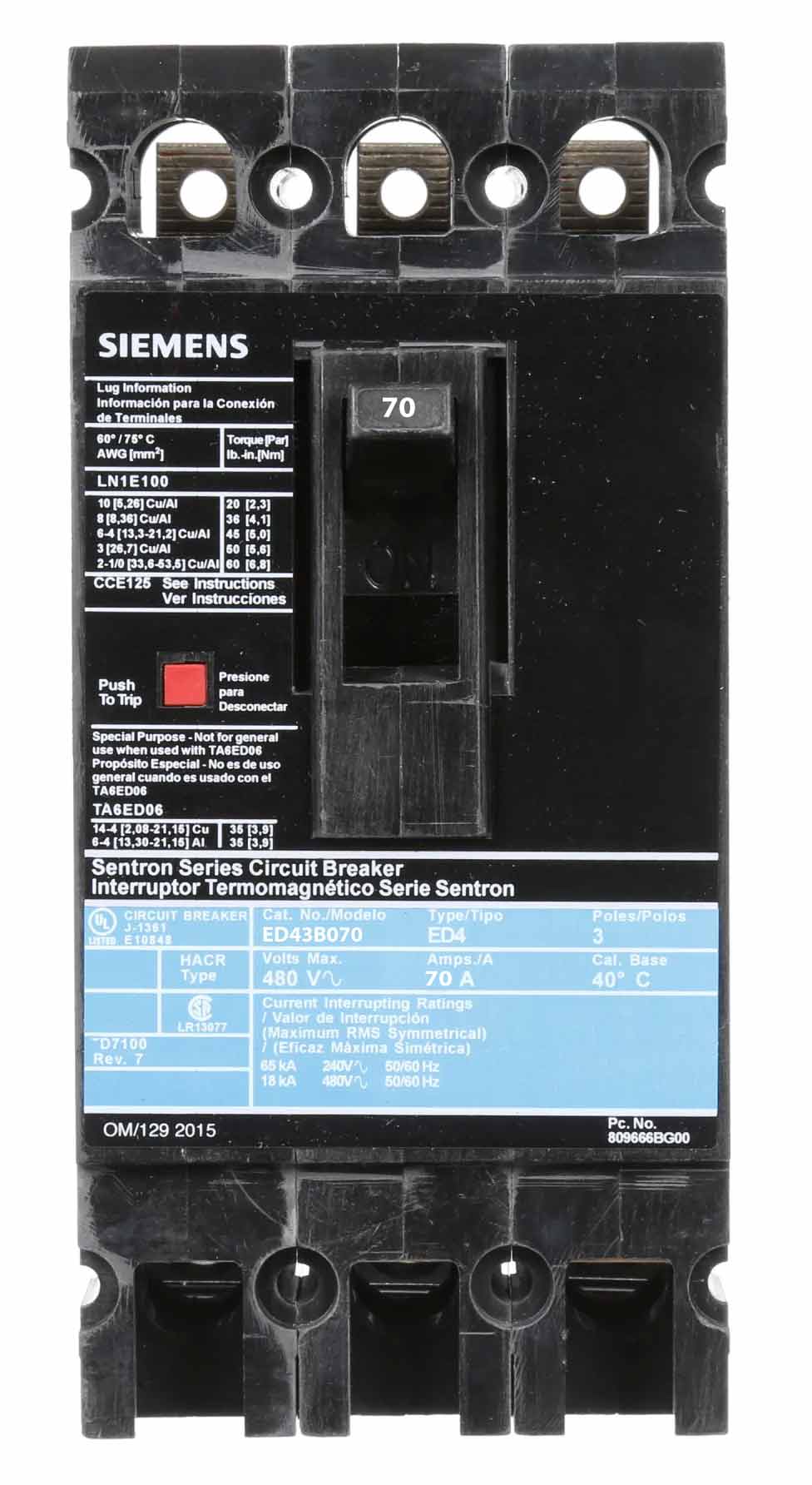

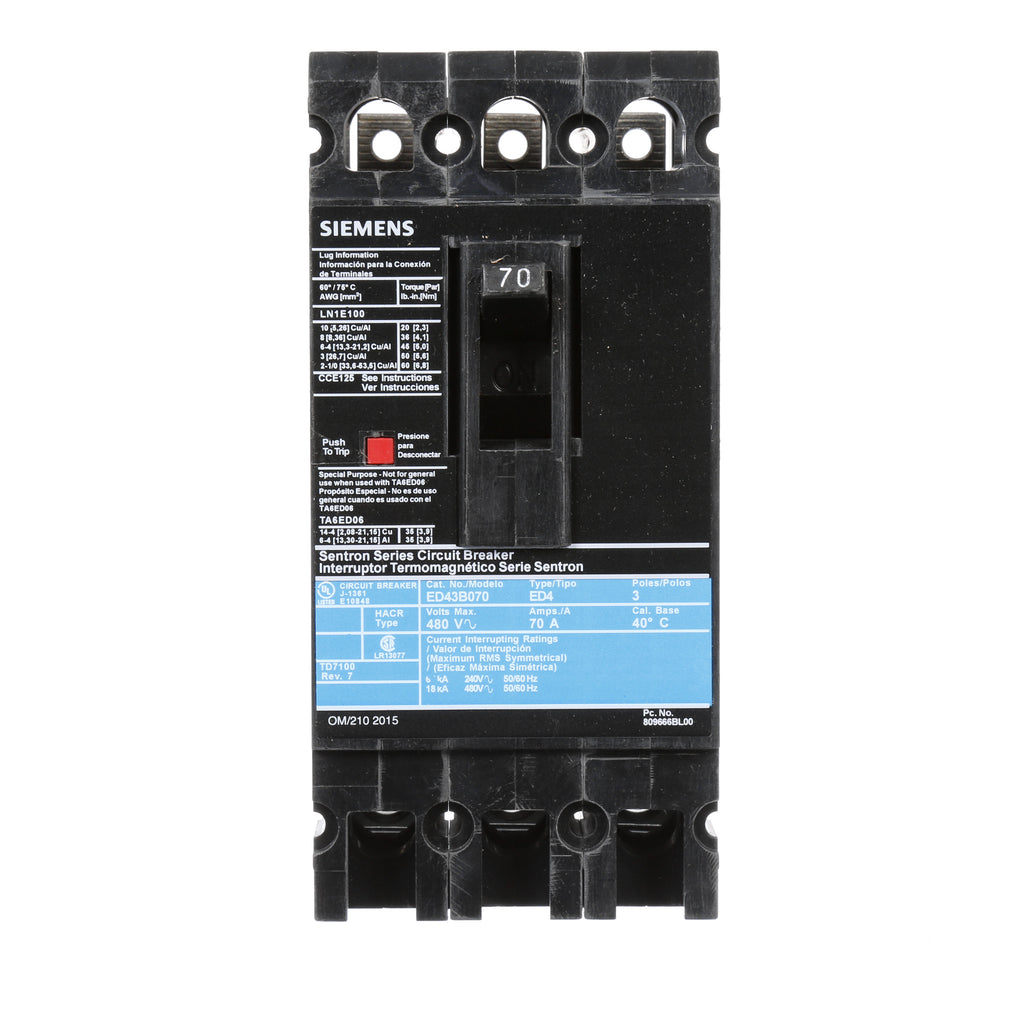

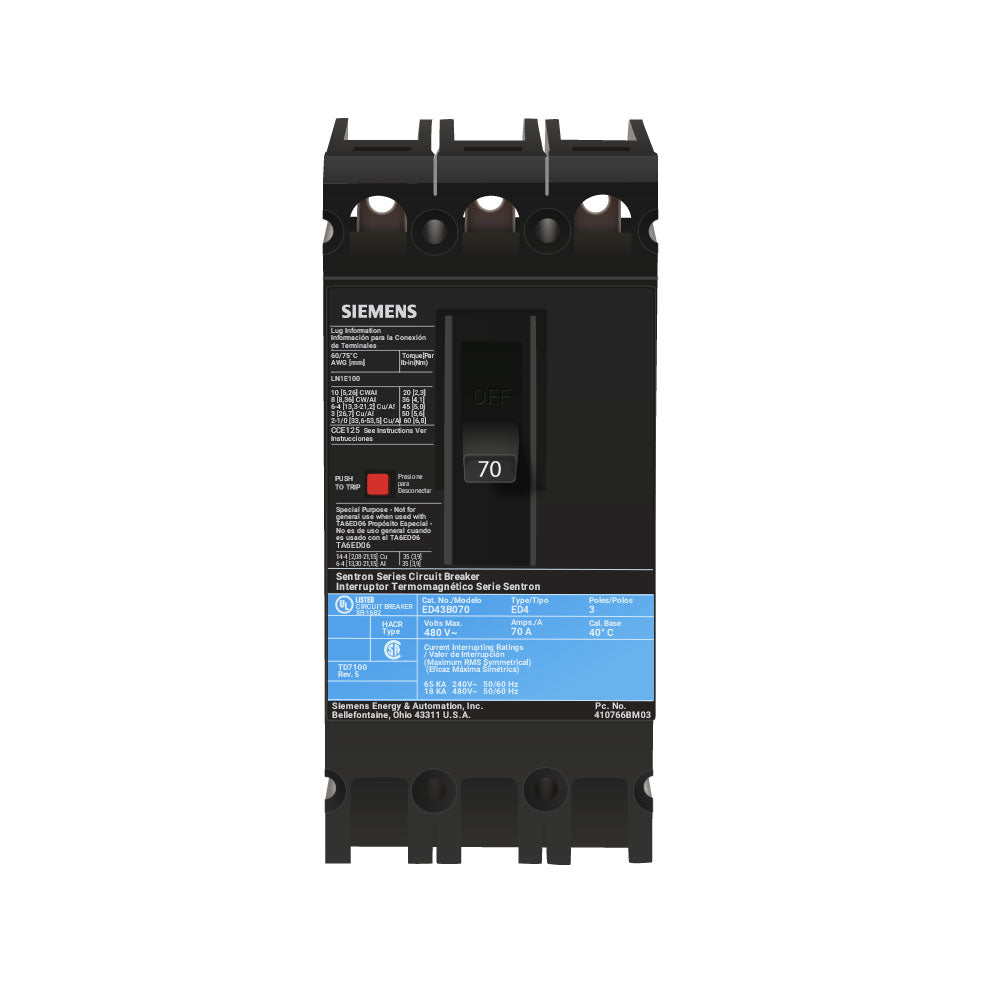

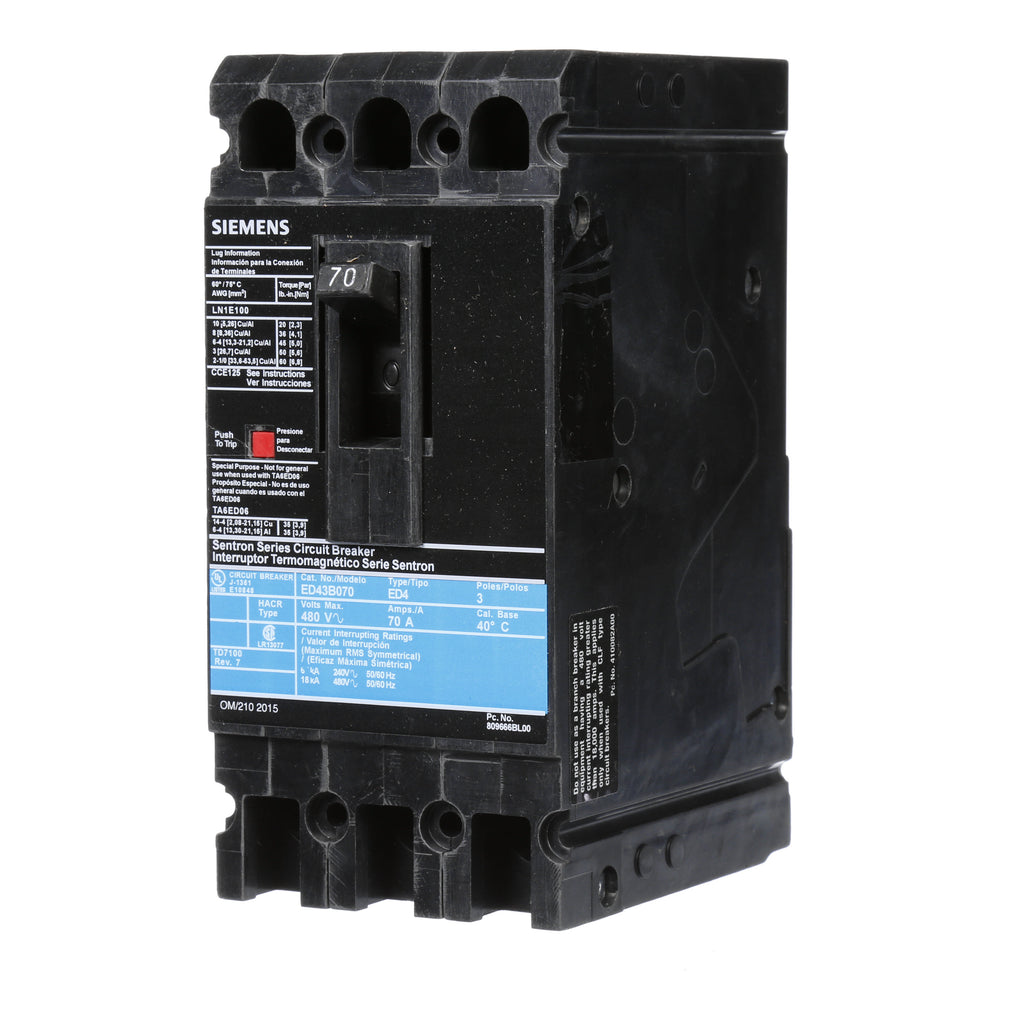

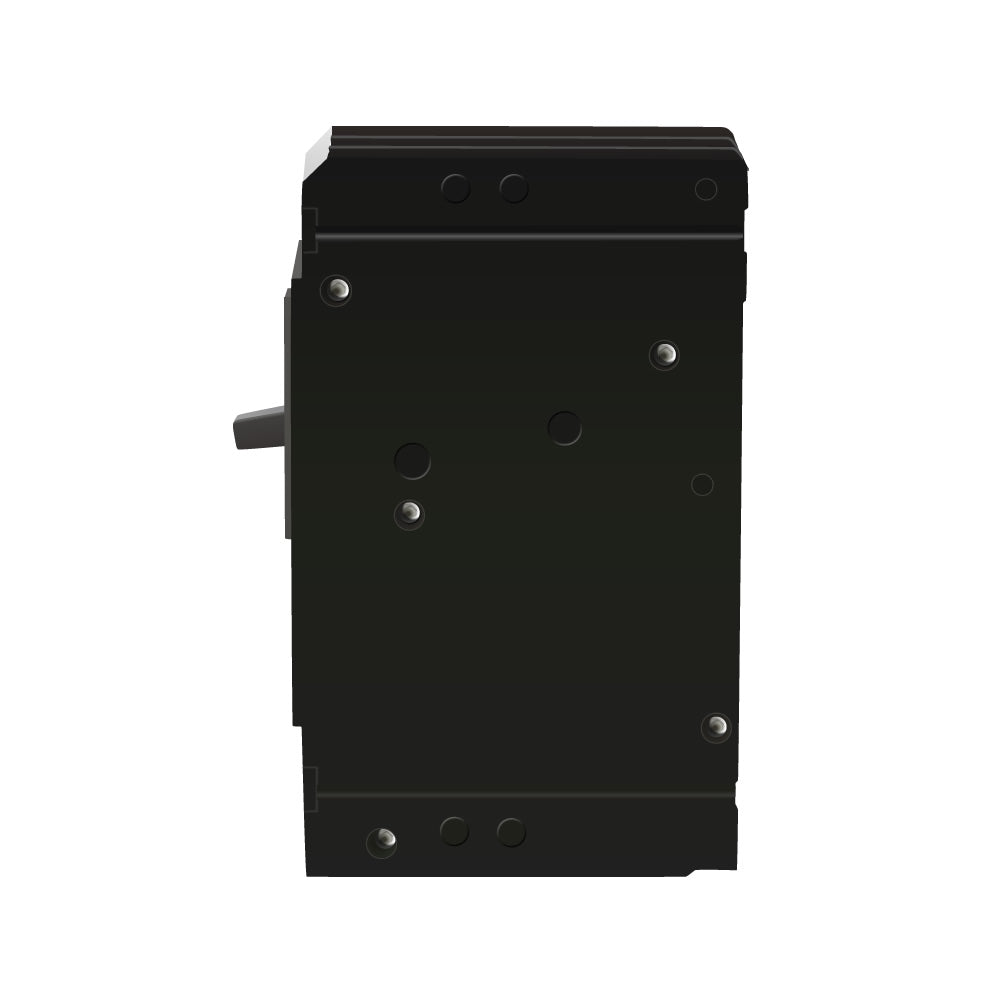

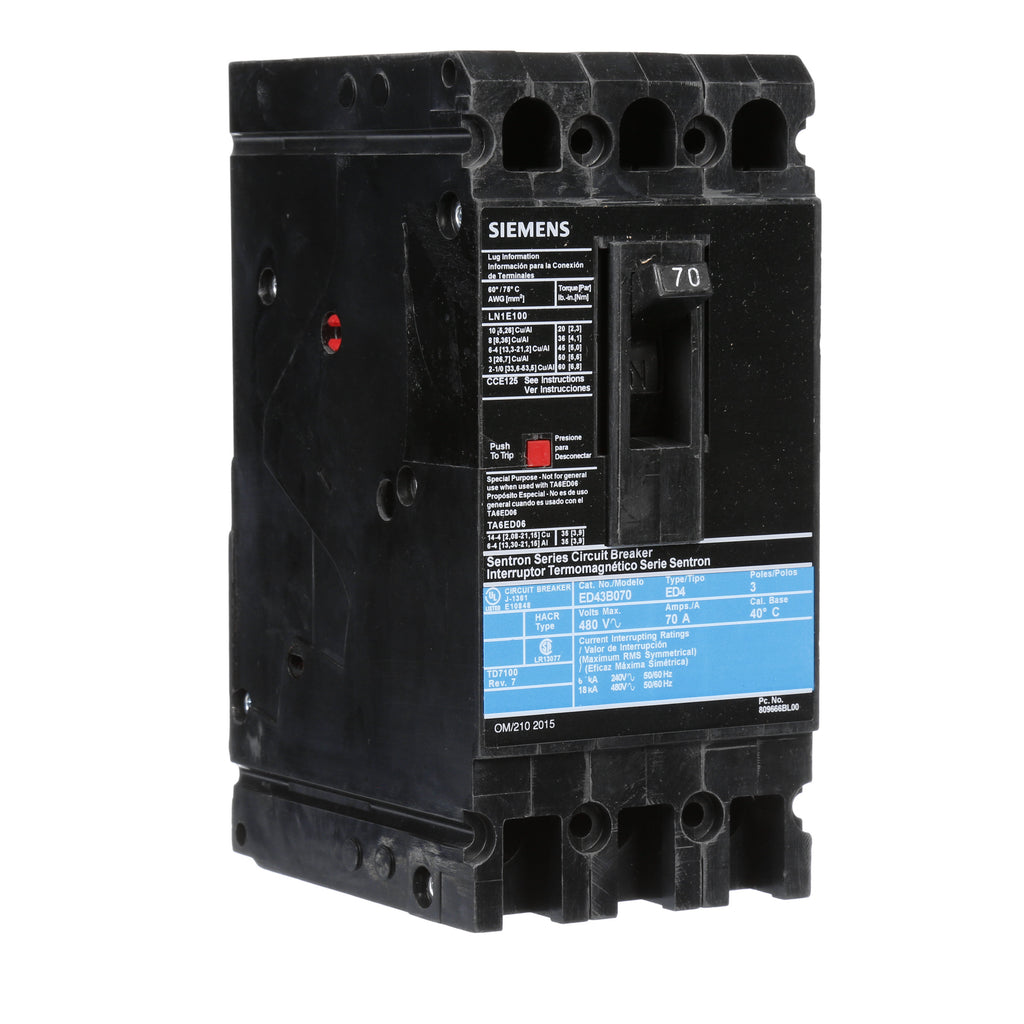

ED43B070 is a Siemens 3-pole molded case circuit breaker rated for 70 amps and 480 VAC with an 18 kA interrupt rating.This Siemens Sentron ED frame breaker features a thermal/magnetic trip unit, bolt-on mounting type, and is designed for low voltage applications up to 480 VAC and 250 VDC. It offers a standard interrupting capacity of 18 kAIC at 480 VAC and complies with NEMA Type 12 enclosure standards.

• Amperage: 70 A
• Voltage: 480 VAC / 250 VDC
• Poles: 3
• Interrupt Rating: 18 kAIC
• Trip Unit: Thermal/Magnetic
• Mounting Type: Bolt-on
• Series/Frame: ED
• Frequency: 50/60 Hz
• Enclosure: NEMA Type 12
• Standards: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED43B070
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209459
• GTIN : 00783643209459
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.956
• Weight : 3.699
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
