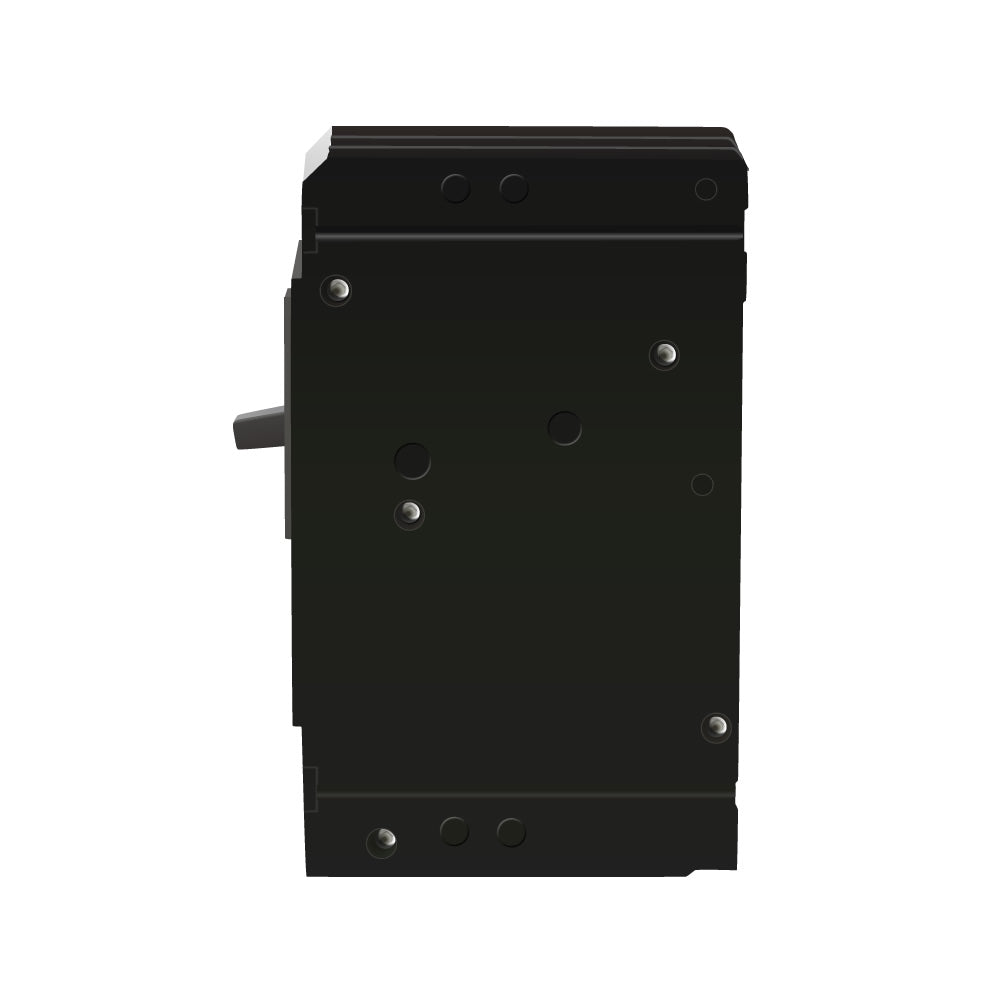

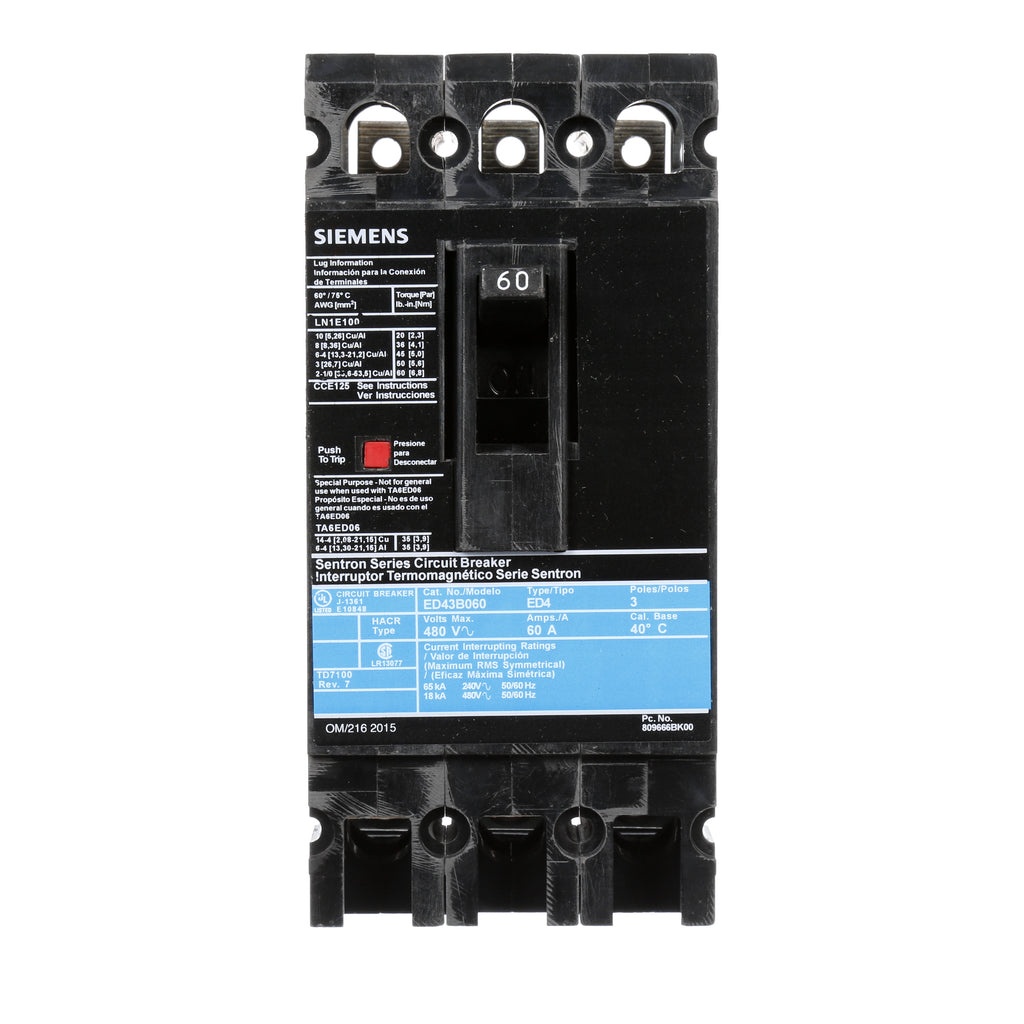

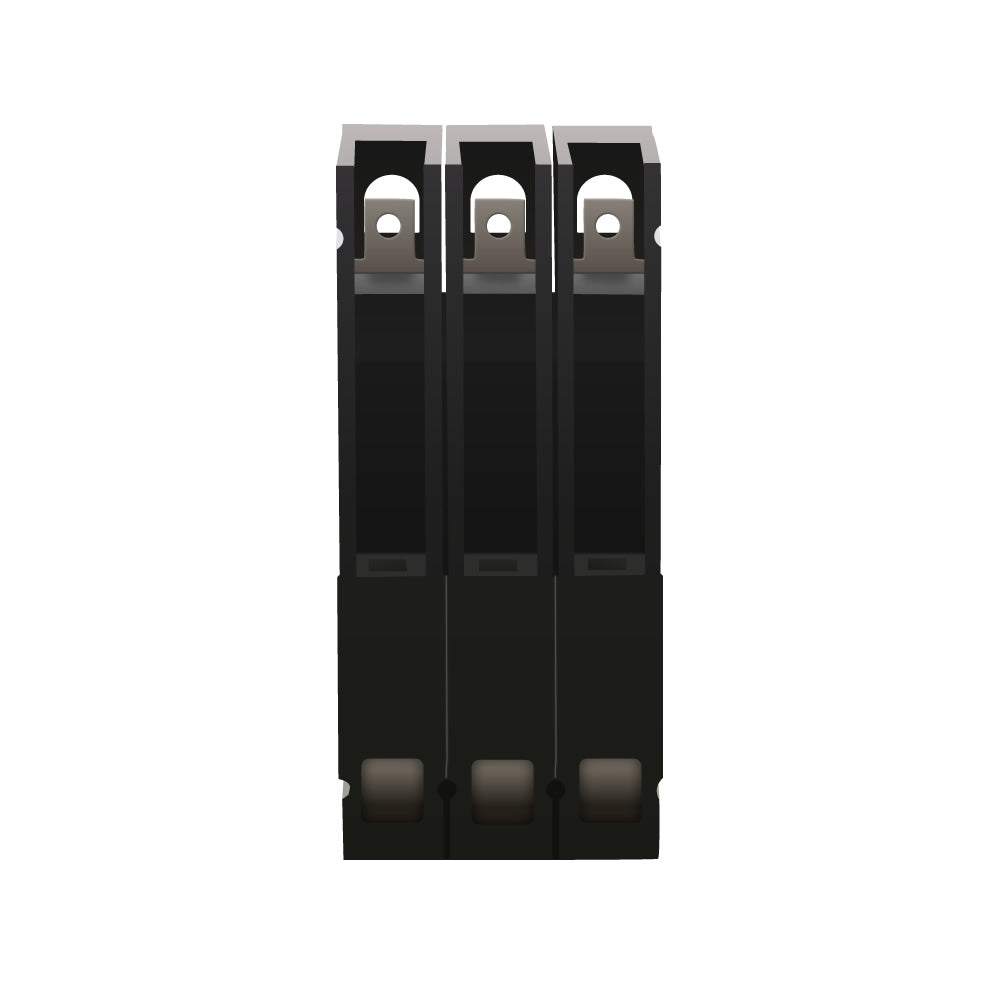

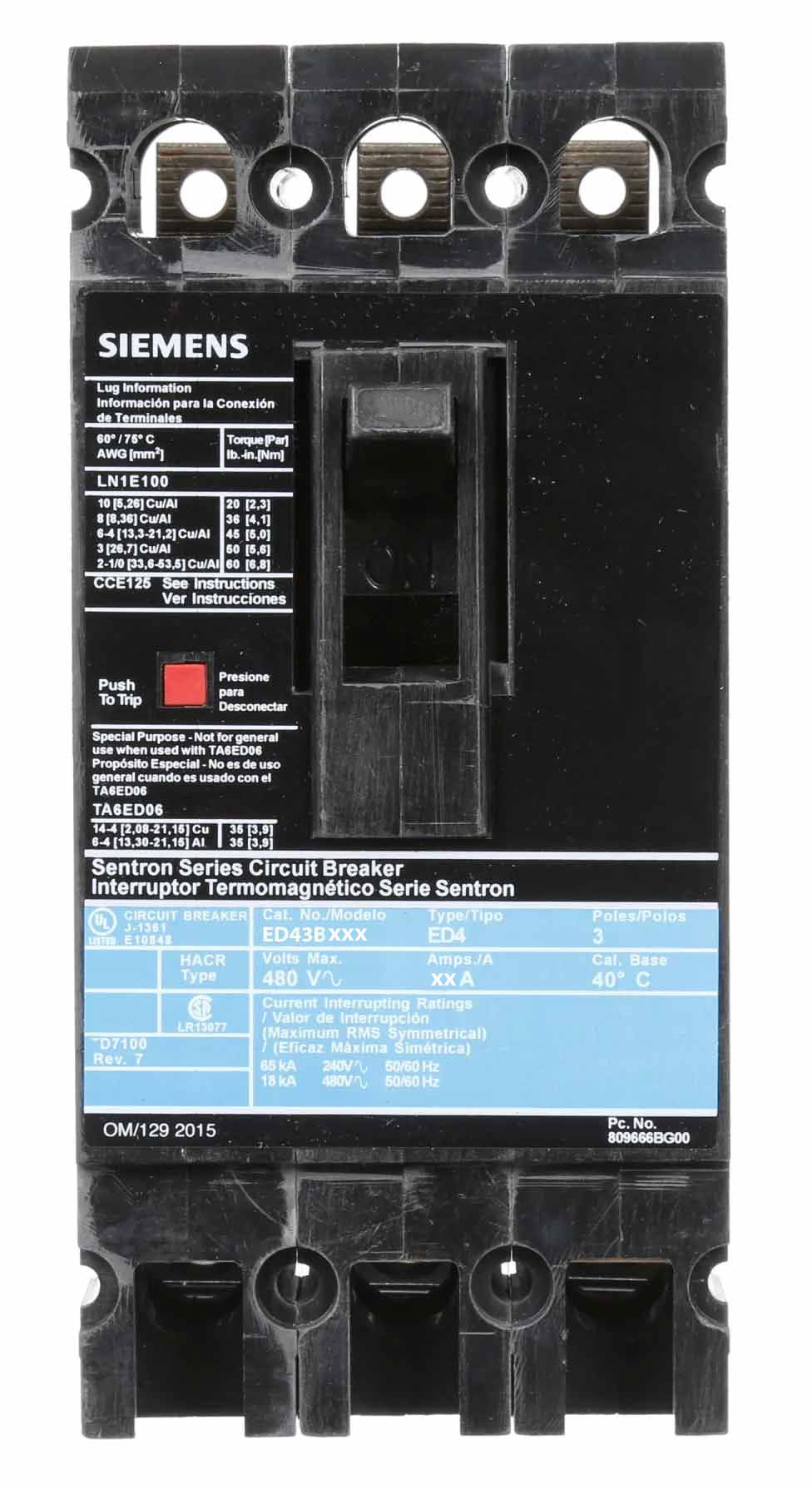

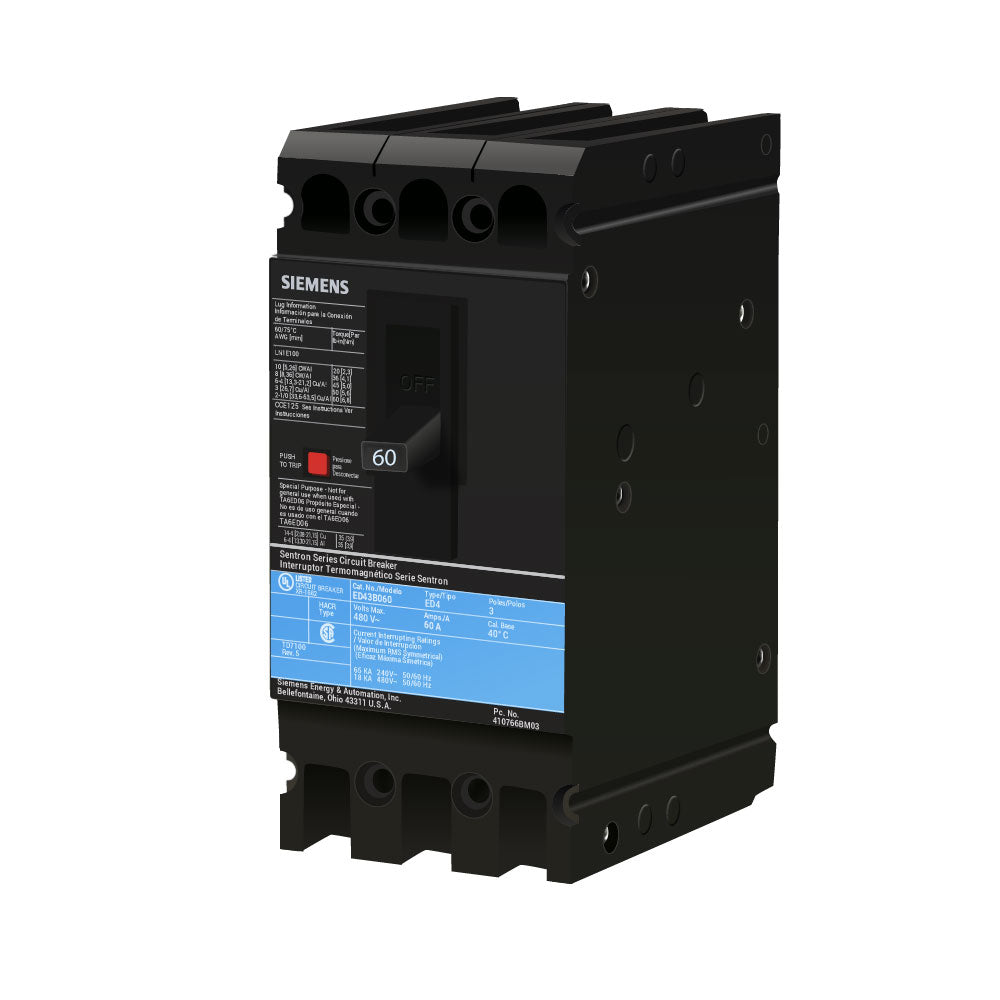

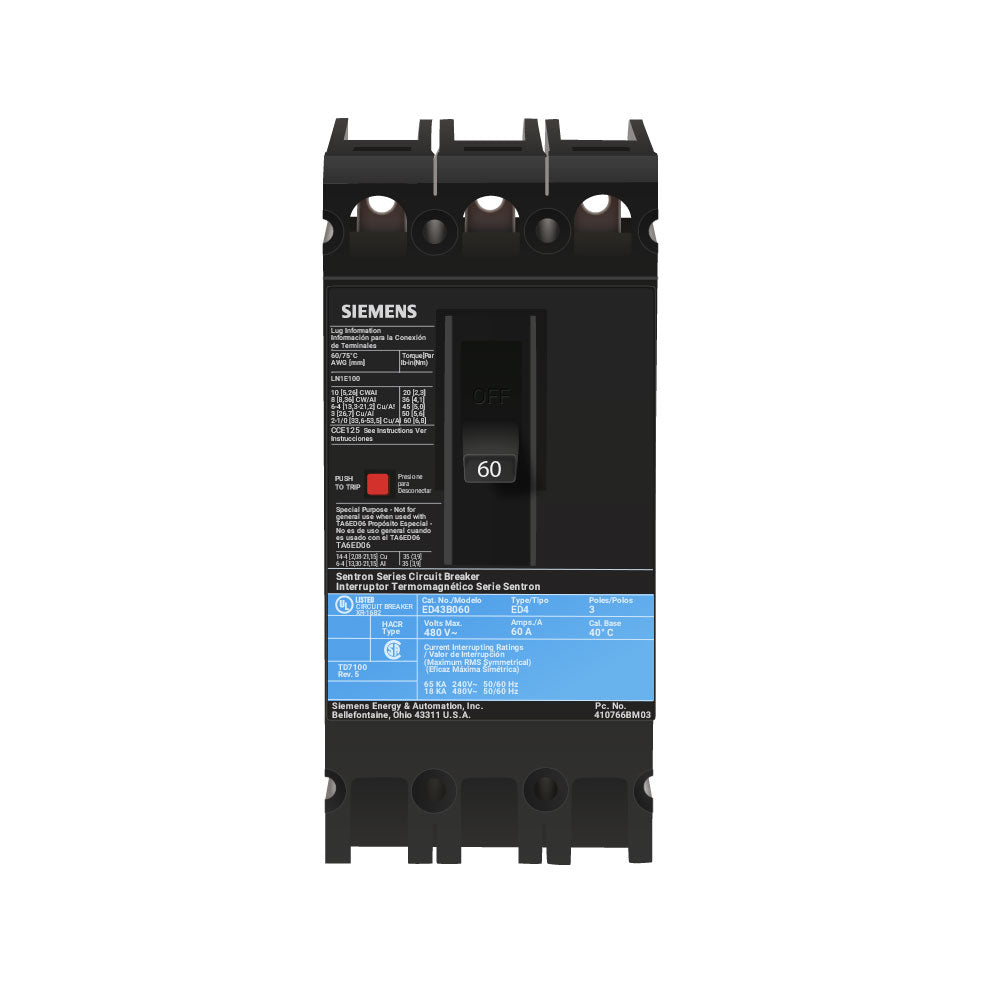

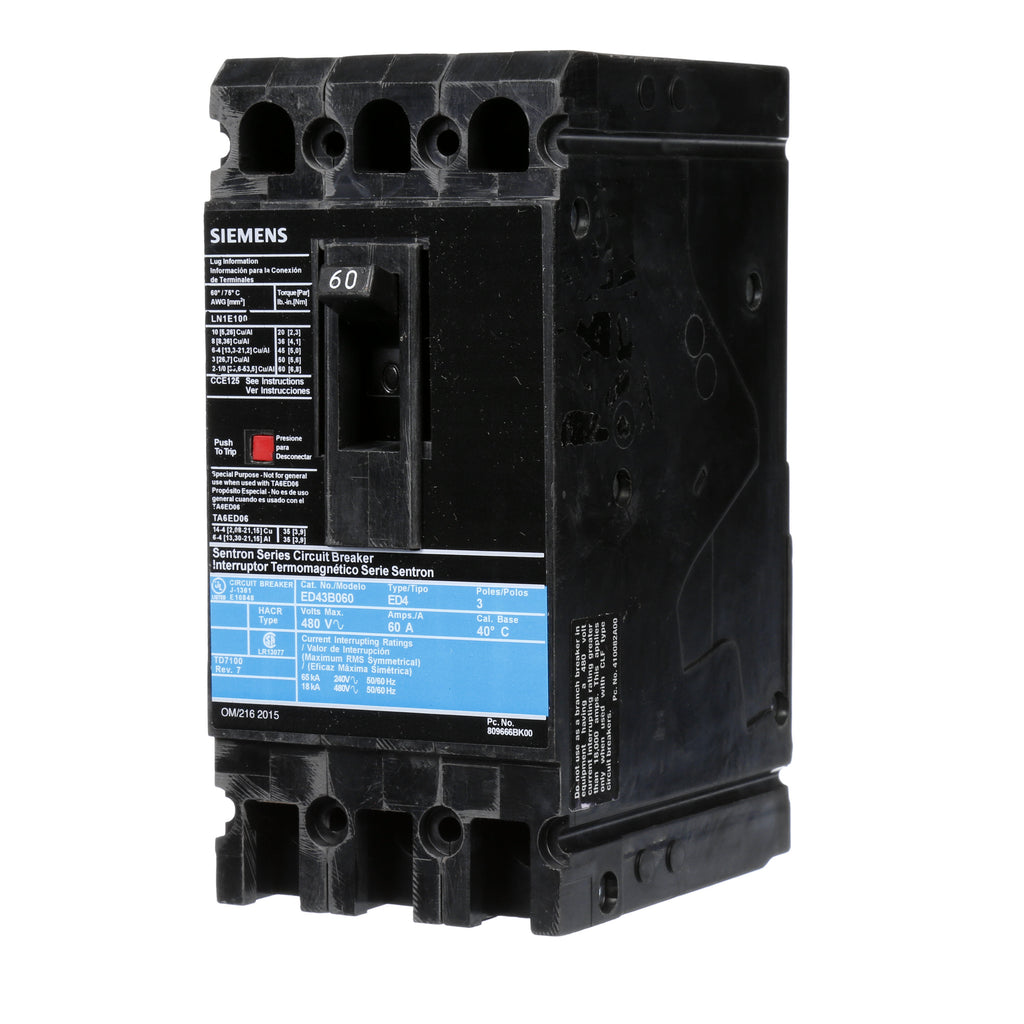

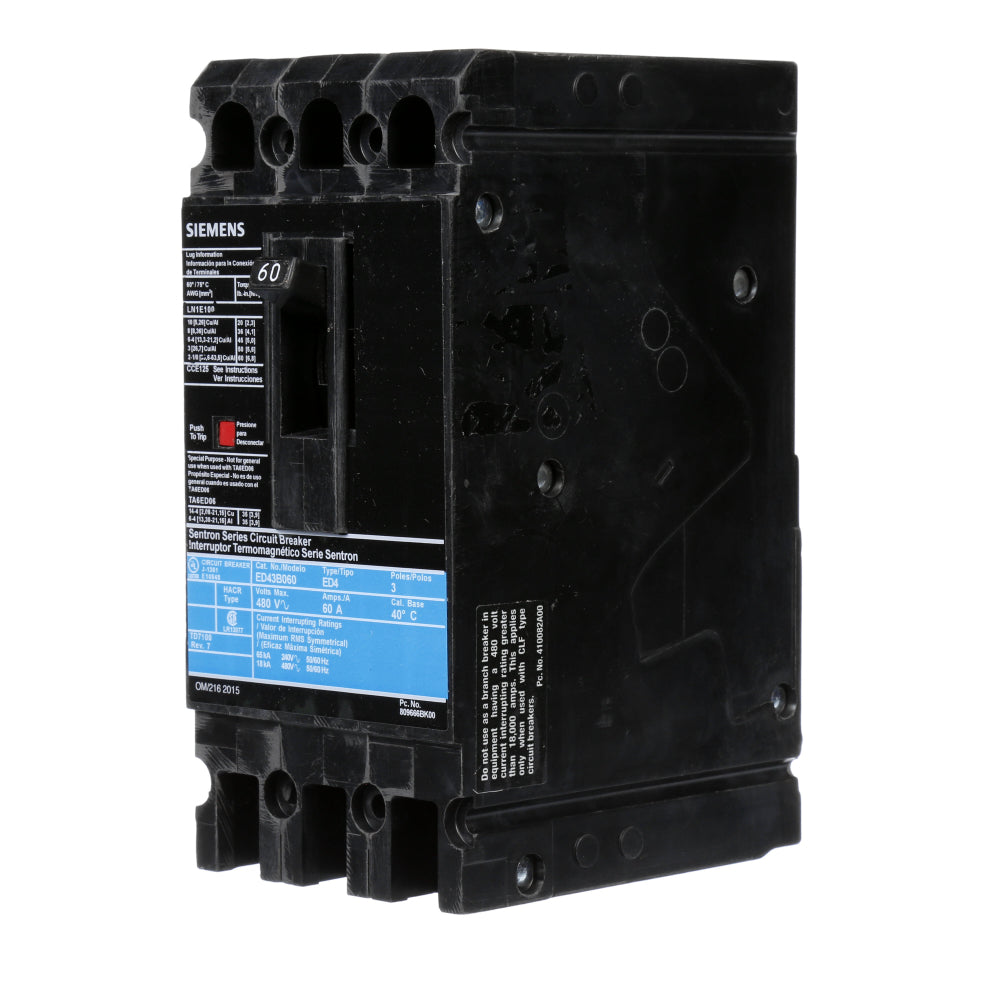

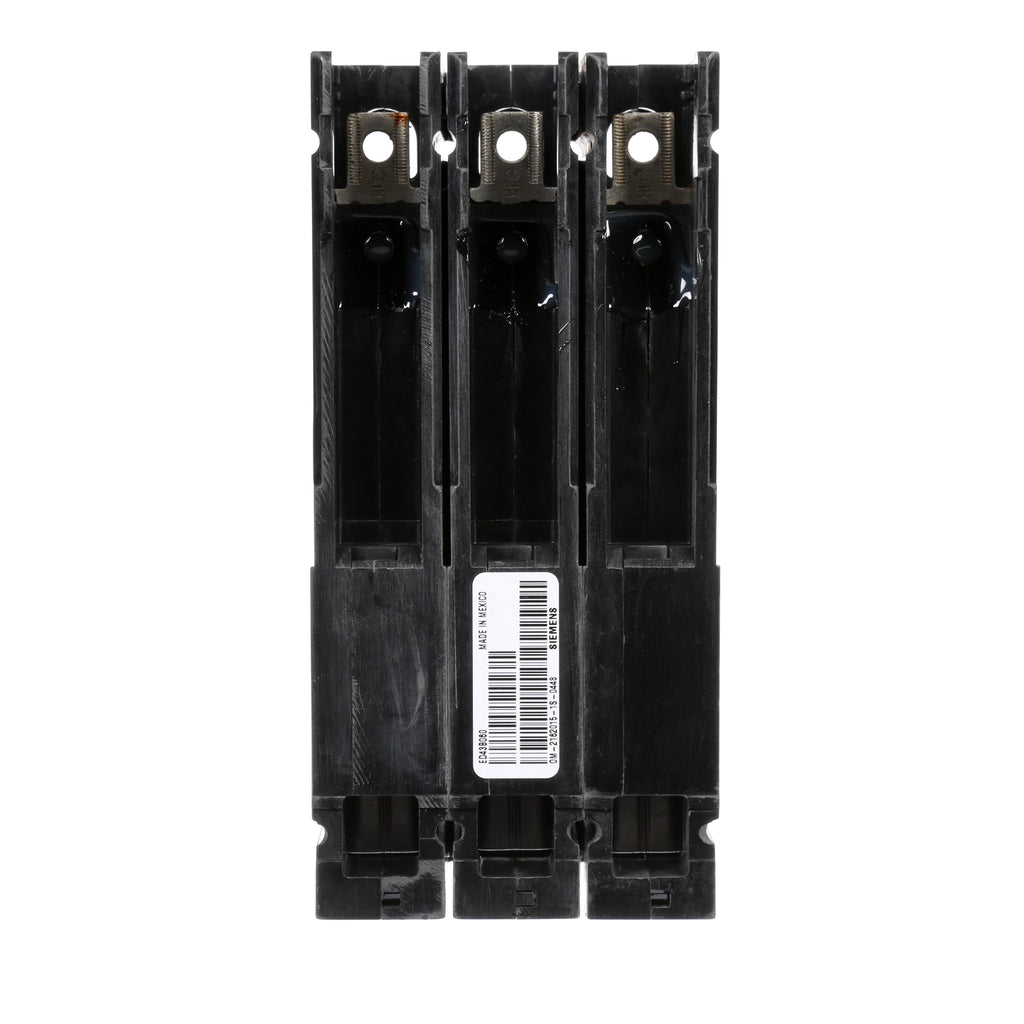

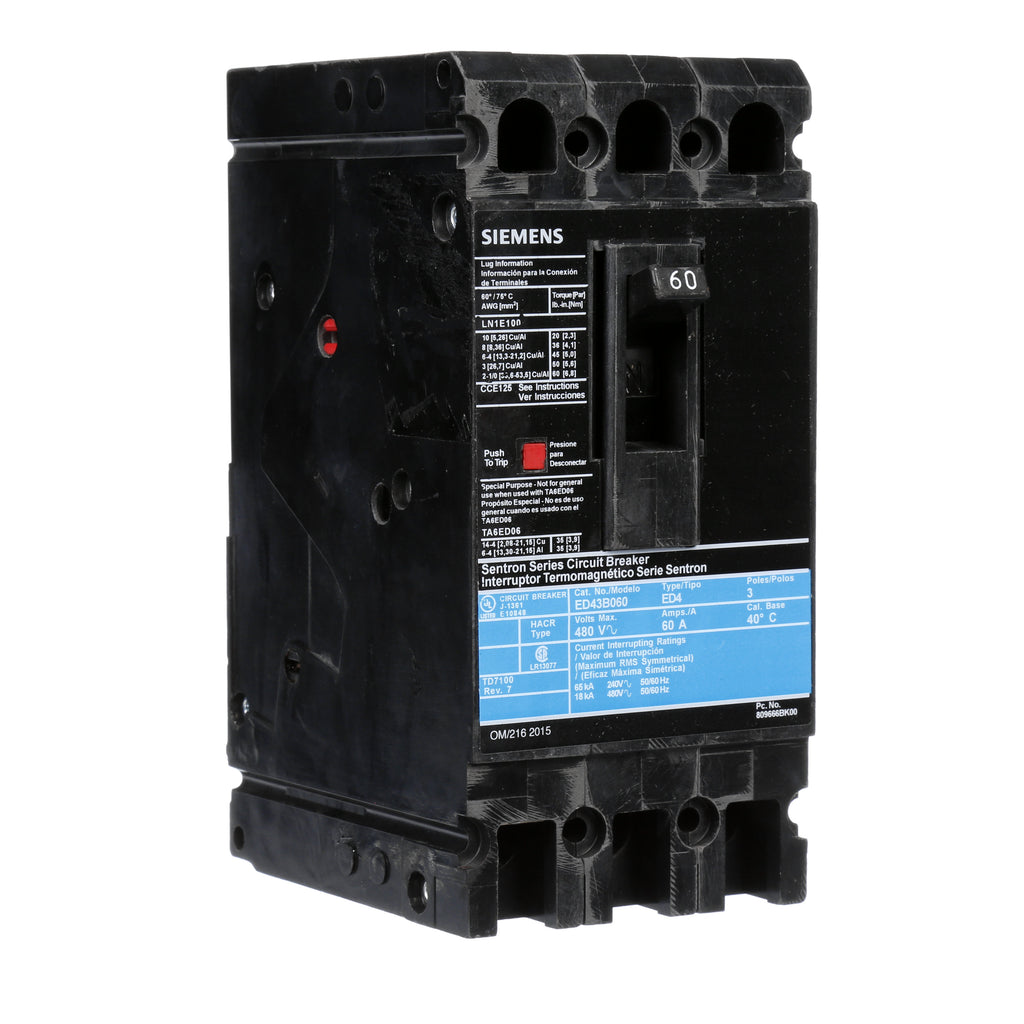

ED43B060 - Siemens 60A 480V 3-Pole ED Frame Bolt-On Circuit Breaker

ED43B060

ED43B060 is a Siemens 3-pole molded case circuit breaker with a 60 amp rating designed for bolt-on mounting.This Siemens ED series circuit breaker features thermal magnetic trip units, a 480 volt AC rating, and a 65kA interrupt rating at 240V (18kA at 480V). It is UL 489 listed, HACR rated, and CSA certified, suitable for industrial and commercial power distribution applications. The breaker supports copper or aluminum wire sizes from 10 to 1/0 AWG and meets IEC 60947-2 standards.

Key Specifications
• Manufacturer: Siemens
• Part Number: ED43B060
• Frame Type: ED
• Amperage: 60 Amps
• Voltage Rating: 480 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 240V, 18kA at 480V
• Trip Unit: Thermal Magnetic
• Wire Range: 10 - 1/0 AWG Copper/Aluminum
• Certifications: UL 489, HACR, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED43B060
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209442
• GTIN : 00783643209442
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.954
• Weight : 0.309
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
