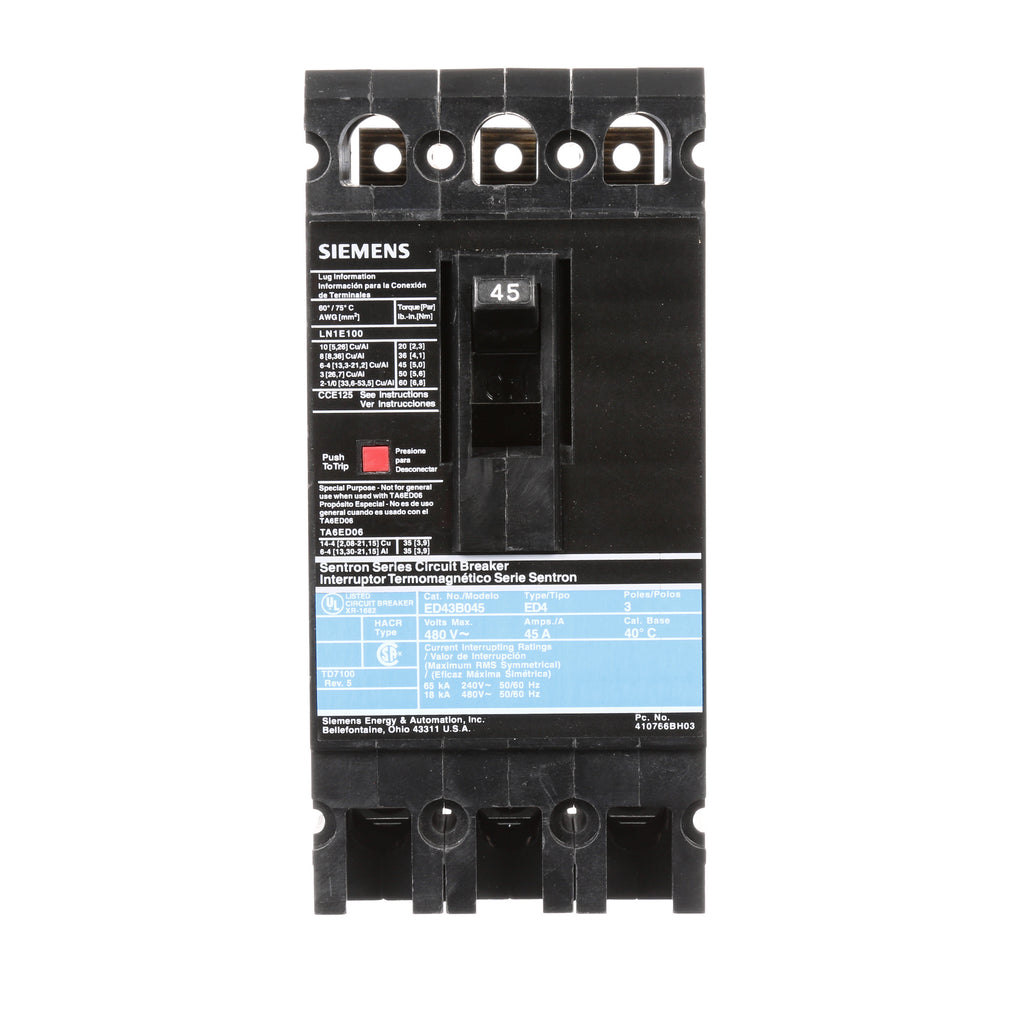

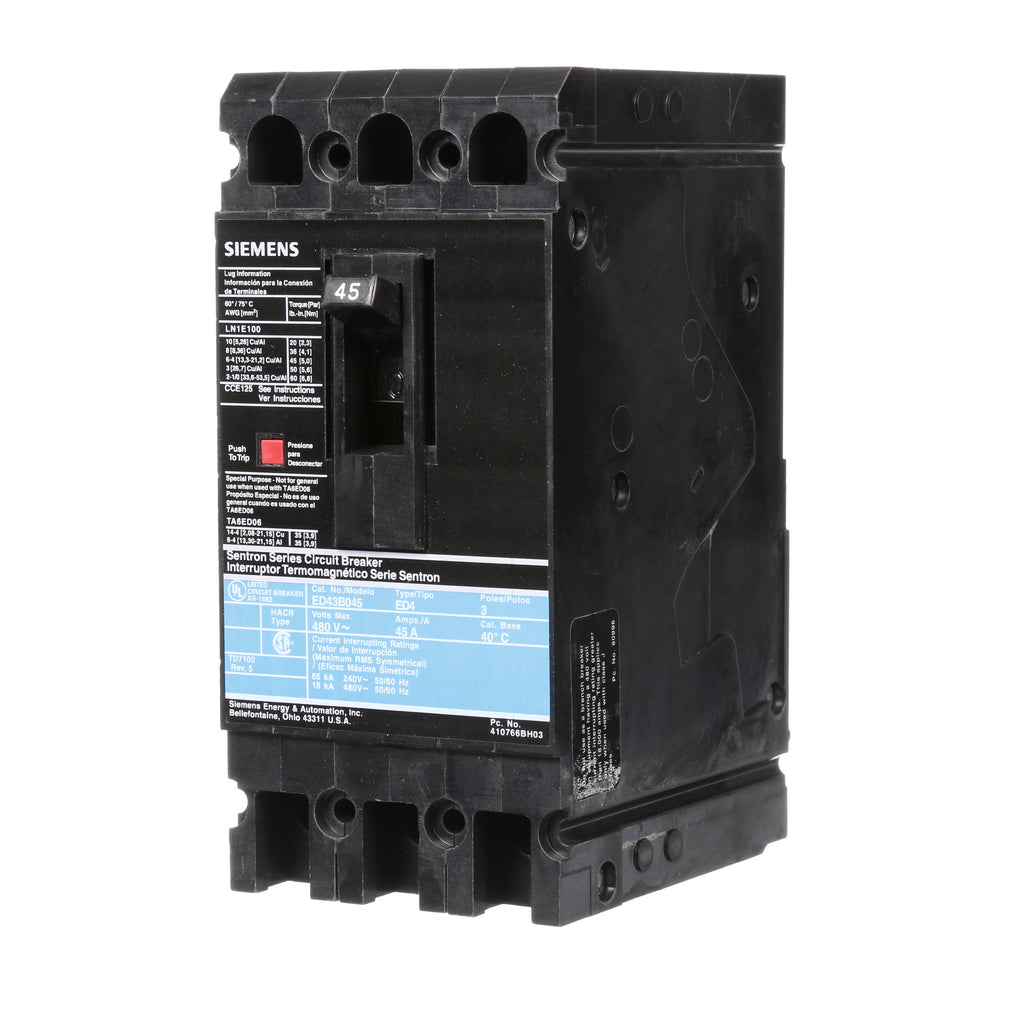

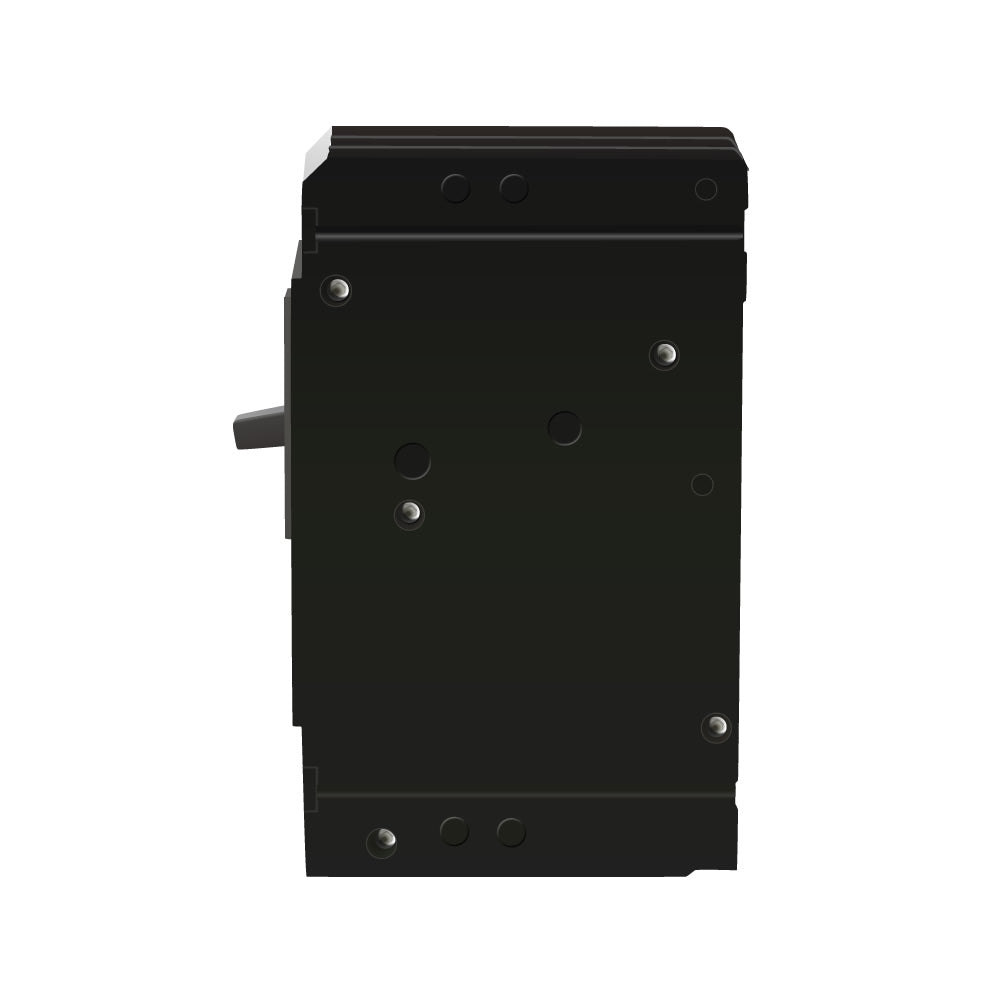

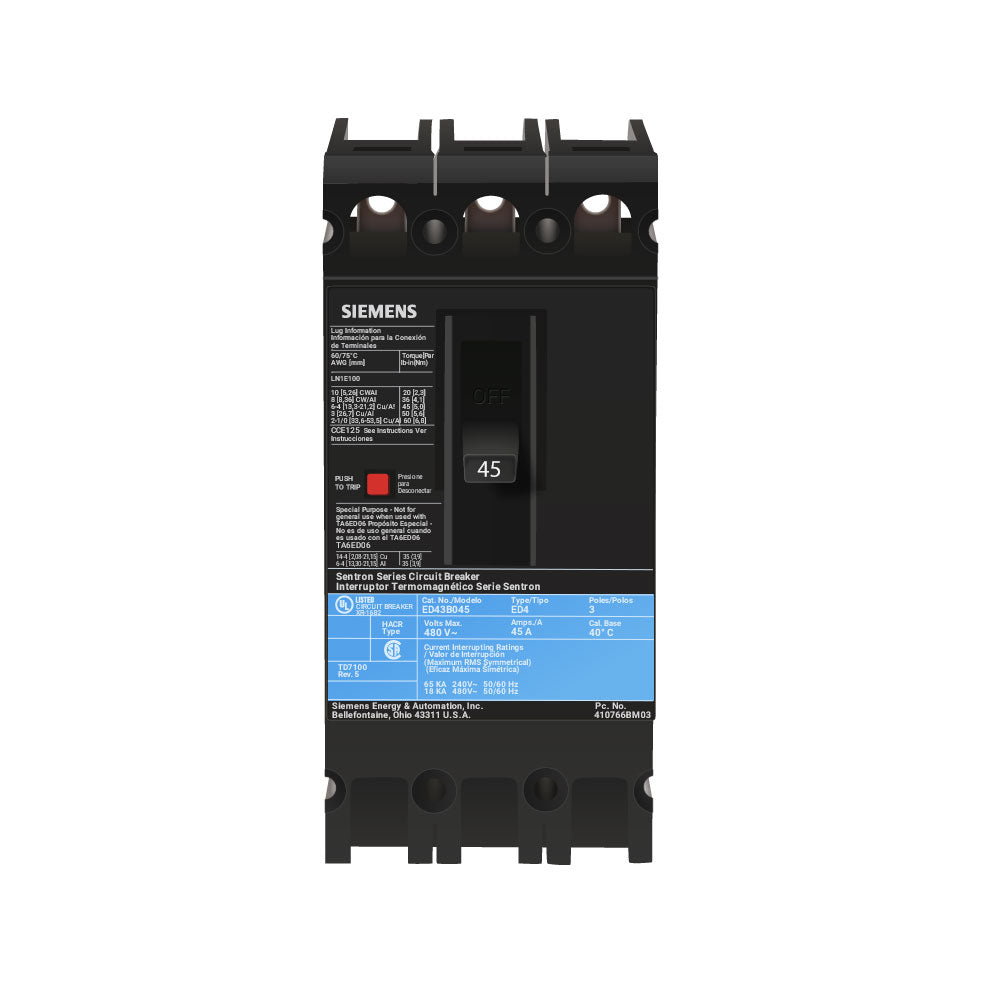

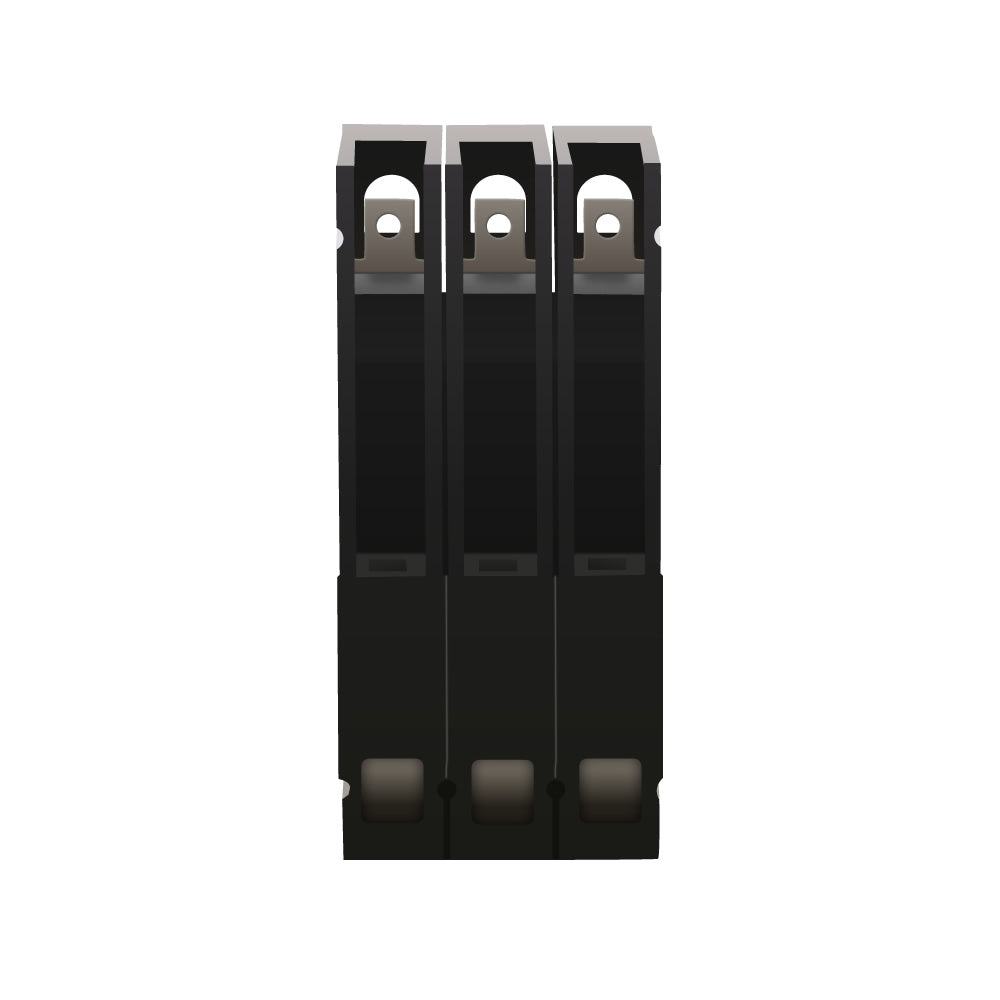

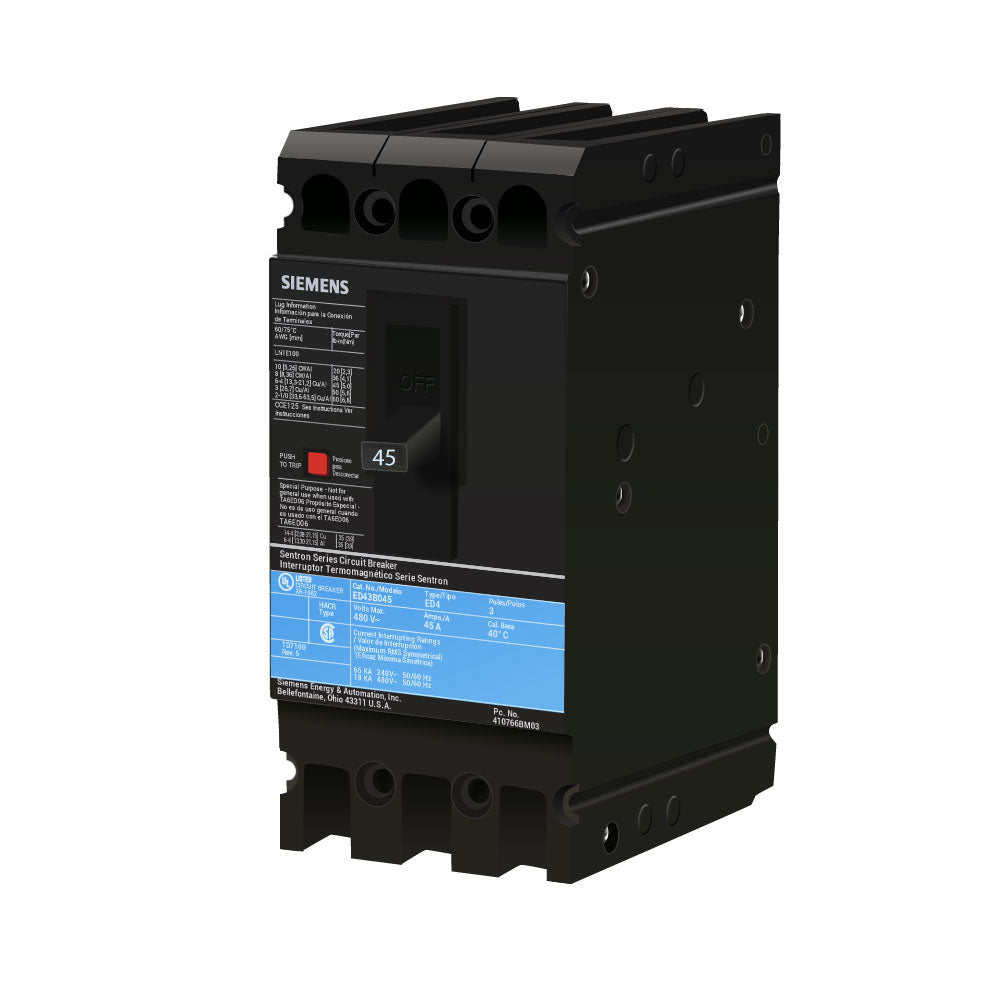

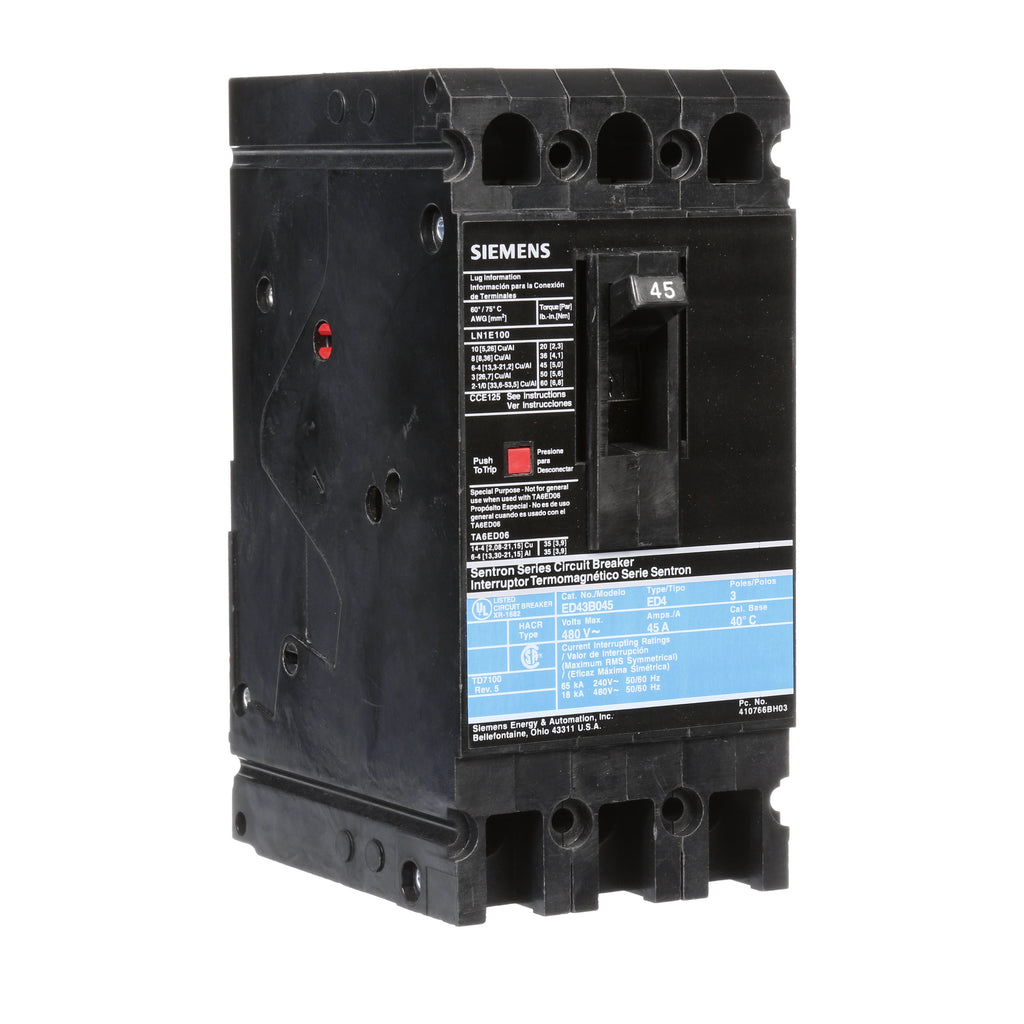

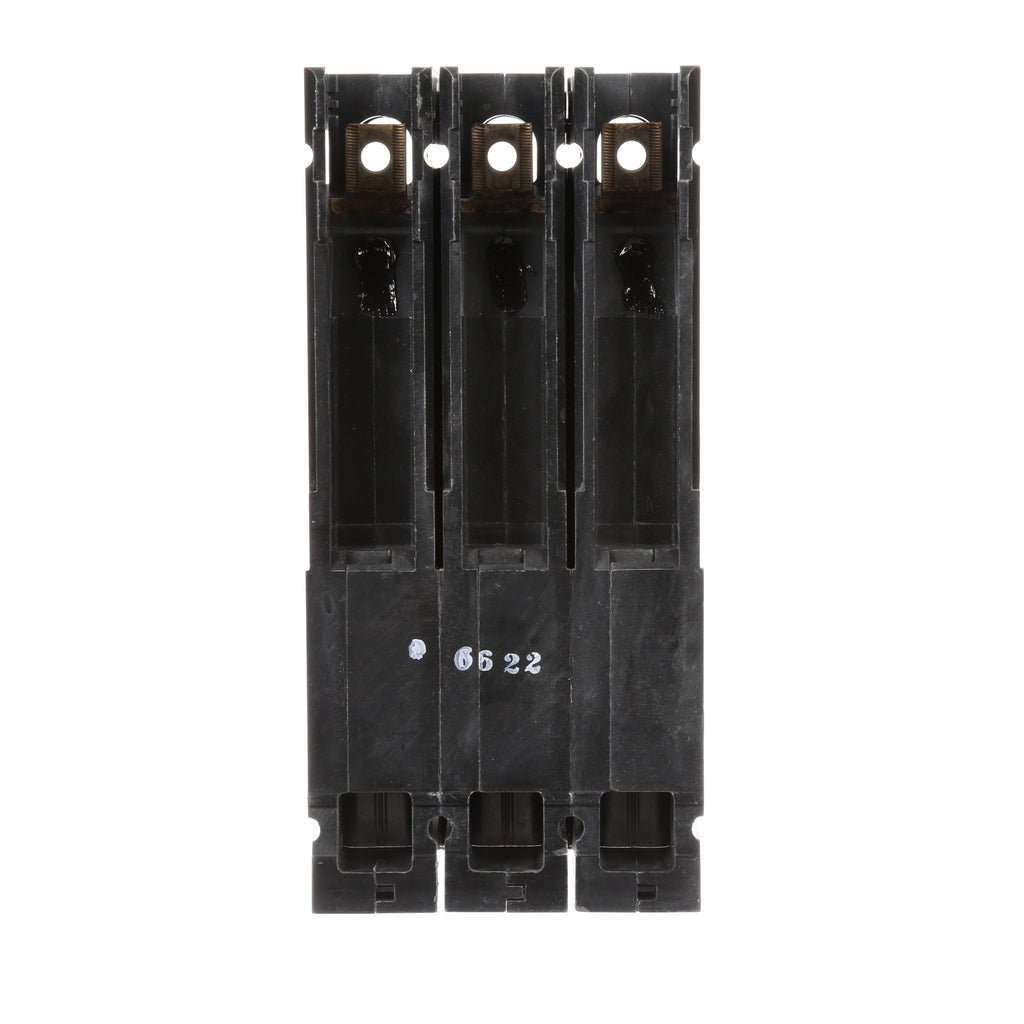

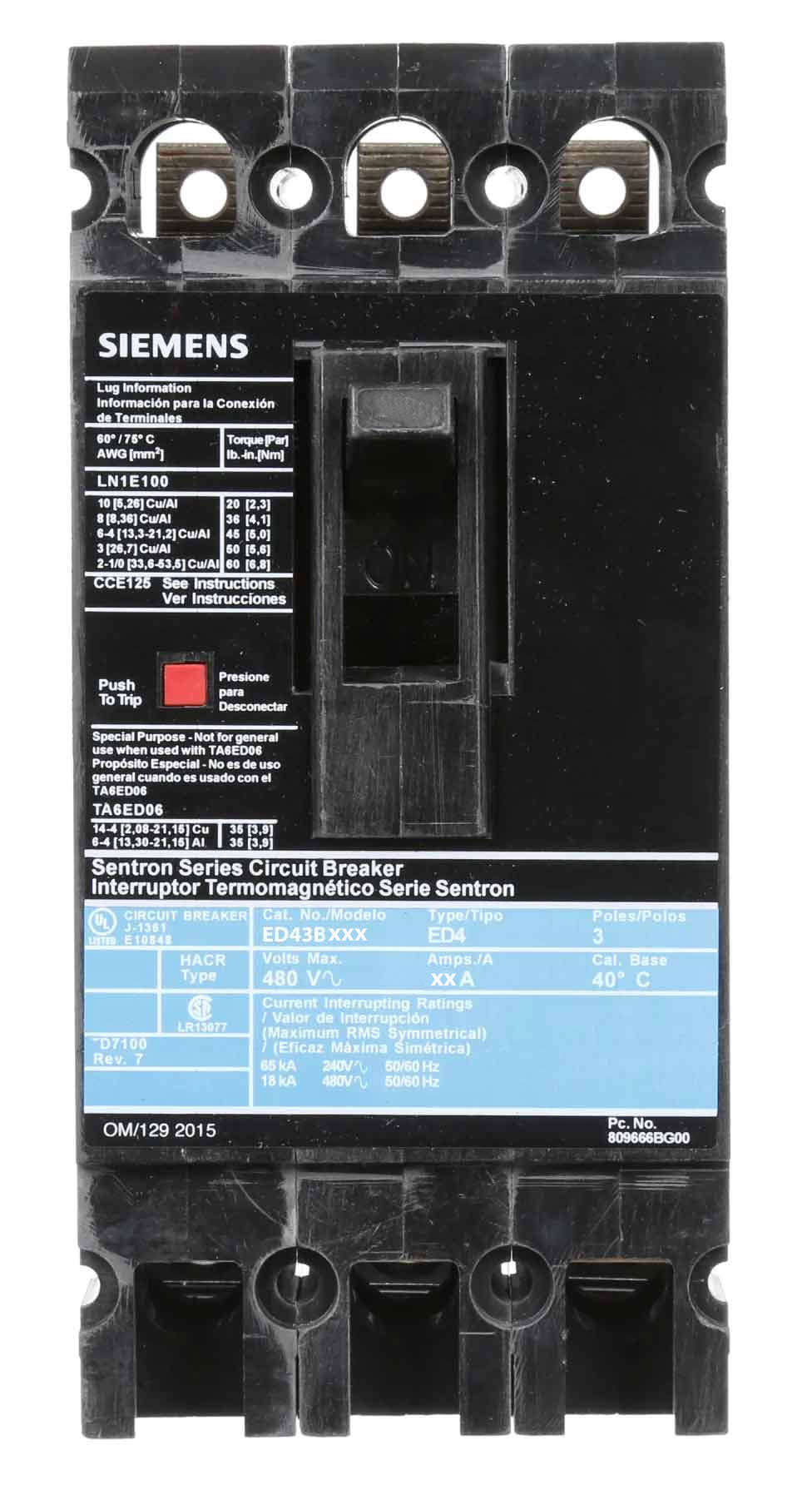

ED43B045 - Siemens 45 Amp 480V 3-Pole Bolt-On Molded Case Circuit Breaker, ED Frame, 18kAIC, Thermal Magnetic Trip, UL 489

ED43B045

ED43B045 - Siemens 3-pole molded case circuit breaker with thermal-magnetic trip, rated at 45A and 480V.The Siemens ED43B045 Sentron series breaker features an ED frame, bolt-on mounting, and 18kAIC interrupting capacity at 480V for reliable protection in commercial and industrial applications. It supports reverse feed and includes load-side terminals for easy installation.

• Part Number: ED43B045
• Manufacturer: Siemens
• Amperage: 45A
• Voltage: 480VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18kAIC @ 480V; 65kAIC @ 240V
• Series/Frame: ED
• Trip Unit: Thermal-Magnetic
• Certifications: UL 489, HACR Rated, CSA
• Wire Range: 10 - 1/0 AWG (CU/AL)
• Temperature Rating: 40C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED43B045
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209428
• GTIN : 00783643209428
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.950
• Weight : 3.869
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
