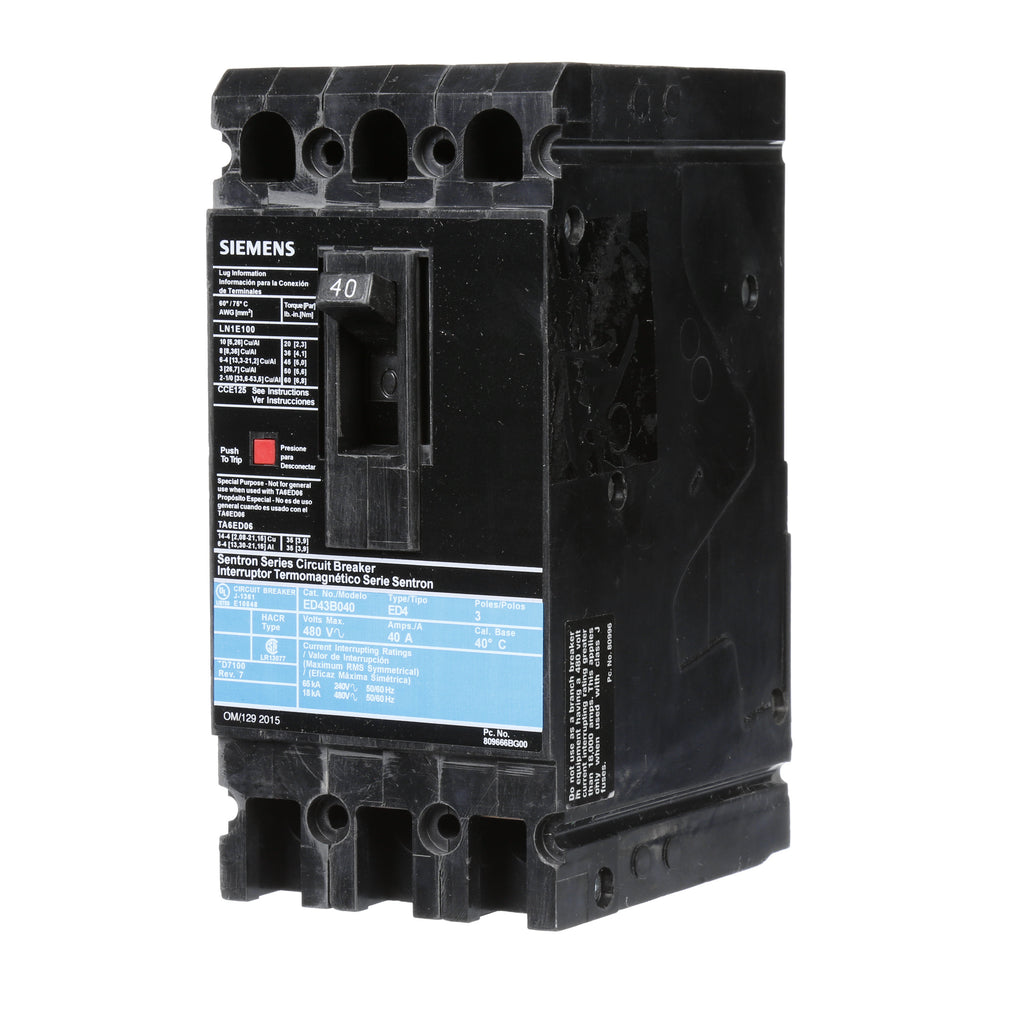

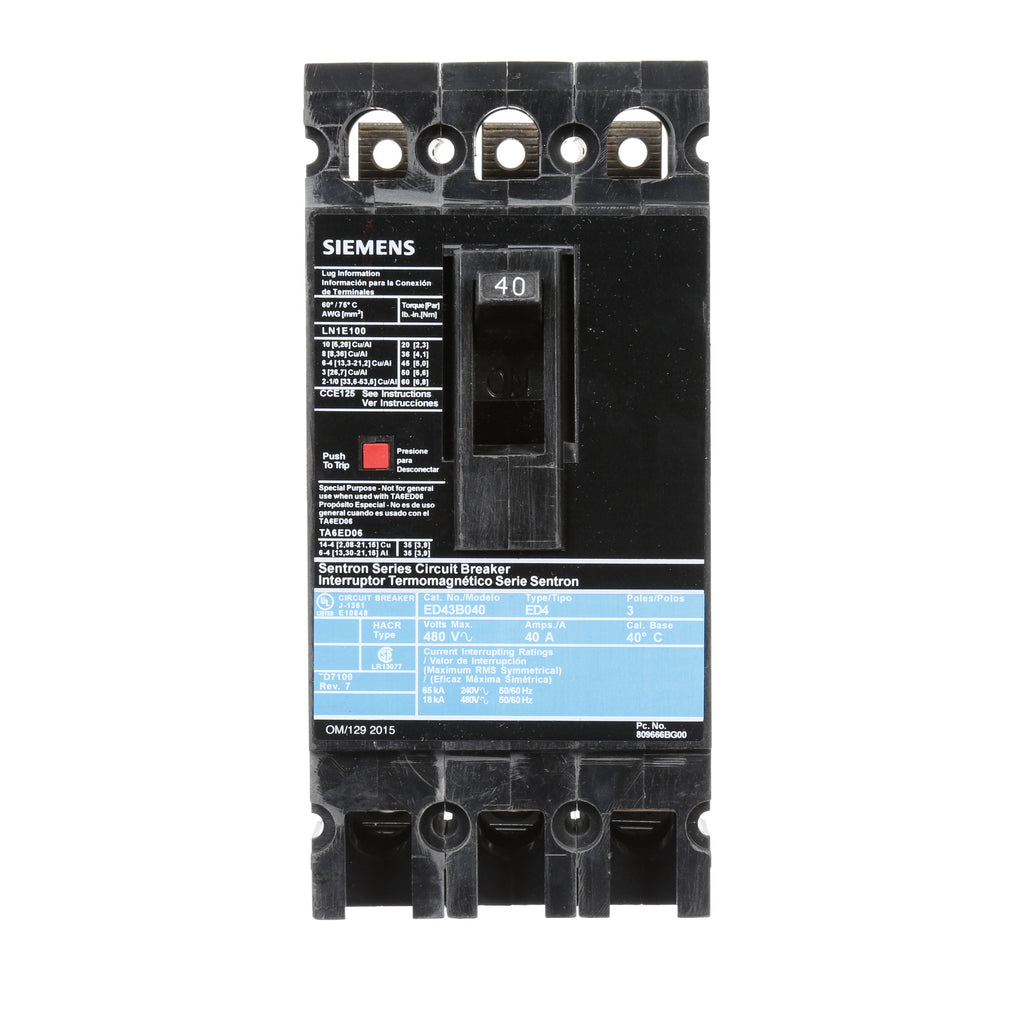

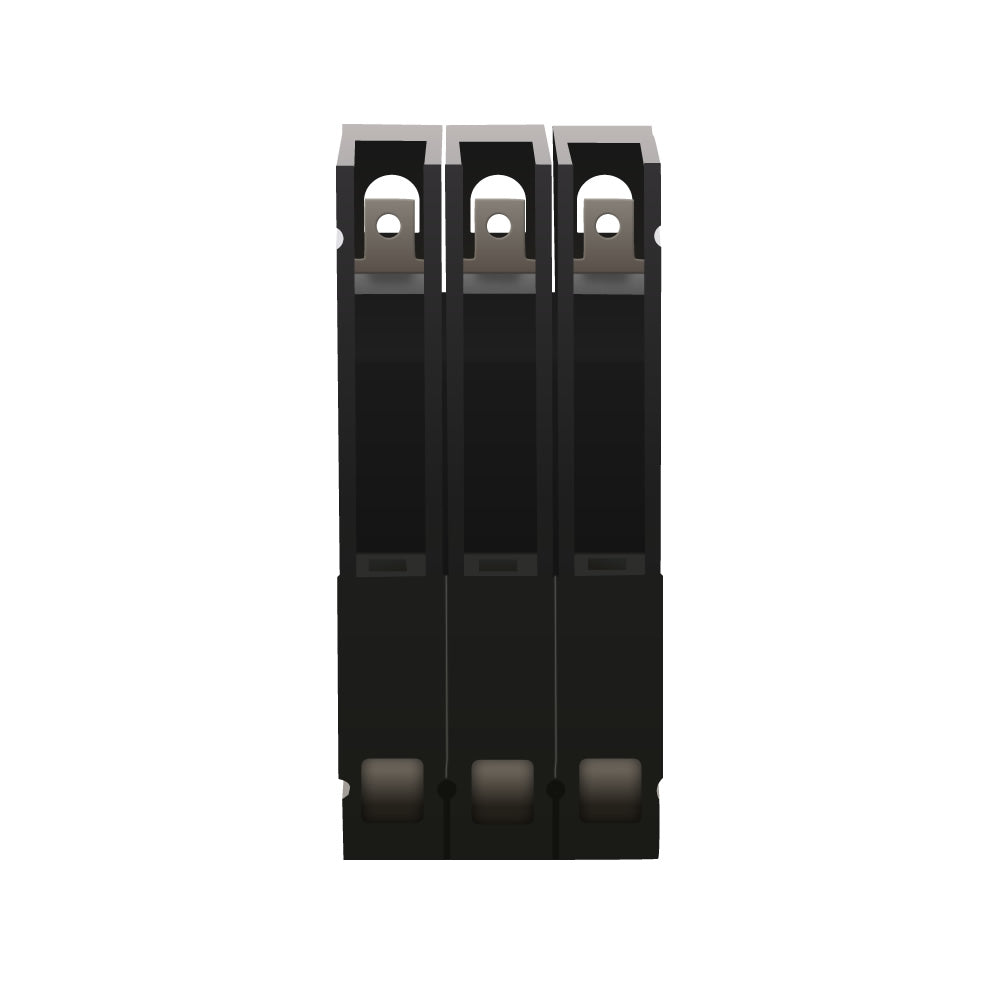

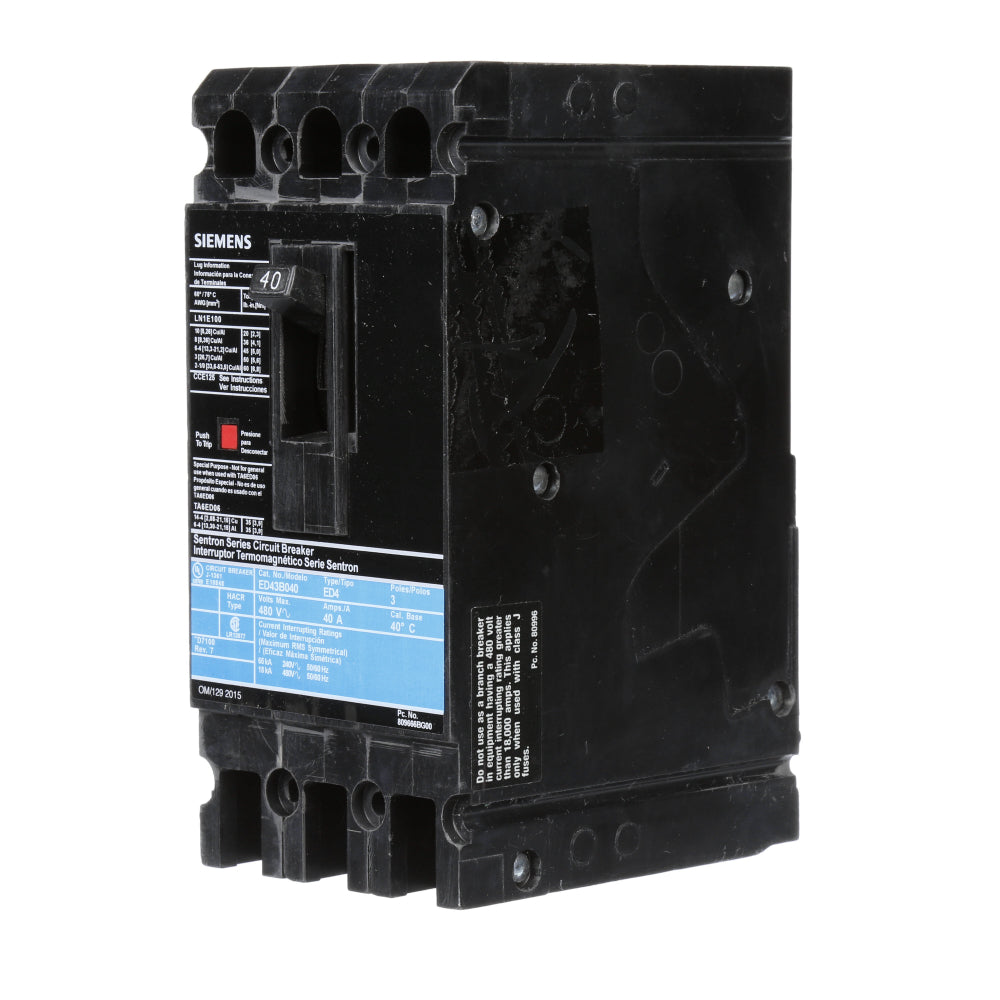

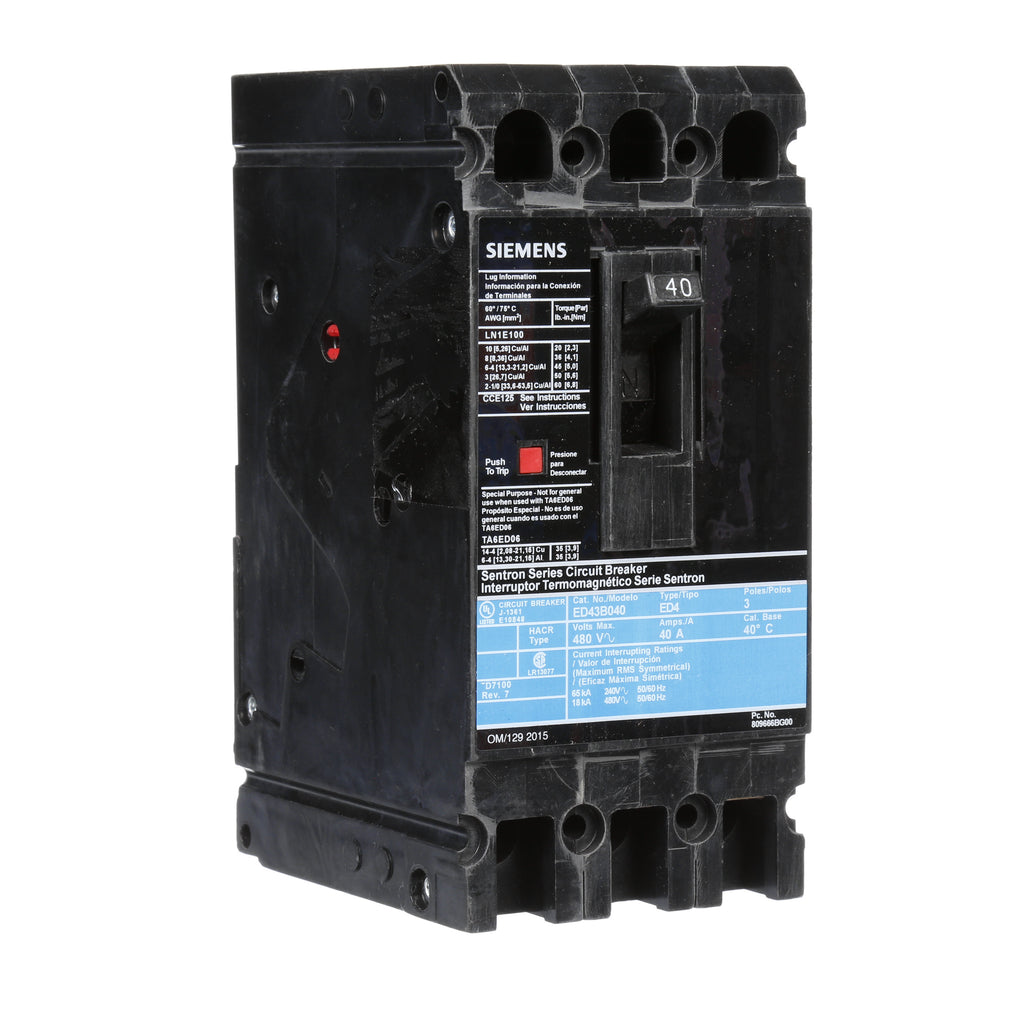

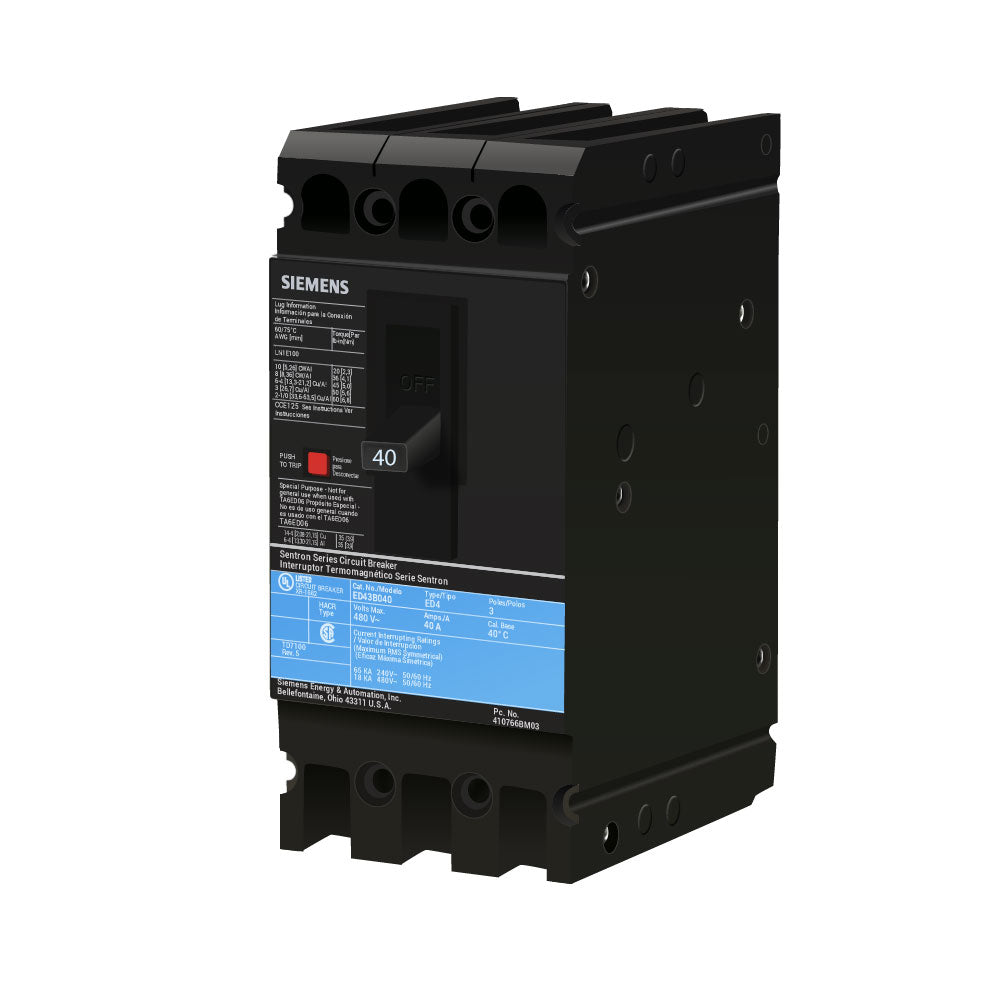

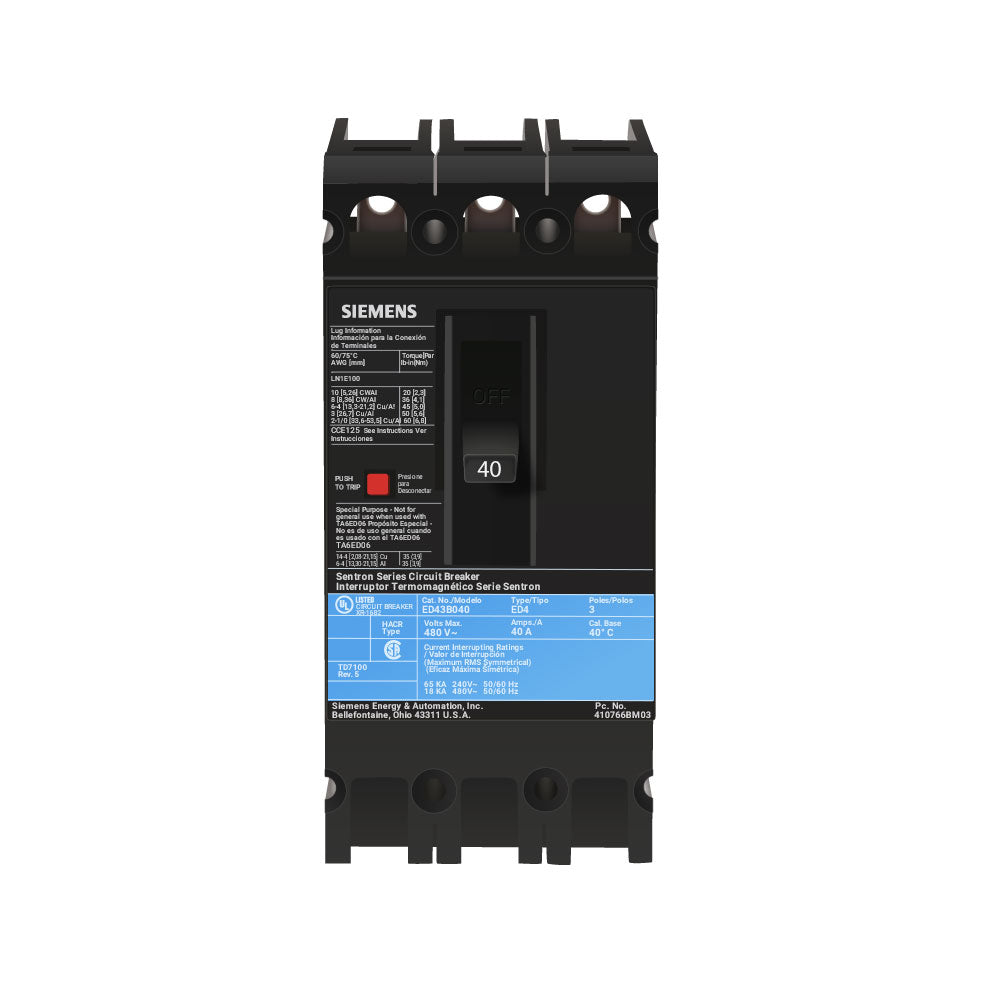

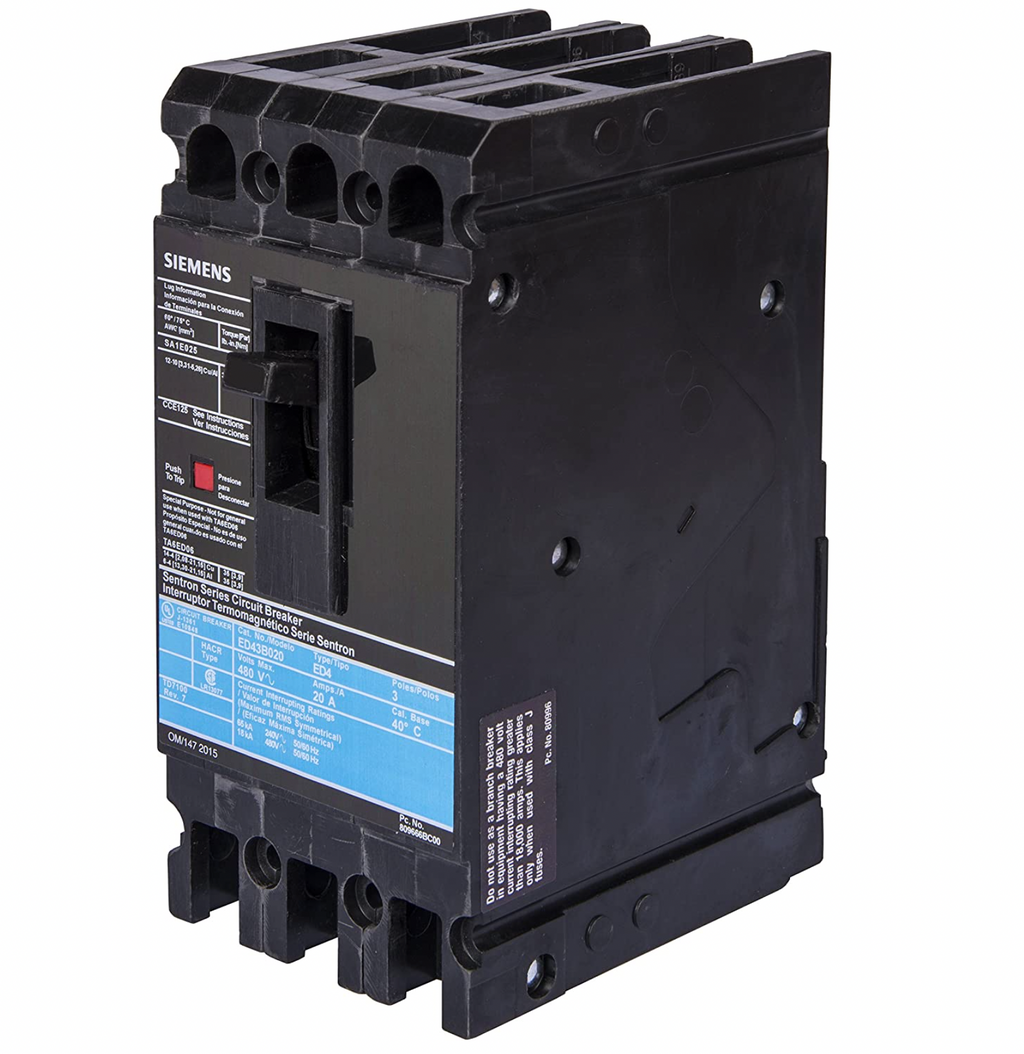

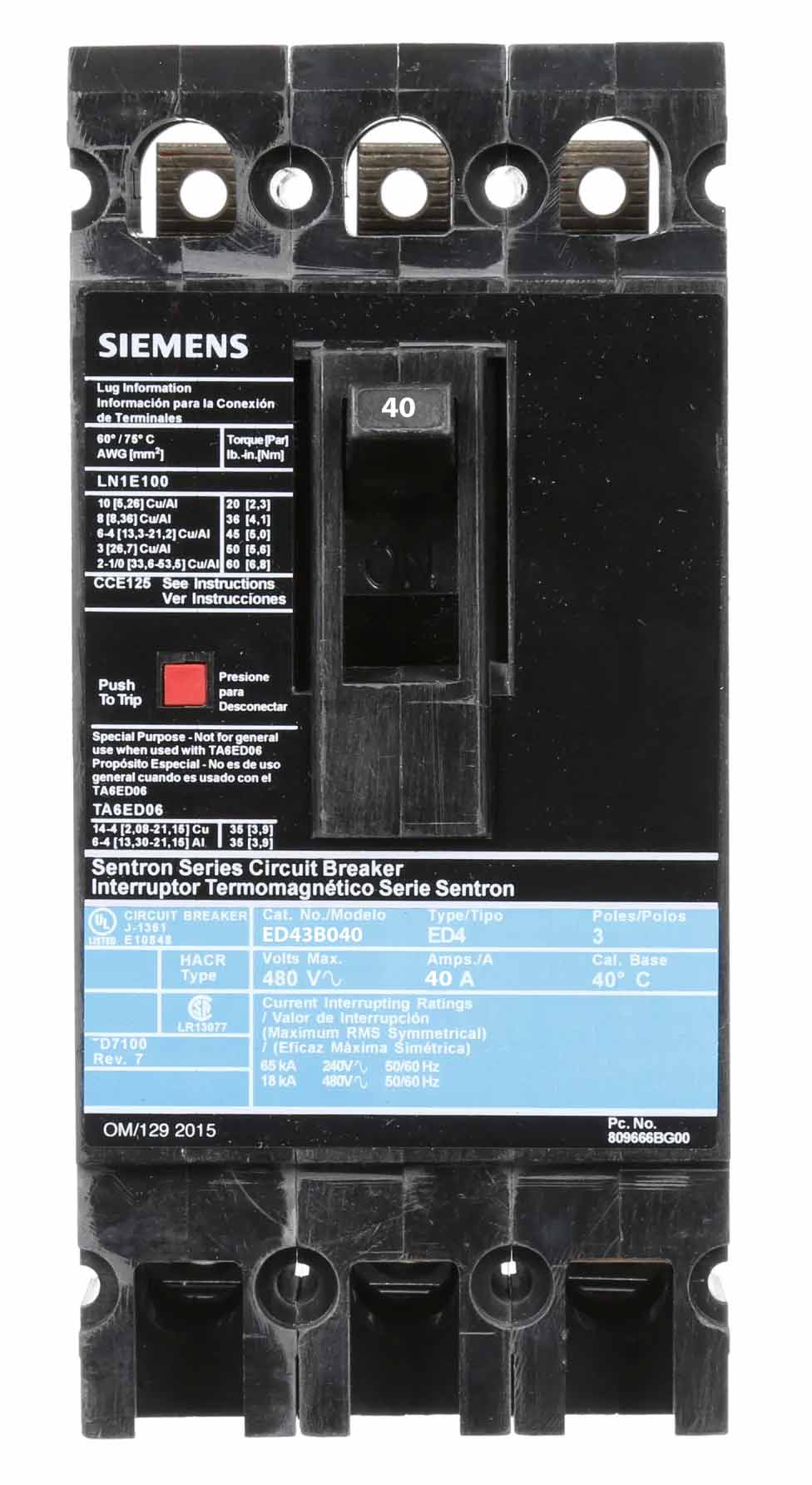

ED43B040 - Siemens 40A 480V 3-Pole Molded Case Circuit Breaker ED Frame Bolt-On

ED43B040

ED43B040 is a Siemens 3-pole molded case circuit breaker with a 40 amp rating and 480 volt capacity designed for bolt-on mounting.This Siemens Sentron Series breaker features thermal magnetic protection with long-time and instantaneous trip functions. It has an interrupting rating of 18kA at 480V and meets UL 489 and IEC 60947-2 standards. The breaker is compact and suitable for industrial and commercial electrical distribution applications.

• Manufacturer: Siemens
• Series/Frame: ED
• Amperage: 40A
• Voltage Rating: 480V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA at 480V, 65kA at 240V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
• Connection: Load Side Lug
• Certifications: UL 489, IEC 60947-2
• Dimensions: 6.35" x 3" x 3.92"
• Weight: 3.66 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED43B040
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209411
• GTIN : 00783643209411
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.948
• Weight : 3.668
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
