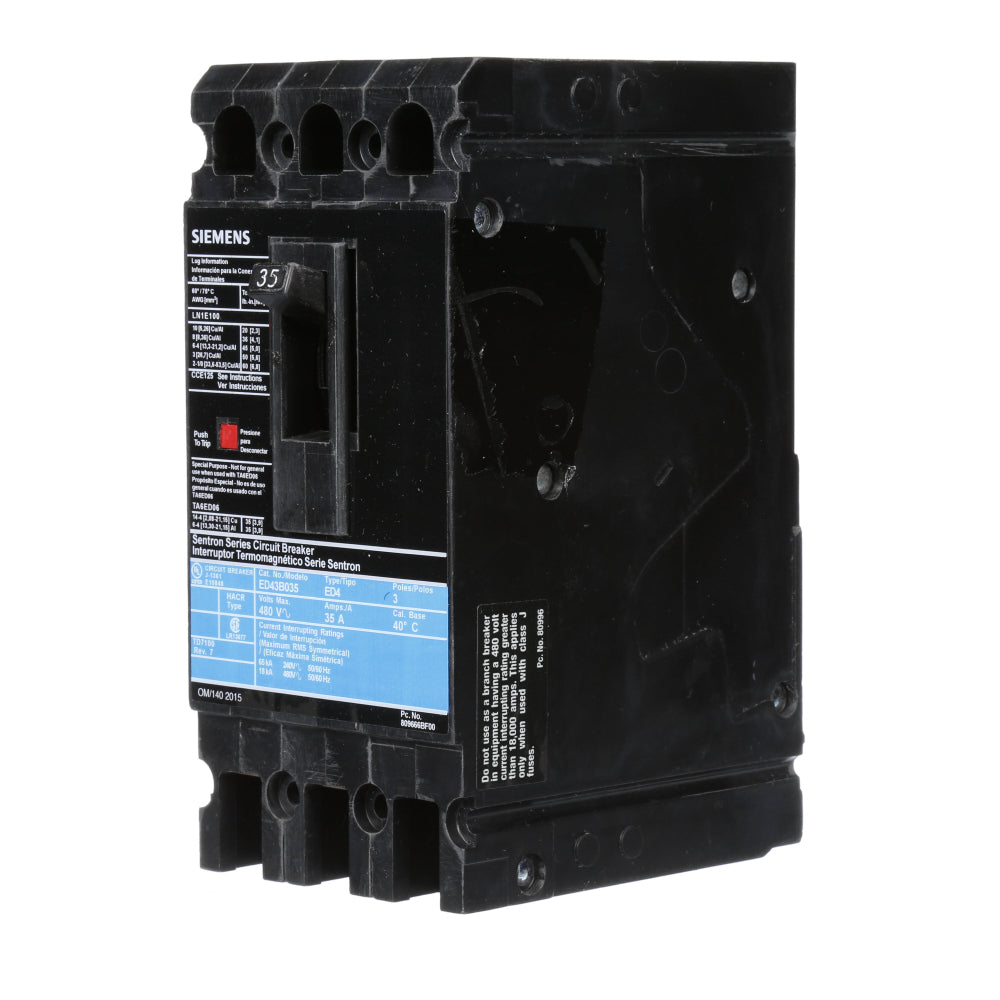

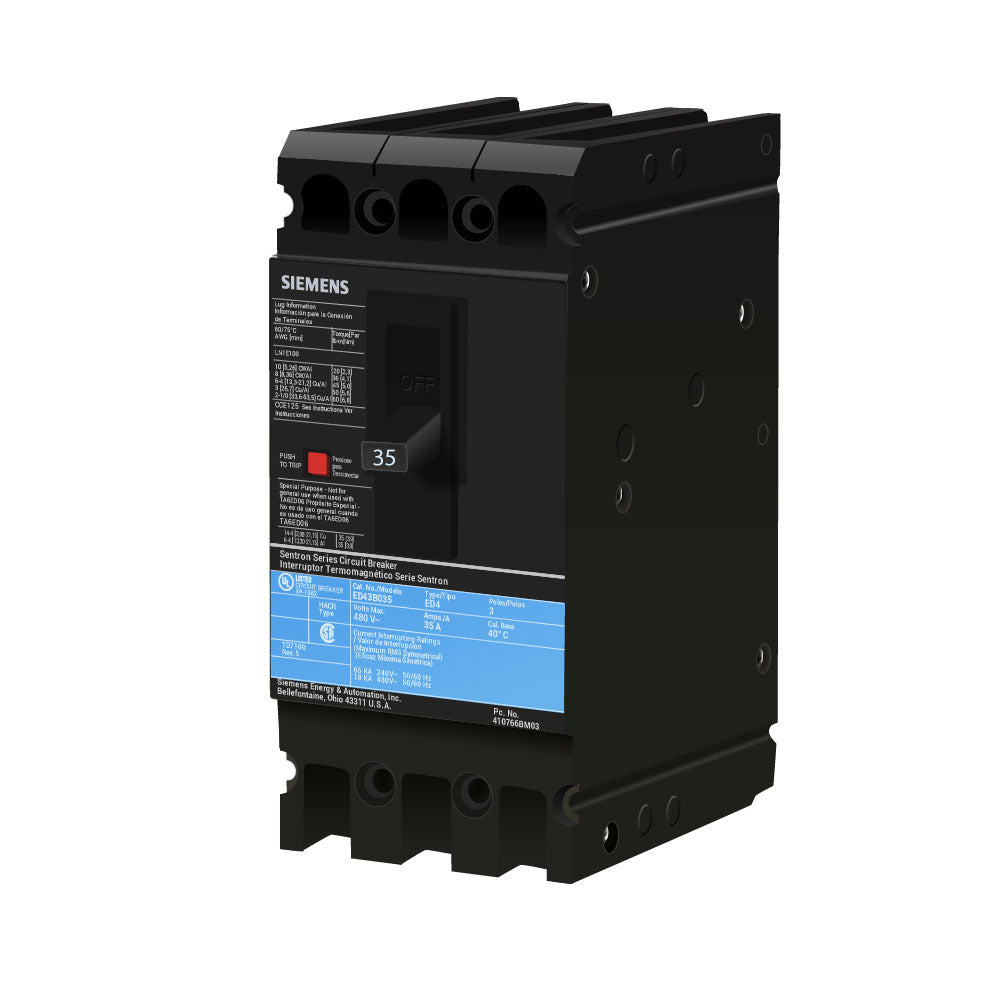

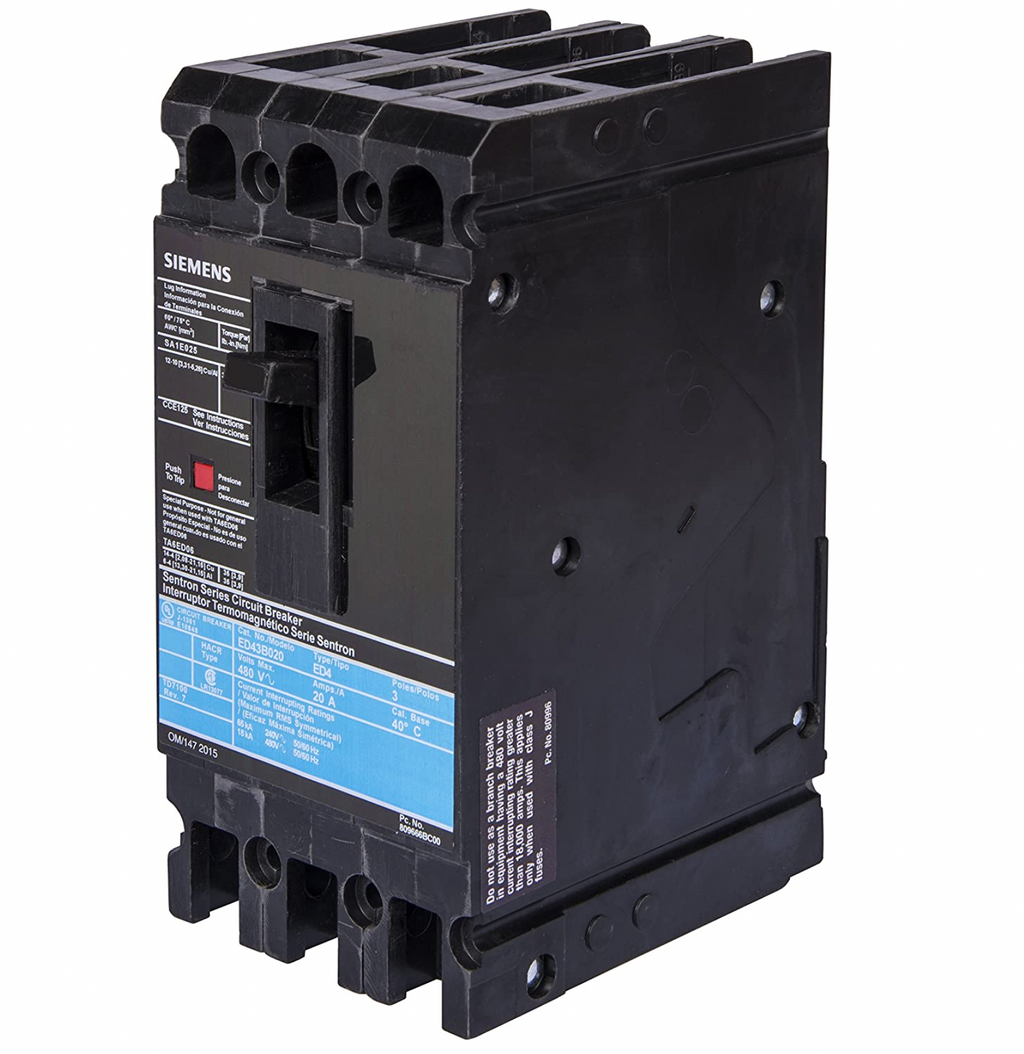

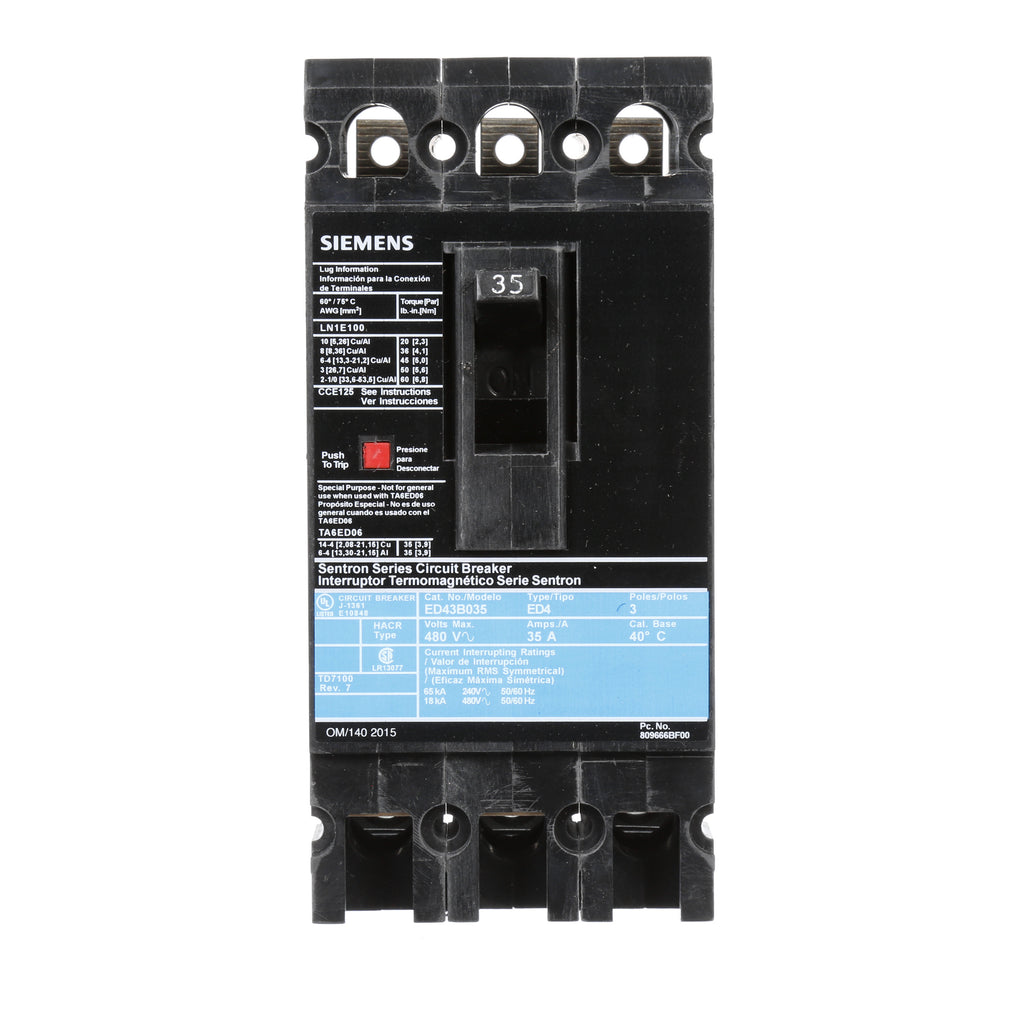

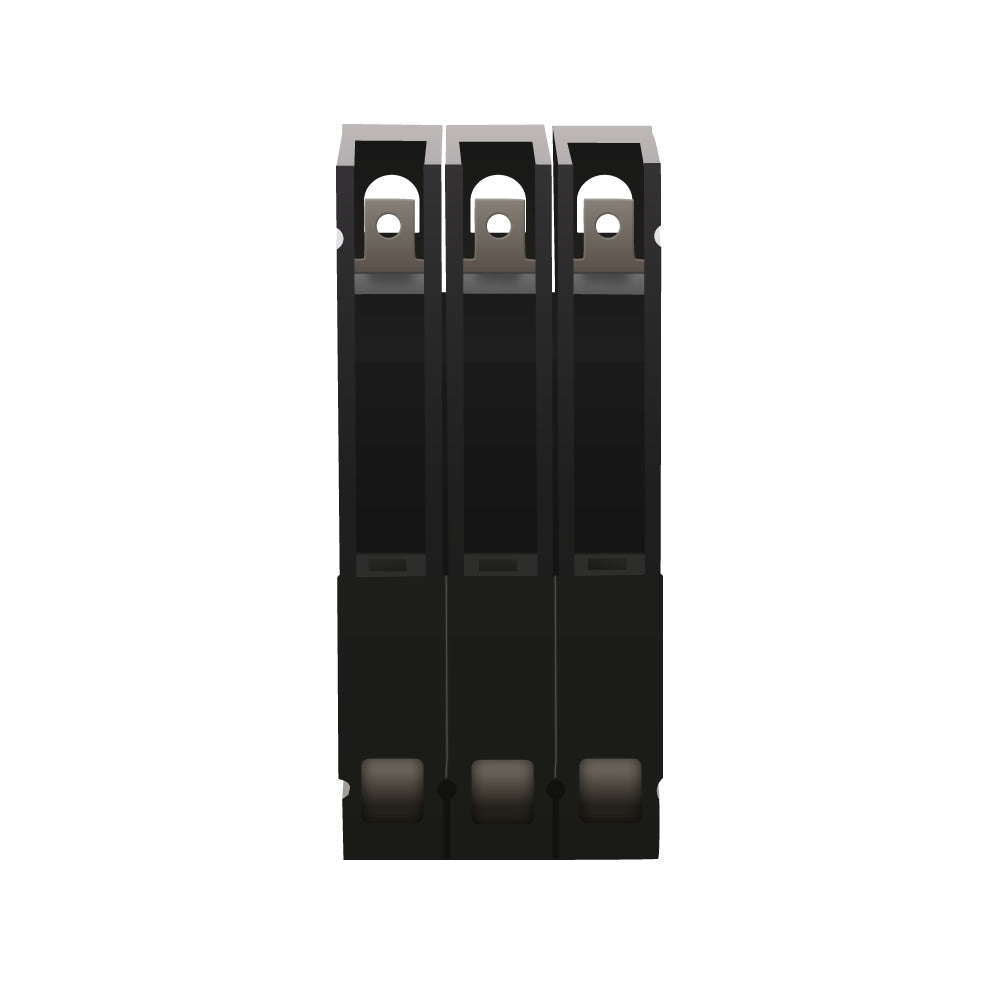

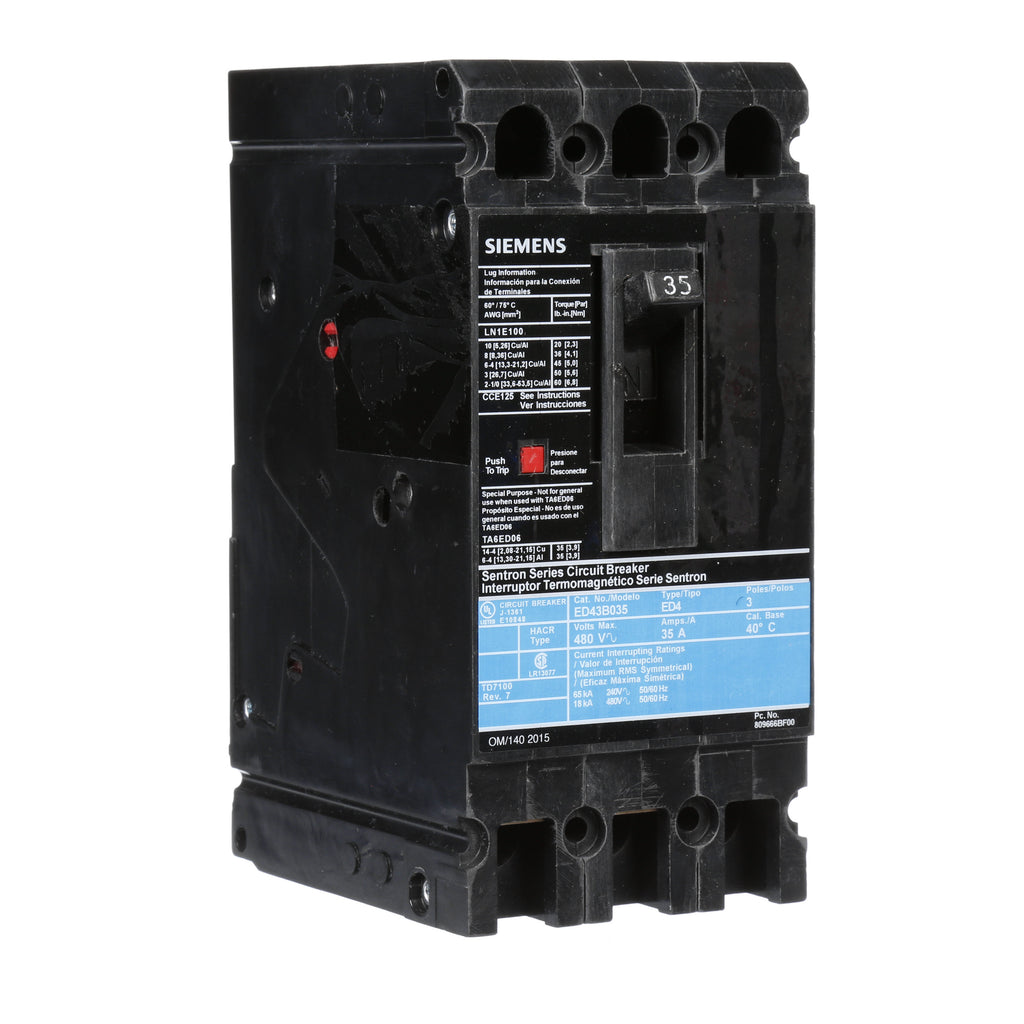

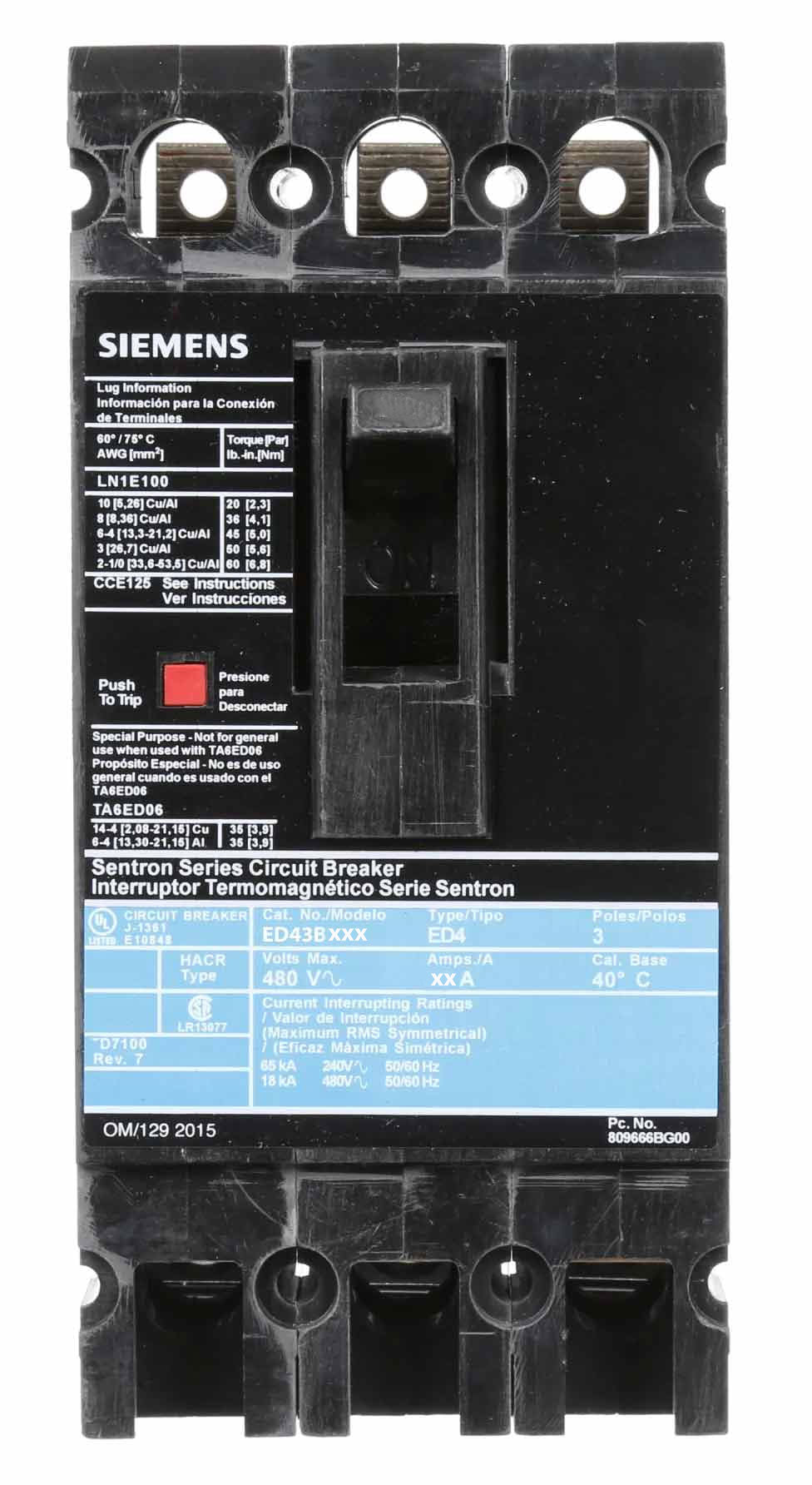

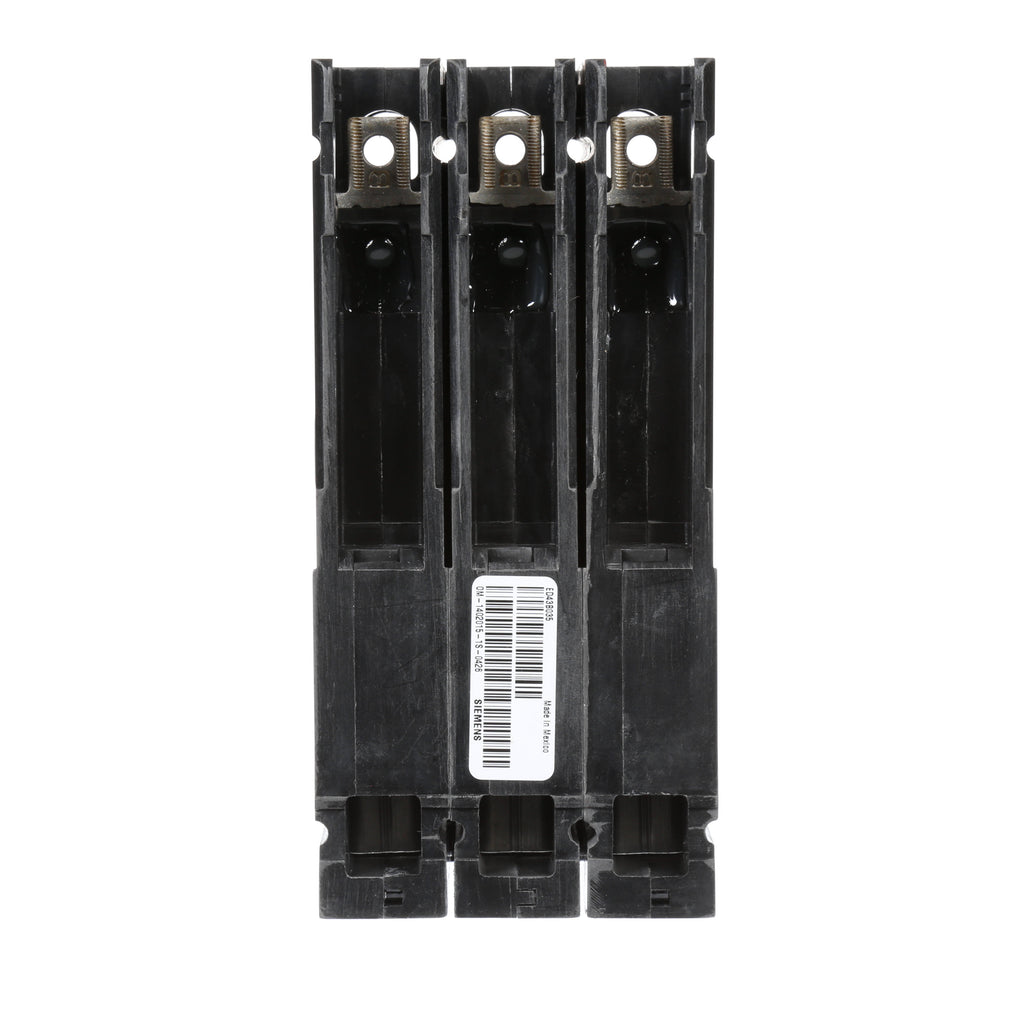

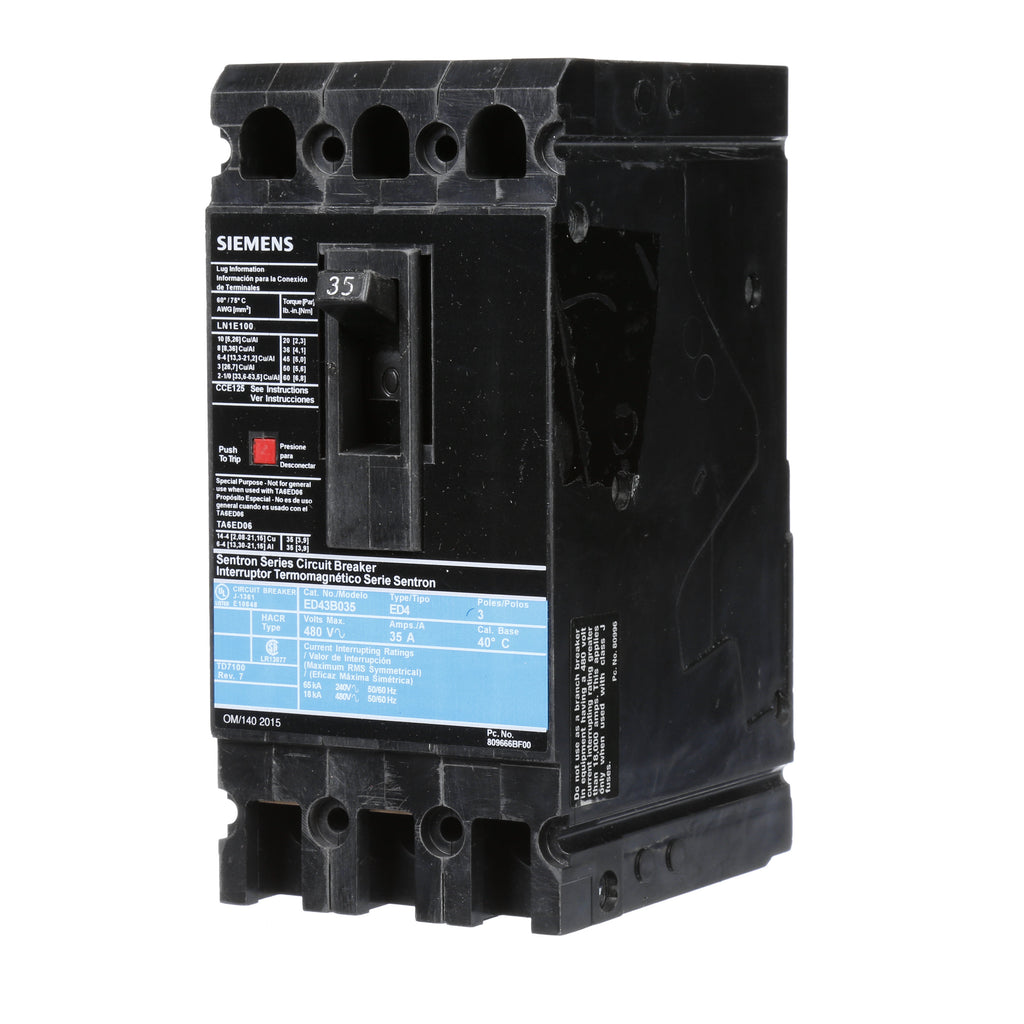

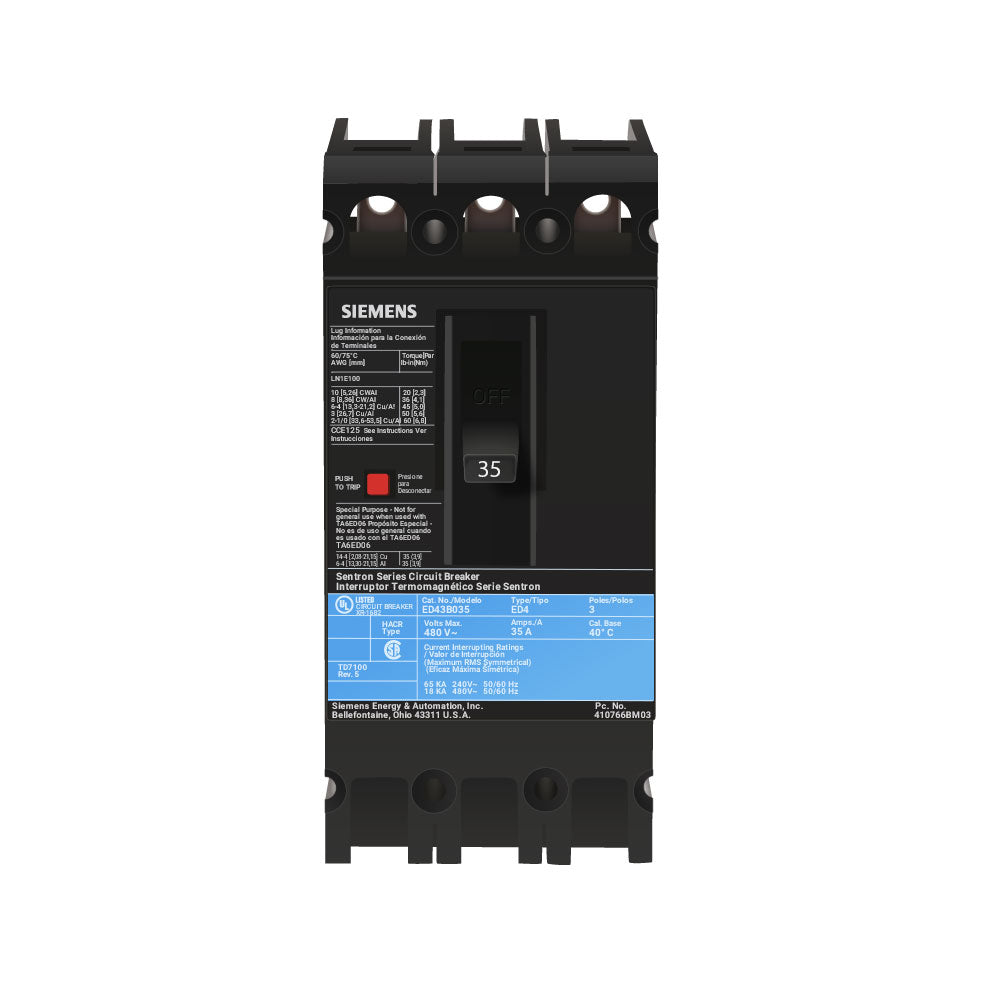

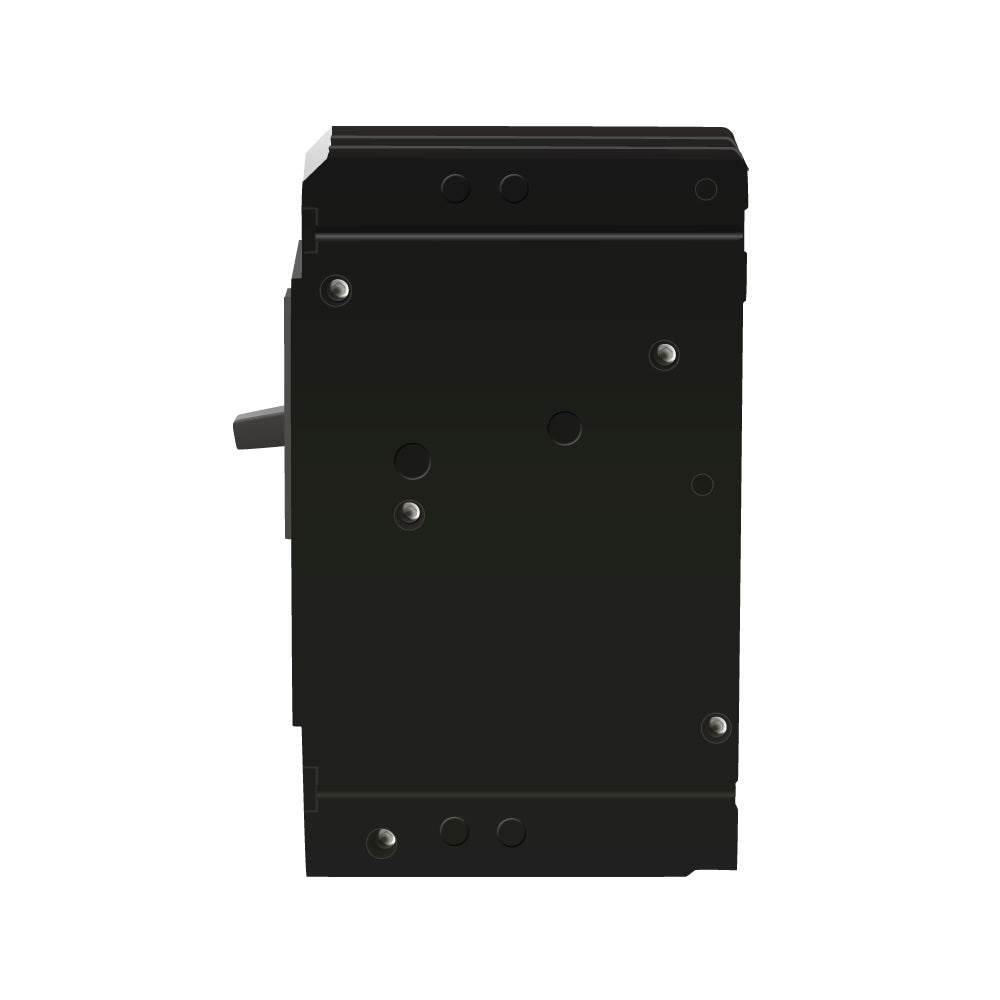

ED43B035 - Siemens 35A 3 Pole 480V Molded Case Circuit Breaker, ED Frame, Bolt-On, 18kA @ 480V

ED43B035

ED43B035 - Siemens ED frame 3-pole molded case circuit breaker rated at 35A, 480V with bolt-on mounting. This Siemens ED series thermal-magnetic circuit breaker provides reliable overcurrent protection in a compact design. It features 3 poles, 35A amperage rating at 40C, 480V maximum voltage, and bolt-on mounting for panelboard applications. Interrupting ratings include 65kA at 240VAC and 18kA at 480VAC. Wire compatibility is #10-1/0 AWG copper/aluminum.

• Part Number: ED43B035
• Manufacturer: Siemens
• Series/Frame: ED
• Amperage: 35A
• Voltage: 480VAC
• Poles: 3
• Phase: 3
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 65kA@240VAC, 18kA@480VAC
• Certifications: UL 489, CSA
• Wire Size: #10-1/0 AWG Cu/Al

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED43B035
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209404
• GTIN : 00783643209404
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.946
• Weight : 3.869
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : 10 To 1/0 AWG (Aluminum/Copper)
