Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
D211N

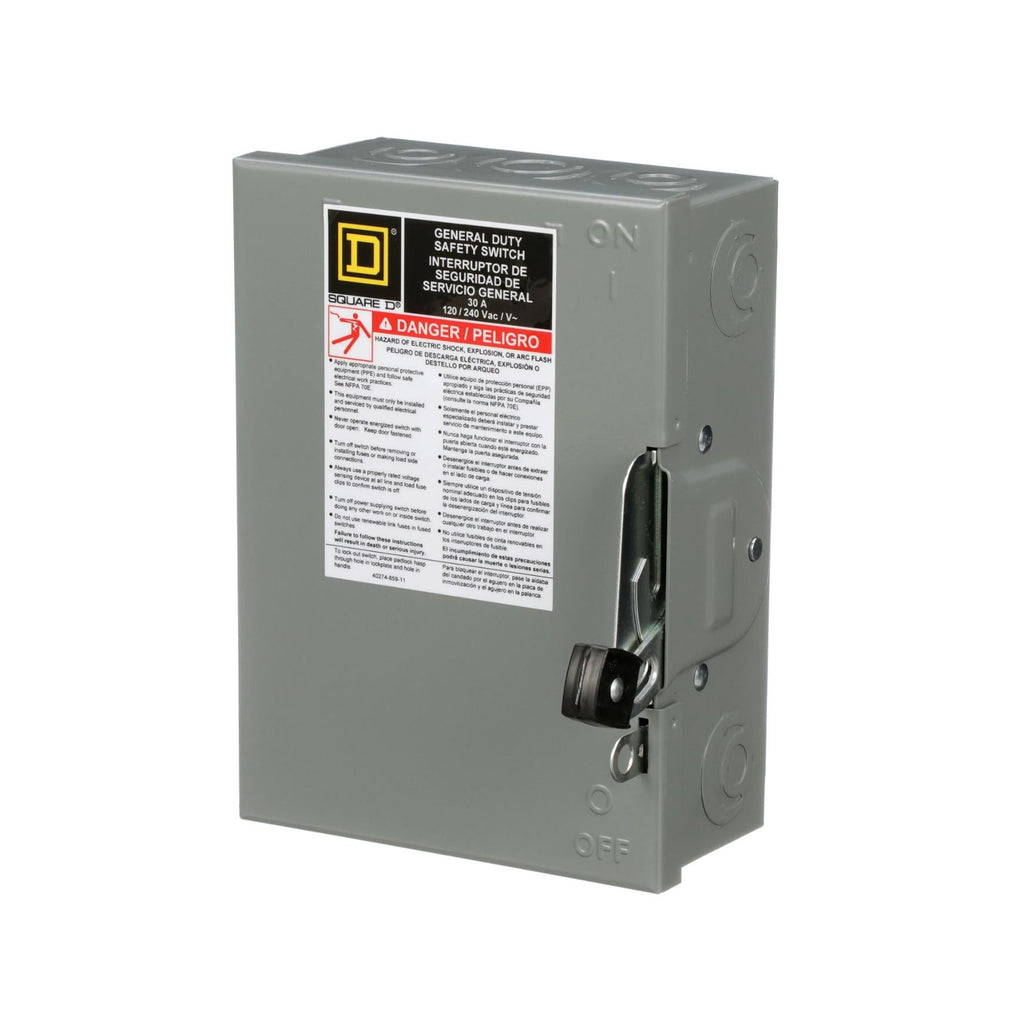

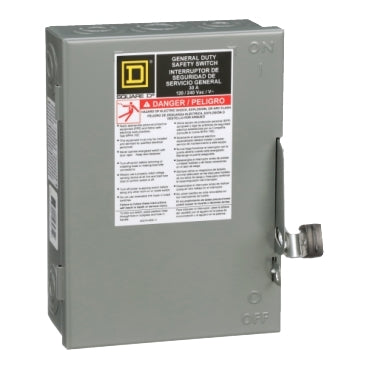

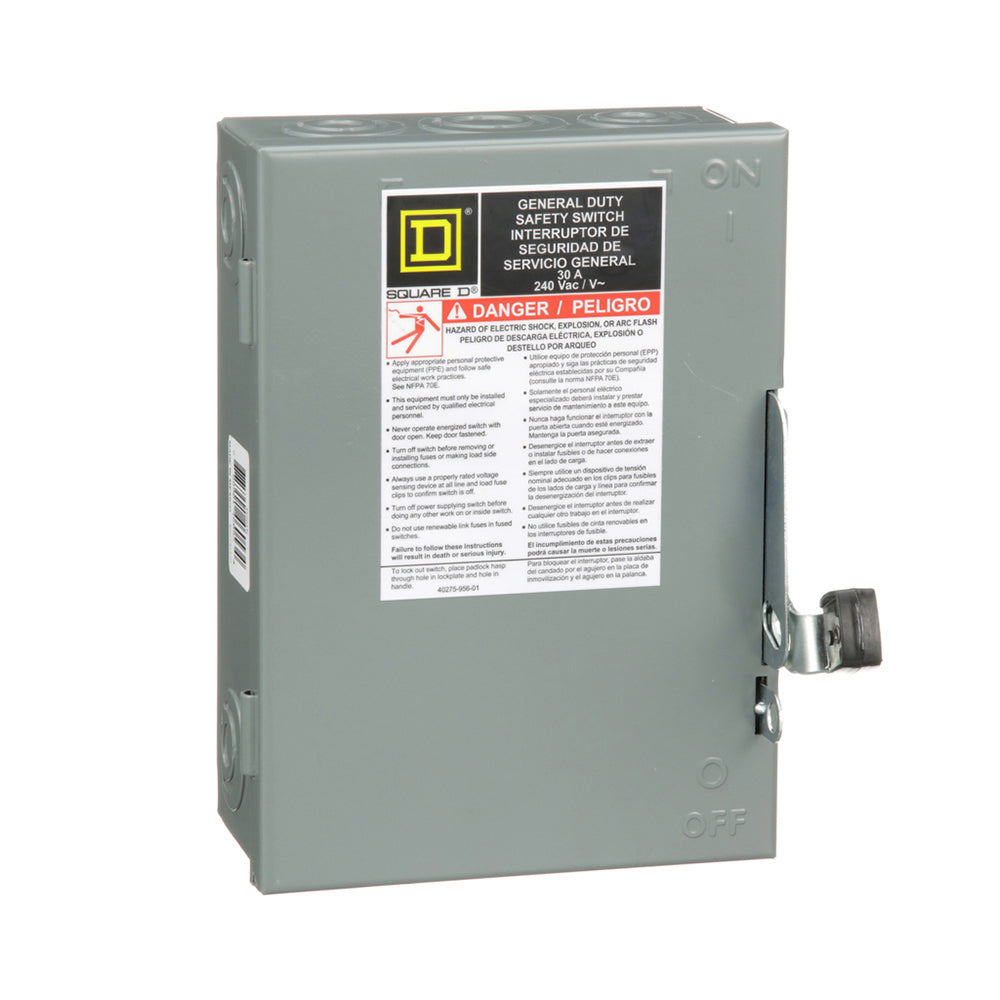

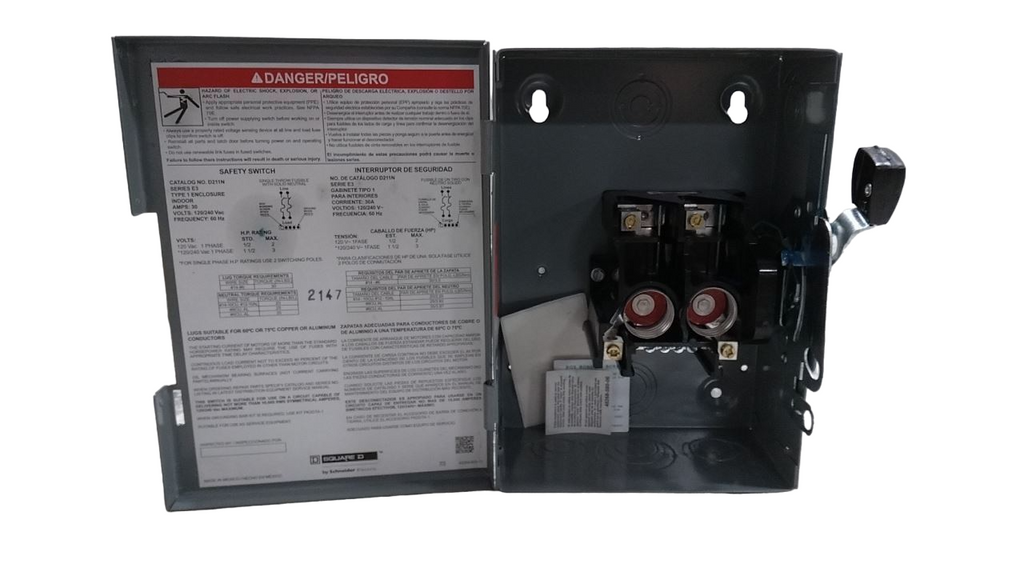

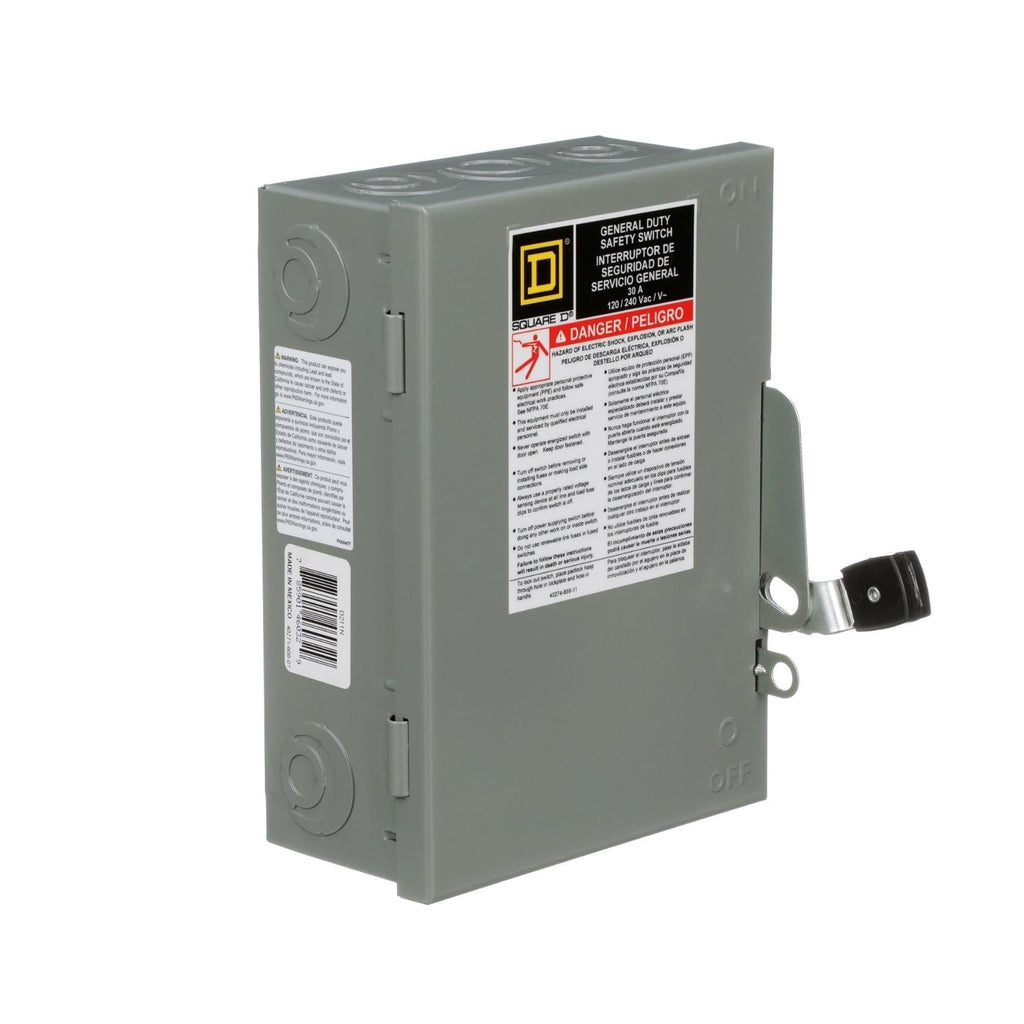

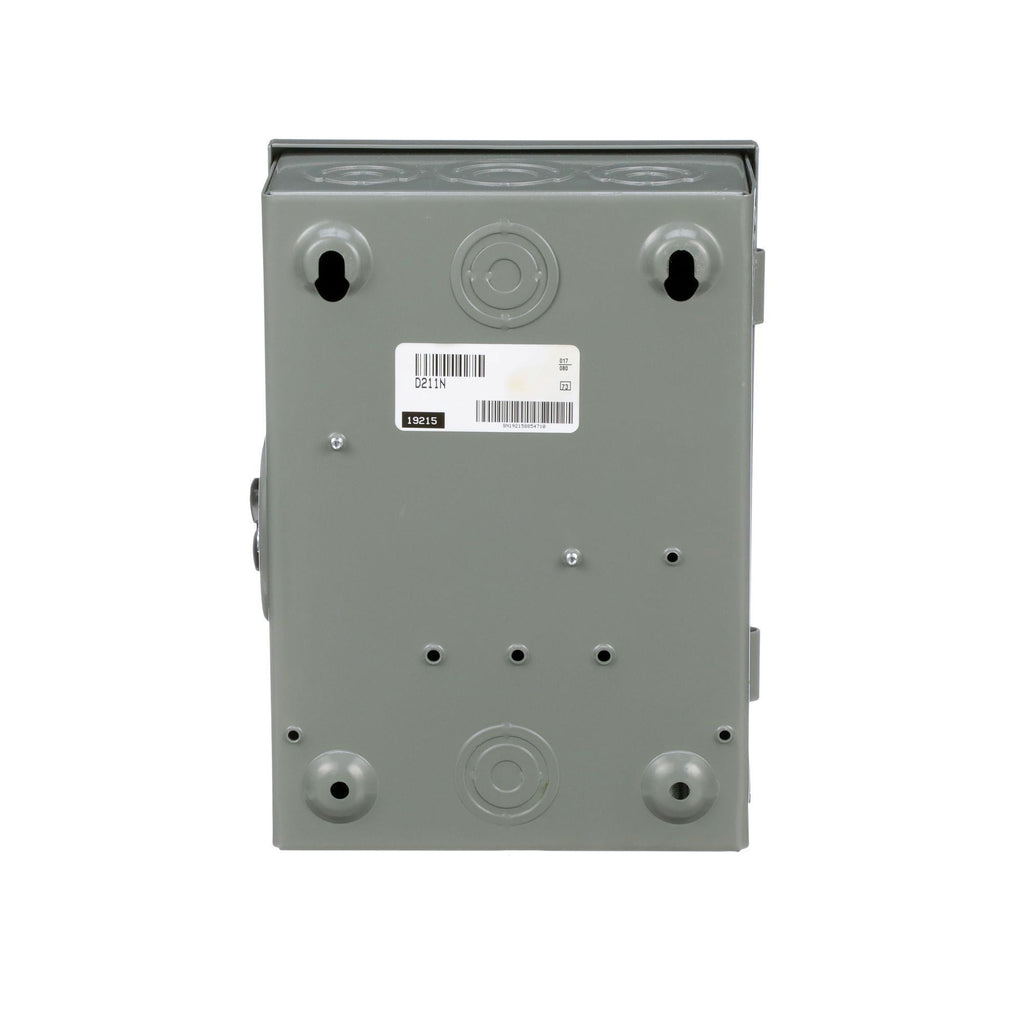

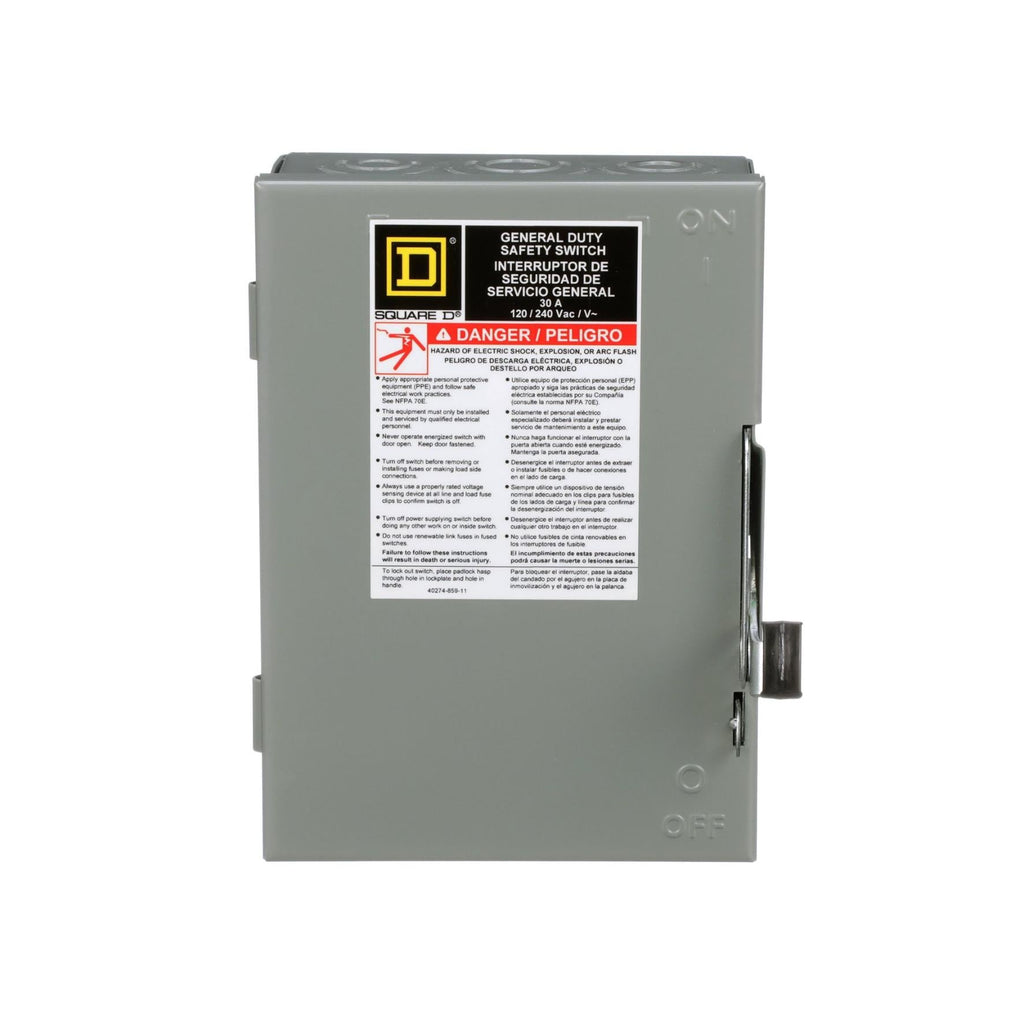

D211N is a Square D fusible general duty safety switch rated for 30 amps and 120/240 volts AC.
This switch features a 2-pole design with a double-pole single-throw (DPST) contact configuration. It is designed for general duty applications with a NEMA 1 indoor enclosure and a plug fuse type. The switch supports a short circuit current rating of 10 kA and is UL listed for safety compliance. Its compact size measures approximately 3.63 x 7.25 x 9.25 inches, making it suitable for residential and commercial use.
- Key Specifications
- Amperage: 30 A
- Voltage: 120/240 V AC
- Poles: 2
- Contact Form: DPST
- Fuse Type: Plug
- Short Circuit Current Rating: 10 kA
- Enclosure Type: NEMA 1 (Indoor)
- UL Listed
- Dimensions: 3.63 x 7.25 x 9.25 inches
- Part Number: D211N
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Type : D2 Series
- Voltage : 240 AC
- Nema Rating : NEMA 1
- UPC : 78590146032
- GTIN : 00785901460329
- Country of Origin : Mexico
- Dimensions : 9.25 in (234.95 mm) x 7.25 in (184.15 mm) x 3.63 in (92.20 mm) (Height x Width x Depth)
- Weight : 4.171
- Certification : UL listed
