Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CQD235

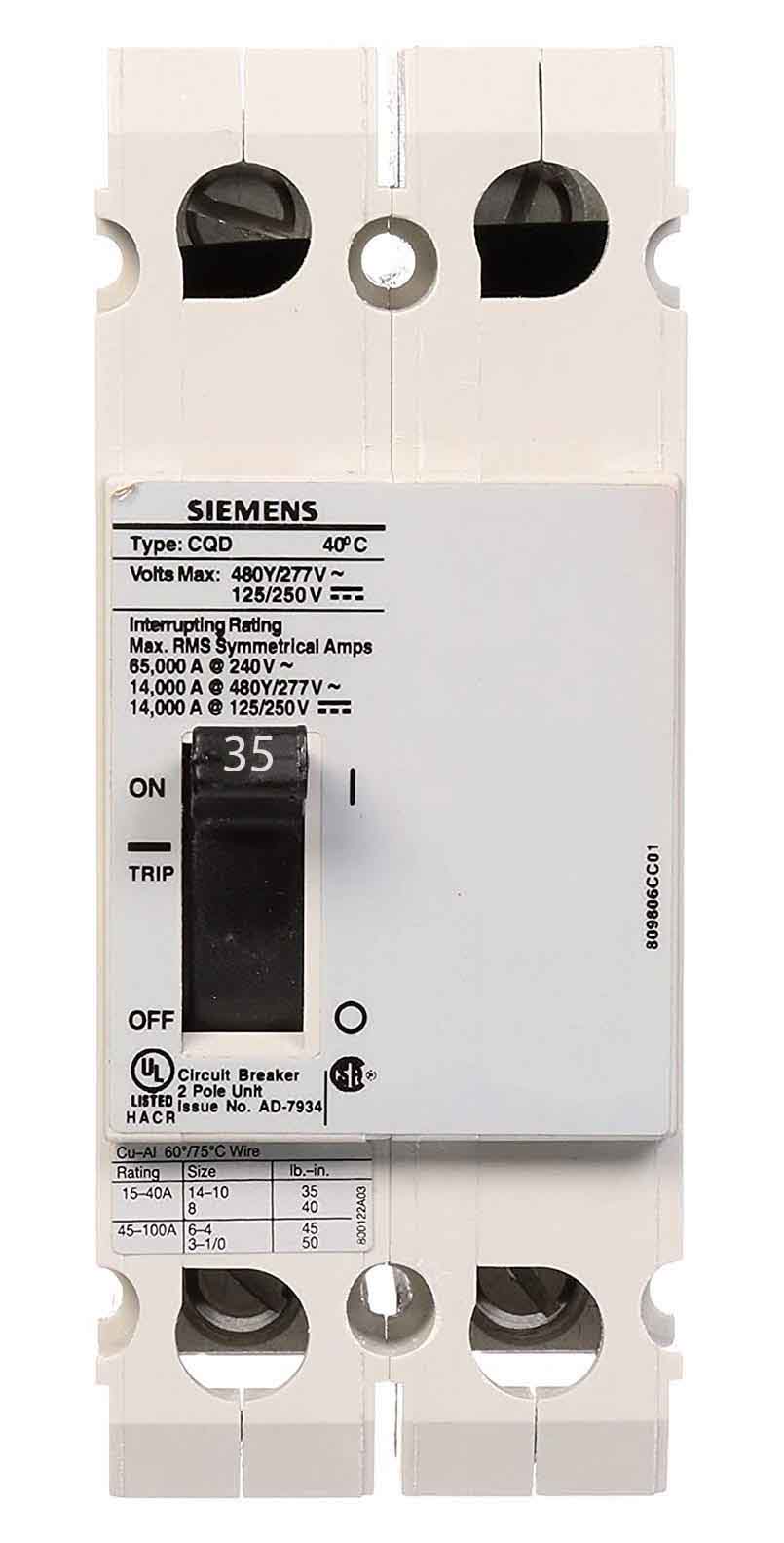

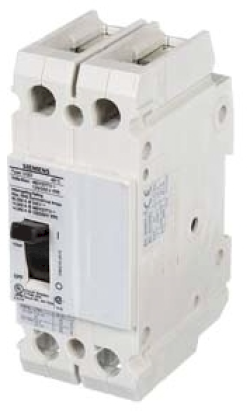

CQD235 is a Siemens 2 pole, 35 amp, 480 volt molded case circuit breaker designed for reliable circuit protection.This Siemens CQD235 circuit breaker features a CQD frame with a 14kA interrupting rating at 480V AC. It is a thermal magnetic trip unit type, suitable for use in 1-phase or 3-phase systems requiring 2 poles. The breaker is feed-thru style and rated for 35 amps continuous current, providing robust protection for industrial and commercial electrical applications.
- Key Specifications
- Manufacturer: Siemens
- Part Number: CQD235
- Amperage: 35 Amps
- Voltage Rating: 480 Volts AC
- Number of Poles: 2
- Frame Type: CQD
- Interrupting Rating: 14kA at 480V
- Trip Unit: Thermal Magnetic
- Mounting Type: Feed-Thru
- Phase: Single or Three Phase
- Certifications: UL Listed
Specifications
- Part Number: CQD235
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CQD Series
- Type : CQD
- Voltage : 480
- Amperage : 35
- Phase : 1
- Poles : 2
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643277649
- GTIN : 00783643277649
- Country of Origin : Mexico
- Weight : 1.581
