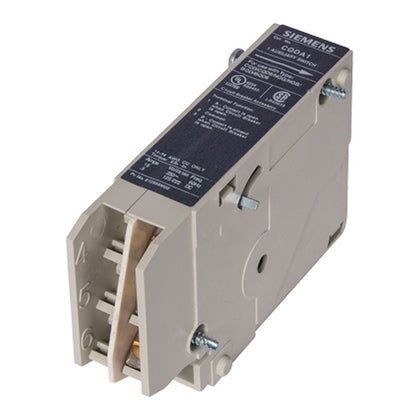

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Auxiliary
- Series
- Sentron Series
- Frame
- Sentron
- Voltage
- 600/347/240VAC, 125VDC
- Poles
- 3
- Interrupting rating
- 10kAIC
- Configuration
- 1A/1B
- Standards
- RoHS
- Country of origin
- Mexico
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Compatible Frames
- CQD
- UPC
- 783643304970
- GTIN
- 00783643304970
Show all specifications (2 more)
- Weight
- 0.351
- Certification
- UL
Product description & additional details
CQDA1
CQDA1 is a Siemens 3-pole auxiliary switch designed for CQD frame molded case circuit breakers.This auxiliary switch supports voltage ratings of 600/347/240VAC and 125VDC with an interrupting rating of 10kAIC. It features a contact configuration of 1A, 1B and is compatible with BQD, BQD6, CQD, CQD6, NGG, and NGB frame circuit breakers. The switch is UL approved and RoHS compliant, rated for operation at 40 °C.
- Manufacturer: Siemens
- Part Number: CQDA1
- Poles: 3
- Voltage Rating: 600/347/240VAC, 125VDC
- Interrupting Rating: 10kAIC
- Frame Type: CQD
- Contact Configuration: 1A, 1B
- Compatible Breakers: BQD, BQD6, CQD, CQD6, NGG, NGB
- Approvals: UL Listed
- Standards: RoHS Compliant
- Operating Temperature: 40 °C
Specifications
- Part Number: CQDA1
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Auxiliary
- Family : Sentron Series
- Type : Sentron
- Voltage : 600/347/240VAC, 125VDC
- Poles : 3
- AIC rating : 10kAIC
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Configuration : 1A/1B
- Compatible Frames : CQD
Product Data
- UPC : 783643304970
- GTIN : 00783643304970
- Country of Origin : Mexico
- Weight : 0.351
- Standards : RoHS
- Certification : UL
