Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CQD260

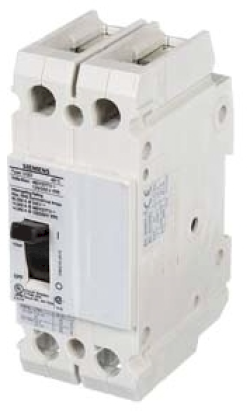

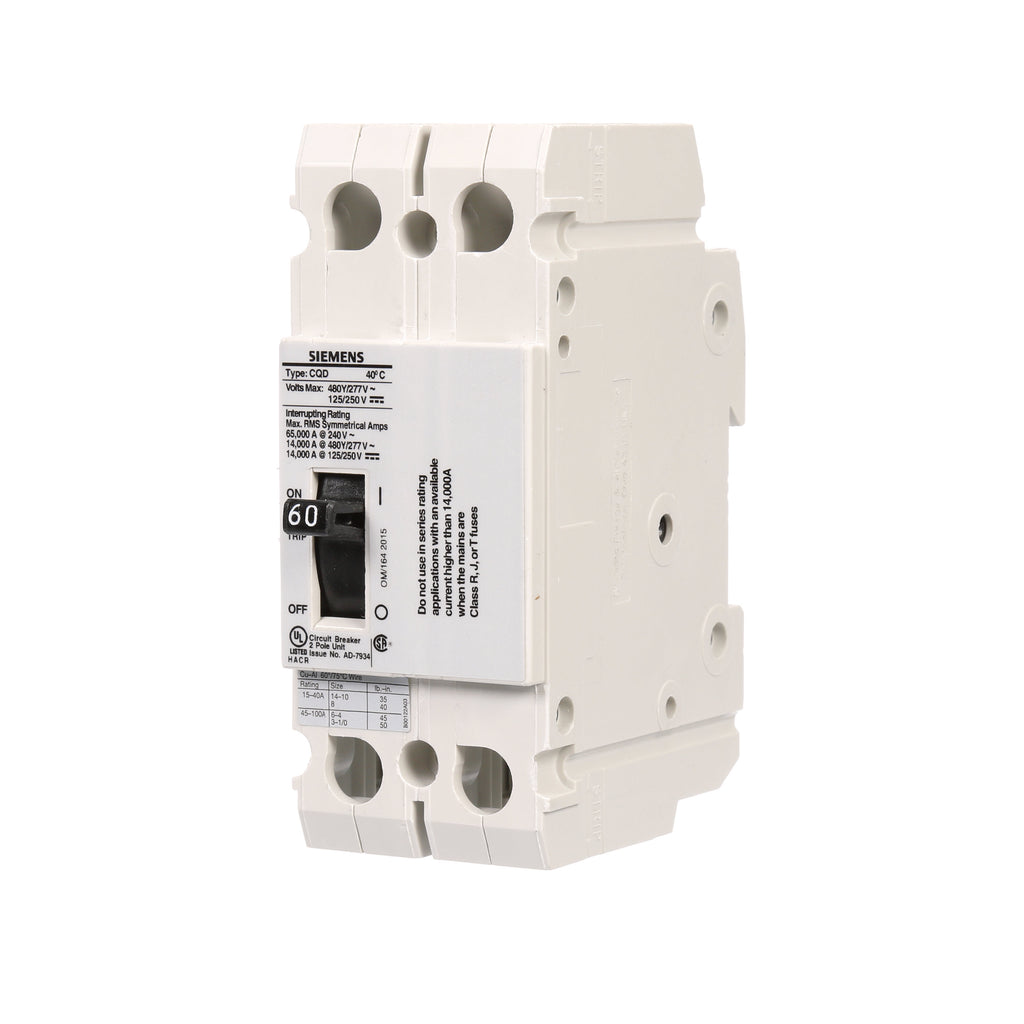

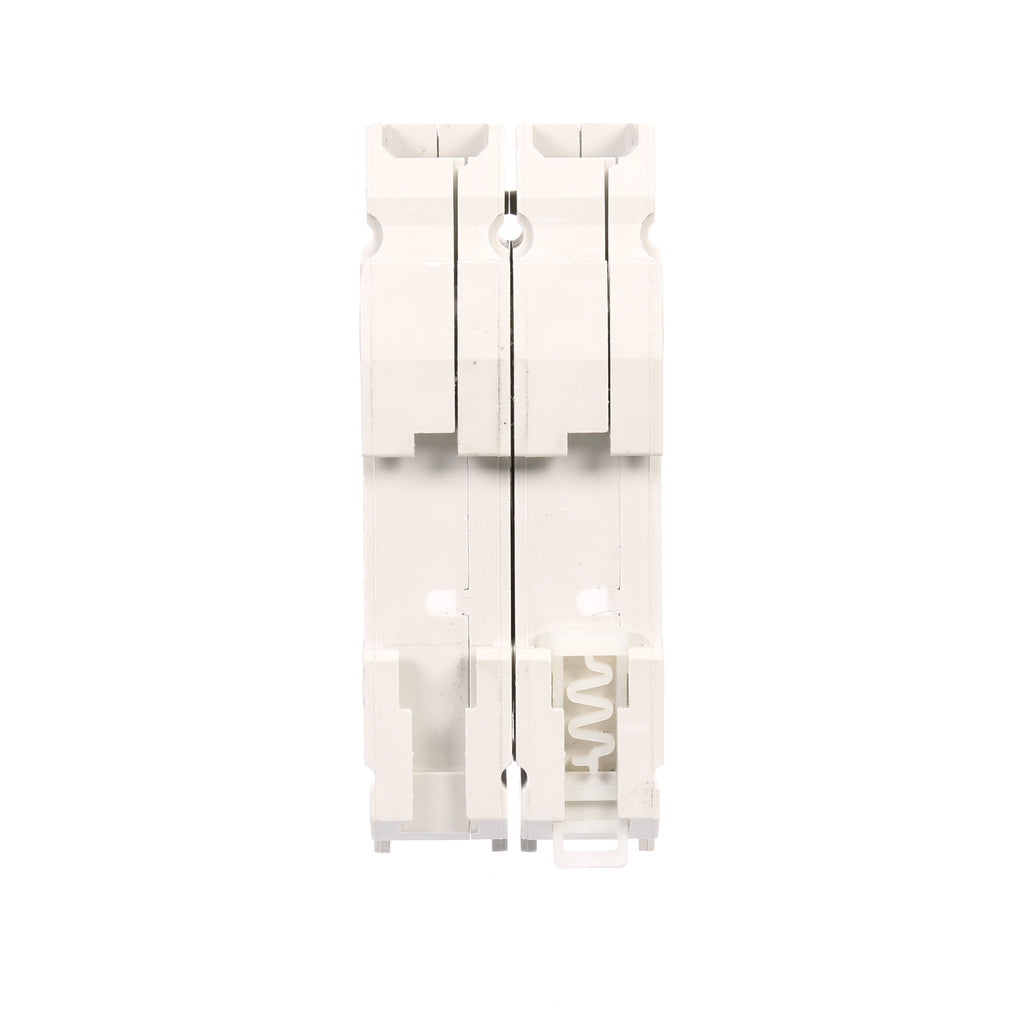

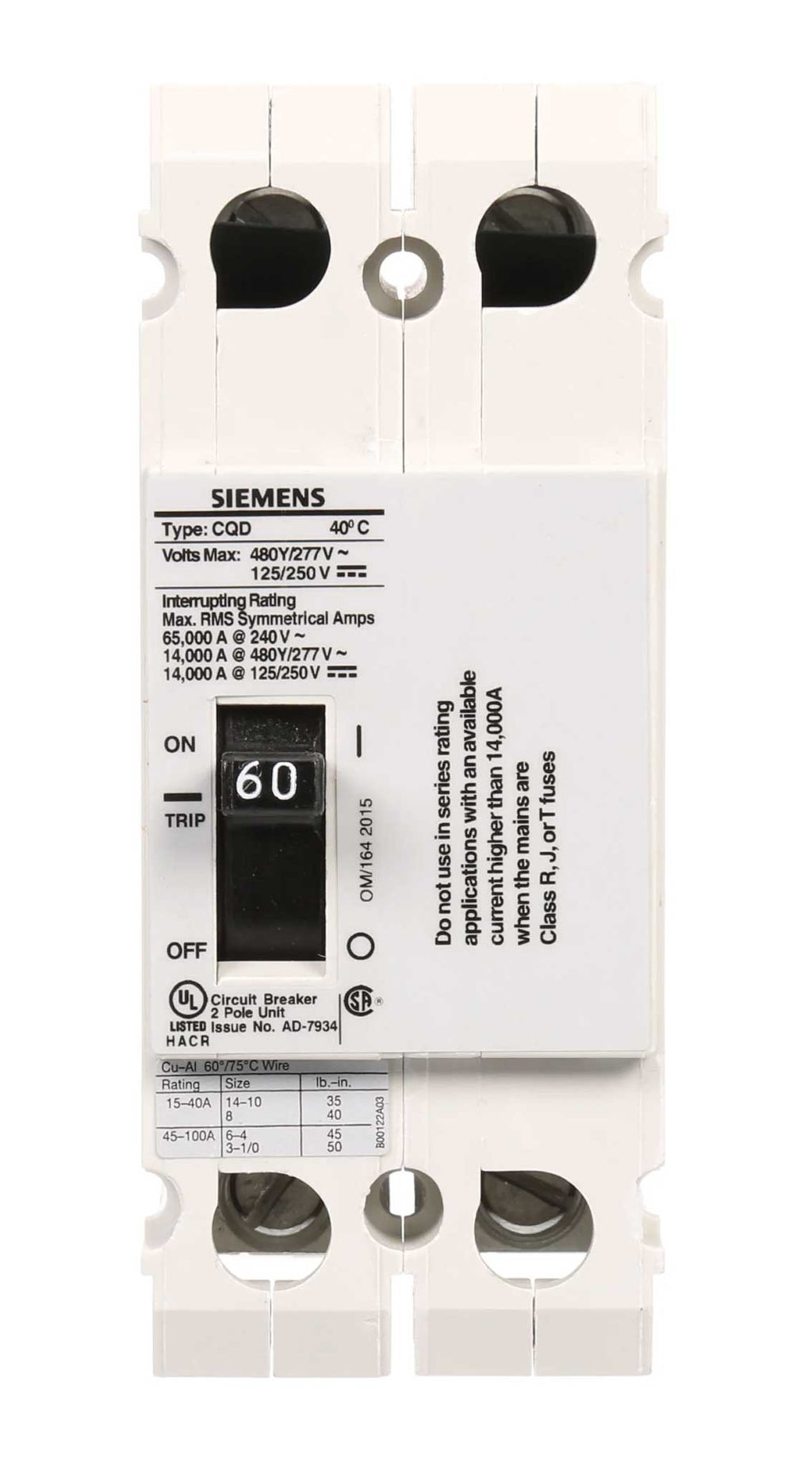

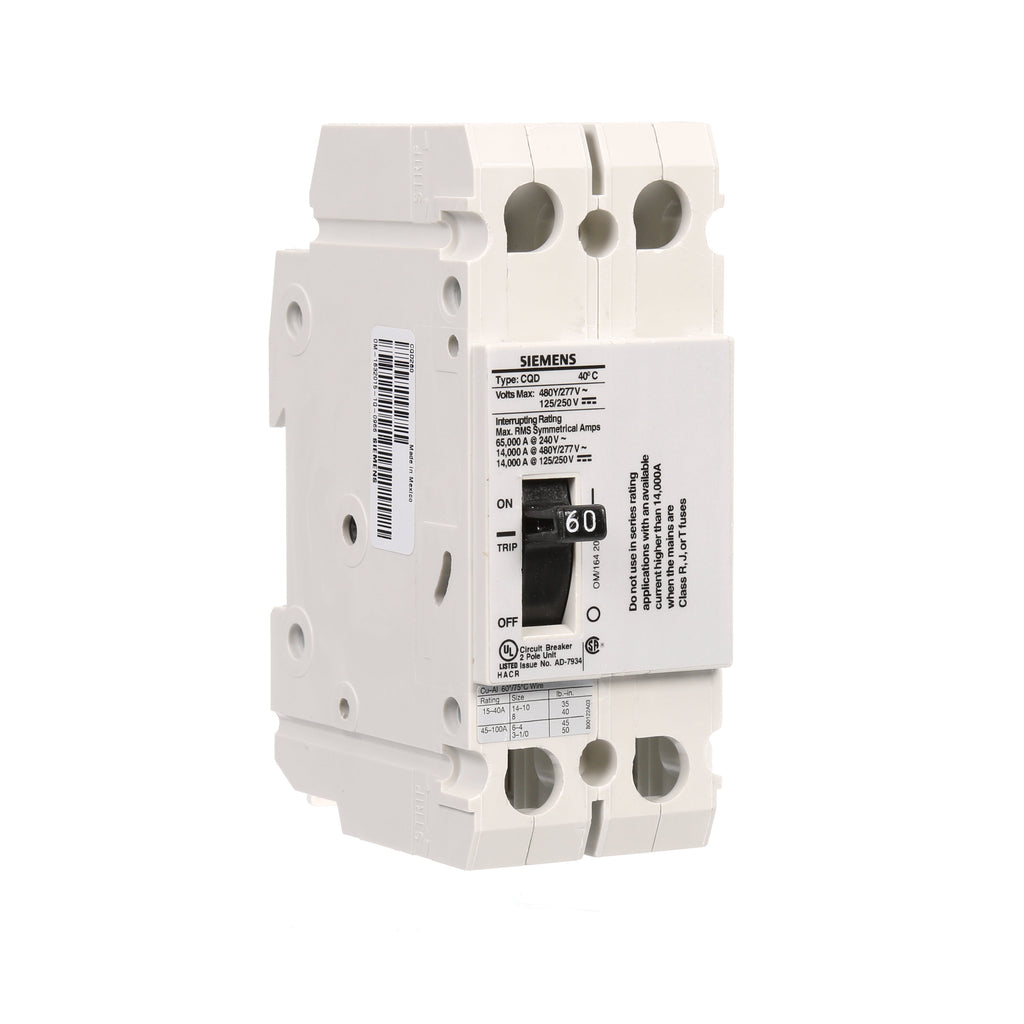

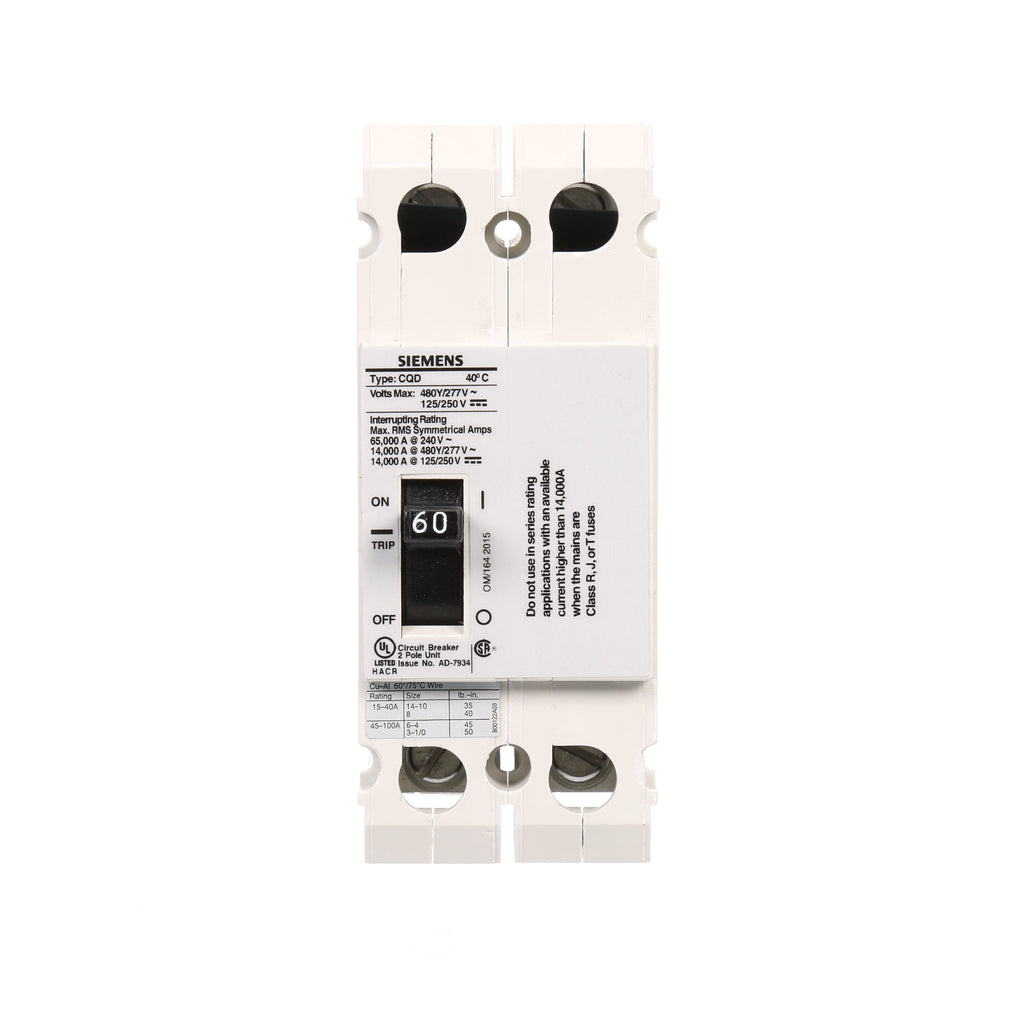

CQD260 is a Siemens 2 pole, 60 amp molded case circuit breaker designed for 480 Volt applications with DIN rail mounting.This Siemens CQD260 circuit breaker features thermal magnetic protection with long-time and instantaneous trip functions. It supports feed-thru connections and is rated for 14kA interrupting capacity at 480V. Certified to UL and CSA standards, it accepts 6 to 1/0 AWG aluminum and 8 to 1 AWG copper wire sizes. The breaker is part of the CQD series and is suitable for general purpose use in industrial and commercial power distribution.
- Manufacturer: Siemens
- Part Number: CQD260
- Amperage: 60A
- Voltage Rating: 480/277 VAC
- Poles: 2
- Mounting Type: DIN Rail
- Interrupting Rating: 14kA at 480V
- Trip Unit: Thermal Magnetic with LI - Long-Time and Instantaneous functions
- Connection Type: Feed-Thru
- Wire Size: 6 to 1/0 AWG Aluminum, 8 to 1 AWG Copper
- Certifications: UL 489, CSA 22.2
- Series/Frame: CQD
Specifications
- Part Number: CQD260
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CQD Series
- Type : CQD
- Voltage : 480
- Amperage : 60
- Phase : 1
- Poles : 2
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783643277687
- GTIN : 00783643277687
- Country of Origin : Mexico
- Weight : 1.601
- Certification : UL, CSA
- Wire Size : 6 to 1/0 AWG Aluminum, 8 to 1 AWG Copper
