Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CQD225

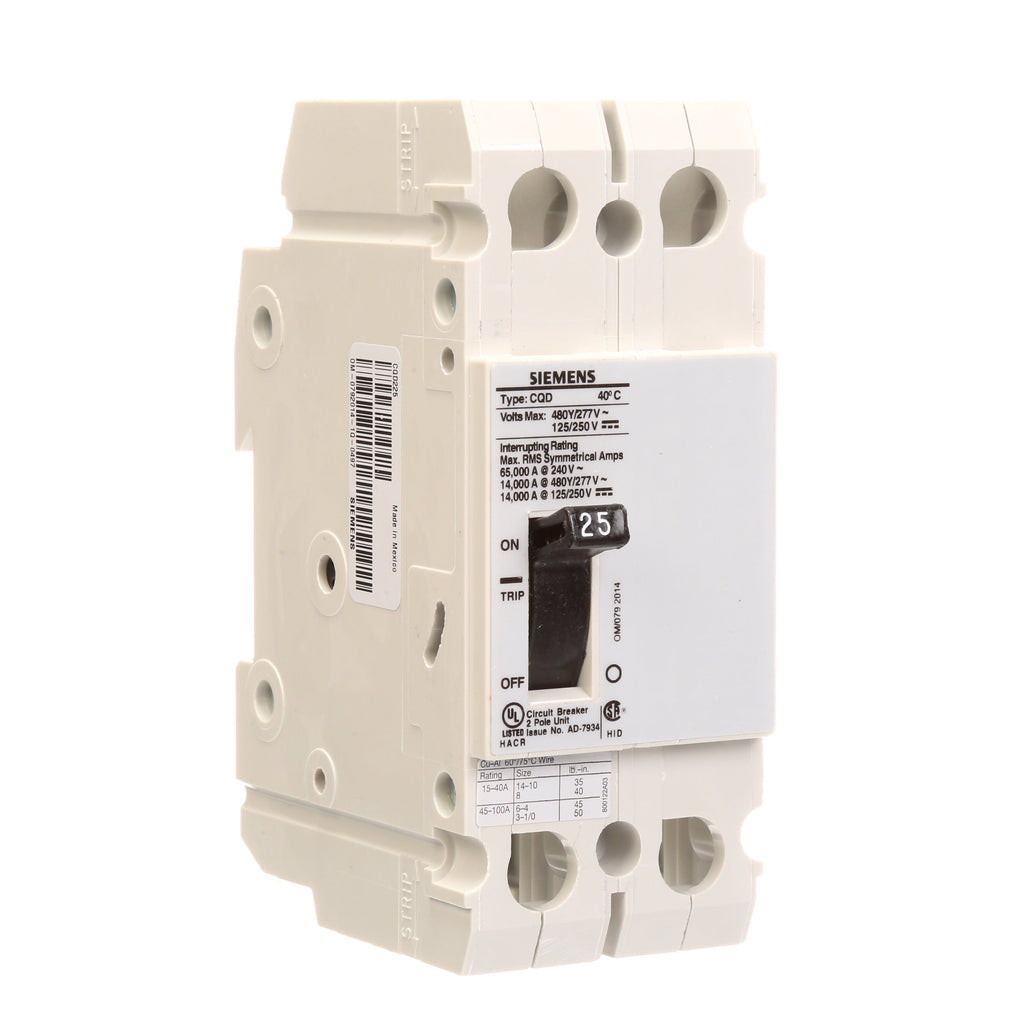

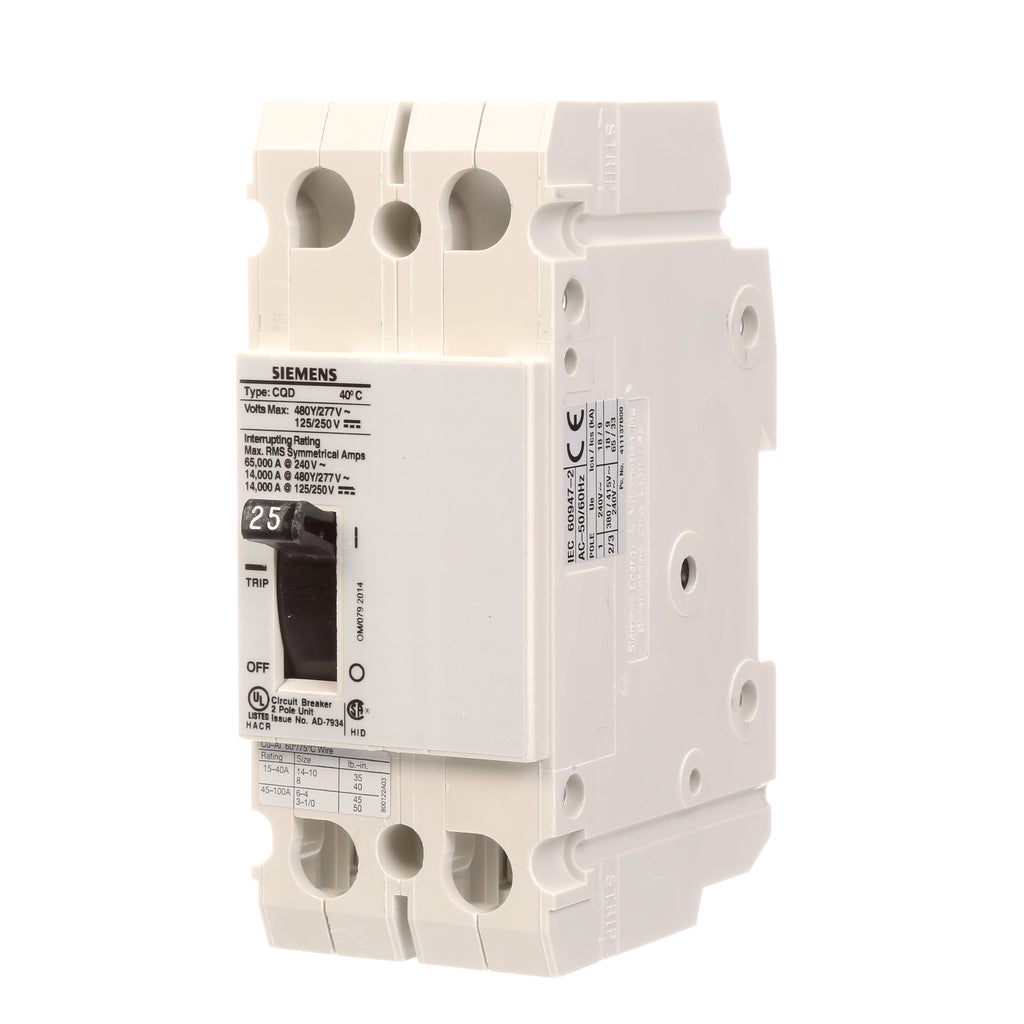

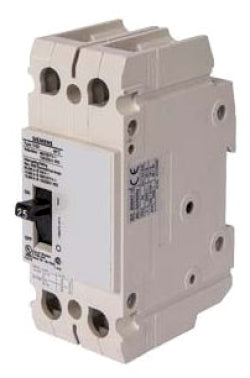

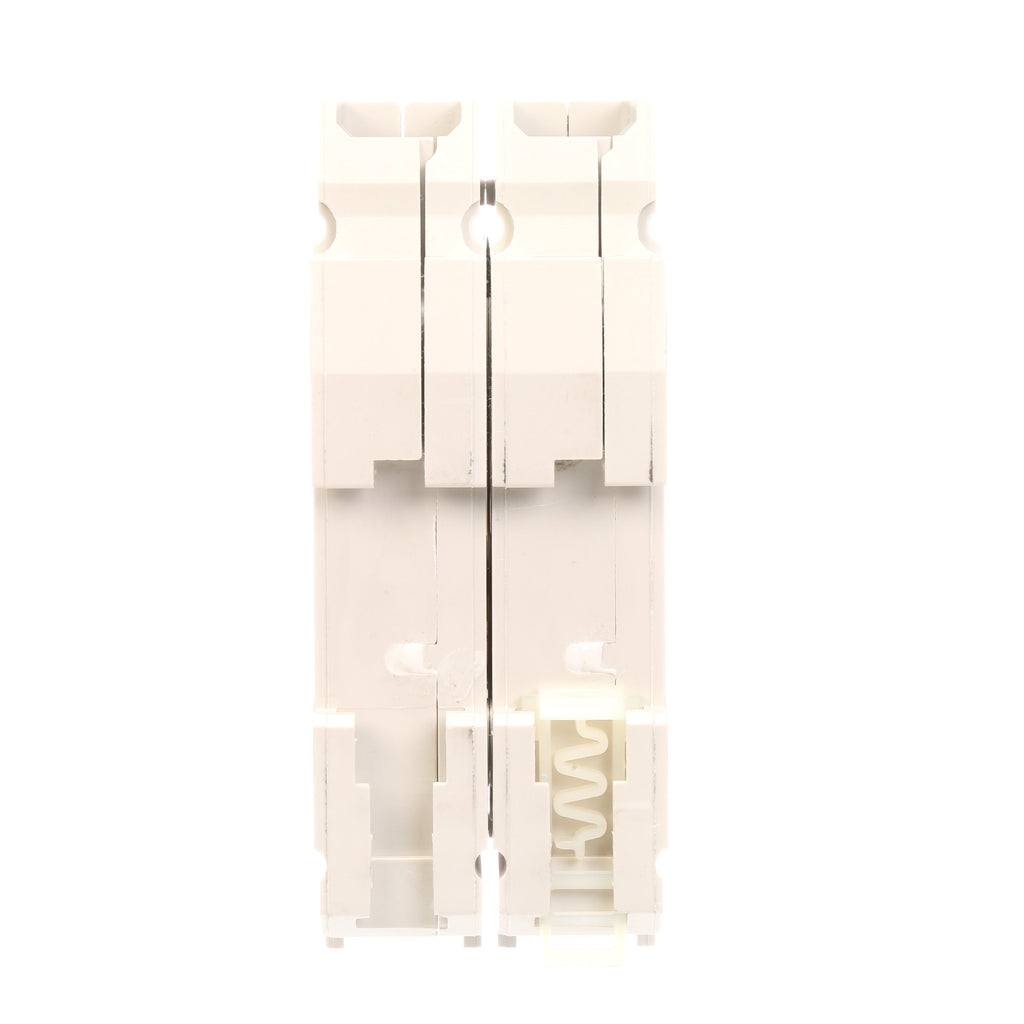

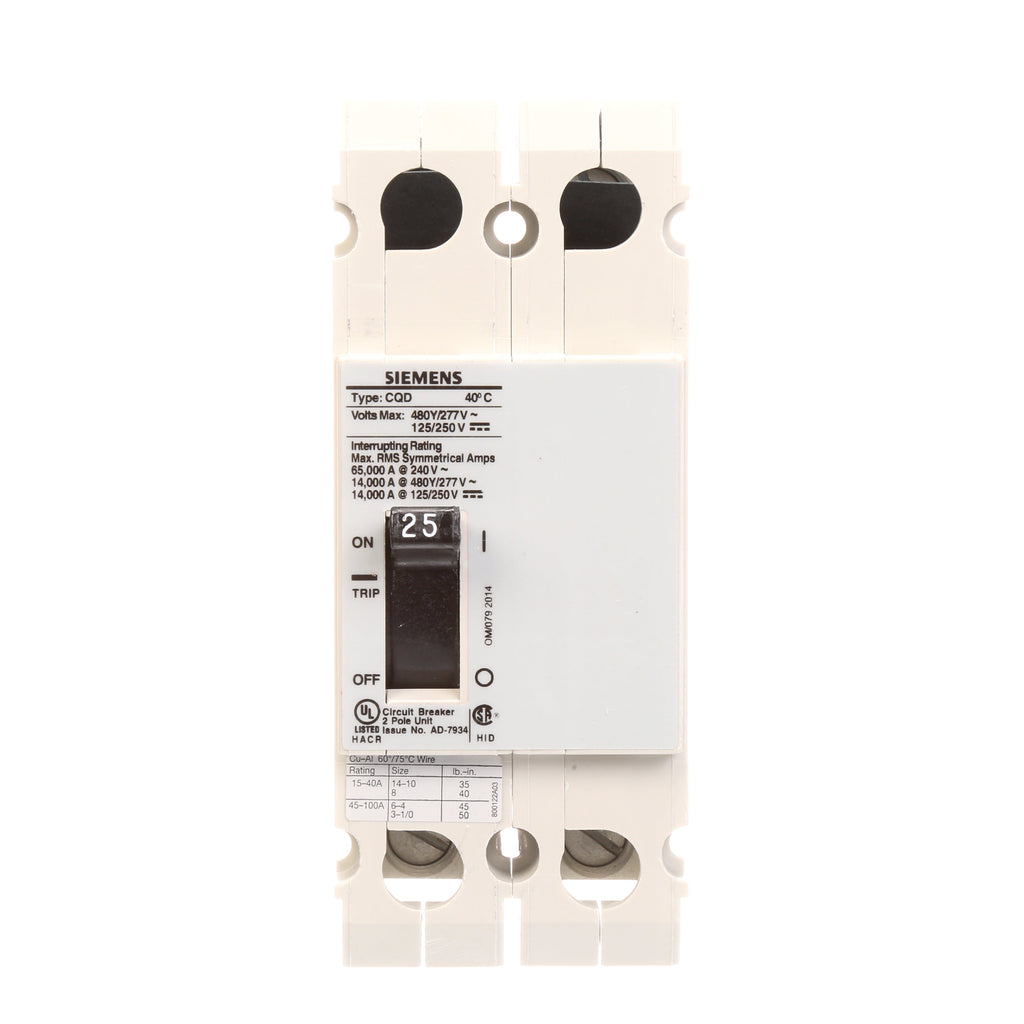

CQD225 is a Siemens 25A, 2-pole, 480V feed-thru molded case circuit breaker with a 14kA interrupting rating. This breaker is designed for reliable circuit protection in commercial and industrial applications. The CQD225 features thermal-magnetic trip technology, line and load side lug terminals, and is rated for use in 480/277V AC systems. It is part of the Siemens CQD series, offering a compact design and feed-thru mounting for easy installation.
- Part Number: CQD225
- Manufacturer: Siemens
- Ampere Rating: 25A
- Poles: 2
- Voltage Rating: 480/277V AC
- Interrupting Rating: 14kA @ 480V
- Mounting Type: Feed-Thru
- Series/Frame: CQD
- Trip Unit: Thermal-Magnetic
- UL Listed
- CSA Certified
- Operating Temperature: 40°C
Specifications
- Part Number: CQD225
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CQD Series
- Type : CQD
- Voltage : 480
- Amperage : 25
- Phase : 1
- Poles : 2
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643277625
- GTIN : 00783643277625
- Country of Origin : Mexico
- Weight : 1.451
