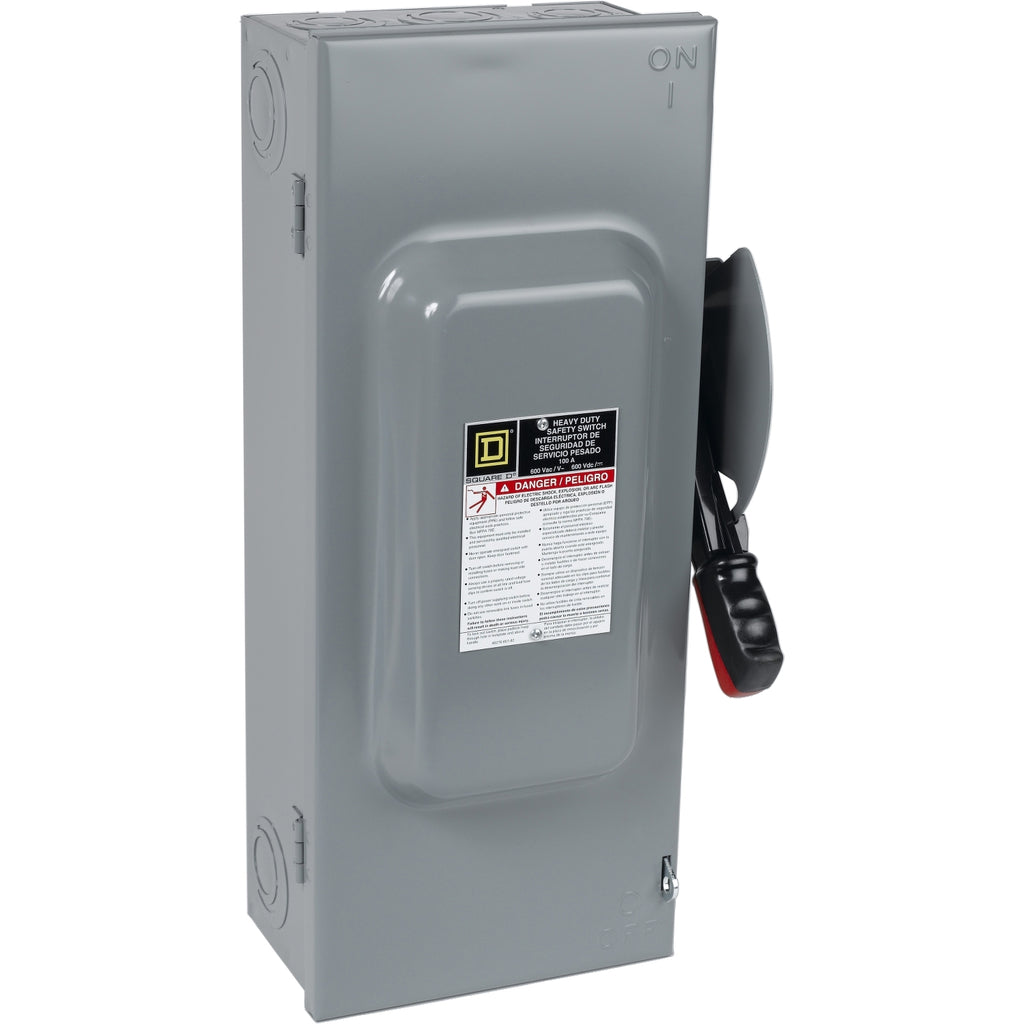

CH363 - Square D 100A 600VAC/VDC 3-Pole Fusible Heavy Duty Safety Switch NEMA 1

CH363

CH363 is a 3-pole, 100A, 600VAC/VDC fusible heavy duty safety switch designed for reliable circuit protection in industrial and commercial applications. This Square D CH Series switch features a NEMA 1 enclosure for indoor use and is rated for 200kA AIC at 600V, ensuring robust performance under demanding conditions. The switch is surface mountable and supports both AC and DC power systems. This heavy duty safety switch is ideal for disconnecting and isolating power in motor control and distribution circuits. It is constructed for durability and safety, with a fusible design that allows for easy fuse replacement and maintenance. The CH363 is suitable for use in a wide range of environments where reliable circuit interruption is required.

• Part Number: CH363
• Manufacturer: Square D
• Amperage: 100A
• Voltage Rating: 600VAC/VDC
• Number of Poles: 3
• Mounting Type: Surface
• Interrupt Rating: 200kA AIC @ 600V
• Series/Frame: CH Series
• Enclosure Type: NEMA 1
• Application: Fusible Safety Switch
• Motor Power Rating: 75 HP
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH363
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : CH
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : J,R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : RJF

Product Data

• UPC : 078590199531
• GTIN : 00785901995319
• Dimensions : 21.25 in (539.75 mm) x 10.25 in (260.35 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
• Weight : 17.56
