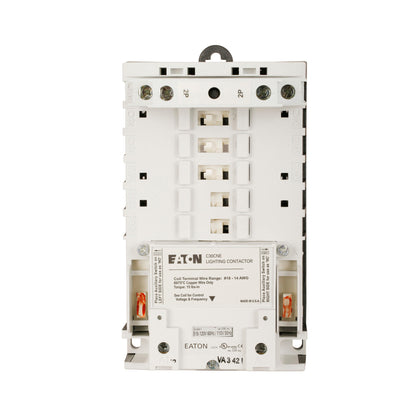

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Contactor
- Series
- C30CN
- Frame
- C30CNE
- Rated current
- 30
- Voltage
- 4V
- Poles
- 2
- Phases
- 1
- Coil voltage
- 265–277 V
- Auxiliary contacts
- 2 NO
- Country of origin
- United States
- Coil Voltage Maximum
- 277
- Coil Voltage Minimum
- 265
- UPC
- 782116124589
Show all specifications (4 more)
- GTIN
- 00782116124589
- Dimensions
- 7.39 in x 3.86 in x 4.18 in (Length/Depth x Height x Width)
- Weight
- 3 lb
- Certification
- CSA Certified,UL Listed
Product description & additional details
C30CNE20H0
C30CNE20H0 is a 30 Amp, 2-Pole electrically held lighting contactor from Eaton designed for industrial and commercial lighting control applications.
This Eaton C30CN series contactor features a 2-pole configuration with a 265-277 Volt coil voltage rating at 50/60 Hz frequency. It is mechanically and electrically held, ensuring reliable operation and energy-efficient control. The contactor is open type, suitable for mounting in various control panels and enclosures. It supports up to 12 poles in the series and is rated for 600 Volts maximum system voltage. The contact configuration includes 1 normally open (NO) and 2 NO contacts, providing flexible switching options.
- Amperage: 30 Amps
- Voltage Rating: 265-277 Volts AC coil
- Poles: 2
- Contact Configuration: 1 NO + 2 NO
- Mounting Type: Open
- Series/Frame: C30 Series
- Frequency: 50/60 Hz
- Electrically and mechanically held
- Maximum System Voltage: 600 Volts
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This Mechanically Held includes a 277 VAC coil.
Specifications
- Part Number: C30CNE20H0
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Contactor
- Family : C30CN
- Type : C30CNE
- Voltage : 4
- Amperage : 30
- Phase : 1
- Poles : 2
- Aux Contacts : 2 NO
- Coil Voltage Maximum : 277
- Coil Voltage Minimum : 265
Product Data
- UPC : 782116124589
- GTIN : 00782116124589
- Country of Origin : United States
- Dimensions : 7.39 in x 3.86 in x 4.18 in (Length/Depth x Height x Width)
- Weight : 3 lb
- Certification : CSA Certified,UL Listed
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
