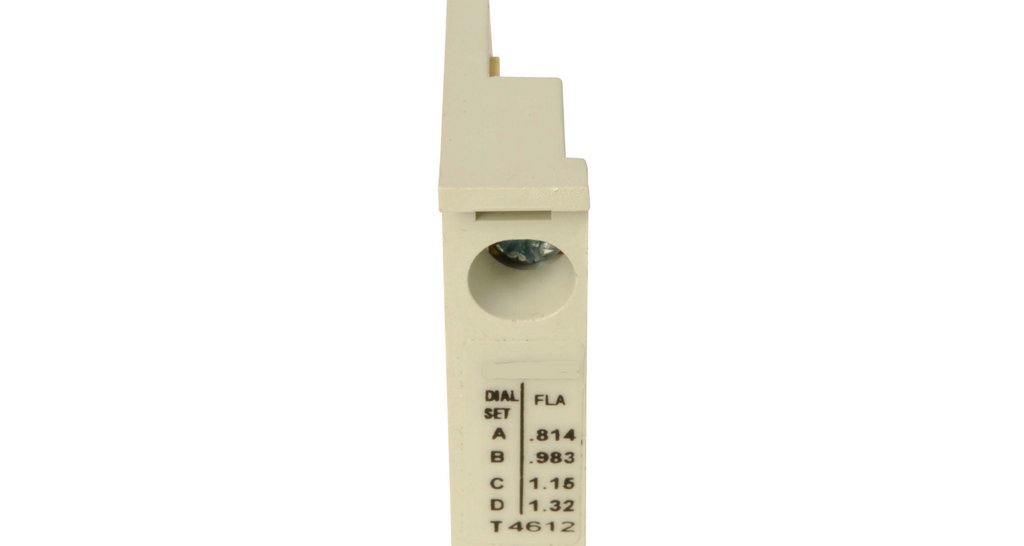

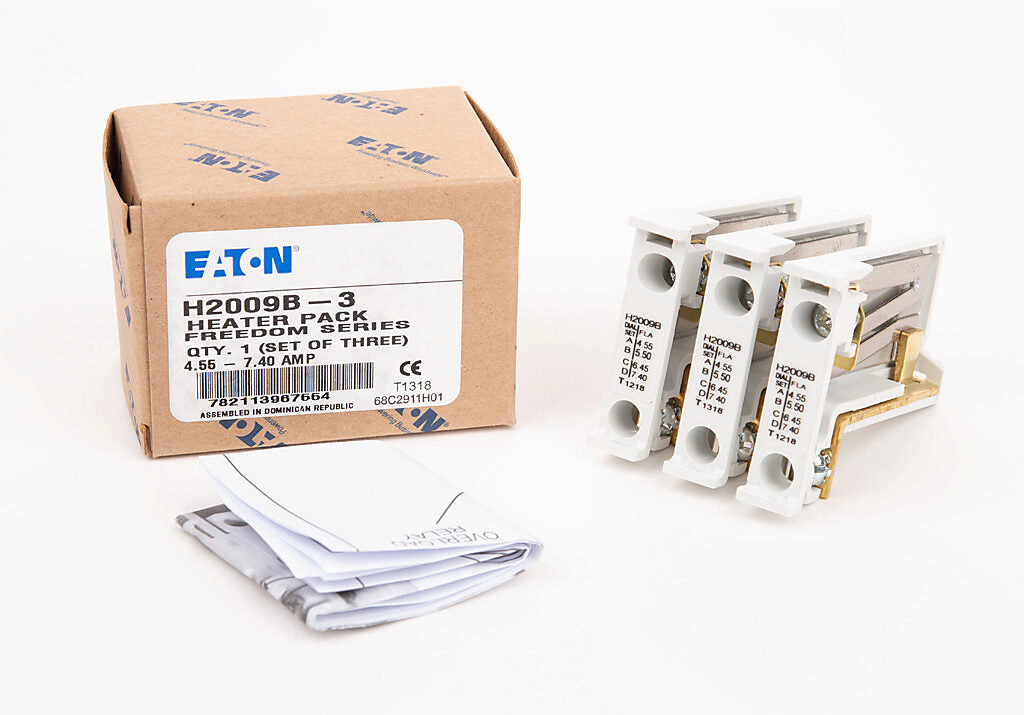

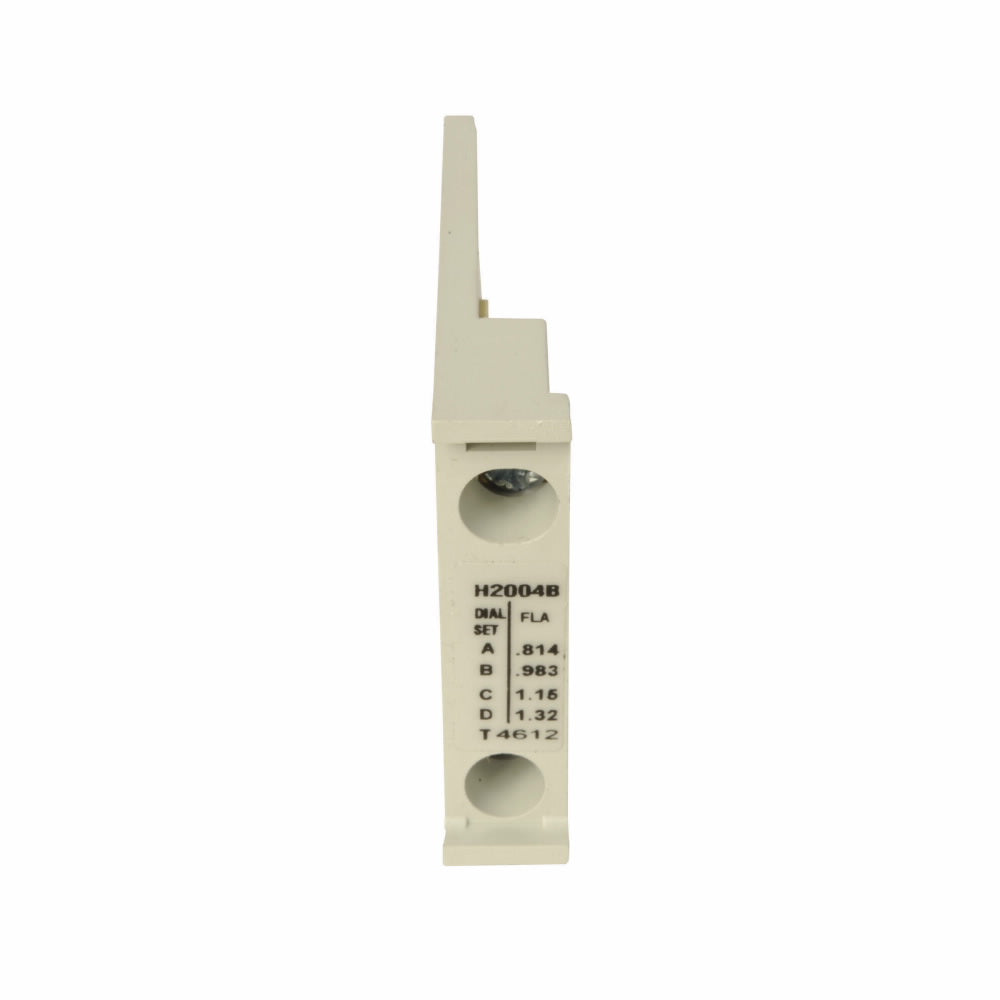

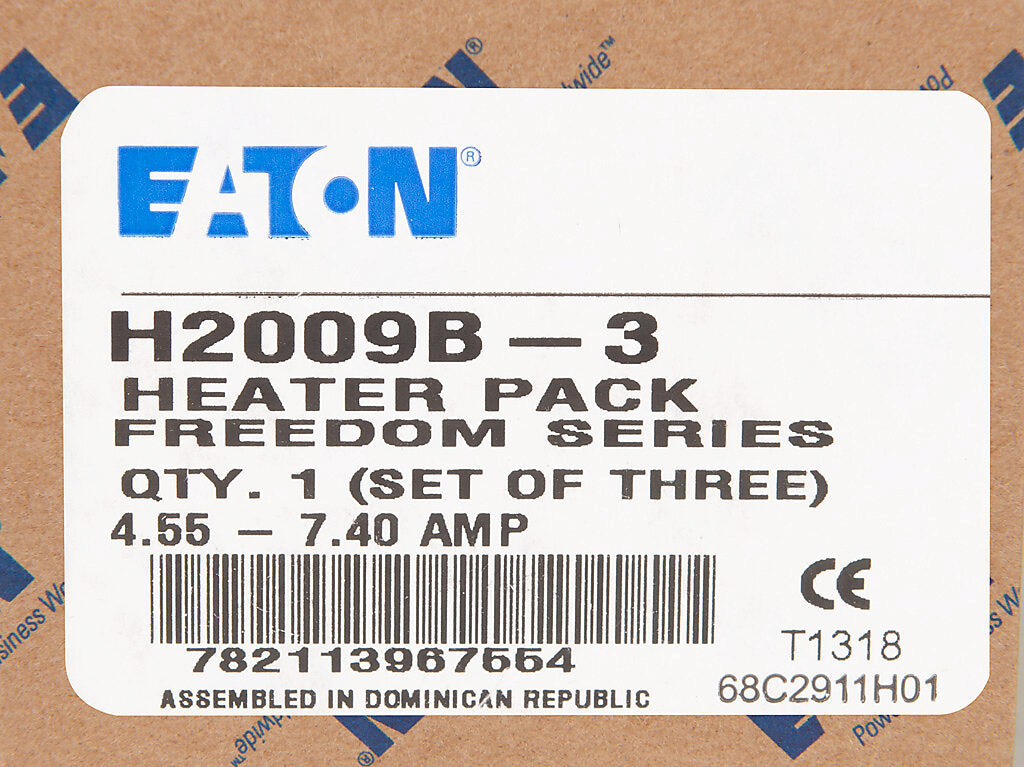

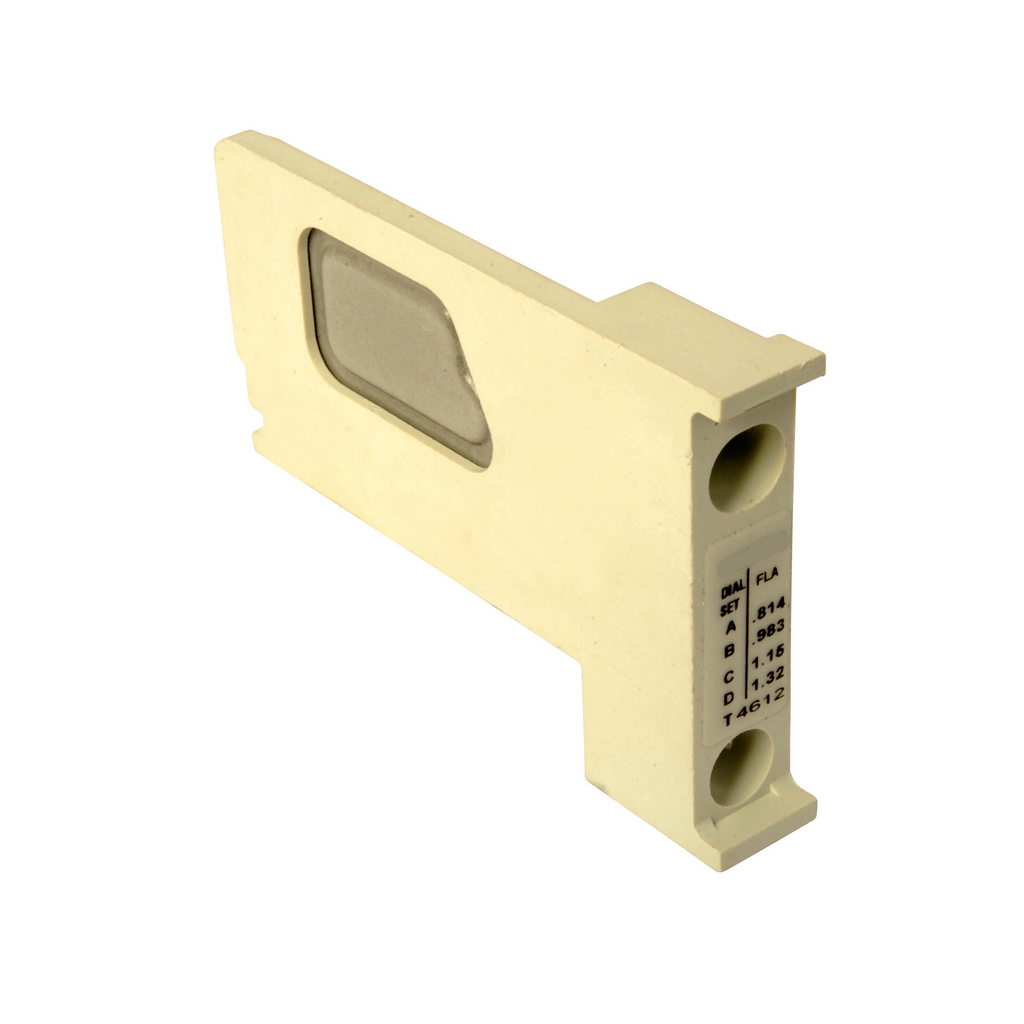

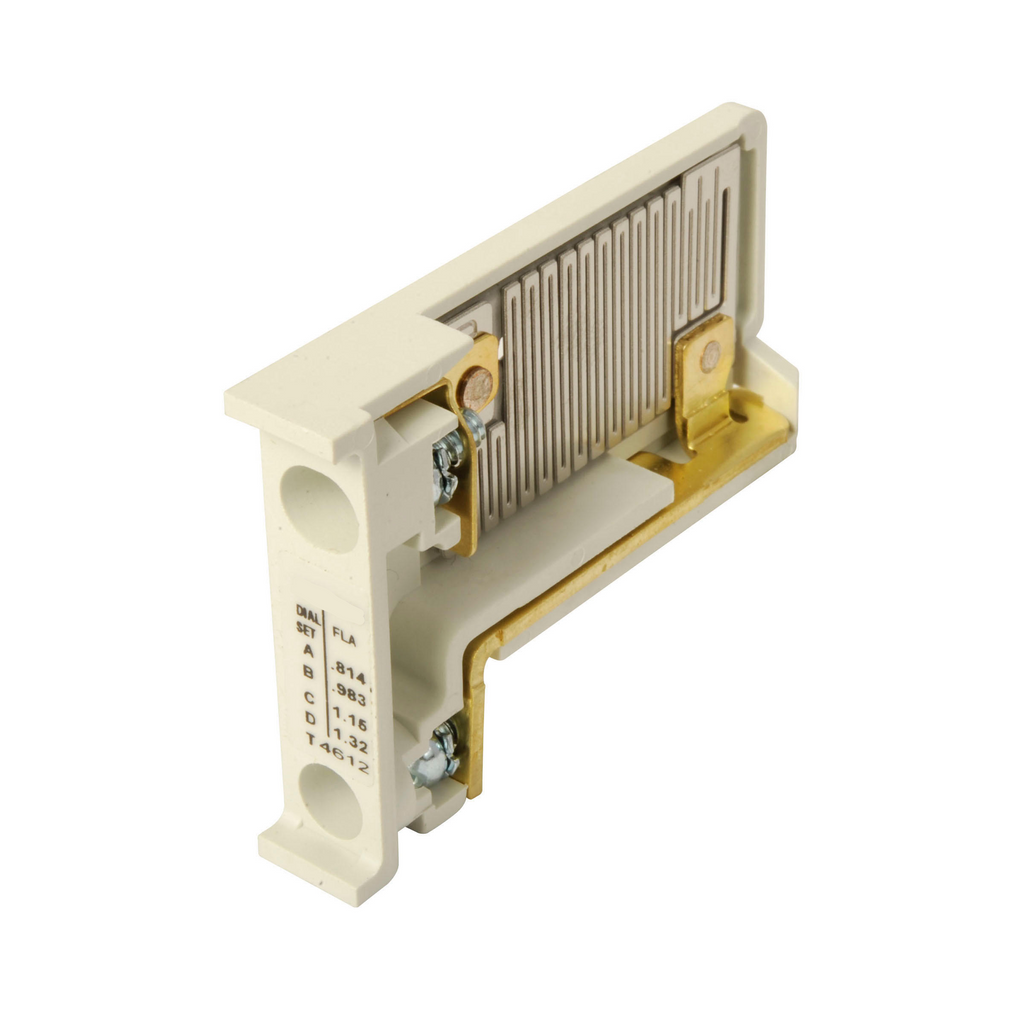

Reference images. Contact us for photos of the available unit.


Eaton

H2009B-3

Eaton Freedom Series Motor Control Heater Pack 4.55-7.4A 3-Pole NEMA 00-2 Class 20 Standard Trip

Poles: 3
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$61.88 $126.69
Save $64.81
100+ in stock, ready to be shipped
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Eaton
Sub-Category
Heater Element
Series
Freedom Series
Frame
H
Poles
3
Country of origin
Dominican Republic
Full Load Amp Minimum
4.55
Full Load Amp Maximum
7.4
Full Load Amps
4.55 to 7.4
UPC
078211396755
GTIN
00782113967554
Dimensions
1.8 in x 3.1 in x 1.8 in (Length/Depth x Height x Width)
Weight
0.2 lb
Certification
CSA Certified,UL Listed
Product description & additional details

H2009B-3


H2009B-3 is an Eaton Freedom Series motor control heater pack designed for thermal overload protection with a full load ampere range of 4.55 to 7.4 amps.This Eaton Freedom NEMA heater coil features a standard trip, Class 20 rating, and is compatible with starter sizes 00-0 (Series C), 1-2 (Series B), and IEC sizes A-K. It is a 3-pole heater pack suitable for use with overload relays rated 32 or 75 amps. Certified UL Listed and CSA Certified, it ensures reliable motor protection in industrial applications.
    Key Specifications
    • Manufacturer: Eaton
    • Part Number: H2009B-3
    • Amperage Range: 4.55A to 7.4A (Dial Positions A-D)
    • Poles: 3
    • Mounting Type: NEMA Freedom Series
    • Interrupt Rating: Compatible with 32A or 75A overload relays
    • Series/Frame: Freedom Series, NEMA 00-2
    • Trip Unit: Standard Trip, Class 20
    • Certifications: UL Listed, CSA Certified
    • Dimensions: 3.1" H x 1.8" W x 1.8" D
    • Weight: 0.2 lb
    • Warranty: 1 year from installation or 18 months from shipment
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: H2009B-3
  • Manufacturer : Eaton
  • Brand : Eaton
  • Category : Motor Control
  • Item Subcategory : Heater Element
  • Family : Freedom Series
  • Type : H
  • Poles : 3
  • Full Load Amp Minimum : 4.55
  • Full Load Amp Maximum : 7.4
  • Full Load Amps : 4.55 to 7.4

Product Data

  • UPC : 078211396755
  • GTIN : 00782113967554
  • Country of Origin : Dominican Republic
  • Dimensions : 1.8 in x 3.1 in x 1.8 in (Length/Depth x Height x Width)
  • Weight : 0.2 lb
  • Certification : CSA Certified,UL Listed
