Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description

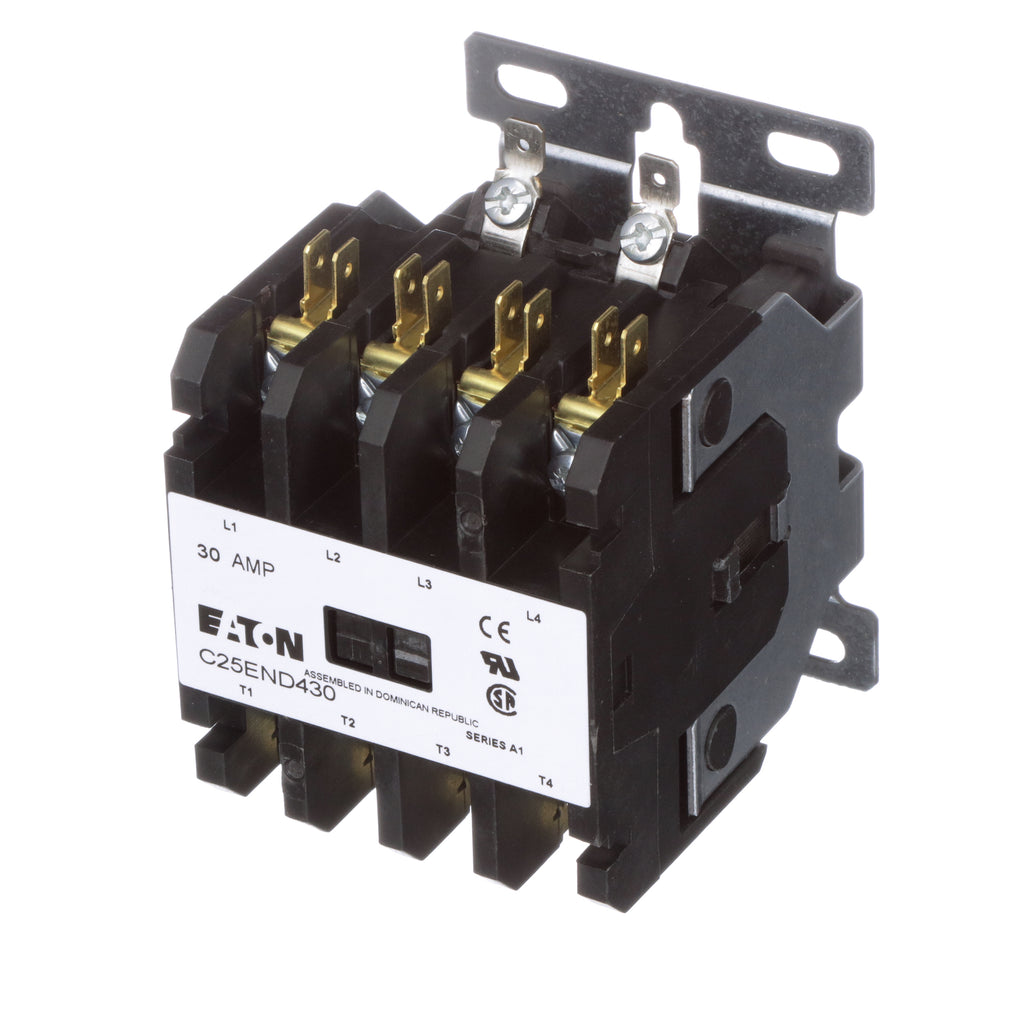

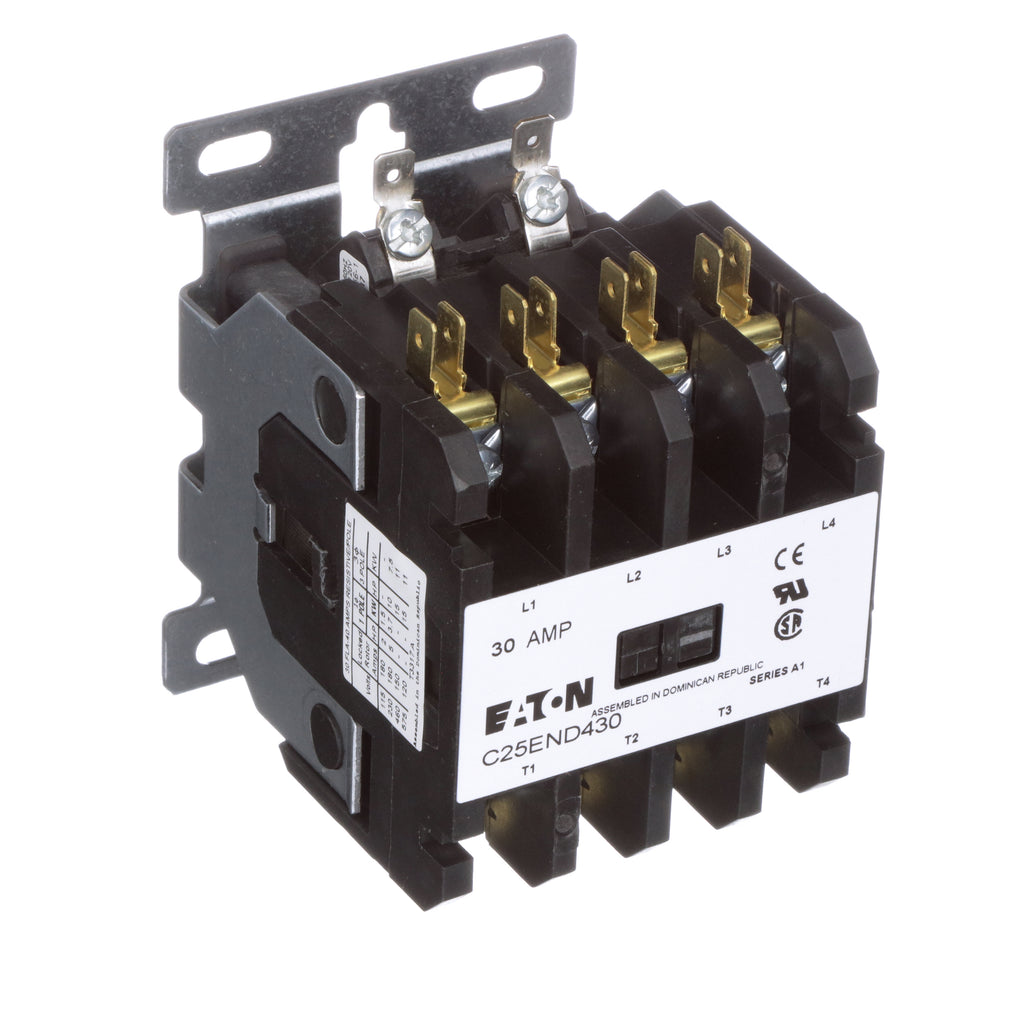

C25END430A
C25END430A is a Cutler Hammer definite purpose contactor designed for motor control applications with a 30 amp inductive rating and 460 volt operation.This non-reversing, four-pole contactor features a panel mount design with an open metal mounting plate enclosure. It supports a coil voltage of 110-120 VAC at 50/60 Hz and offers screw/pressure plate and quick-connect terminals for reliable wiring. Rated for 30A inductive and 40A resistive loads, it is suitable for HVAC, automation, and process control. The contactor is CSA certified and UL recognized, ensuring compliance with North American standards.
- Amperage Rating: 30A inductive, 40A resistive
- Voltage: 460V operating voltage
- Number of Poles: 4 Pole (4PST)
- Coil Voltage: 110-120 VAC, 50/60 Hz
- Mounting Type: Panel Mount with metal mounting plate
- Contact Configuration: 4 Pole Single Throw (4PST)
- Interrupt Rating: Suitable for motor control loads
- Terminals: Screw/pressure plate and quick connect (side-by-side)
- Series/Frame: C25 Series
- Certifications: CSA Certified, UL Recognized
- Mechanical Life: Minimum 250,000 operations
Additional Information
This Definite Purpose Contactor includes a 110 VAC coil.
Specifications
- Part Number: C25END430A
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : C25 Series
- Type : C25
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 4
- Configuration : Non-Reversing
- Coil Voltage Maximum : 120
- Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
- Coil Voltage Minimum : 120
- Frequency : 50 Hz
Product Data
- UPC : 782113542331
- GTIN : 00782113542331
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 3.75 in x 2.68 in (Length/Depth x Height x Width)
- Weight : 2.3 lb
- Certification : CSA, UL Listed
