Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
C25END425H

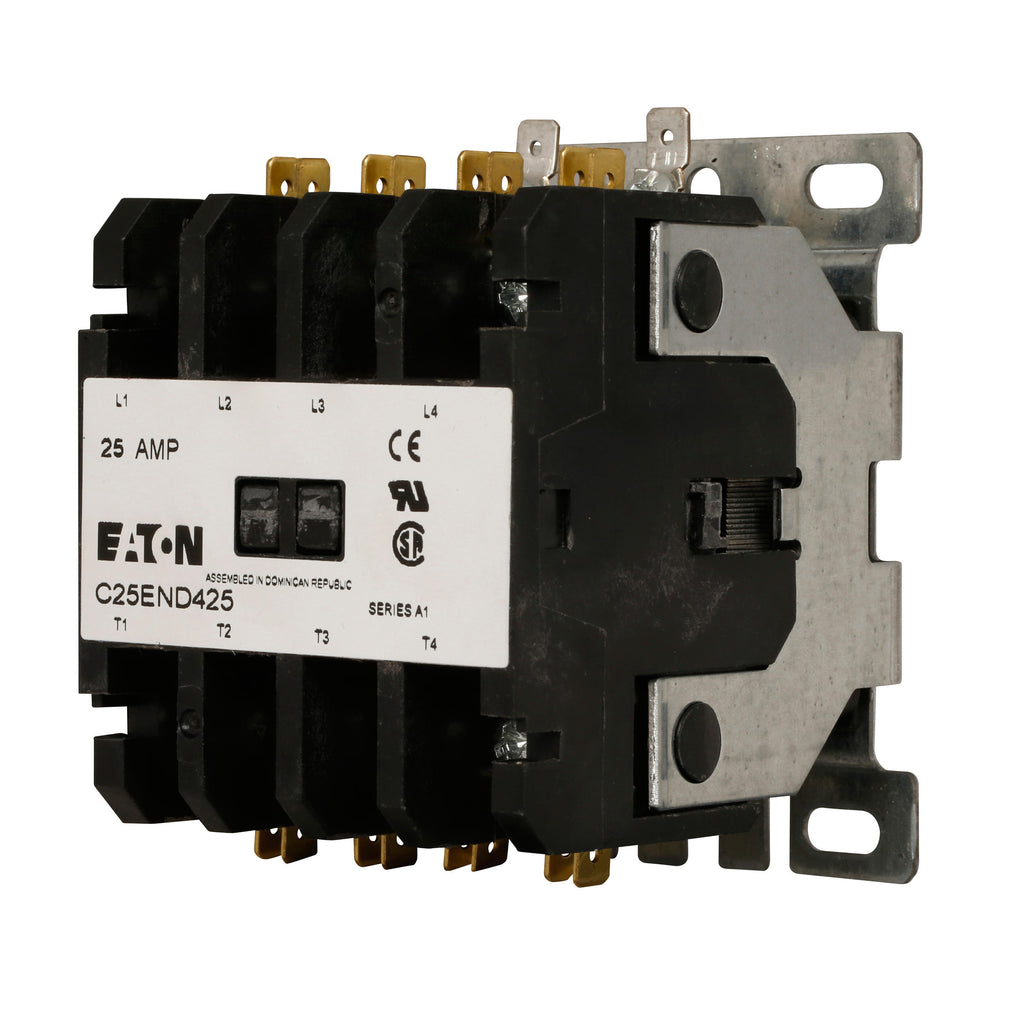

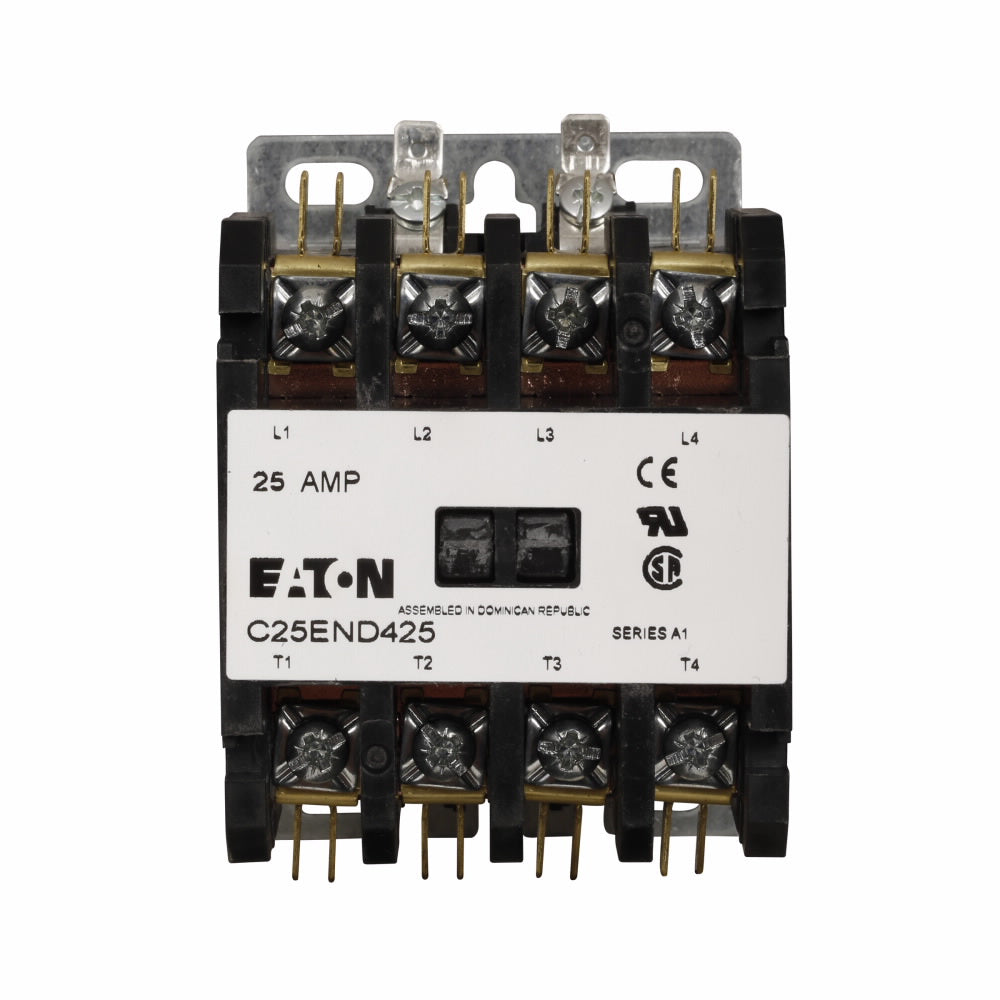

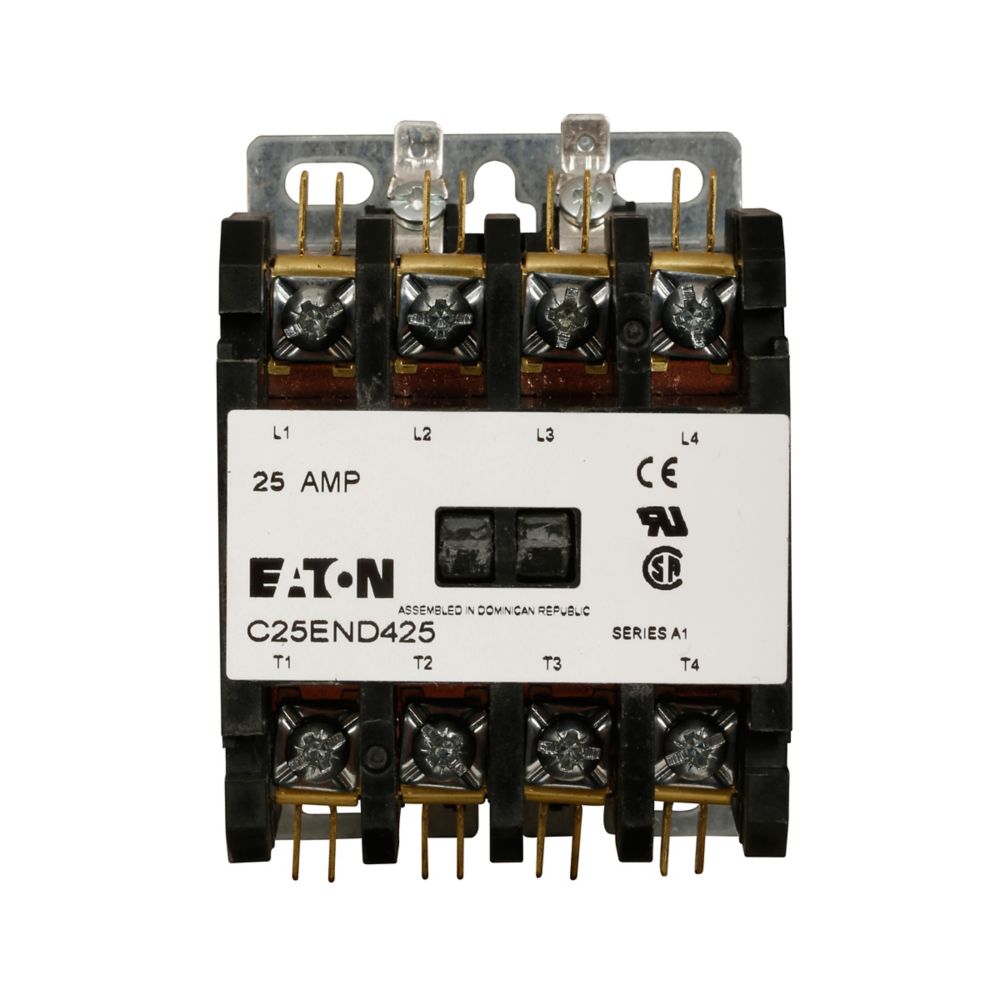

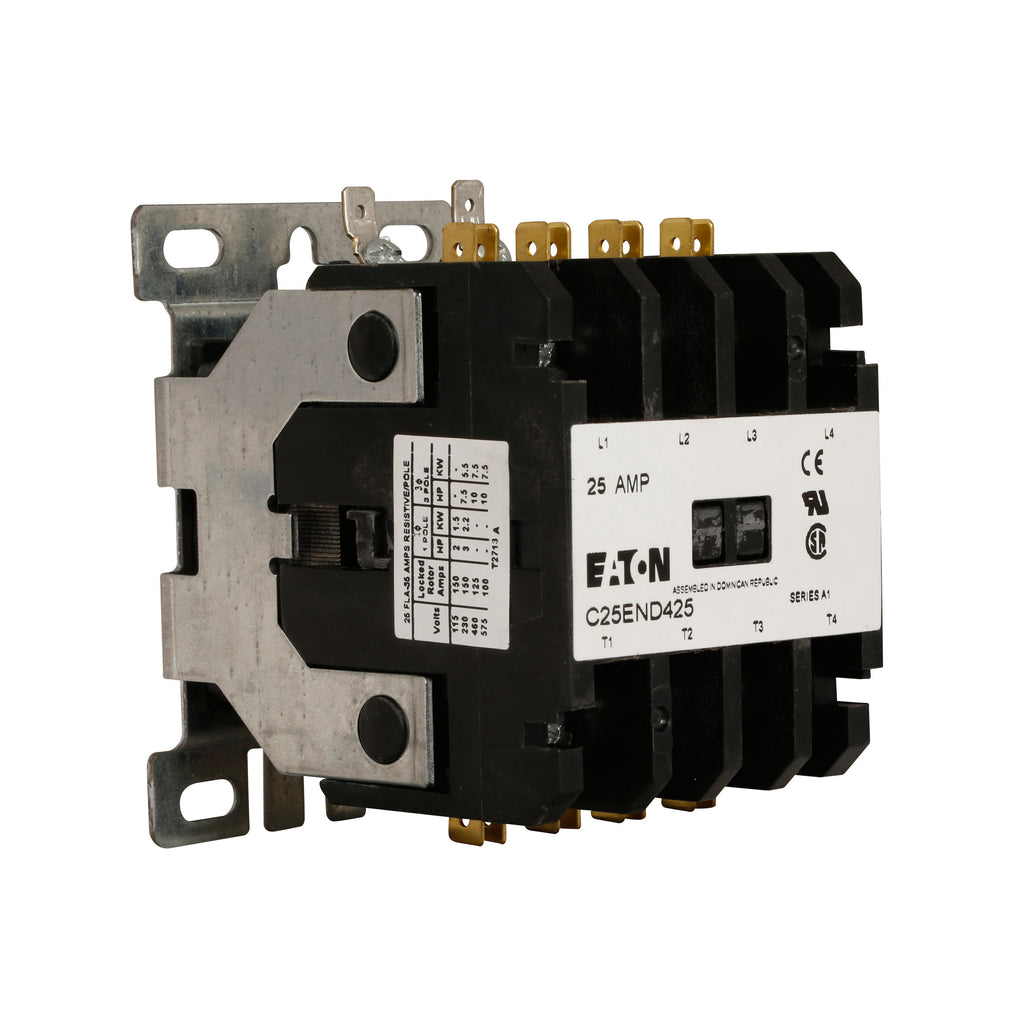

C25END425H is a 25 Amp, 4-pole definite purpose contactor with a 277 VAC coil designed for motor control applications.C25END425H features an open design with a metal mounting plate and double quick connect terminals. It is non-reversing and suitable for use in heating, air conditioning, refrigeration, and other motor control applications. This contactor is UL recognized, CSA certified, and RoHS compliant, ensuring reliability and safety in North American and European markets.
- Amperage Rating: 25 Amps
- Number of Poles: 4
- Coil Voltage: 277 VAC, 60 Hz
- Mounting Type: Open with Metal Mounting Plate
- Non-Reversing Contact Configuration
- Double Quick Connect Terminals
- Series: C25
- Certifications: UL Recognized, CSA Certified, RoHS Compliant
Additional Information
This Definite Purpose Contactor includes a 277 VAC coil.
Specifications
- Part Number: C25END425H
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : C25 Series
- Type : C25
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 4
- Configuration : Non-Reversing
- Coil Voltage Maximum : 277
- Coil Voltage Minimum : 277
- Frequency : 60 Hz
Product Data
- UPC : 782113459189
- GTIN : 00782113459189
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 3.75 in x 2.68 in (Length/Depth x Height x Width)
- Weight : 2.1 lb
- Certification : CSA Certified,UL Recognized,RoHS Compliant
