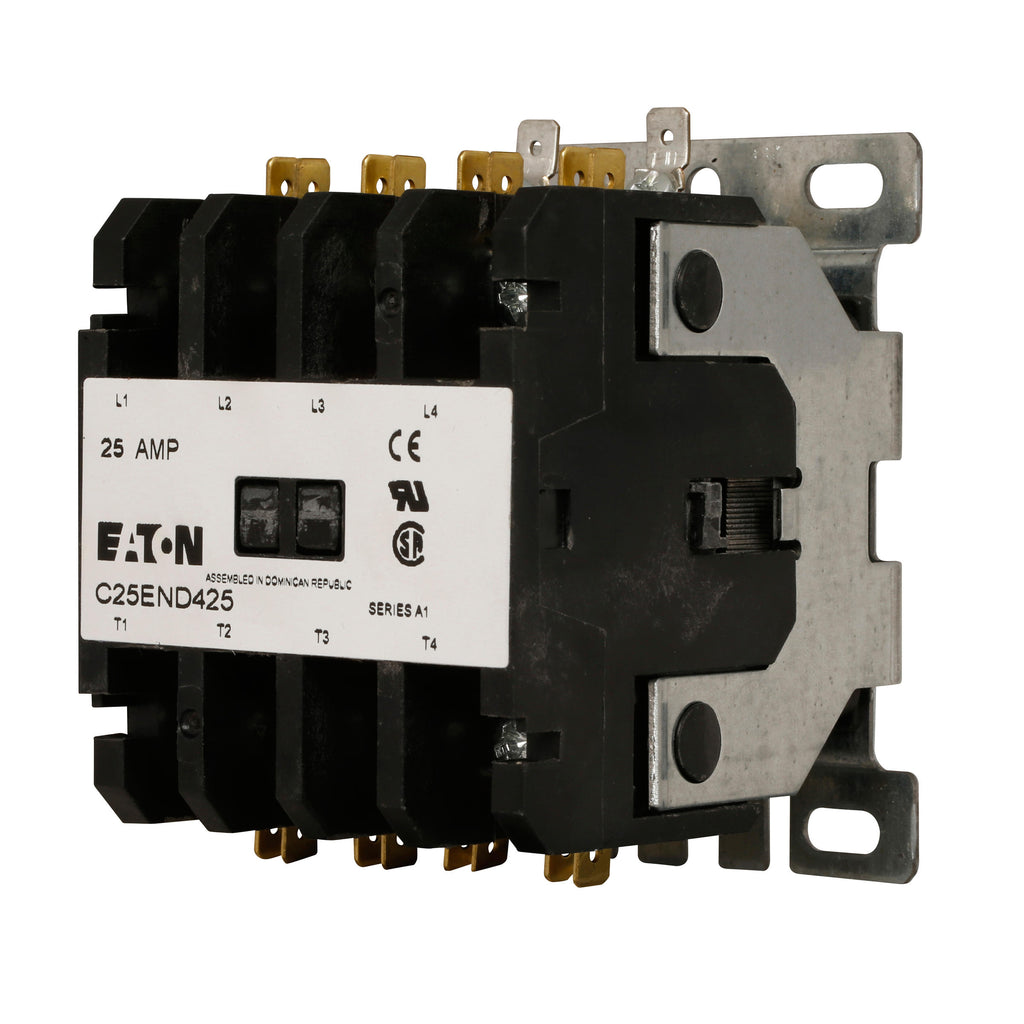

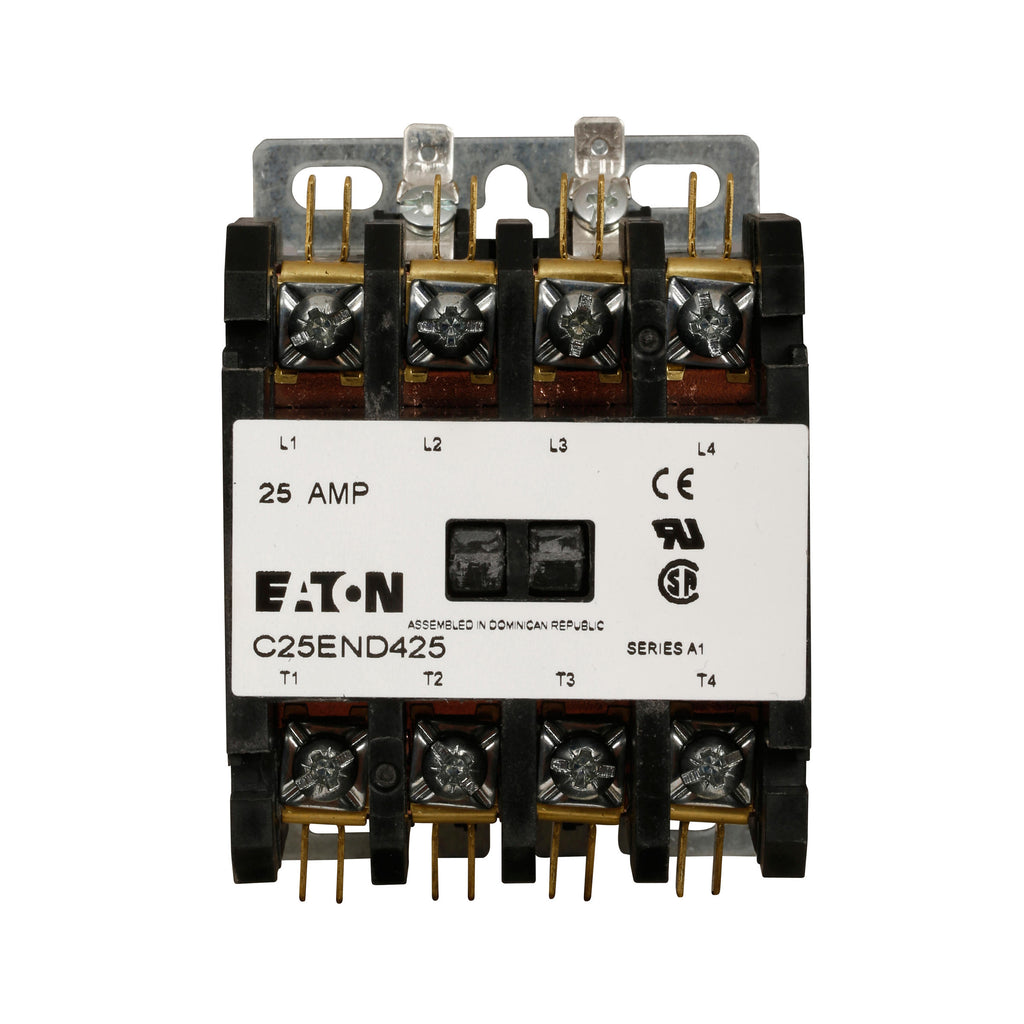

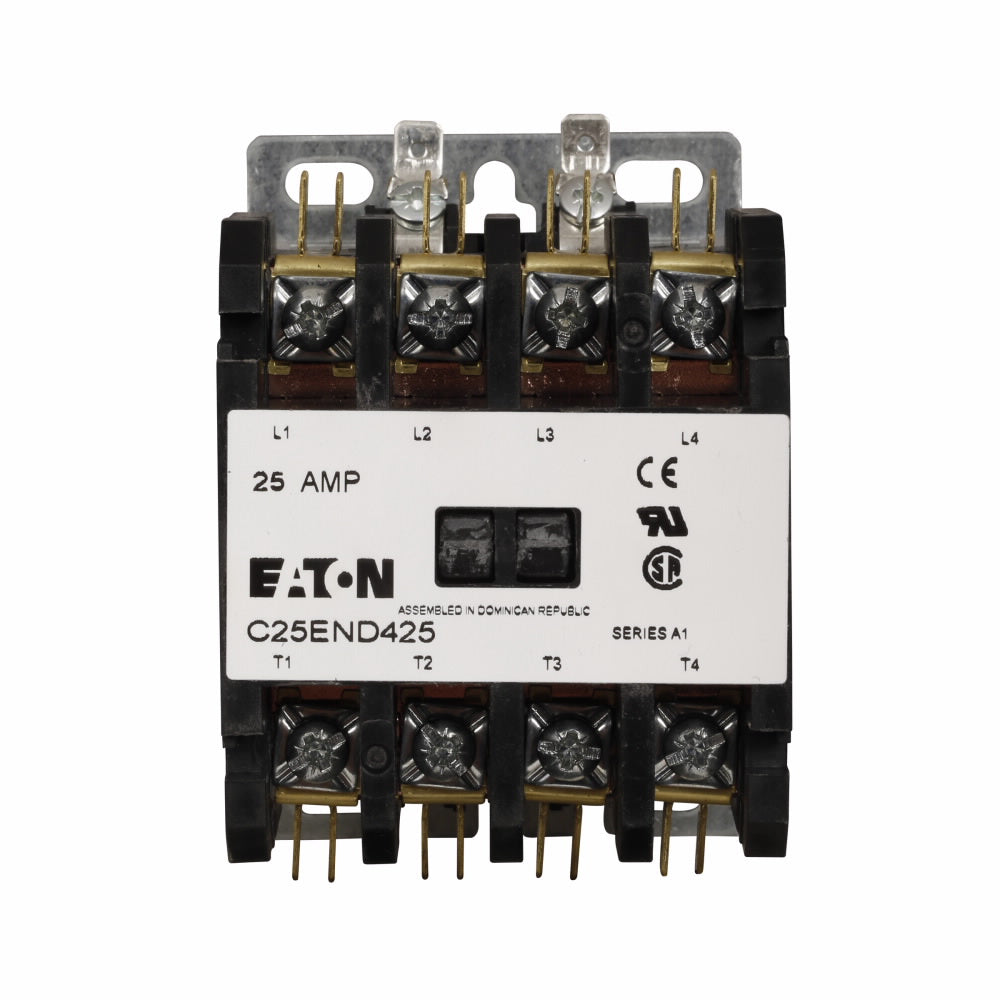

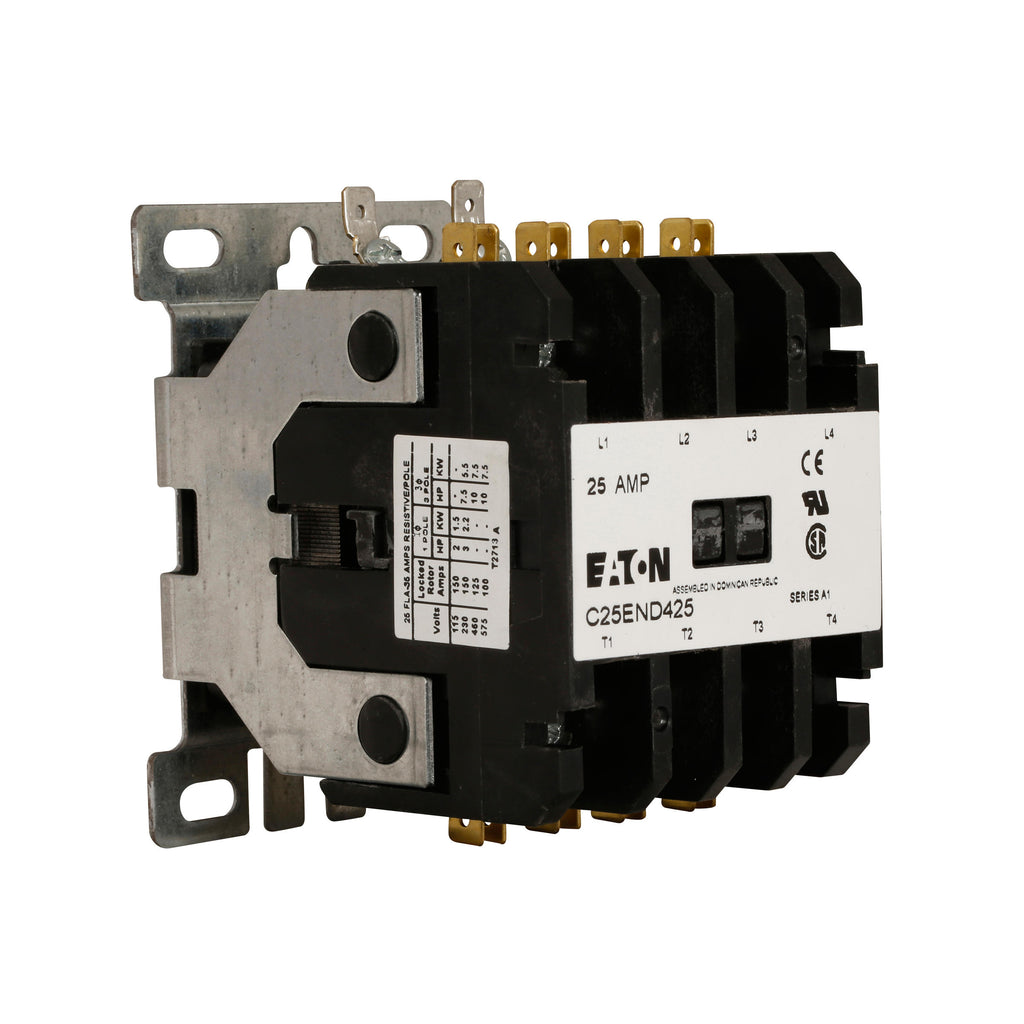

C25END425A - Cutler Hammer 25A 4-Pole Definite Purpose Contactor 110-120V AC Coil Metal Mounting Plate

C25END425A

C25END425A is a Cutler Hammer definite purpose contactor rated at 25 amps with a 4-pole configuration and a 110-120V AC coil, designed for reliable motor control applications.This contactor features an open design with a metal mounting plate, quick connect and screw/pressure plate terminals, and is UL recognized and CSA certified. It supports inductive loads up to 25A and resistive loads up to 35A, making it suitable for HVAC, refrigeration, and other motor control uses. The compact size and robust construction ensure consistent performance and easy installation.

• Amperage Rating: 25A inductive, 35A resistive
• Voltage: 110-120V AC coil, 50/60 Hz
• Number of Poles: 4 (four-pole)
• Mounting Type: Metal mounting plate, open enclosure
• Terminals: Quick connect and screw/pressure plate
• Interrupt Rating: Suitable for definite purpose motor control
• Certifications: UL Recognized, CSA Certified, RoHS Compliant
• Dimensions: 3.38 x 3.75 x 2.68 inches
• Weight: 2.3 lbs
• Non-reversing contactor type
• Frame/Series: C25D series

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 110 VAC coil.

Specifications

• Part Number: C25END425A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 4
• Configuration : Non-Reversing
• Coil Voltage Maximum : 120
• Full Load Amps : Full Load Amps-Inductive 25A Full Load Amps-Resistive 30A
• Coil Voltage Minimum : 120
• Frequency : 50 Hz

Product Data

• UPC : 782113542324
• GTIN : 00782113542324
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 3.75 in x 2.68 in (Length/Depth x Height x Width)
• Weight : 2.3 lb
• Certification : CSA, RoHS, UL Listed
