C25END425C - Cutler Hammer 25A 4-Pole 440-480V AC Coil Definite Purpose Contactor

C25END425C

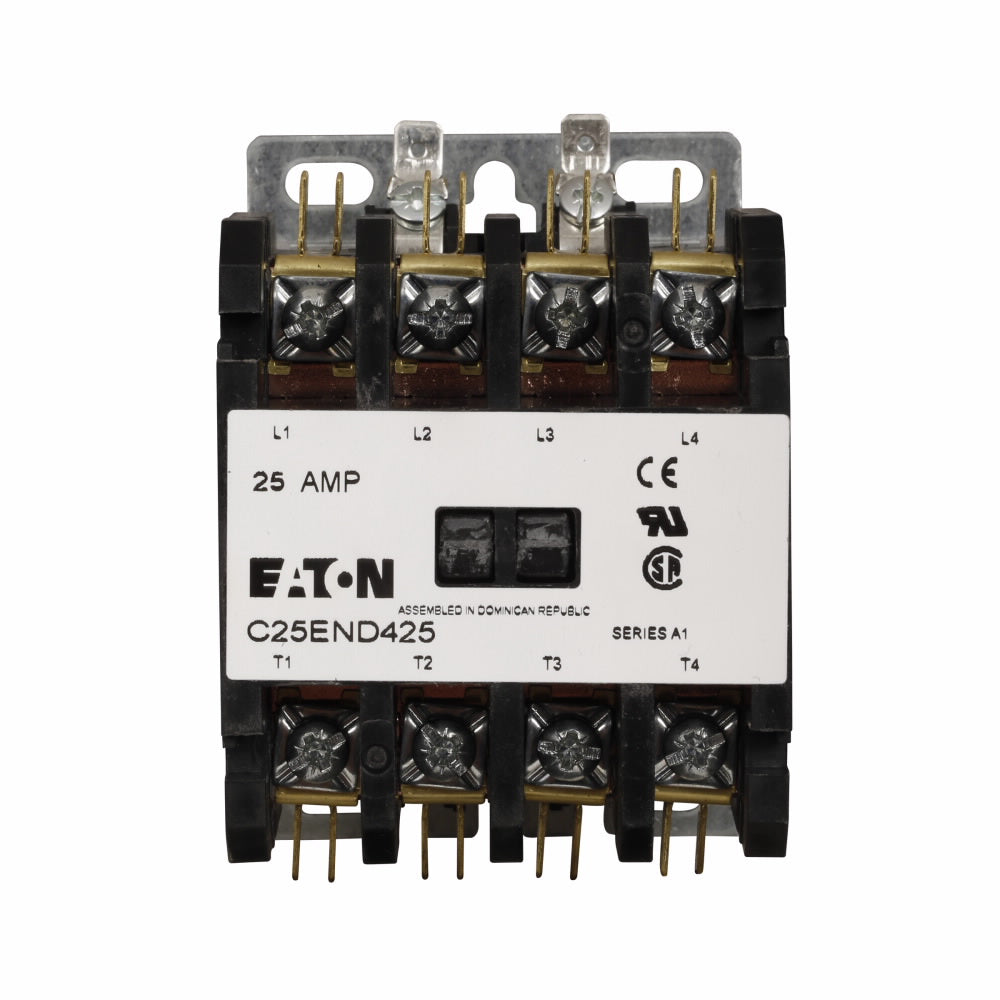

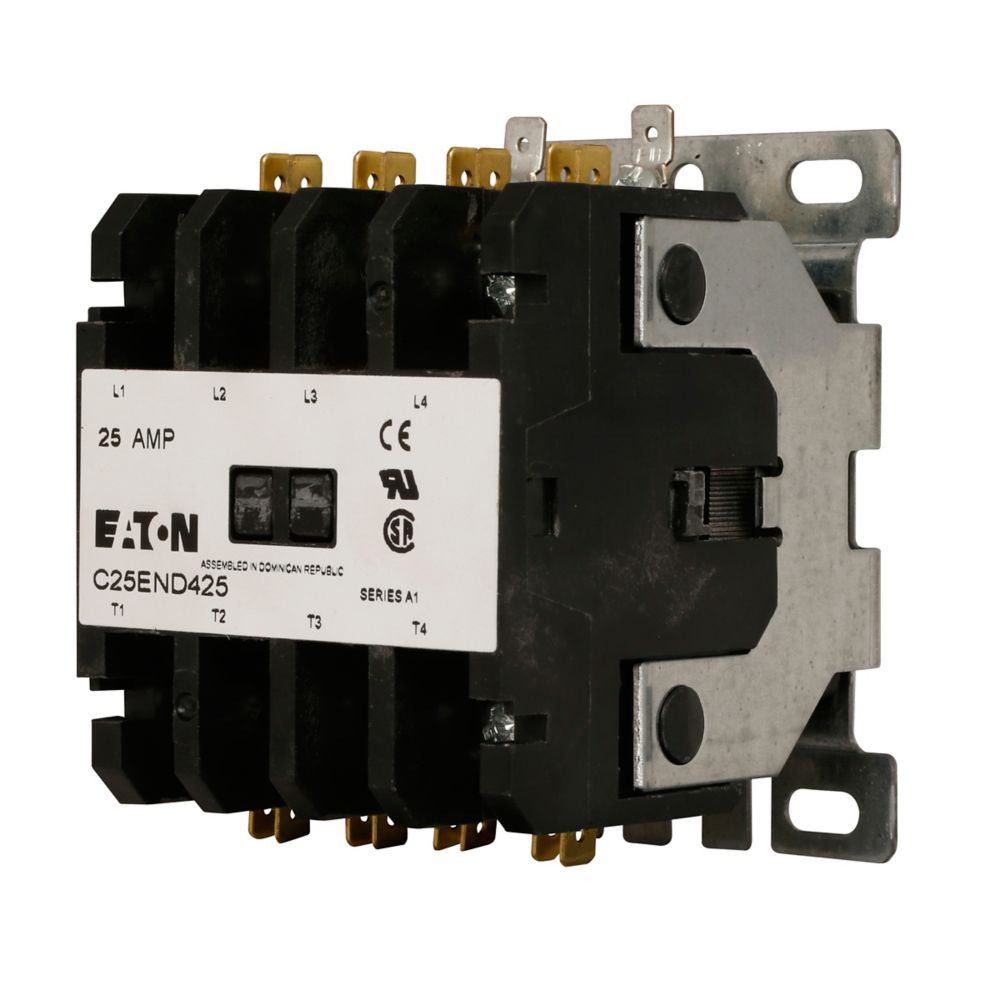

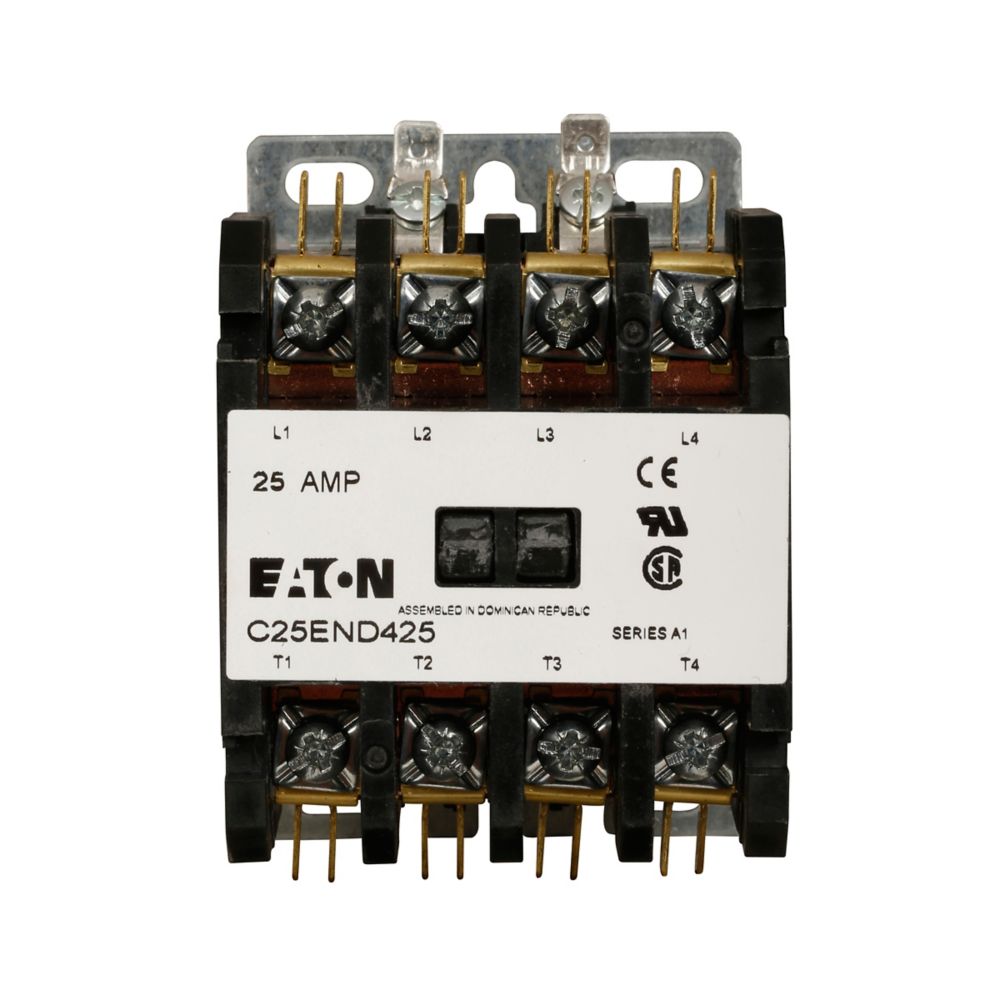

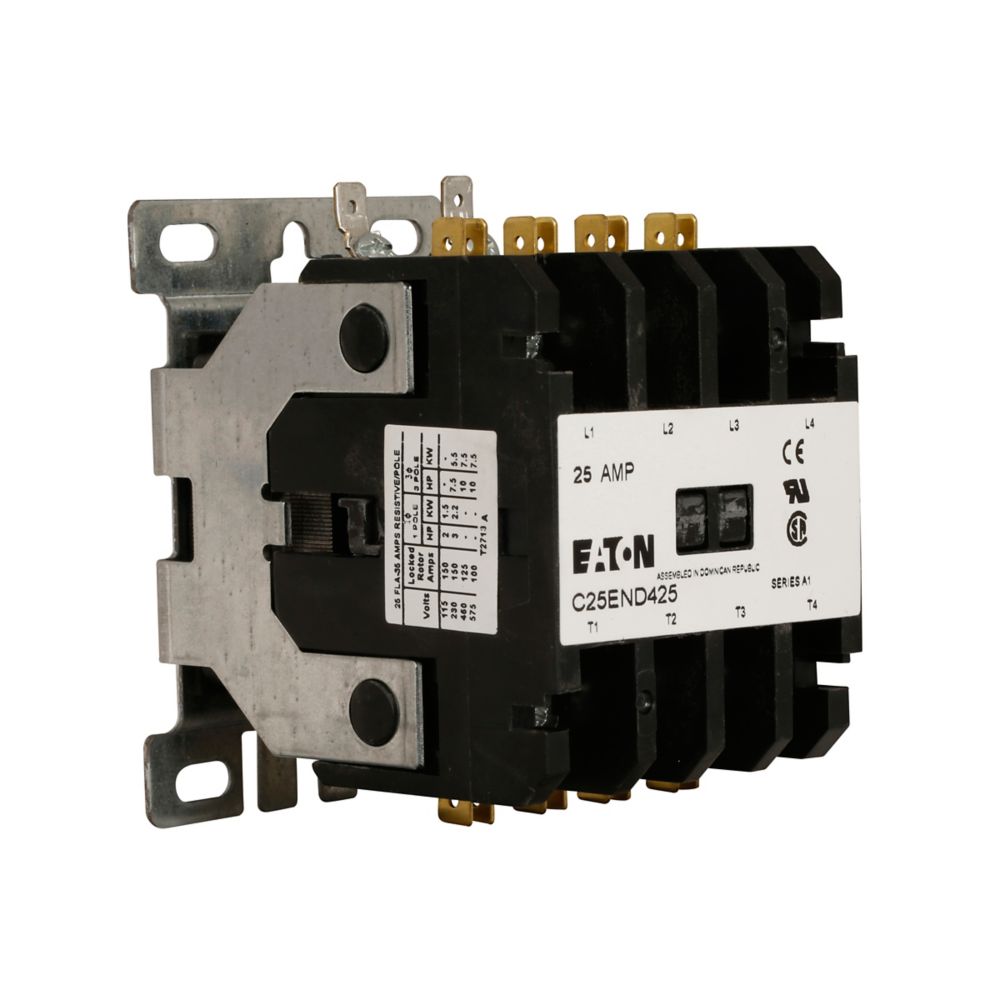

C25END425C is a Cutler Hammer definite purpose contactor rated for 25 amps with a 4-pole configuration and a 440-480V AC coil.

This contactor is designed for reliable motor control applications, featuring a non-reversing type with an open enclosure and metal mounting plate. It supports 3-phase operation up to 600V and is suitable for use in HVAC, refrigeration, and other industrial equipment. The device includes double quick connect terminals for easy wiring and is UL recognized and CSA certified for North American and European markets.

• Amperage Rating: 25A
• Voltage Rating: 600V maximum
• Coil Voltage: 440-480V AC, 50/60 Hz
• Number of Poles: 4
• Type: Non-Reversing
• Mounting: Open enclosure with metal mounting plate
• Terminals: Double quick connect
• Certifications: UL recognized, CSA certified
• Series: C25 Series

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 440 VAC coil.

Specifications

• Part Number: C25END425C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 4
• Configuration : Non-Reversing
• Coil Voltage Maximum : 480
• Coil Voltage Minimum : 440
• Frequency : 50 Hz

Product Data

• UPC : 782113549613
• GTIN : 00782113549613
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 3.75 in x 2.68 in (Length/Depth x Height x Width)
• Weight : 2.19 lb
• Certification : CSA Certified,UL Recognized,RoHS Compliant
