C1F002LES - Hammond Power Solutions 2 kVA 1-Phase 240/480V to 120/240V Encapsulated Distribution Transformer NEMA 3R Wall Mount

C1F002LES

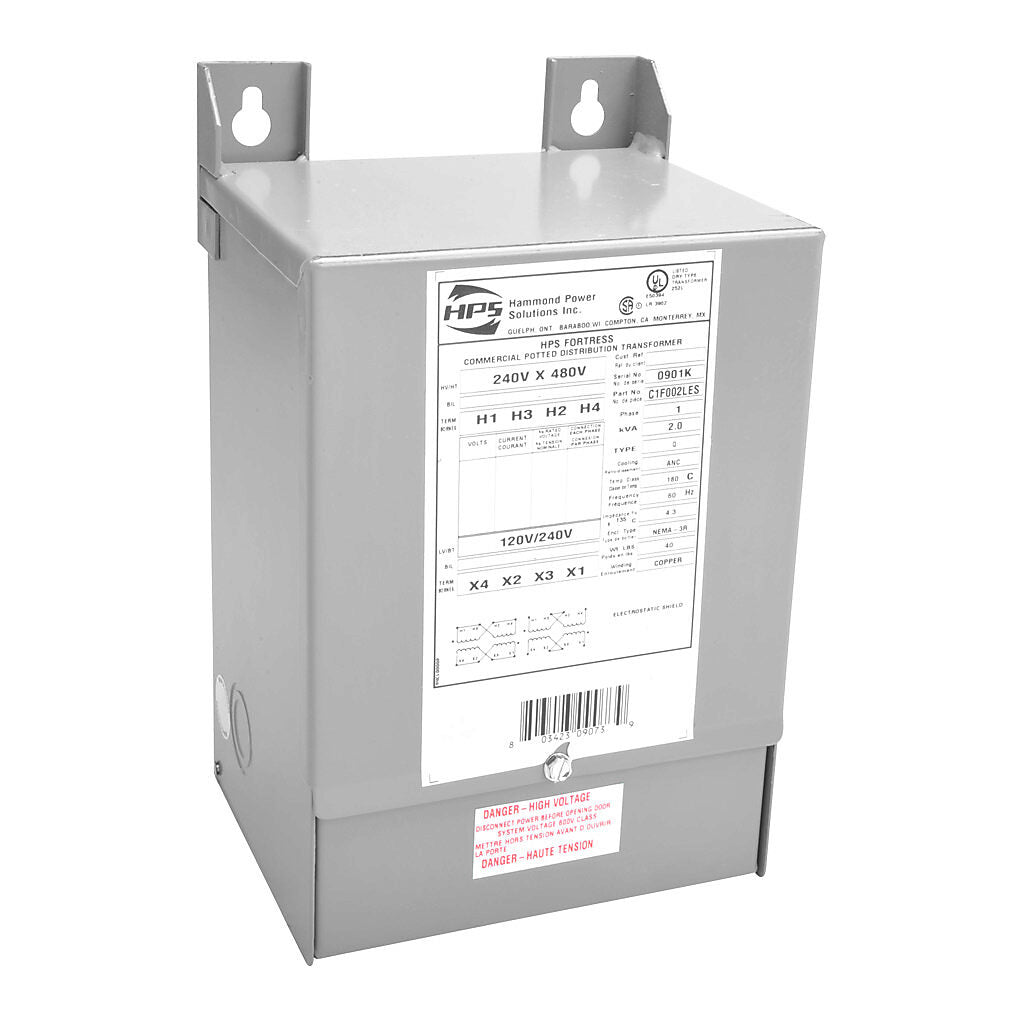

C1F002LES is a Hammond Power Solutions 2 kVA single-phase encapsulated distribution transformer designed for commercial and industrial applications.This transformer features a 240/480 V AC primary voltage and a 120/240 V AC secondary voltage with a frequency rating of 60 Hz. It is housed in a NEMA 3R rated enclosure suitable for indoor and outdoor use, with a wall mounting type. The unit includes electrostatic shielding and is constructed with high-quality materials including copper windings and an all-welded core made from high permeability silicon steel laminations. Dimensions are approximately 11-3/4 inches high, 7 inches wide, and 6-1/2 inches deep.

• Power Rating: 2 kVA
• Phase: Single-phase
• Primary Voltage: 240/480 V AC
• Secondary Voltage: 120/240 V AC
• Frequency: 60 Hz
• Enclosure Type: NEMA 3R (Indoor/Outdoor)
• Mounting Type: Wall mount
• Construction: Encapsulated core with copper windings
• Electrostatic Shield: Included
• Dimensions: 11-3/4 in H x 7 in W x 6-1/2 in D
• Finish: ANSI 61 UL 50 gray enclosure
• Certifications: UL and CSA approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: C1F002LES
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 2kVA 240x480V-120/240V 60Hz CU
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 240x480
• Primary Connection : Parallel x Series (Vx2V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 135°C
• Insulation Class : 180°C
• EKVA : 2
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Secondary Termination (NPL) : Wire Leads
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ4-N3R
• Enclosure Dimensions : 11.75in/299mm(H), 7.06in/180mm(W), 6.25in/159mm(D)
• Electrostatic Shield : Single
• Nameplate : Standard
• Standard kVA : 2
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No

Product Data

• UPC : 803423090739
• GTIN : 00803423090739
• Weight : 40
• Certification : CSA, UL
