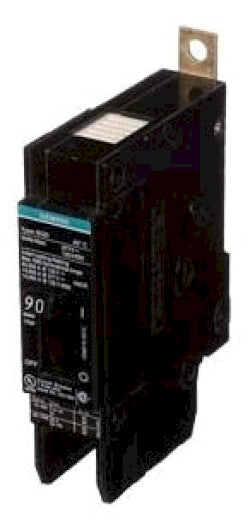

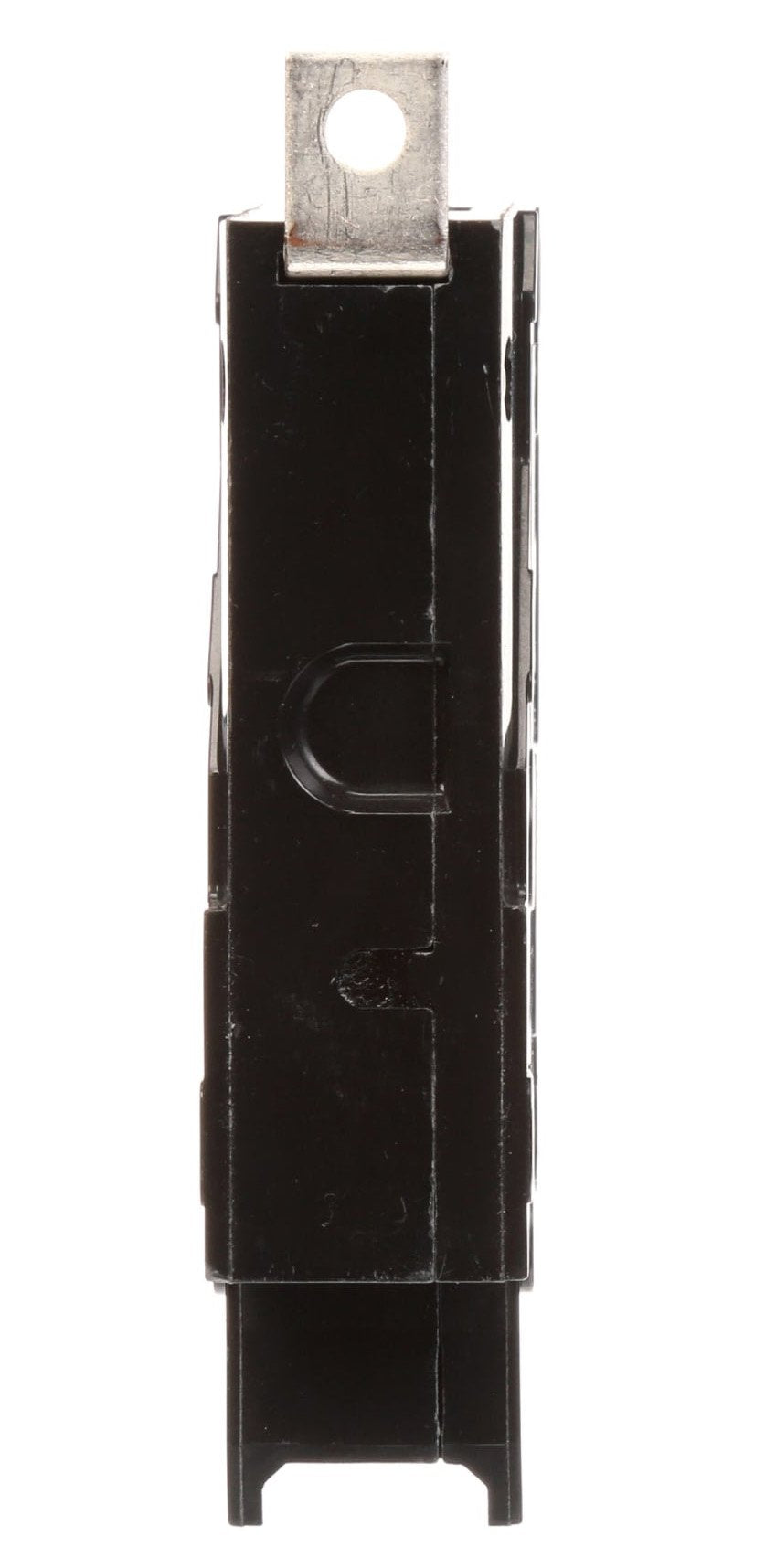

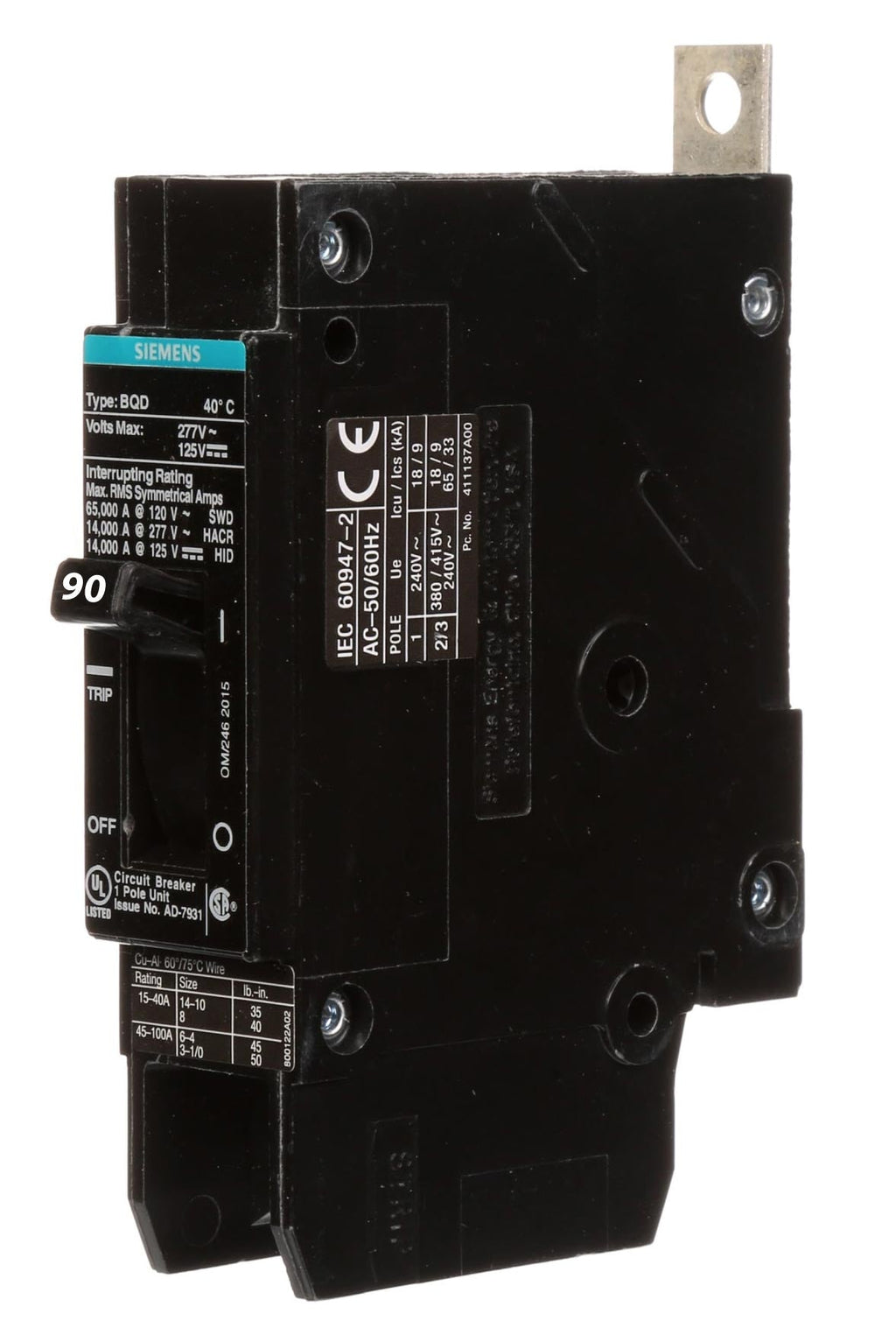

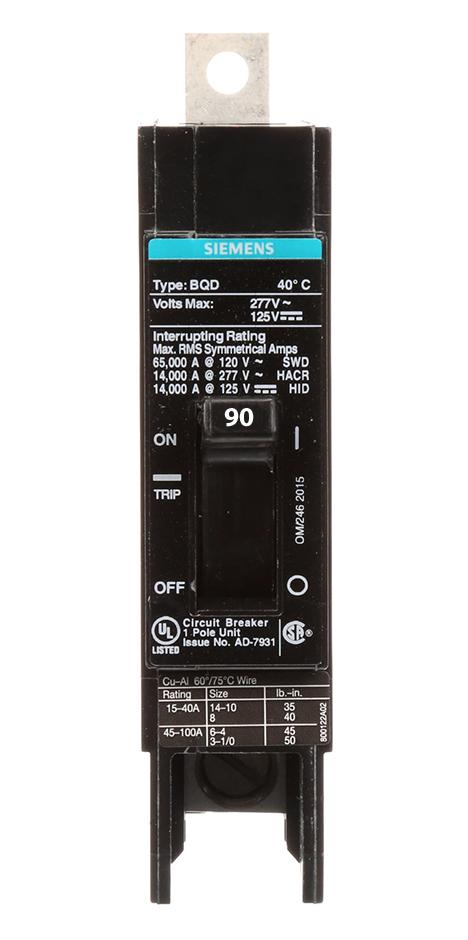

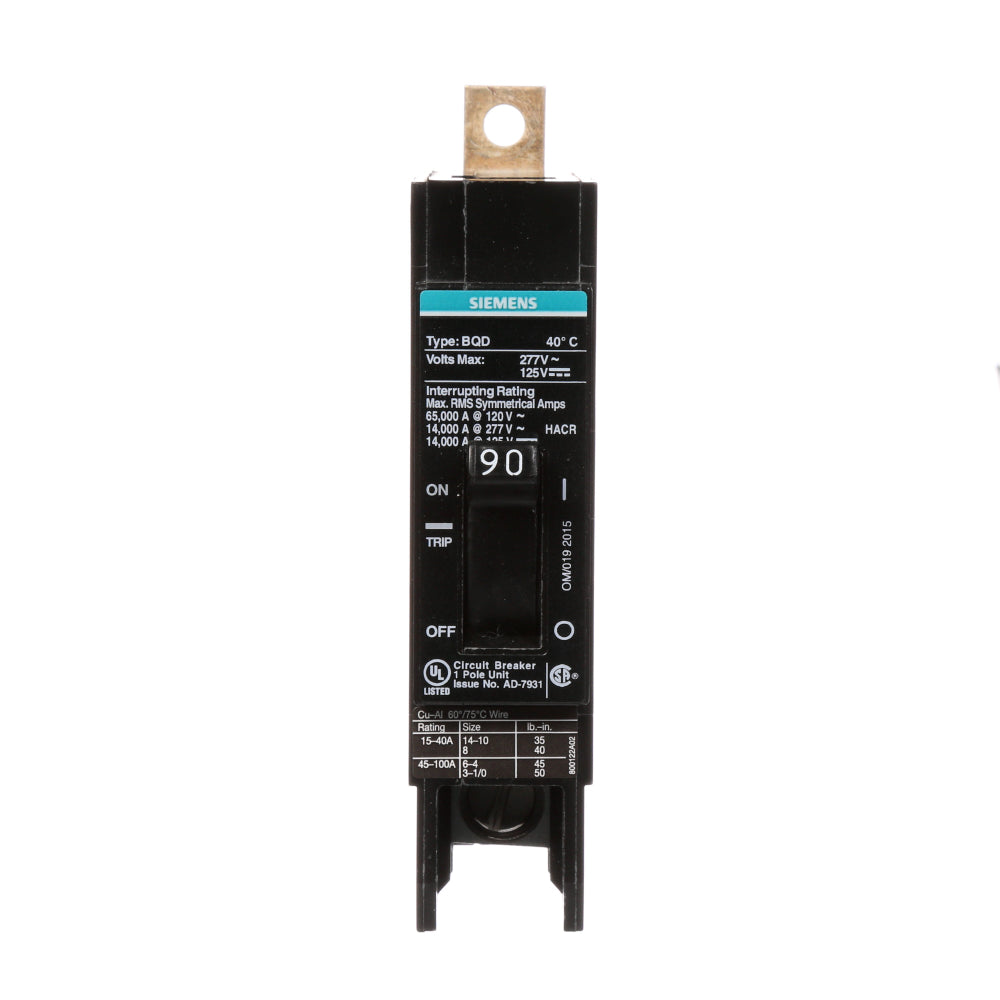

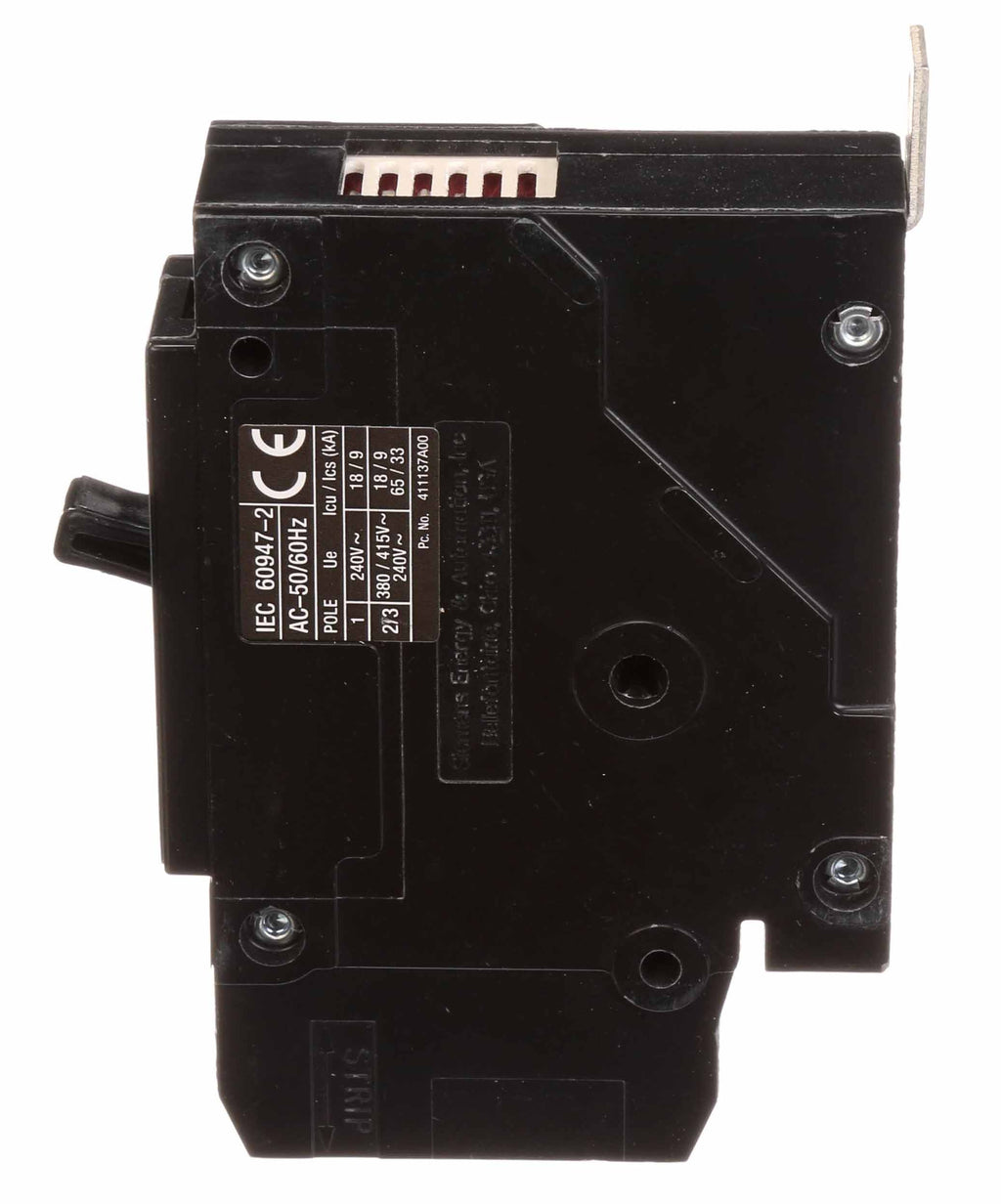

BQD190 - Siemens 90A 277V 1 Pole Bolt-On Molded Case Circuit Breaker BQD Series

BQD190

BQD190 is a Siemens 90A, 277V, 1 Pole bolt-on molded case circuit breaker from the BQD series, designed for reliable overload and short circuit protection in commercial and industrial applications.This breaker features a bolt-on mounting type, a 14,000A interrupting rating at 277V AC, and is suitable for use in panelboards and switchboards requiring UL 489 compliance. The BQD series is known for its robust construction and dependable performance in demanding environments.

• Part Number: BQD190
• Manufacturer: Siemens
• Amperage: 90A
• Voltage: 277V AC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 14,000A at 277V AC
• Series/Frame: BQD
• Trip Unit: Thermal-Magnetic
• Certifications: UL 489
• Protection: Overload and Short Circuit
• Connection Type: Low Tab

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQD190
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQD Series
• Type : BQD
• Voltage : 277
• Amperage : 90
• Phase : 1
• Poles : 1
• AIC rating : 14kA@277V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/BQD
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643277199
• GTIN : 00783643277199
• Country of Origin : Mexico
• Dimensions : 1 in x 4.49 in x 4.49 in
• Weight : 0.65
• Panel Type : Siemens P1 Panelboards
• Standards : CSA-C22.2,UL 502
• Certification : CSA-C22.2,UL 502
